Technical
Specifications
Surface
| Physical faders | 8 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | No |
| Faders | 8 faders motorisés tactiles, course 100 mm |
| Encoders | 8 encodeurs rotatifs tactiles à poussoir |
| Displays | Afficheurs OLED haute résolution par voie |
Recording
| Onboard recording | No |
|---|
Other
| Protocol | EUCON (protocole de contrôle Ethernet haute vitesse Avid) |
|---|---|
| Daw Support | Pro Tools, Media Composer, Logic Pro, Cubase, Nuendo, Premiere Pro |
| Tablet | Berceau tablette + app Pro Tools Control (métrage, édition tactile) |
| Connectivity | Ethernet Gigabit RJ45, USB Type-A (charge), entrée pédale jack 6,35 mm |
| Modularity | Modulaire : plusieurs S1 juxtaposables, association à l'Avid Dock |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Editorial & artists
Our take
History & design

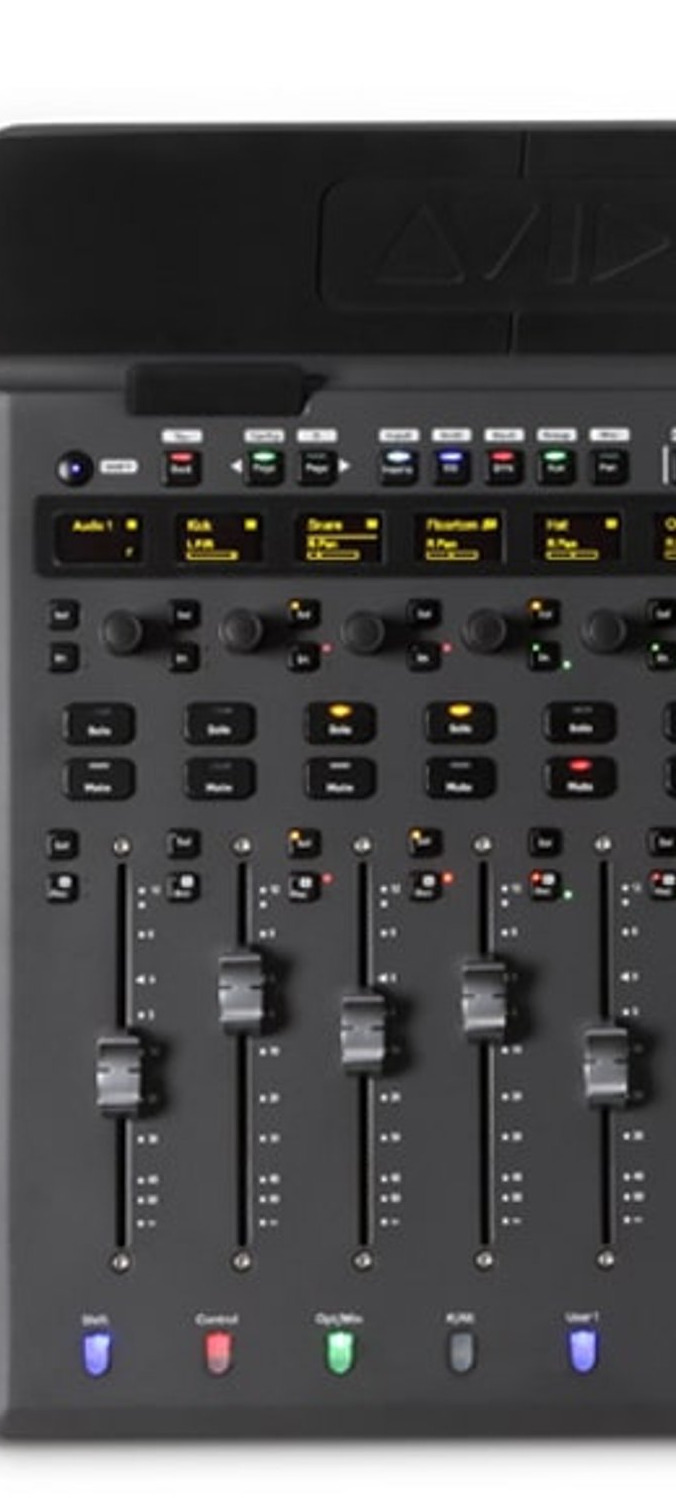

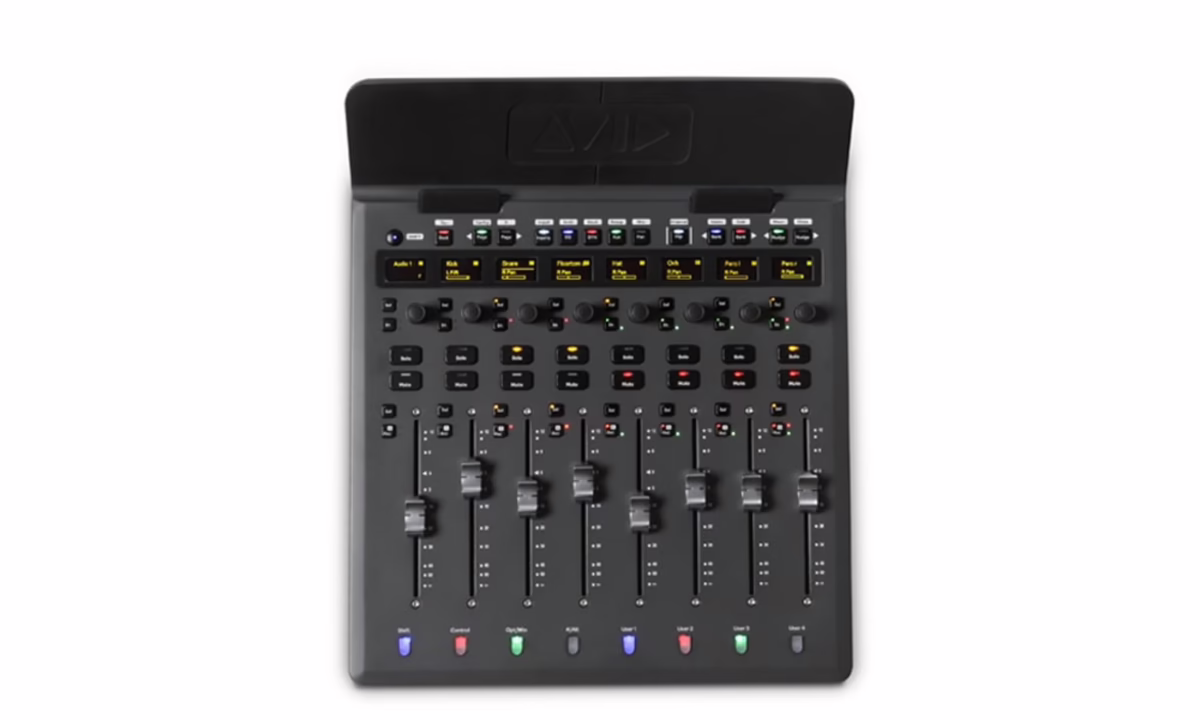

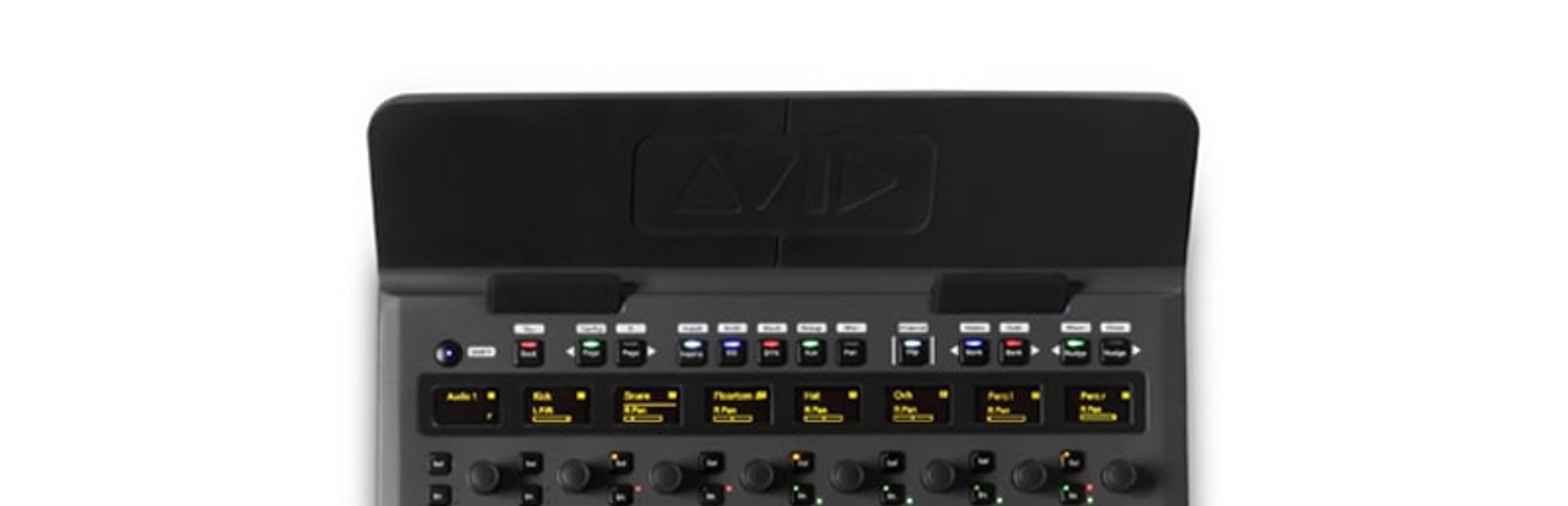

The Avid S1 is a compact desktop control surface introduced in 2019. It offers eight motorized touch-sensitive long-throw faders (100 mm) and eight push-top touch-sensitive rotary encoders, backed by high-resolution OLED displays per channel and a set of dedicated keys (mute, solo, record-enable, banks, modes).

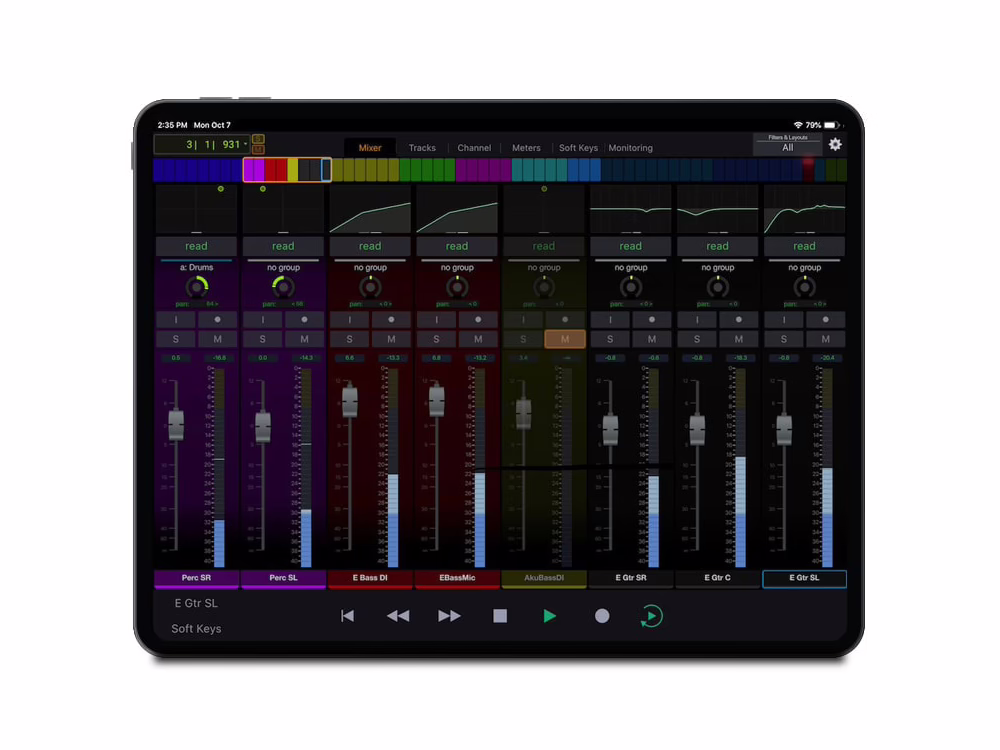

It runs on EUCON, Avid's high-speed Ethernet control protocol, which opens up Pro Tools but also Media Composer, Logic Pro, Cubase, Nuendo and Premiere Pro. A cradle holds a tablet that, through the Pro Tools Control app, layers metering, editing and touch access to parameters.

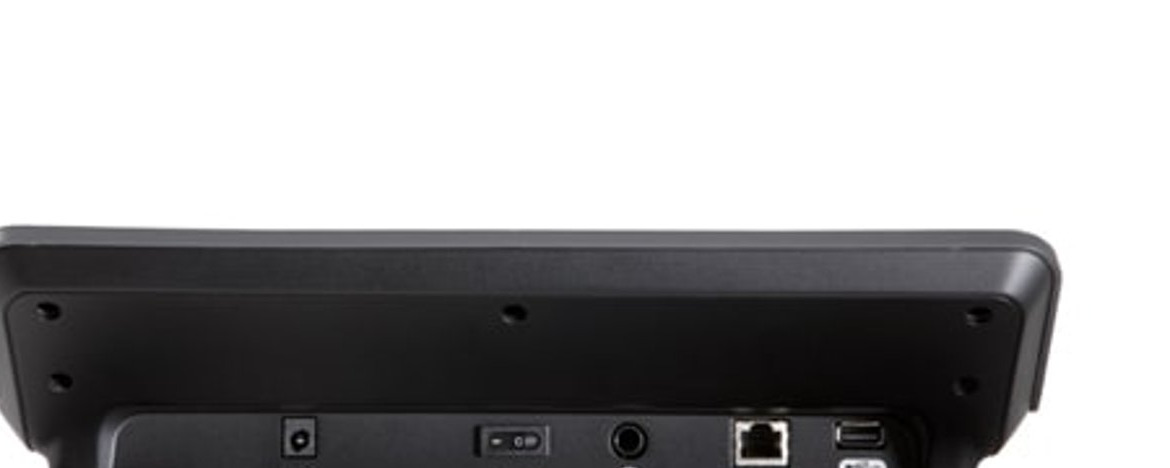

Connectivity is the essentials of a surface: one Gigabit Ethernet port (RJ45), one USB Type-A charging port and a 1/4" footswitch input. The S1 is modular: you can place several side by side and pair them with an Avid Dock to build a console to the size you want.
