Description
Technical
Specifications
Inputs / Outputs
| Computer interface | EUCON over Ethernet; direct control of Pro Tools and other DAWs; up to 8 workstations simultaneously on the network |
|---|
Processing
| Architecture | Modular control surface: one Master Touch Module + up to 46 modules total (M40 engine) |
|---|
Surface
| Physical faders | 64 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | Yes |
| Faders | Up to 64 motorised faders; up to 9 knobs per channel (Knob Modules) |

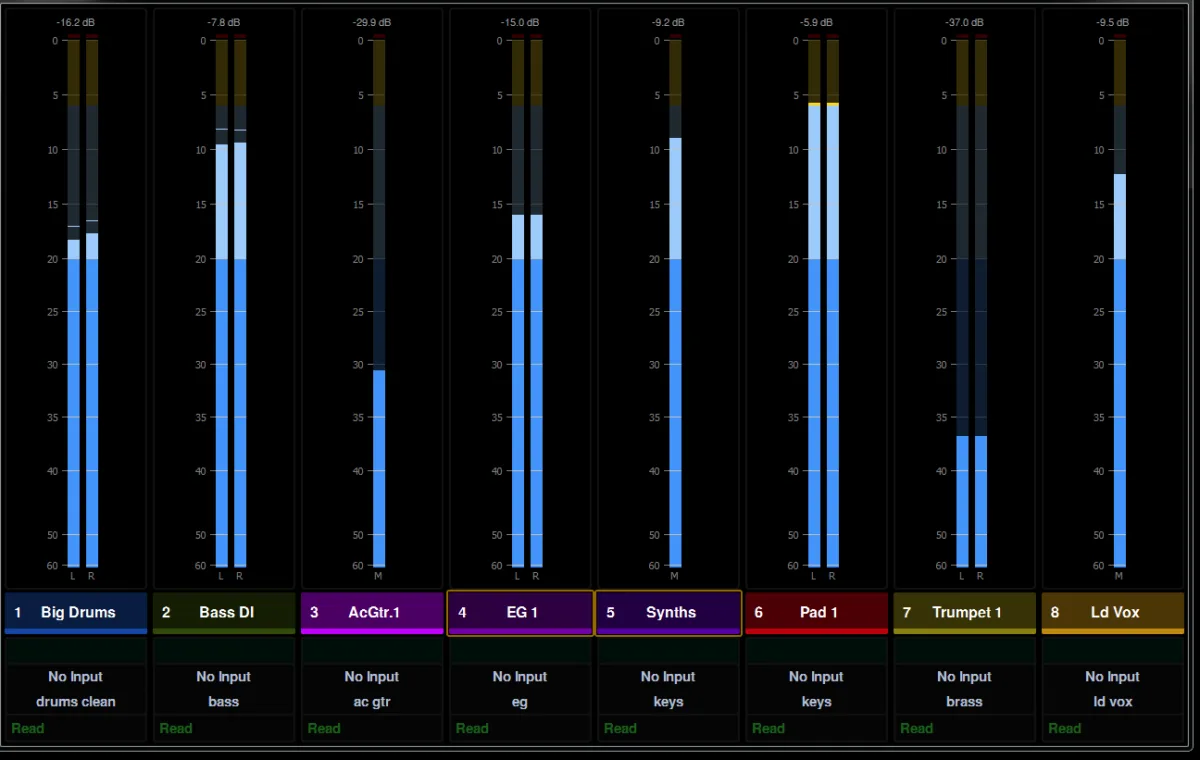

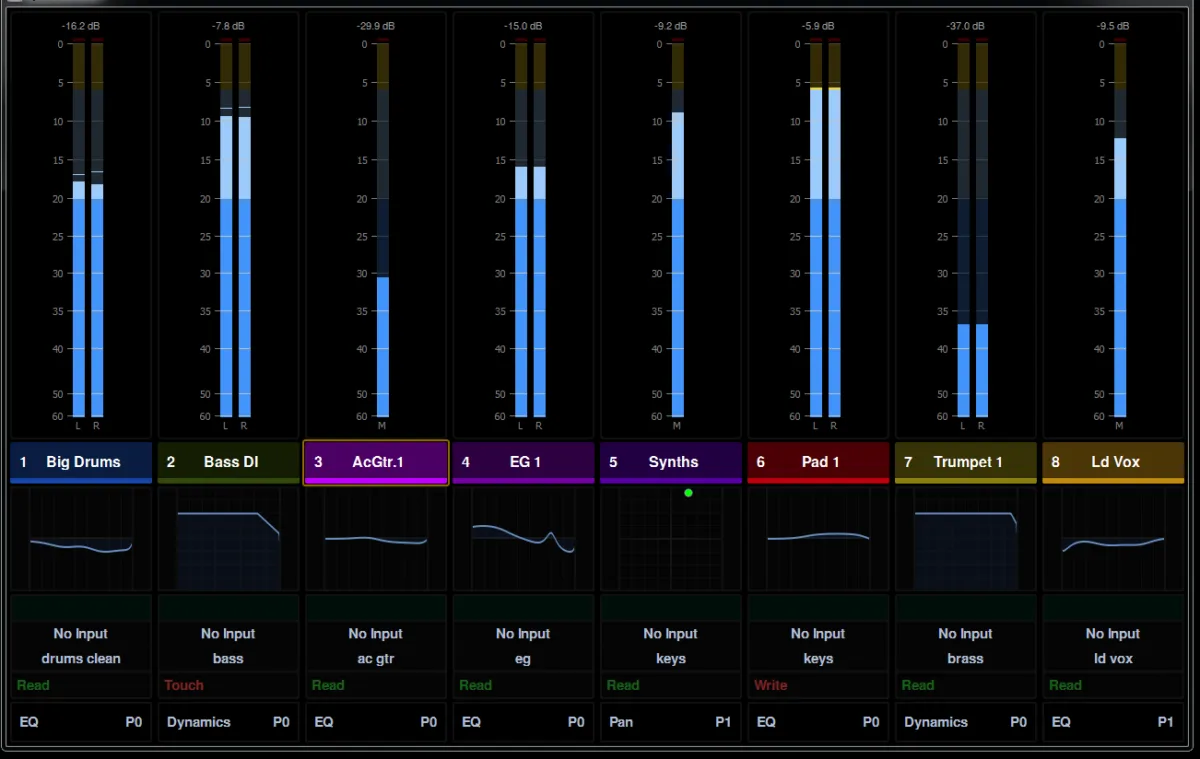

| Screens | Display Modules (per-channel TFT screens): detailed metering and scrolling waveforms editable from the surface — M40-specific |
Recording
| Onboard recording | No |
|---|
Networking
| Redundant PSU | No |
|---|---|
| Redundant networking | No |
Other
| Variants and configurations | Preset configurations of 16, 24 or 32 faders, 5 or 9 knobs per channel, with or without displays (-D suffix) |
|---|---|
| Applications | M40 engine (high-end, with Display Modules) vs M10 (up to 24 faders, no Display Modules); replaces D-Control and System 5 MC |

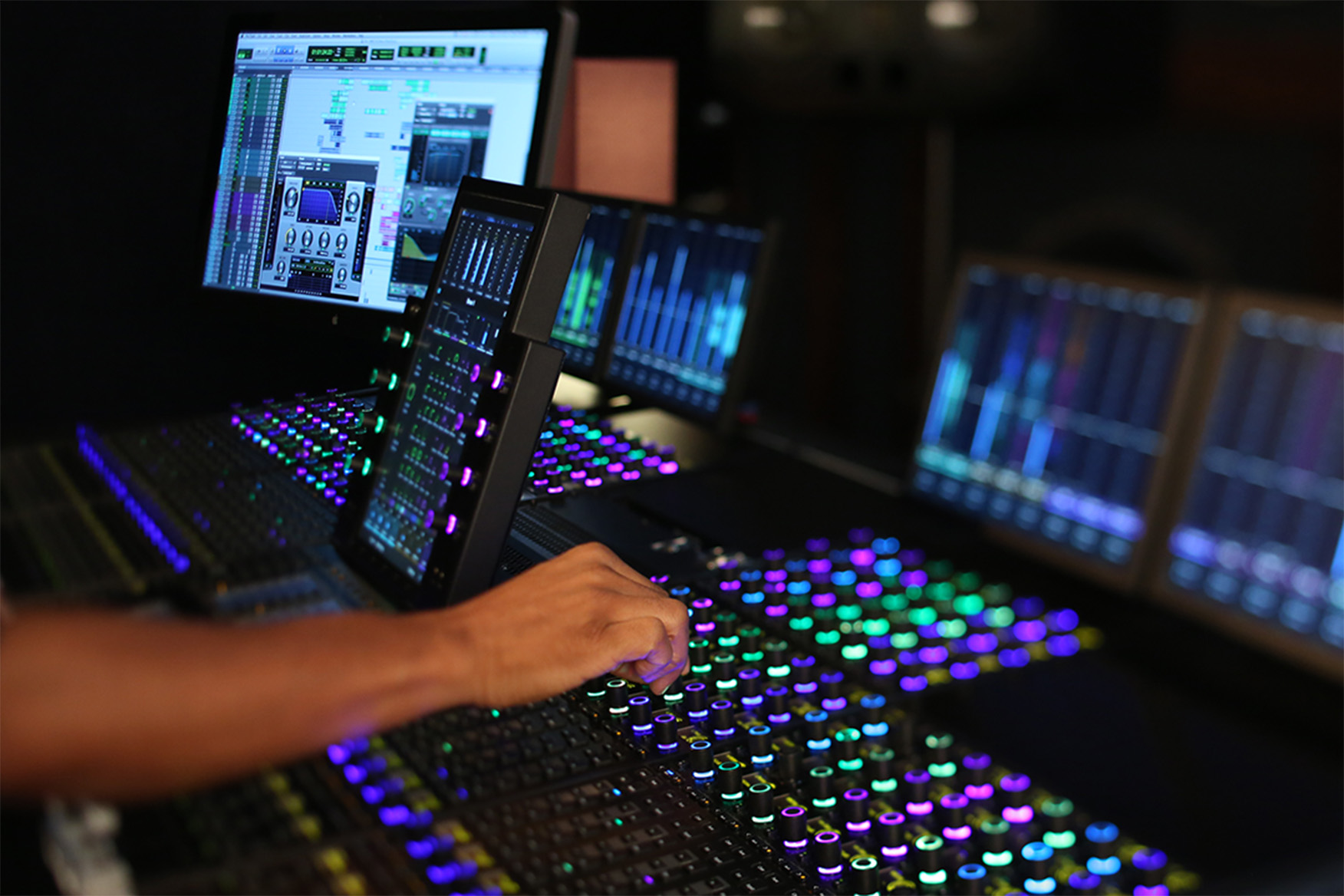

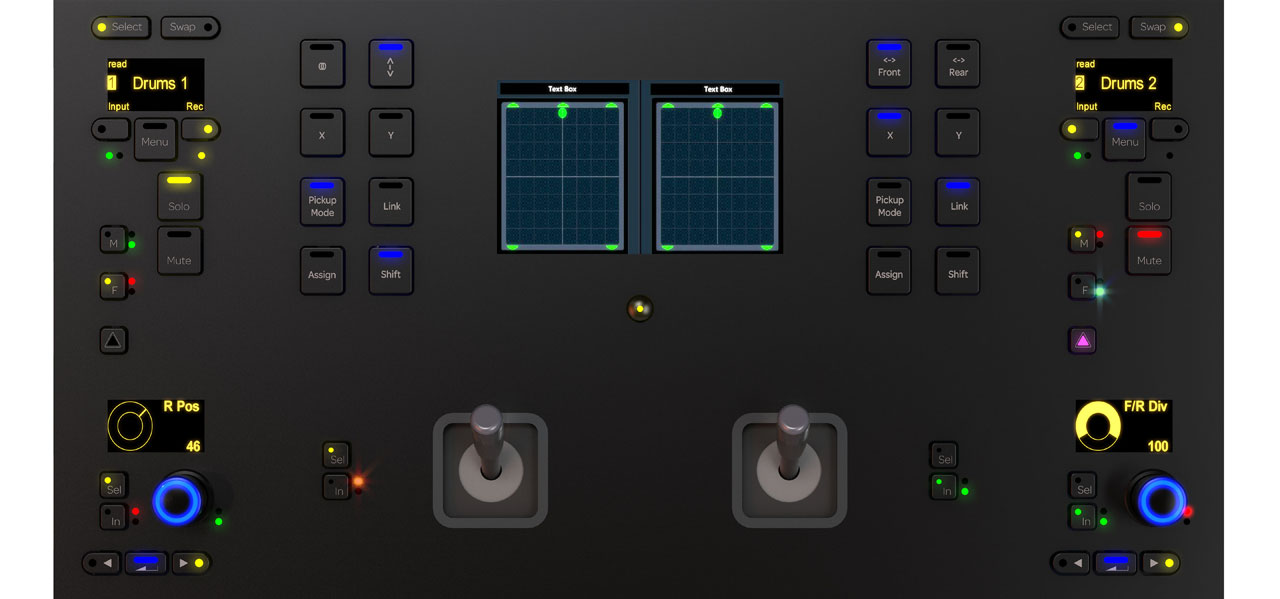

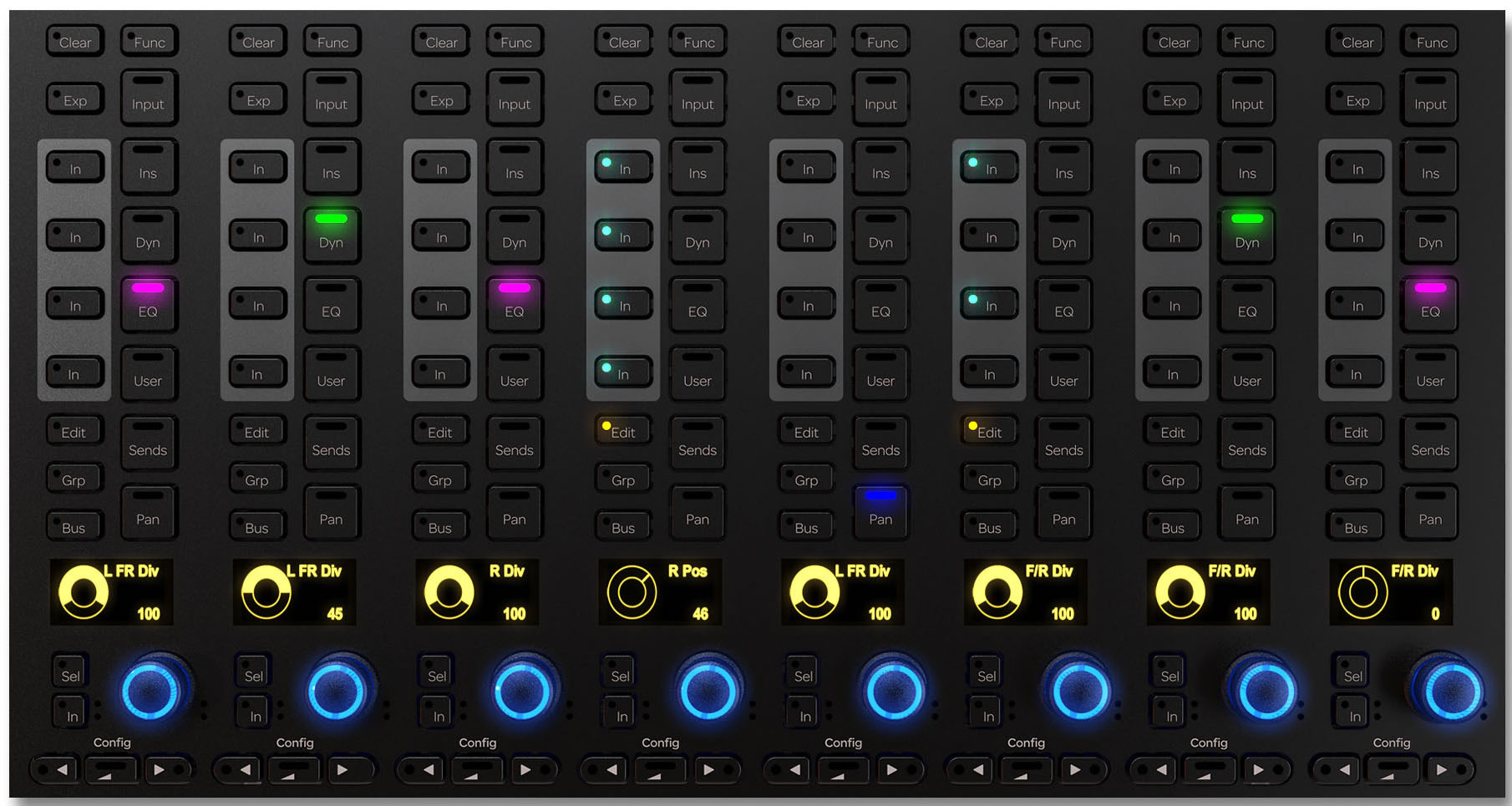

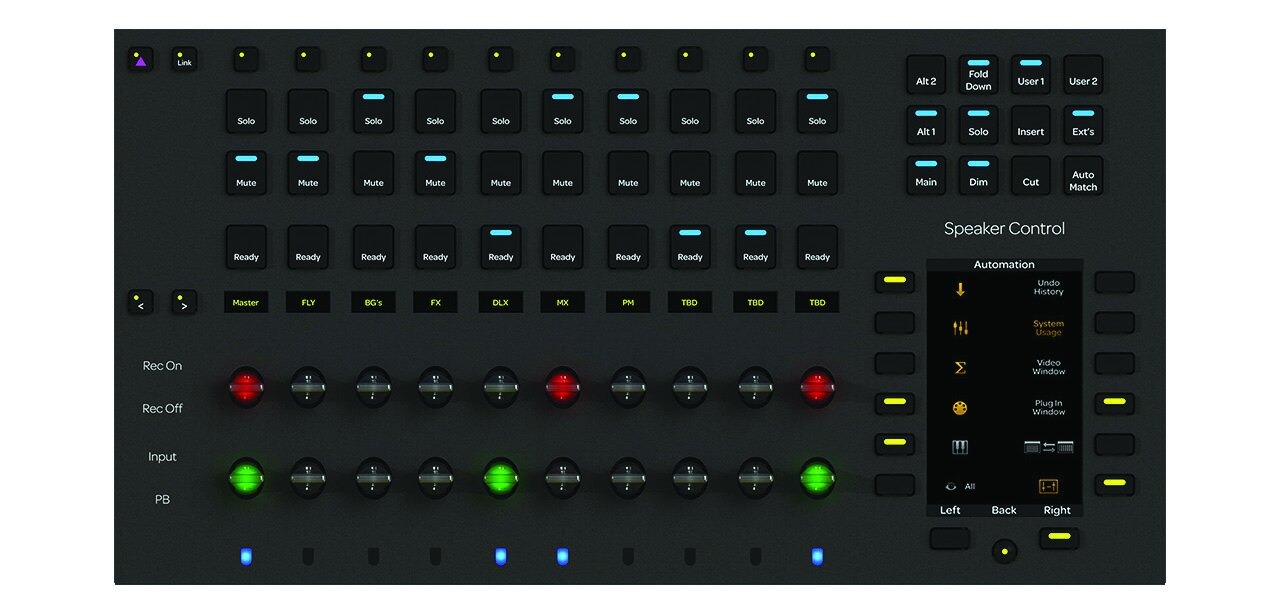

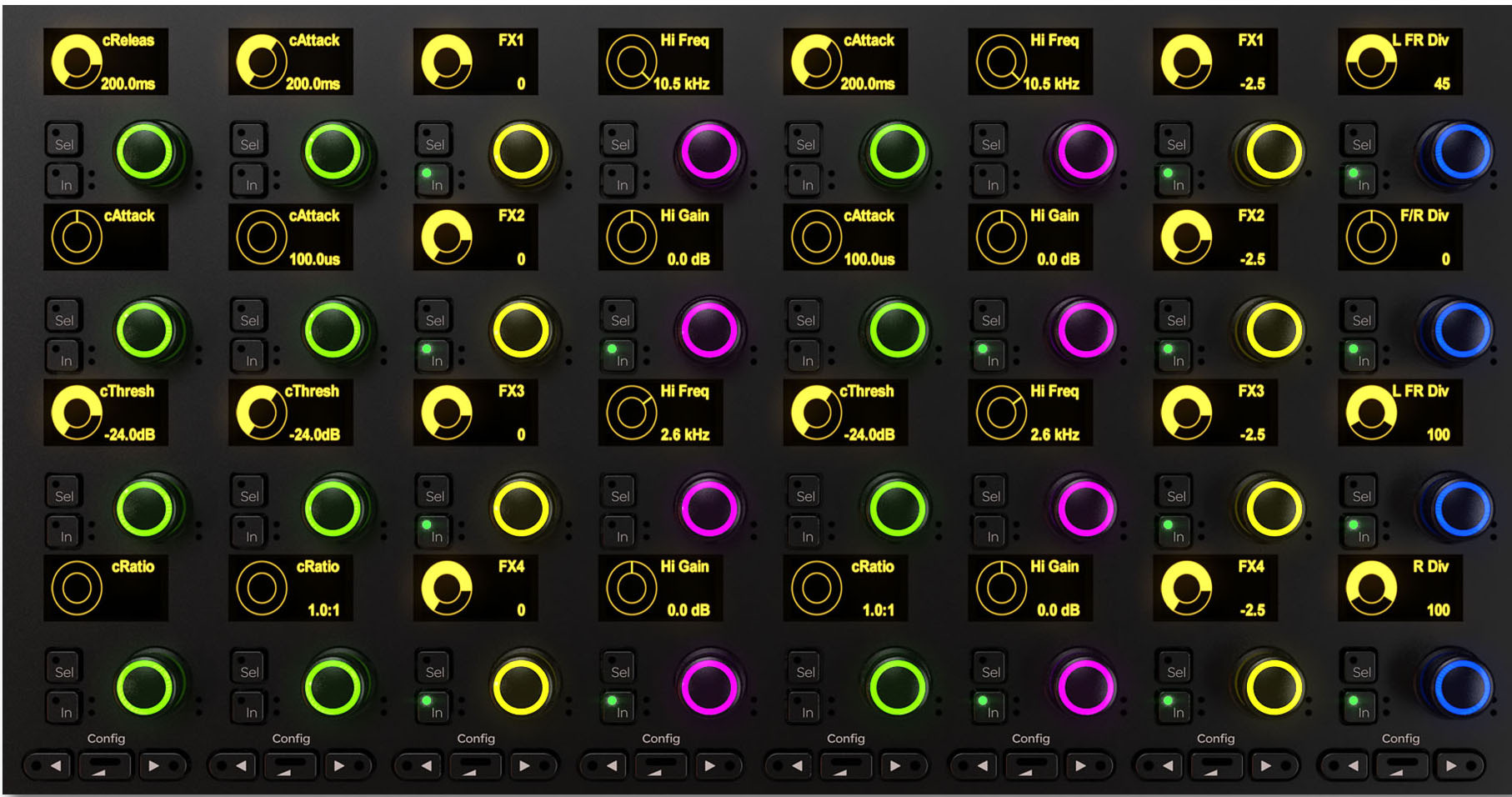

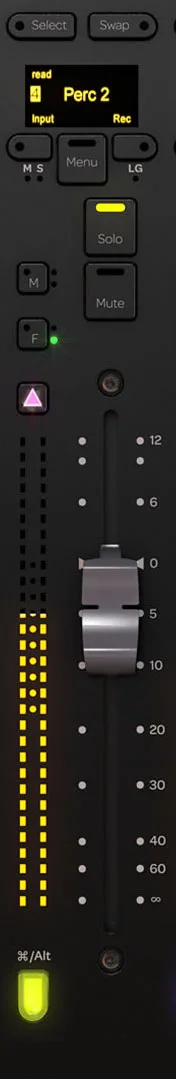

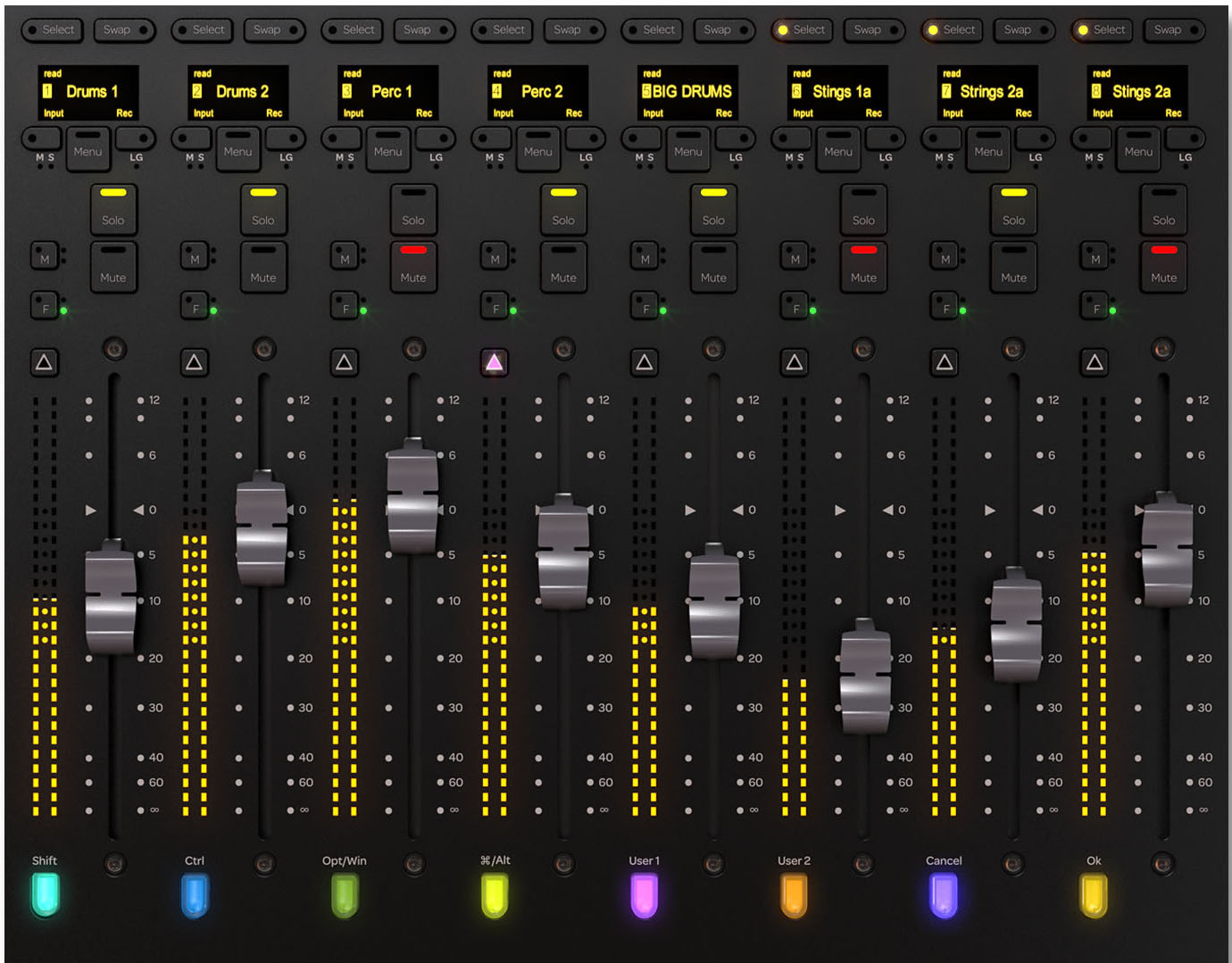

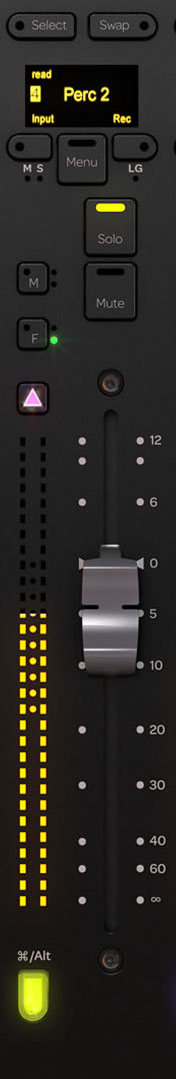

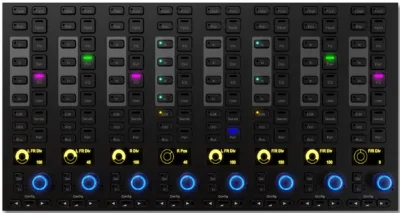

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software

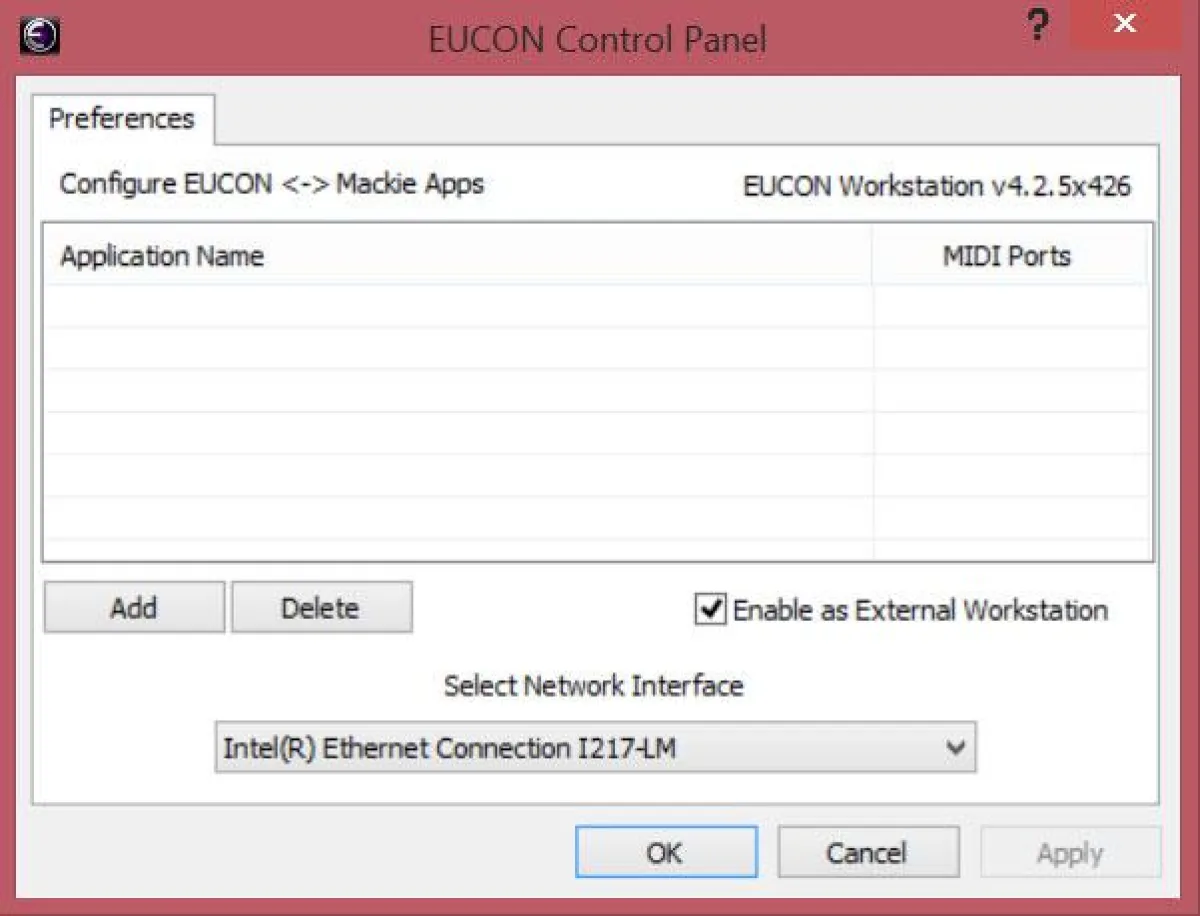

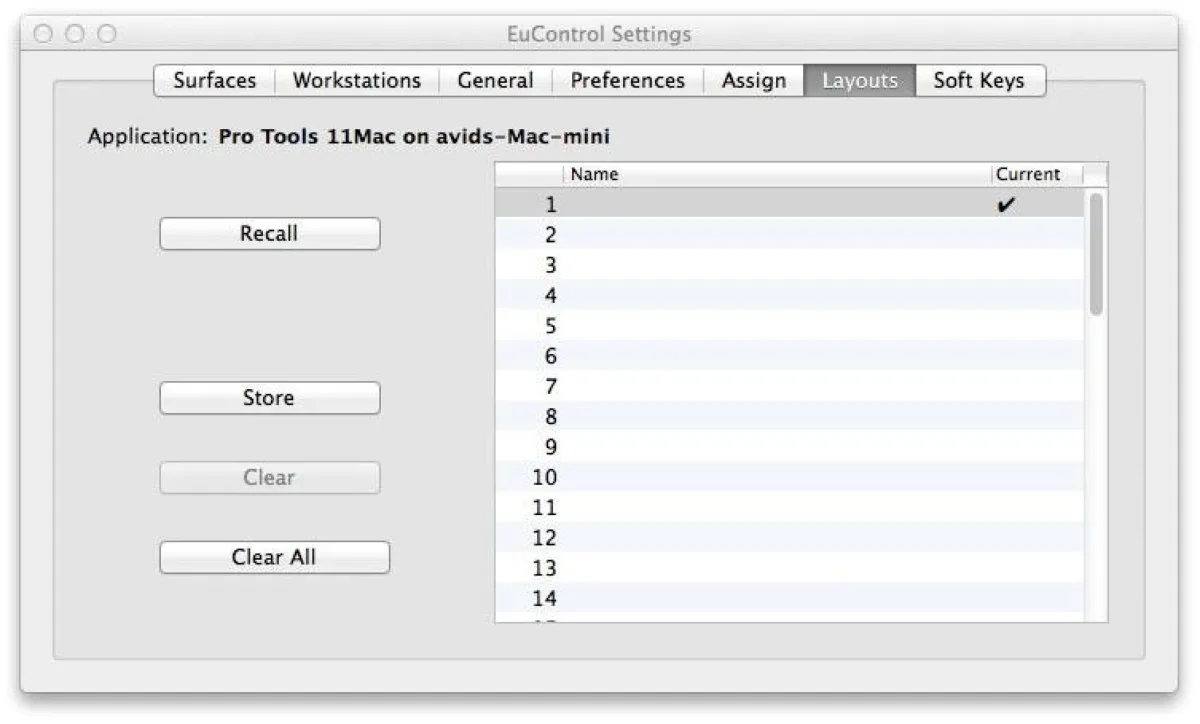

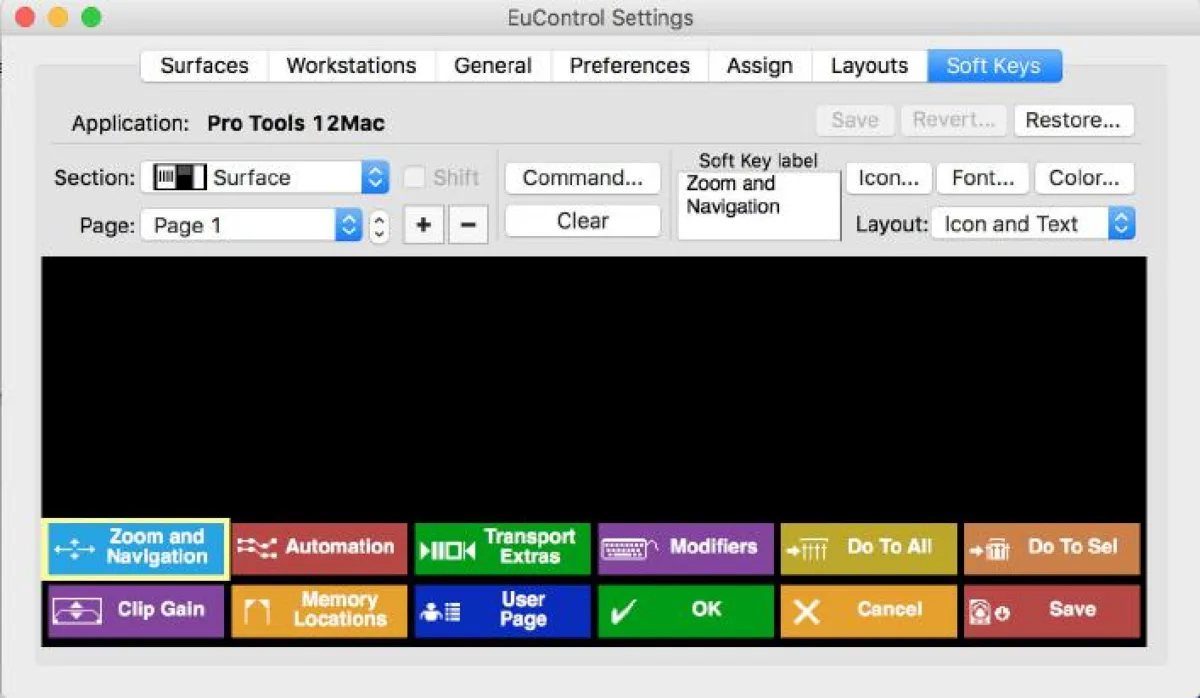

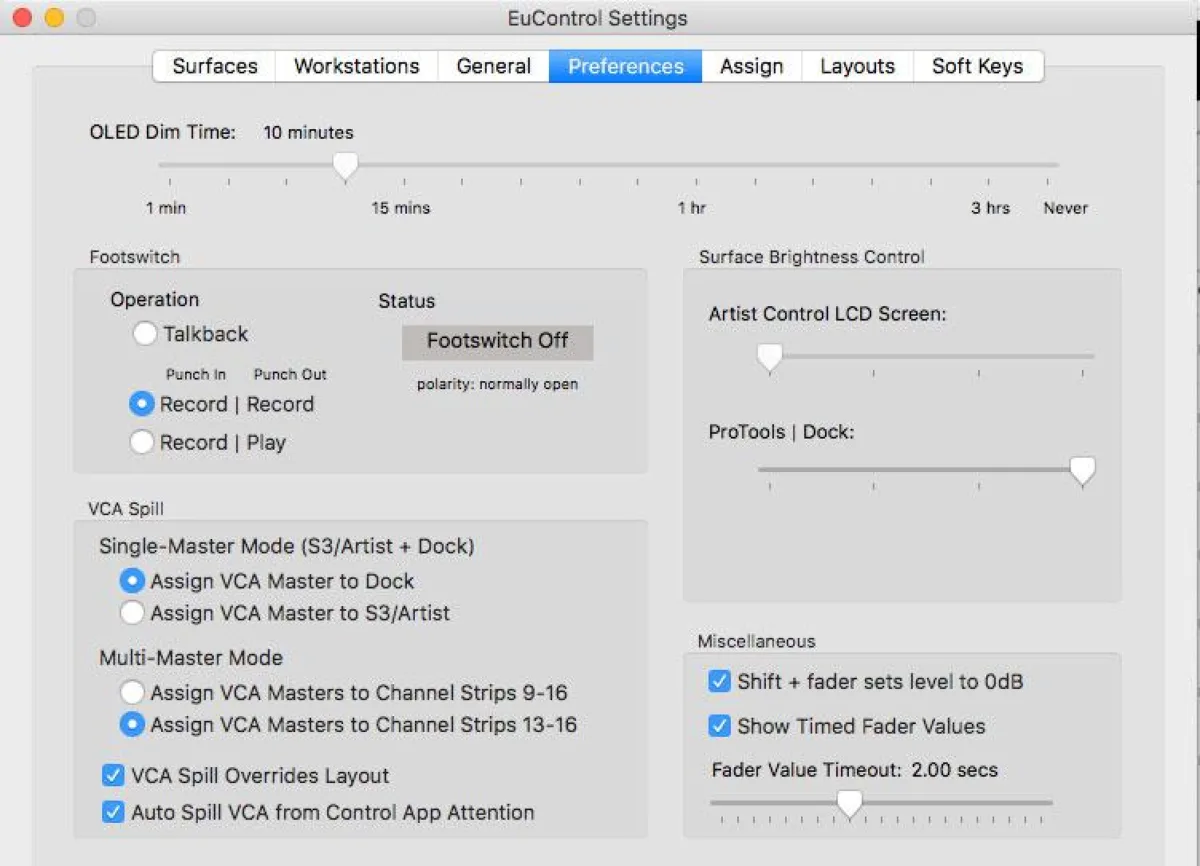

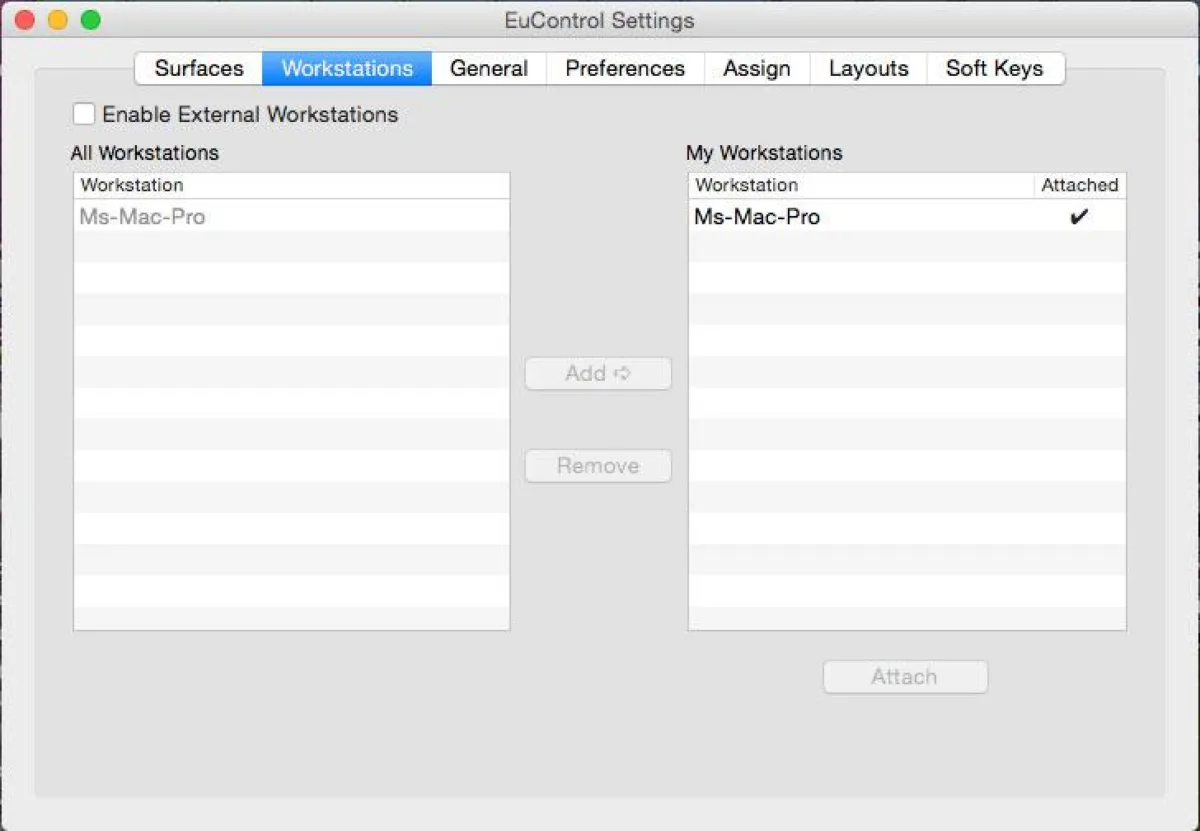

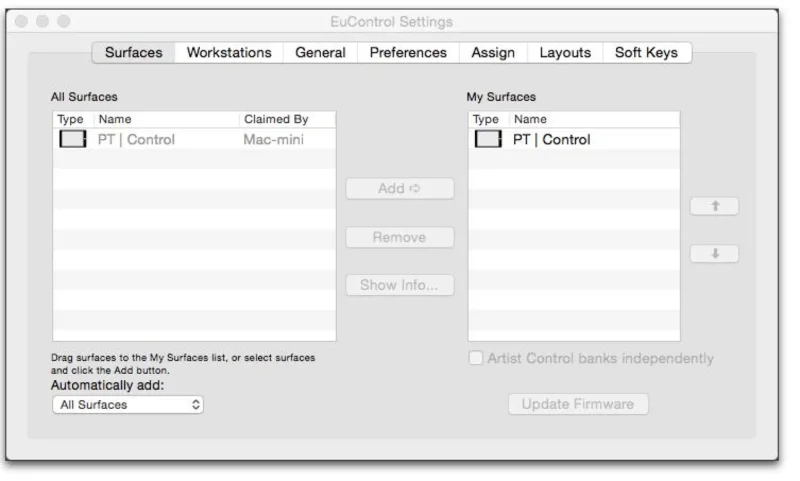

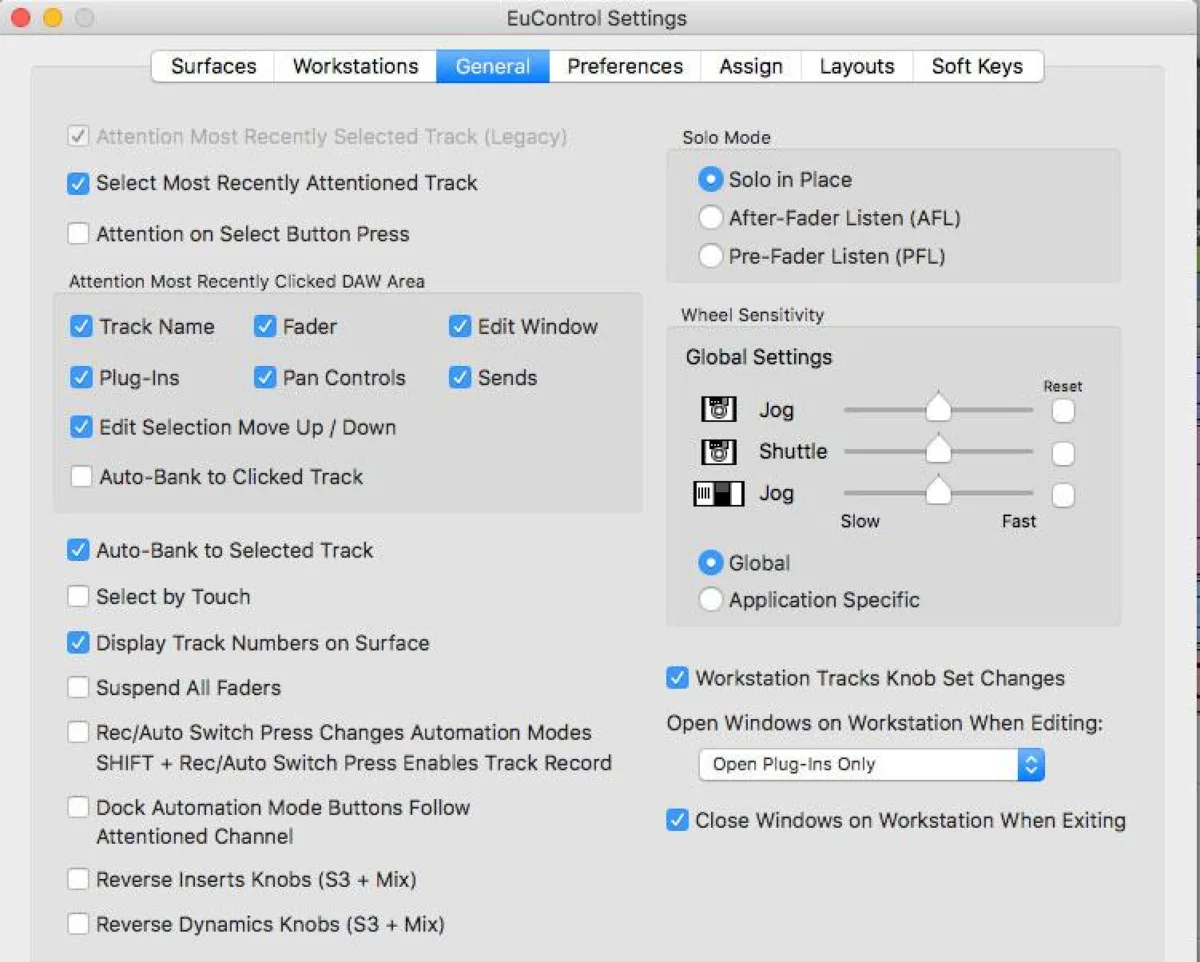

EuControlConfiguration and control software for Avid's EUCON surfaces (including the S6): channel assignment, layouts, connection to EUCON-compatible DAWs.Download

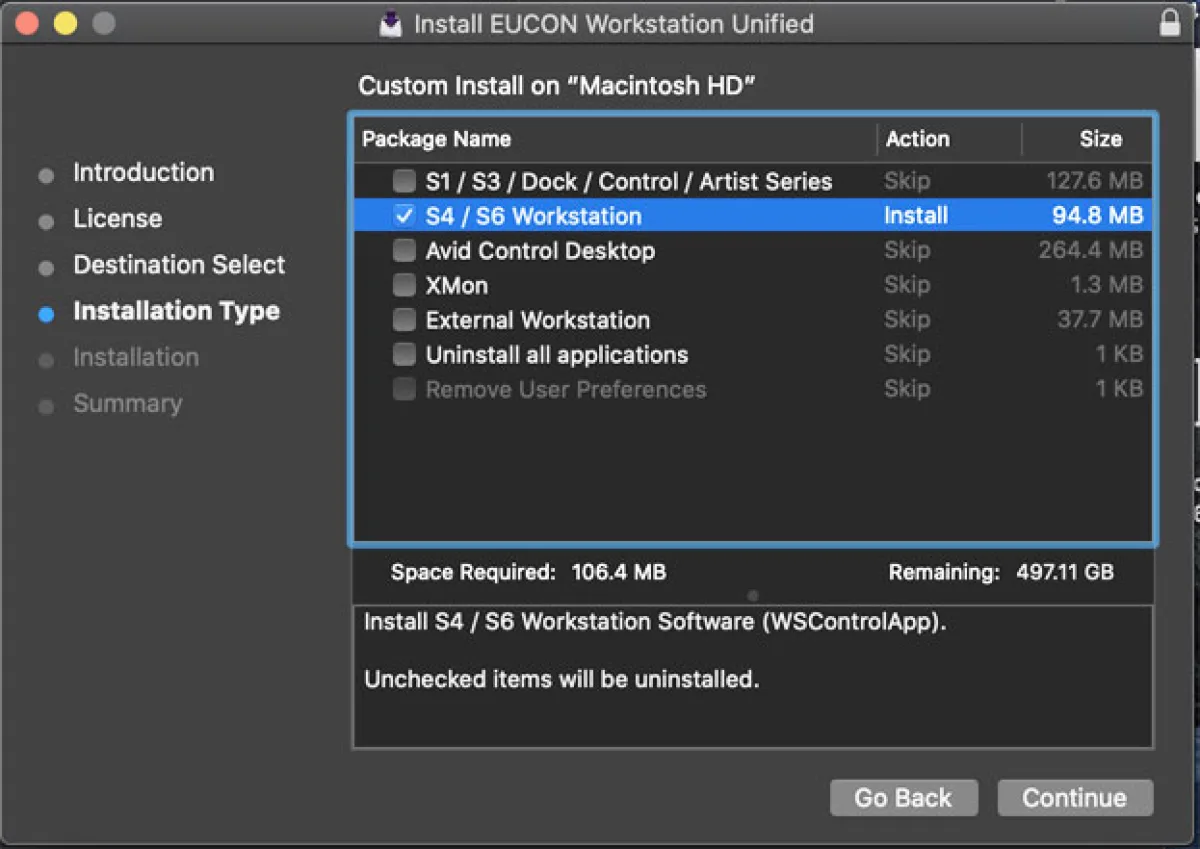

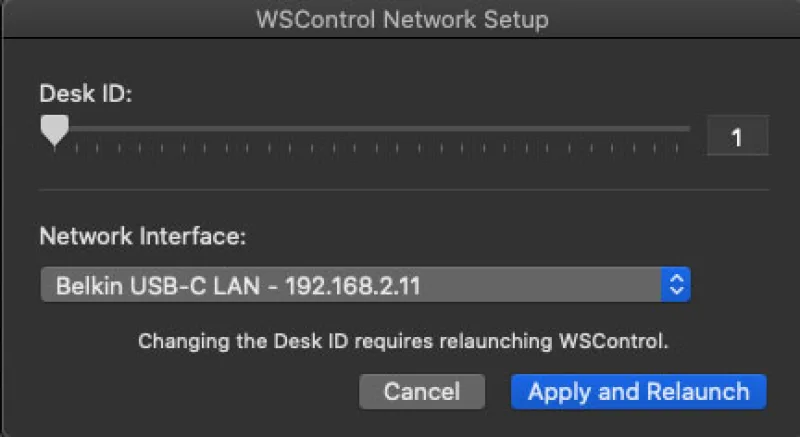

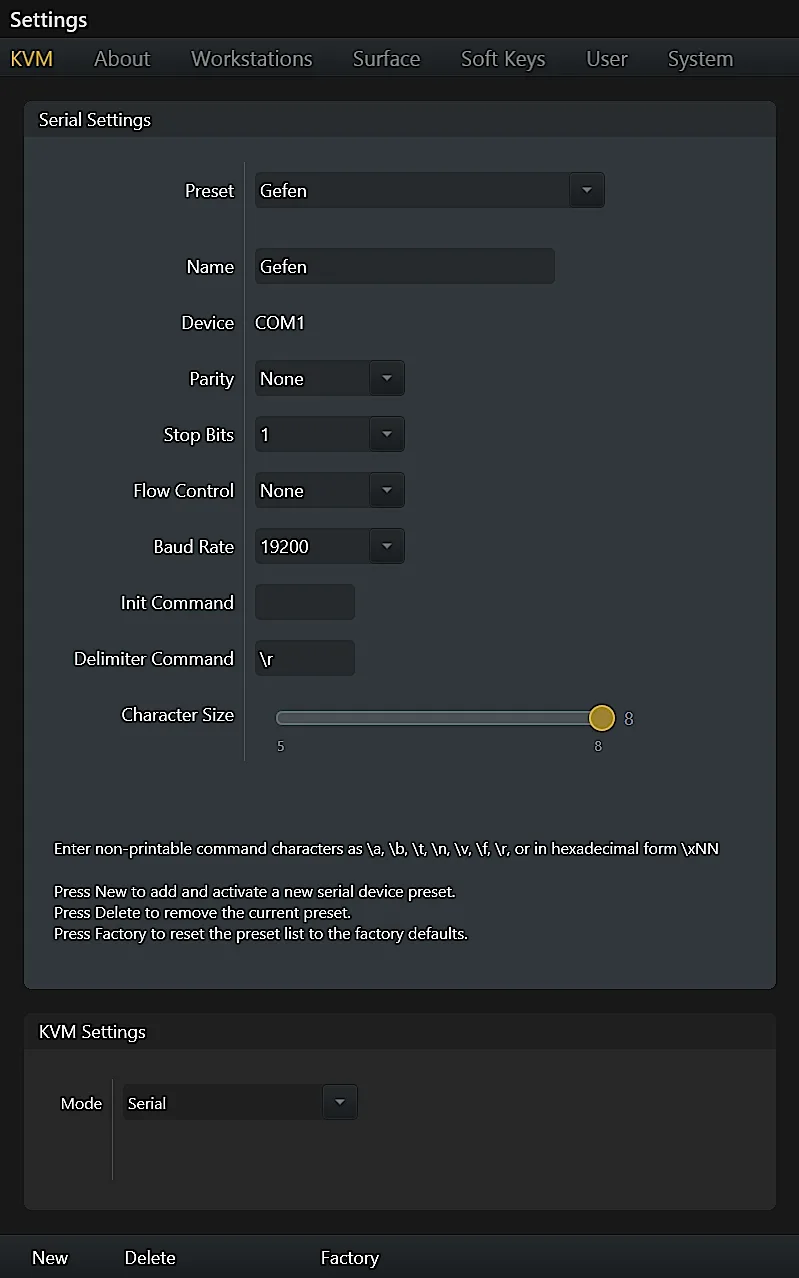

WSControl (S4/S6 Workstation Software)Download

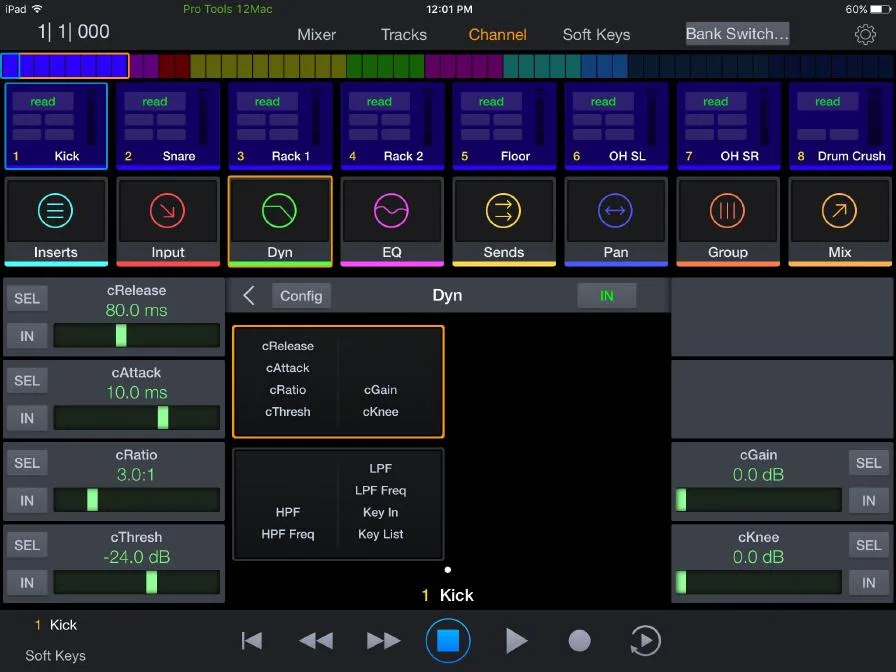

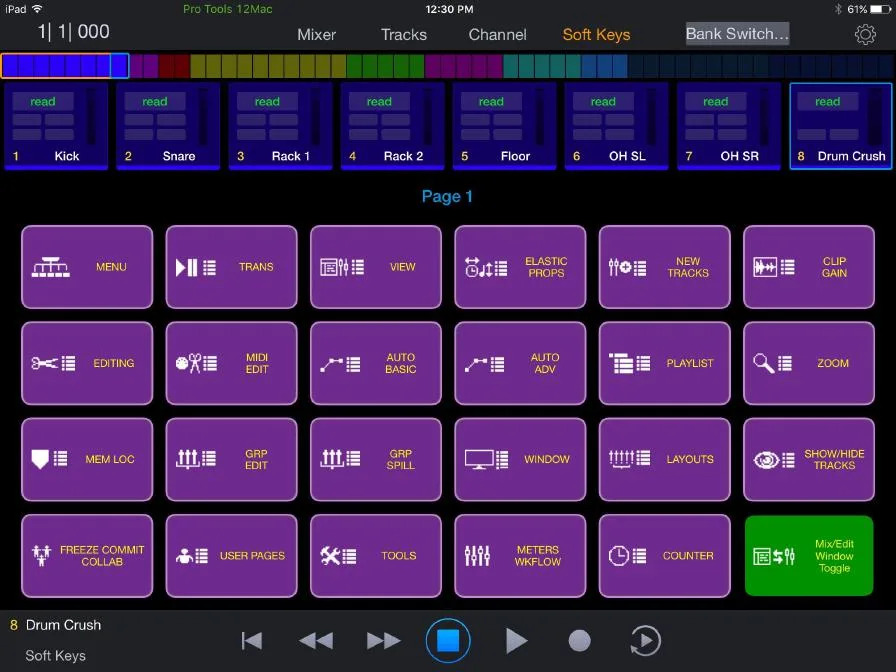

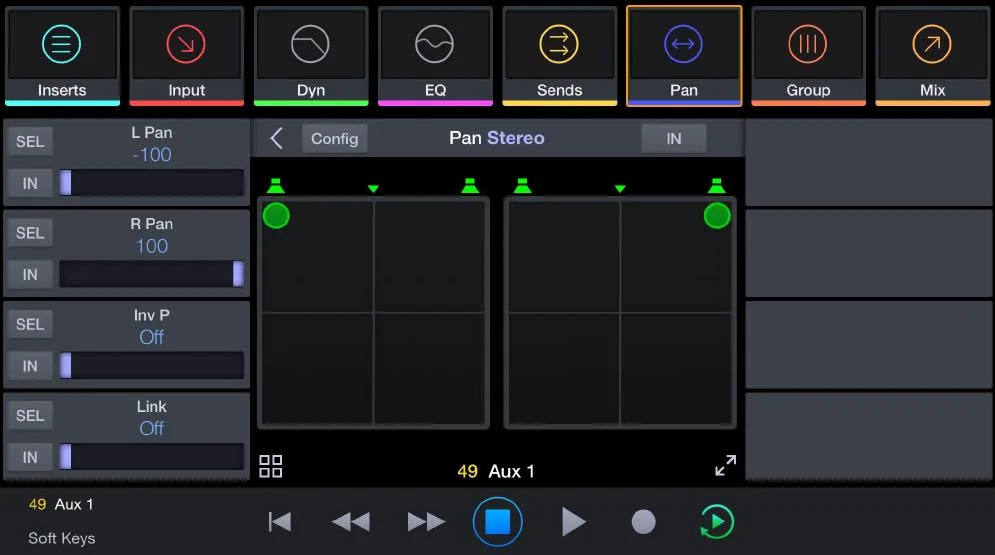

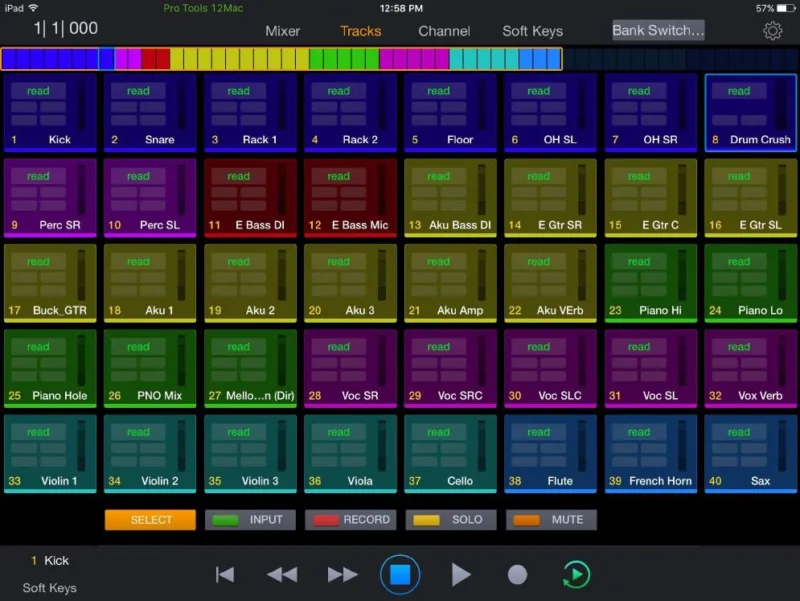

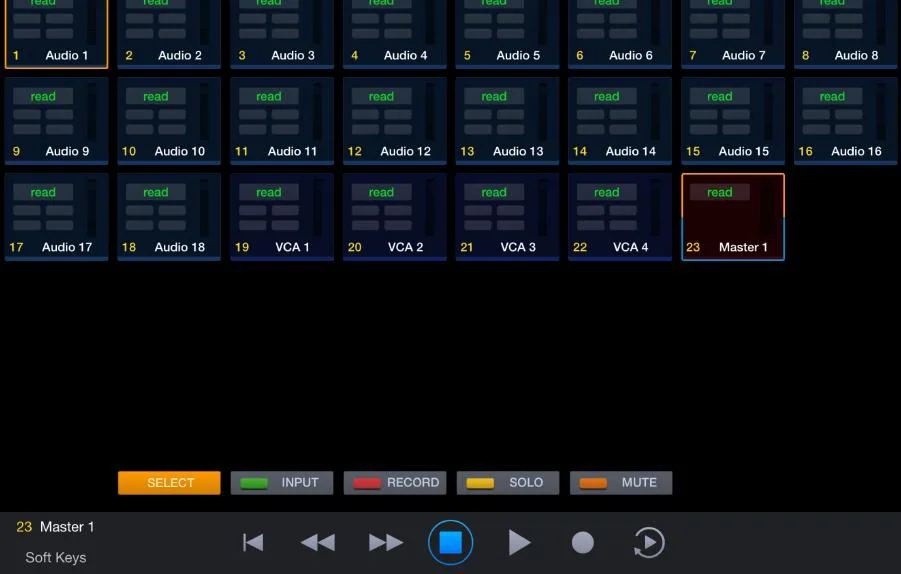

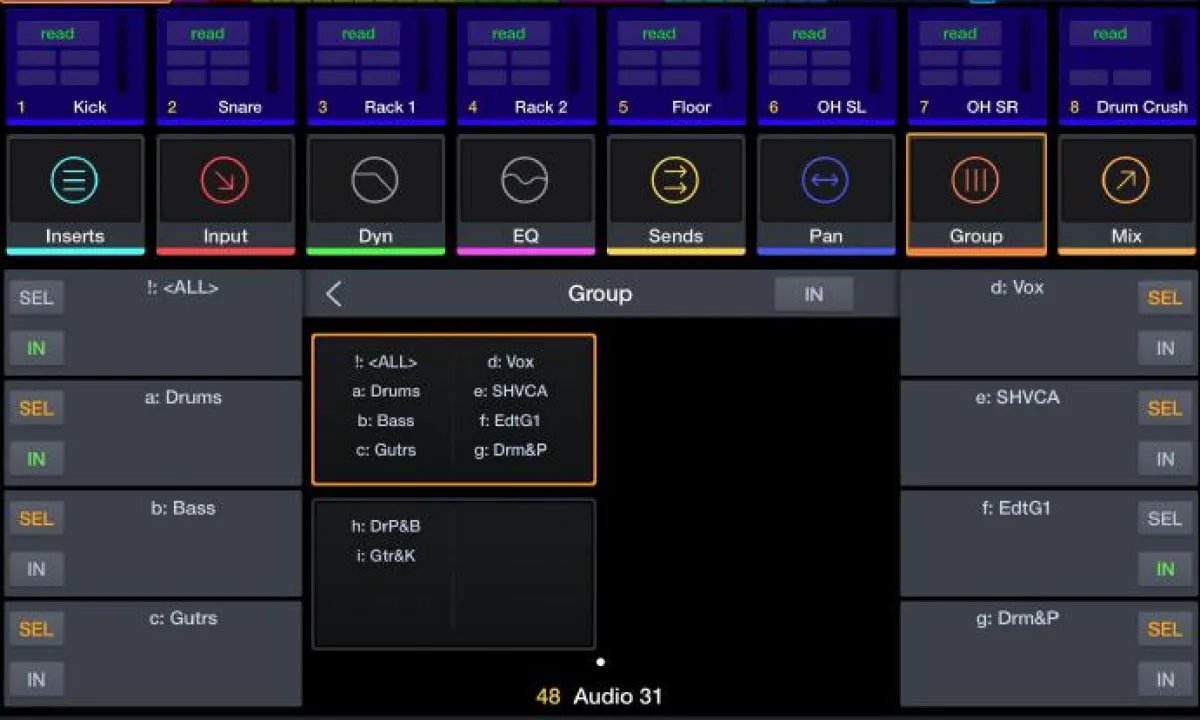

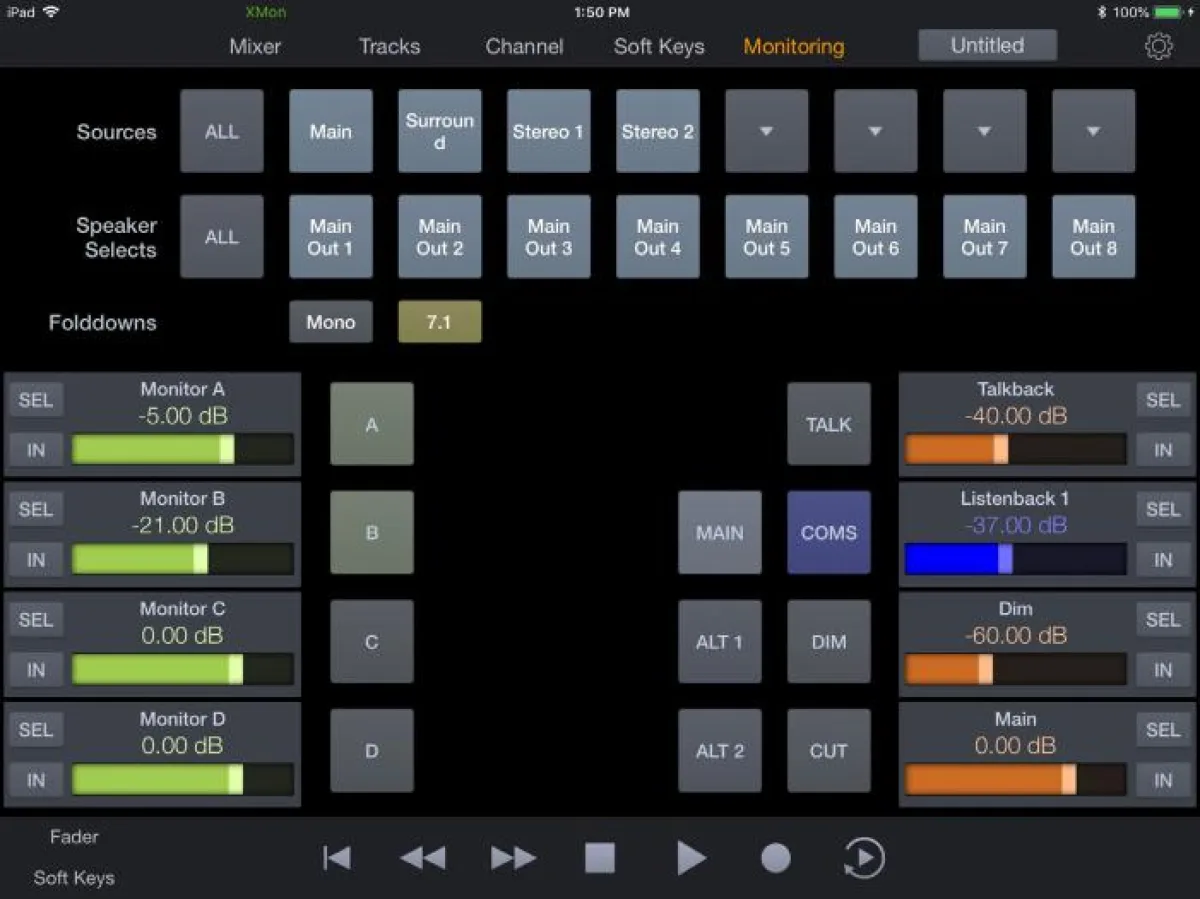

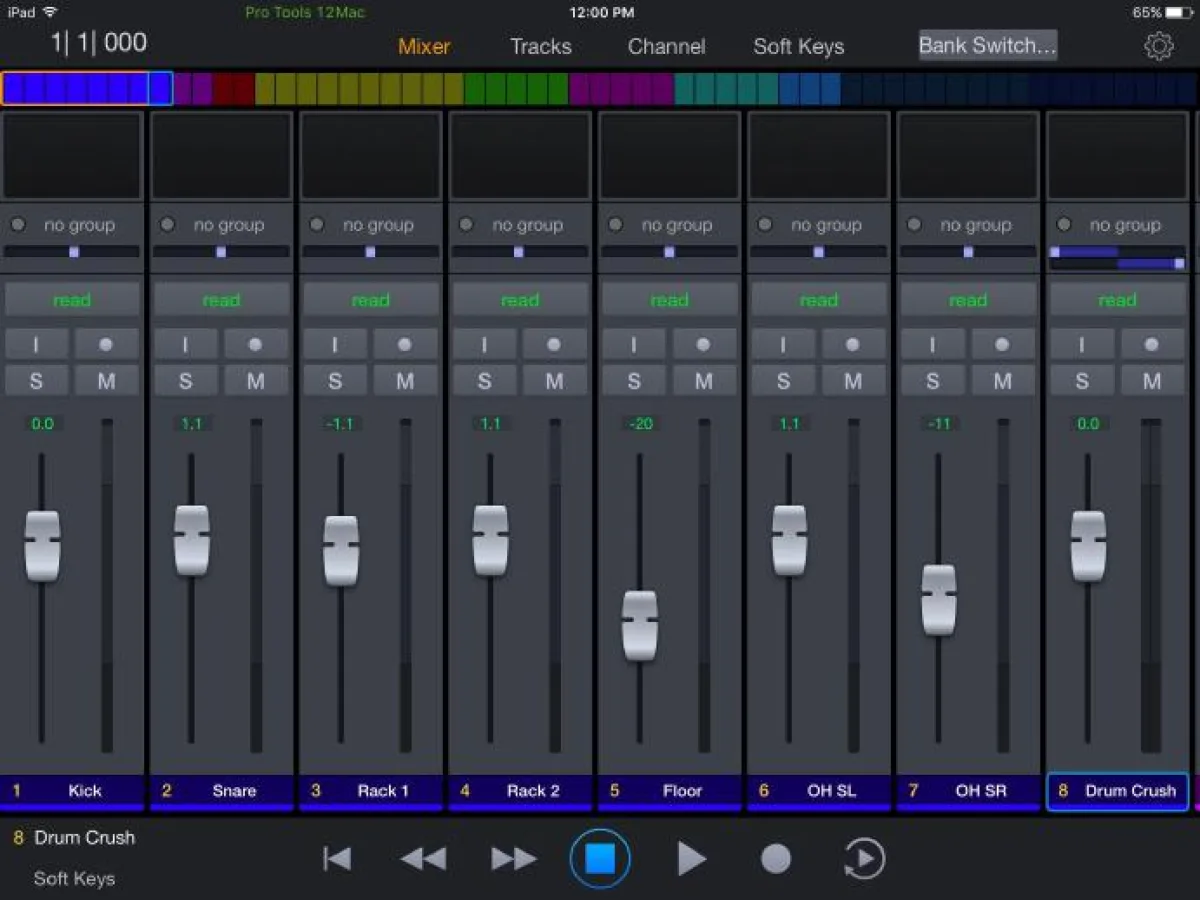

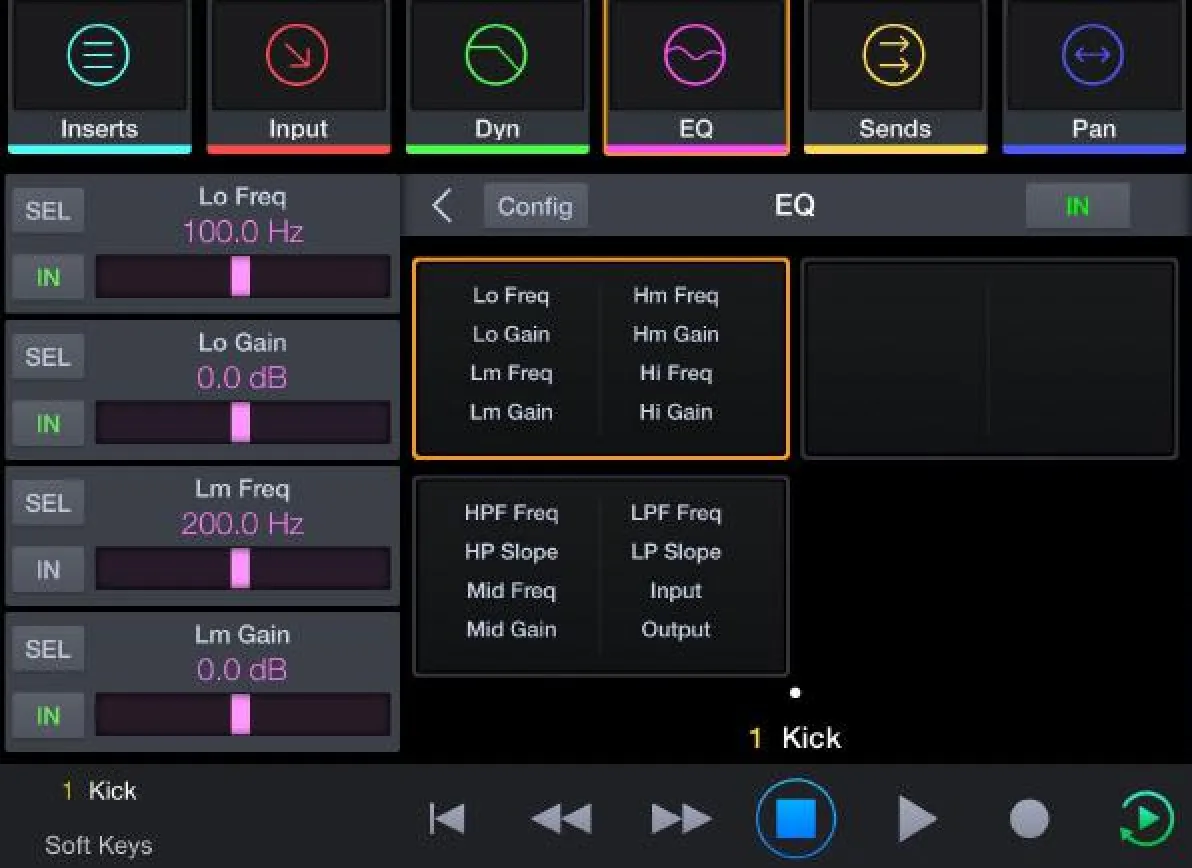

Avid Control (ex Pro Tools | Control) v2026.4.0Download
Other screenshots
Documents
Editorial & artists
Our take
History & design

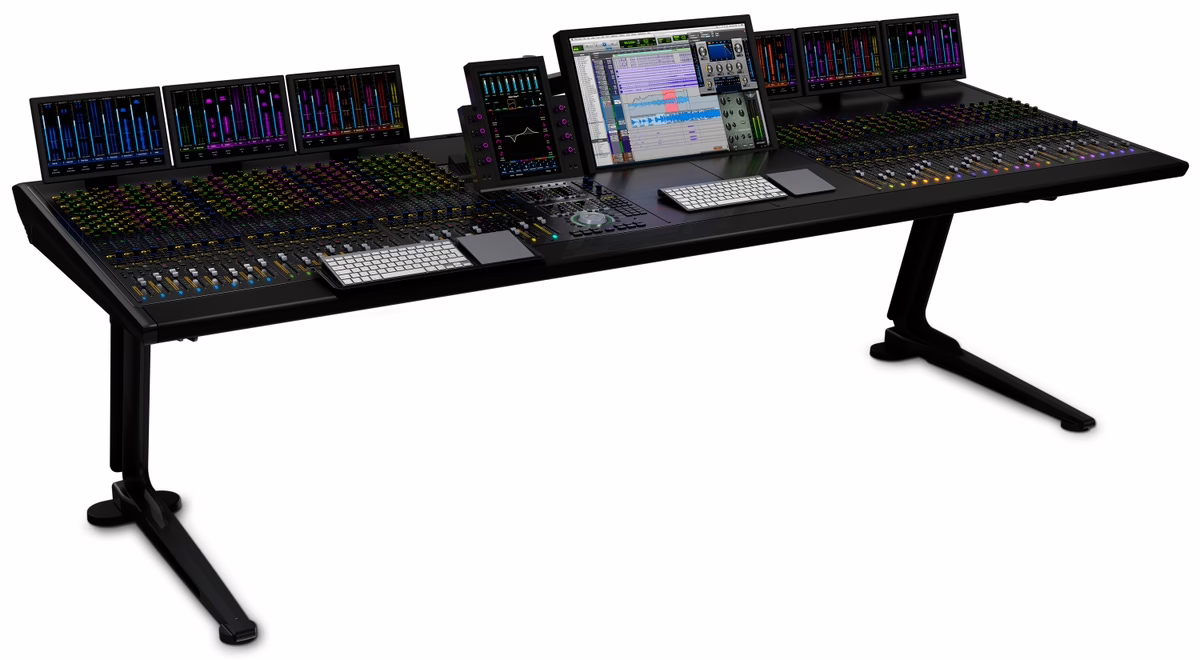

The Avid Pro Tools | S6 is a modular control surface launched in September 2013. Its development brought together the teams behind the ICON (Digidesign) surfaces and the System 5 (Euphonix, acquired by Avid in 2010). The M40 engine is its most complete variant.

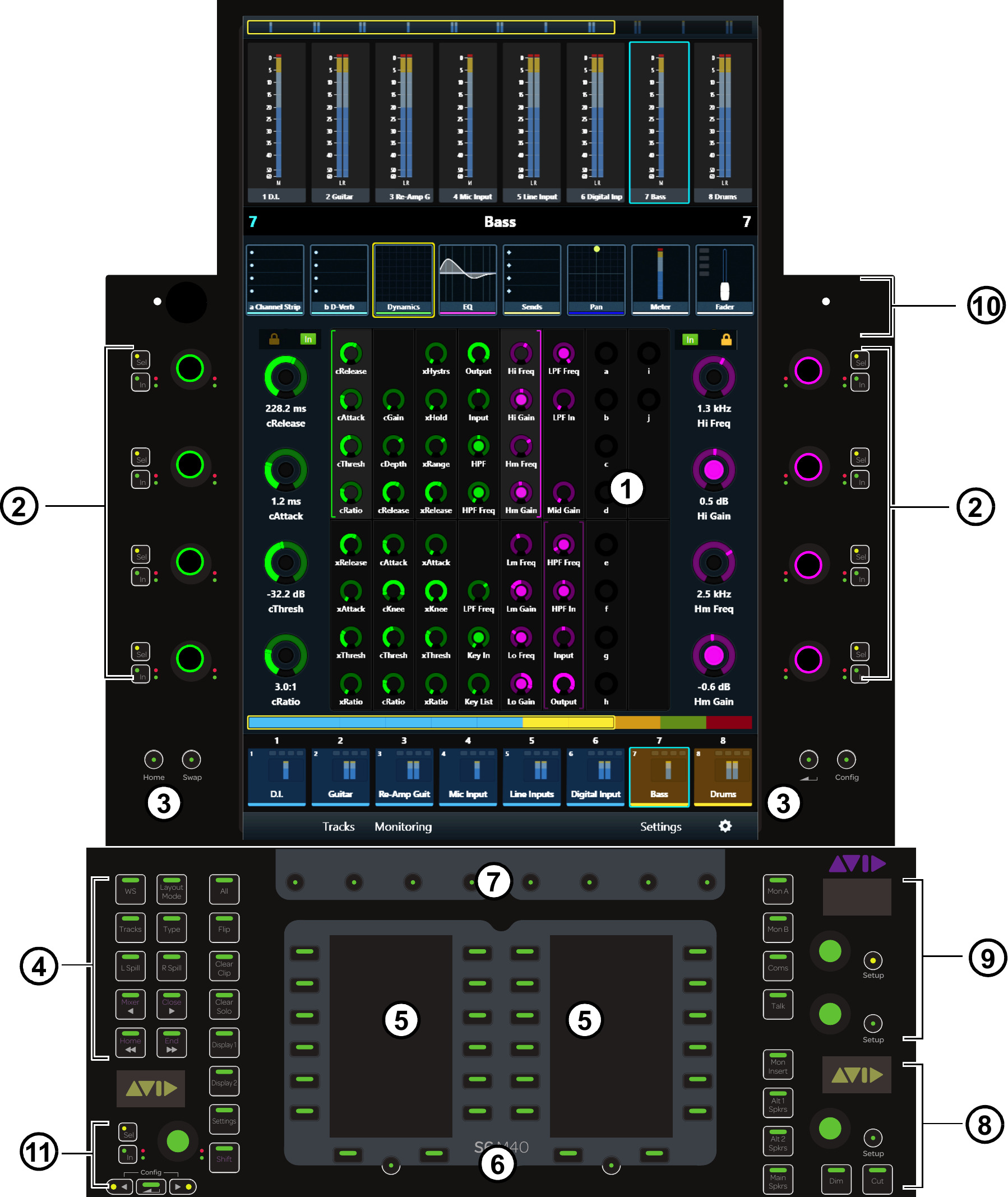

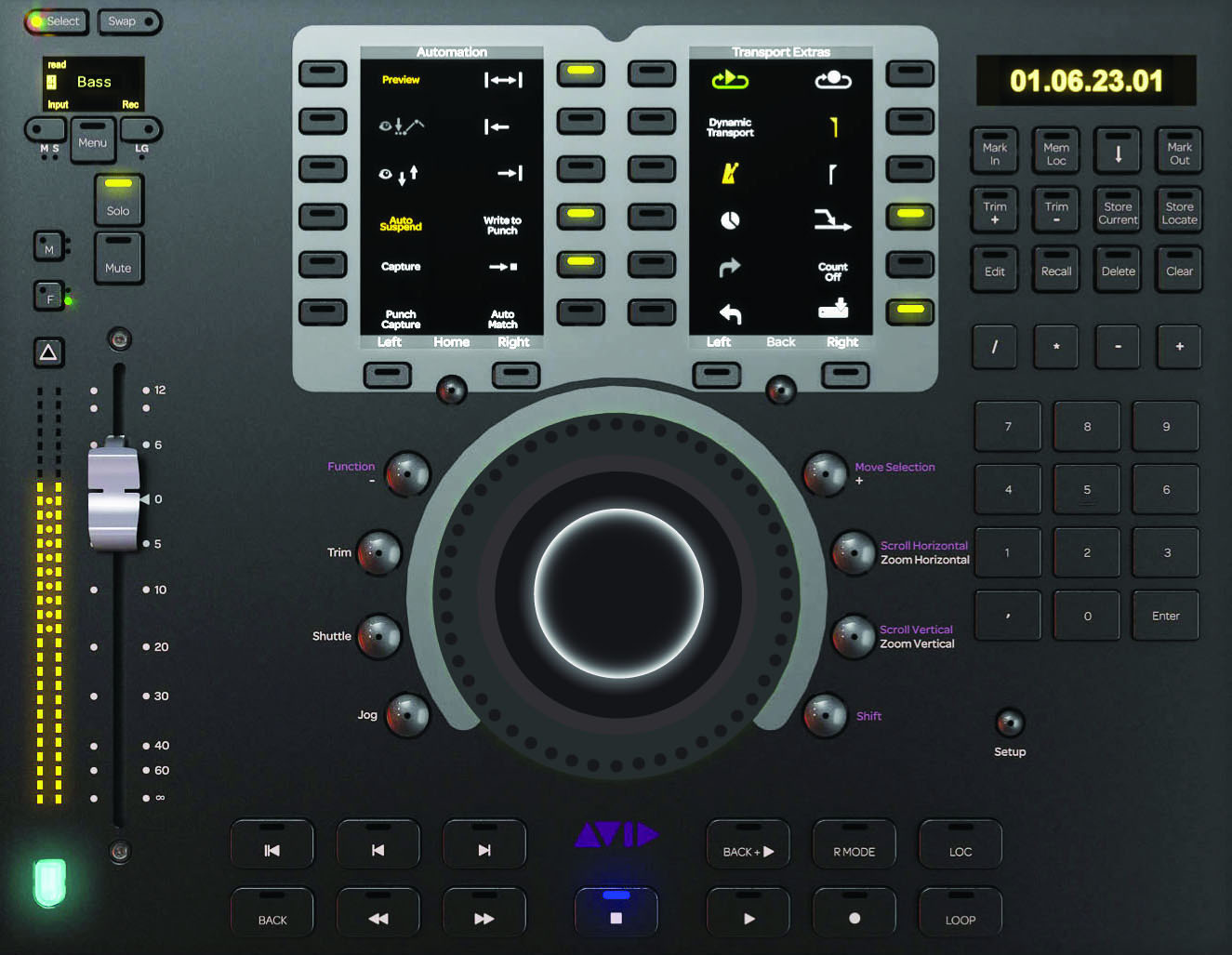

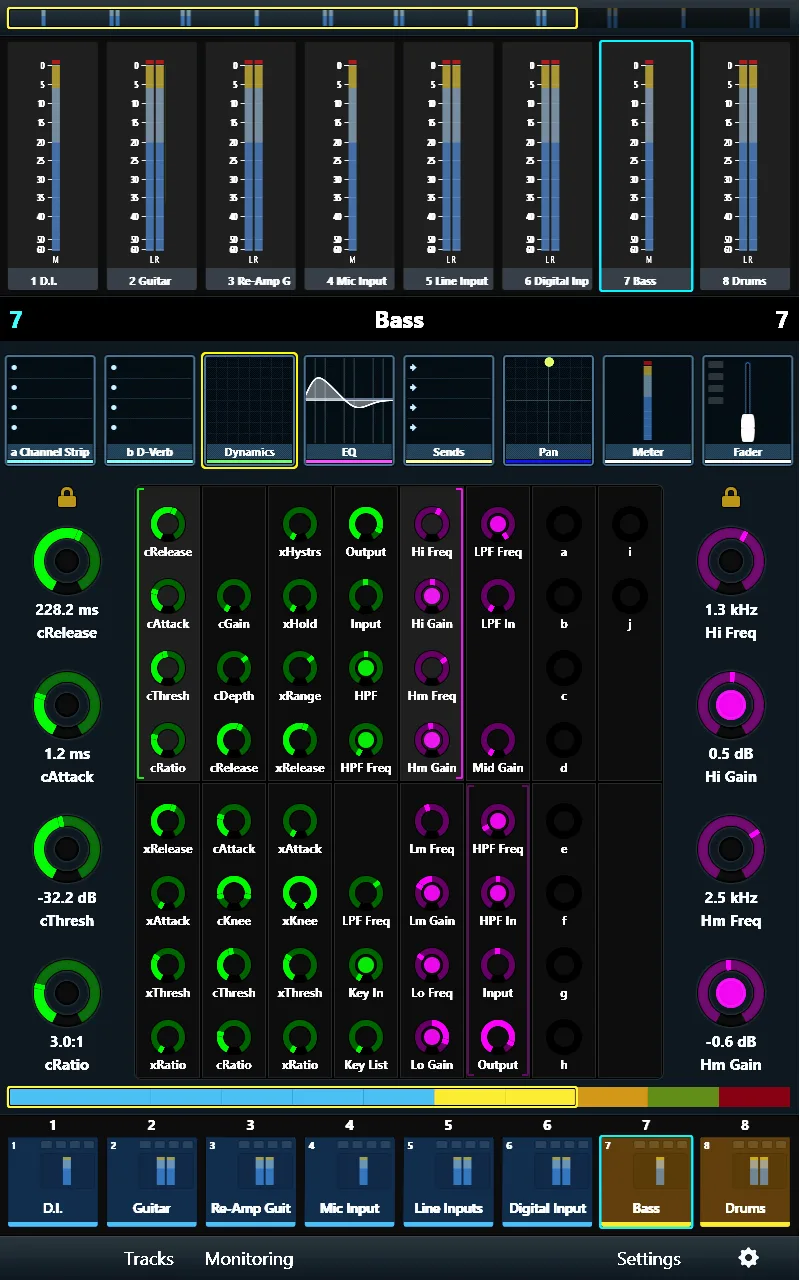

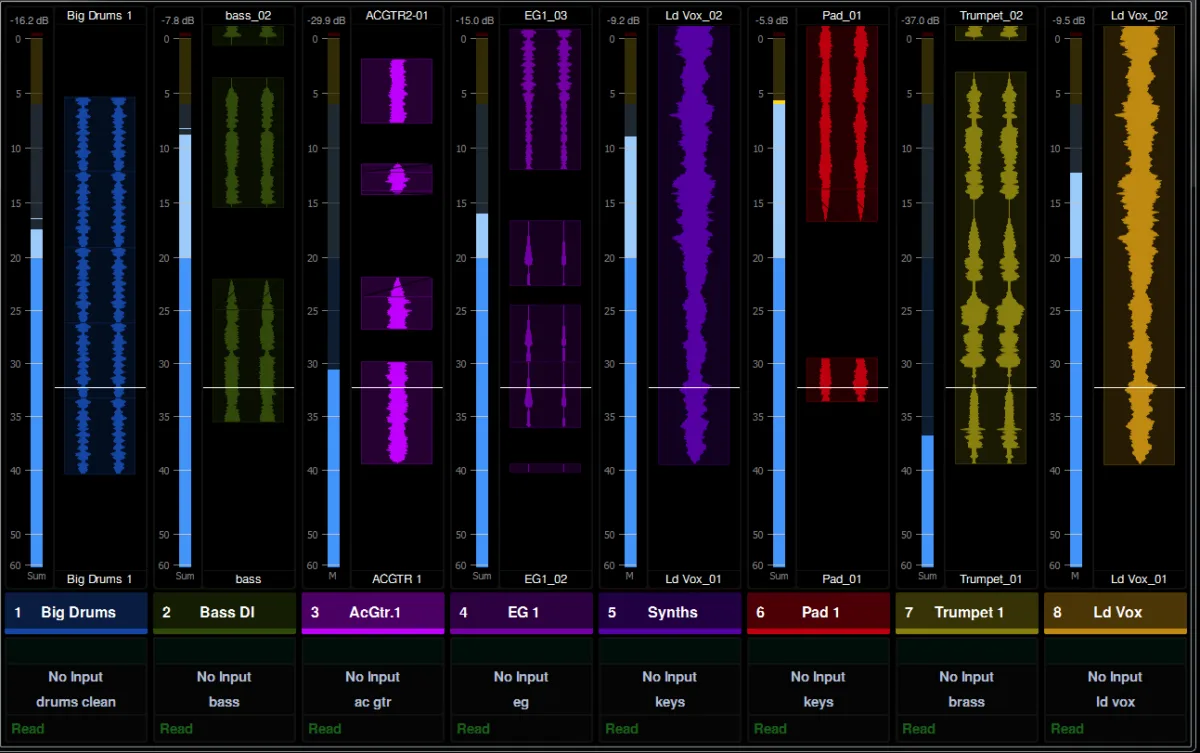

The surface is built around a Master Touch Module to which fader modules, Knob Modules and Display Modules are added. An M40 configuration can combine up to 46 modules and 64 motorised faders, with up to 9 knobs per channel. The Display Modules, exclusive to the M40, provide detailed metering and scrolling waveforms editable directly from the surface.

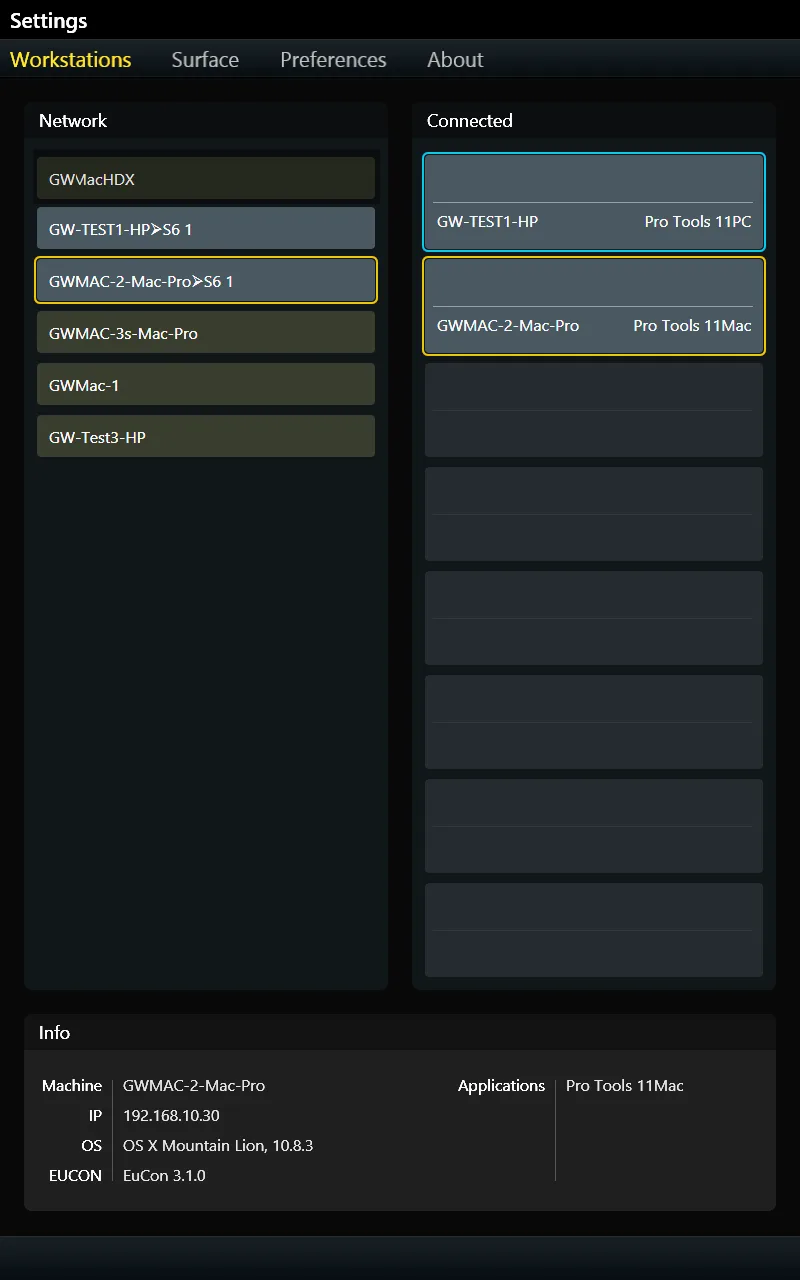

Communication uses EUCON over Ethernet: the S6 directly controls Pro Tools and other compatible DAWs, and can drive up to eight workstations simultaneously on the network. The M40 engine differs from the M10 (limited to 24 faders and without Display Modules) and replaces, in Avid's catalogue, the earlier D-Control and System 5 MC.
