Description
Technical
Specifications
Inputs / Outputs
| Mic inputs | 16 |
|---|---|
| Mic preamps | 16 low-noise analogue mic preamps, each with high-pass filter and variable input gain (bettering those of the Control|24) |
Processing
| Channels | 24 bankable channel strips: touch-sensitive motorised fader, rotary encoder with LED ring, Mute/Solo/Select keys and dedicated Input/Record/EQ/Dynamics/Insert/Send/Automation keys, dual-row LED scribble-strip displays |
|---|---|
| Architecture | 8-channel stereo line sub-mixer routable directly to the monitor section (mixing outboard sources) |
Surface
| Physical faders | 24 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | No |
| Monitoring and talkback | Integrated 5.1 surround analogue monitor section; 5.1, LCRS and stereo presets; stereo and surround metering; trimmable inputs/outputs · Built-in talkback mic, remote talkback and listenback inputs, latching talkback and Auto Talkback |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | Proprietary Digidesign Ethernet control protocol (more capable than HUI); controls Pro Tools HD and LE; HUI-over-Ethernet mode also available |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Pro ToolsDownload
Editorial & artists
Our take
History & design
The Digidesign / Avid C|24 is a Pro Tools control surface released from 2007 as the replacement for the Control|24. It is not a console with its own mixing engine: Pro Tools does the processing, while the C|24 provides tactile control and a substantial analogue section. It is now discontinued.

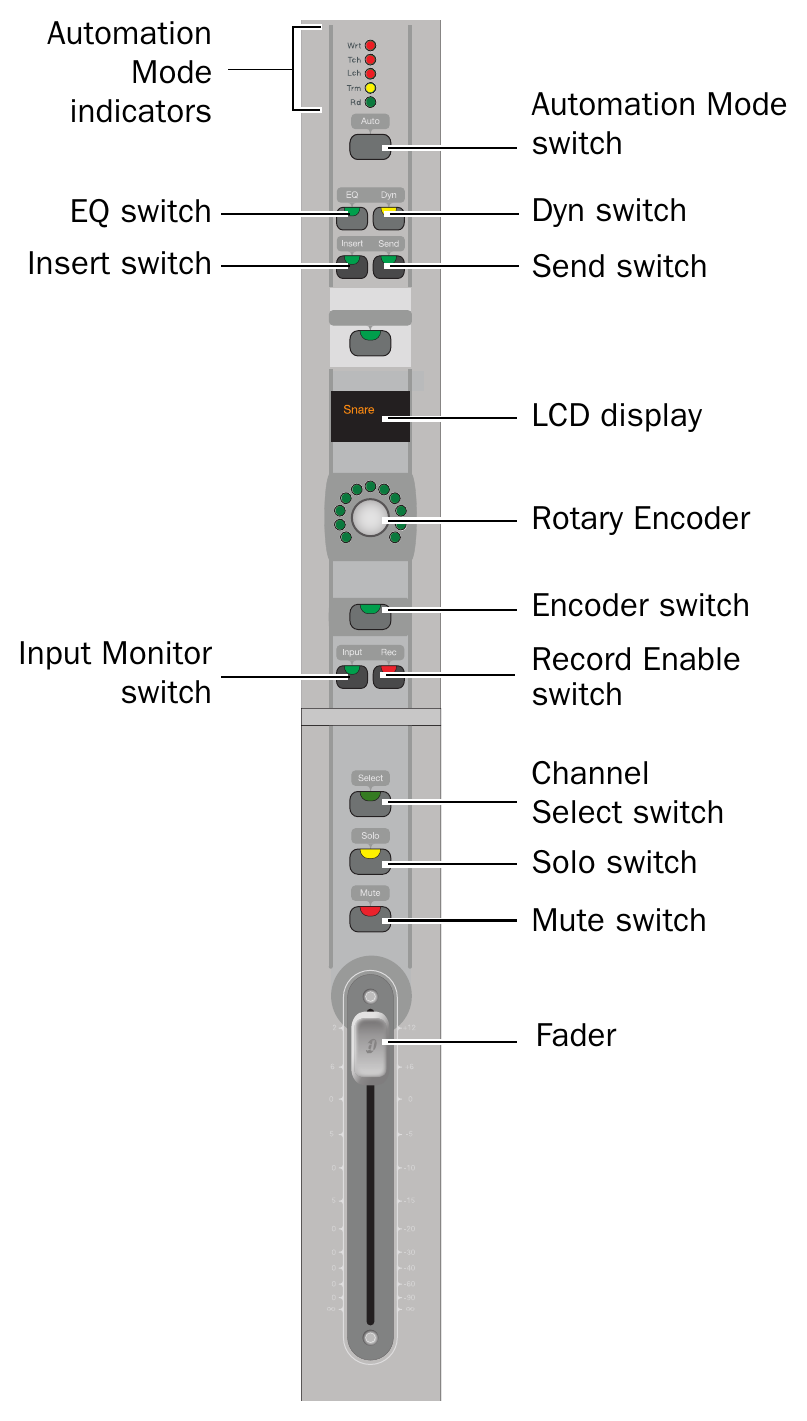

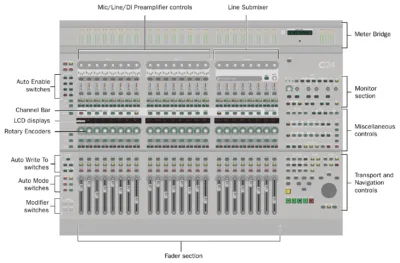

The surface lines up 24 bankable channel strips, each with a touch-sensitive motorised fader, a rotary encoder with LED ring, Mute/Solo/Select keys and dedicated keys (Input, Record, EQ, Dynamics, Insert, Send, Automation) plus dual-row LED scribble-strip displays. It integrates 16 low-noise analogue mic preamps (high-pass filter and variable gain), described as bettering those of the Control|24.

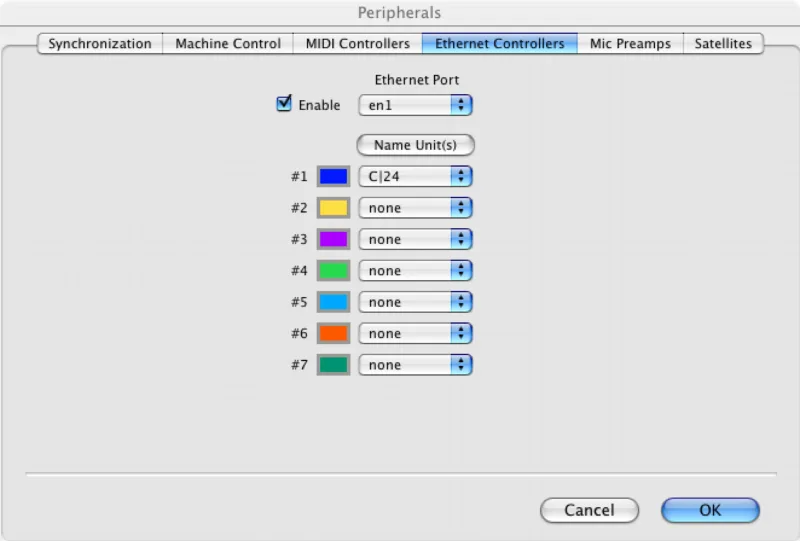

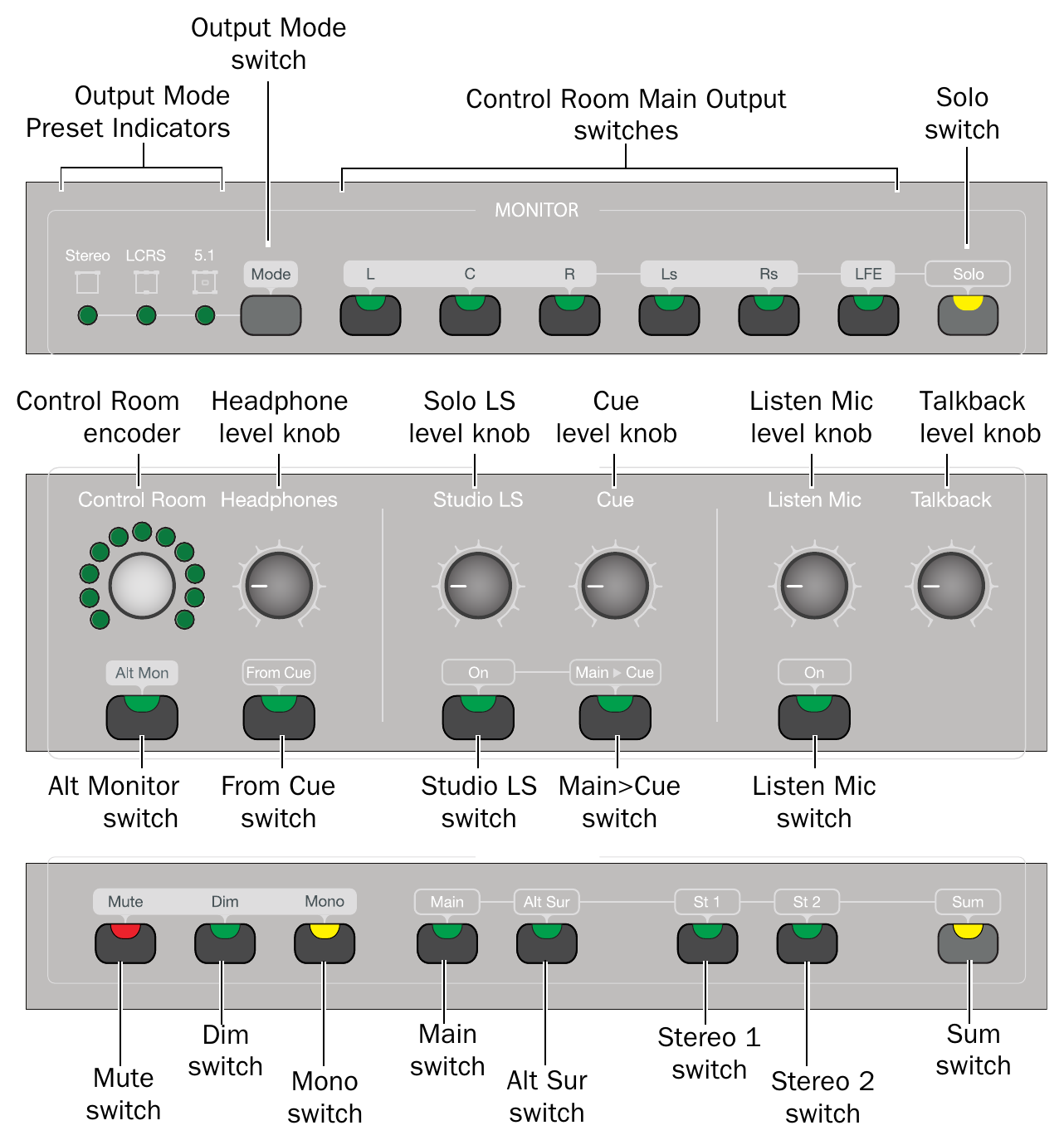

For monitoring, the C|24 carries an integrated 5.1 surround analogue monitor section (5.1, LCRS, stereo presets), stereo and surround metering, trimmable inputs/outputs, a built-in talkback mic with latching and Auto Talkback, and an 8-channel stereo line sub-mixer routable to the monitor section. Communication with Pro Tools (HD and LE) uses Digidesign's proprietary Ethernet protocol, more capable than HUI, which also remains available.
