Description
Technical
Specifications
Processing
| Mix buses | 24 |
|---|---|
| DSP engine | Moteur VENUE (architecture TDM) |
Surface
| Physical faders | 33 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | No |
| Faders | 33 faders motorisés : 24 pour les voies/retours d'effets, 8 pour les sorties/VCA, 1 master L-C-R (ou L-R + mono) |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Physical
| Width | 1,150 mm |
|---|---|
| Depth | 790 mm |
| Height | 169 mm |
Other
| Entrees Max | Jusqu'à 96 entrées avec FOH Rack (48 avec un Mix Rack) — dépend du rack de traitement associé |
|---|---|
| Bus | 24 bus de mixage |

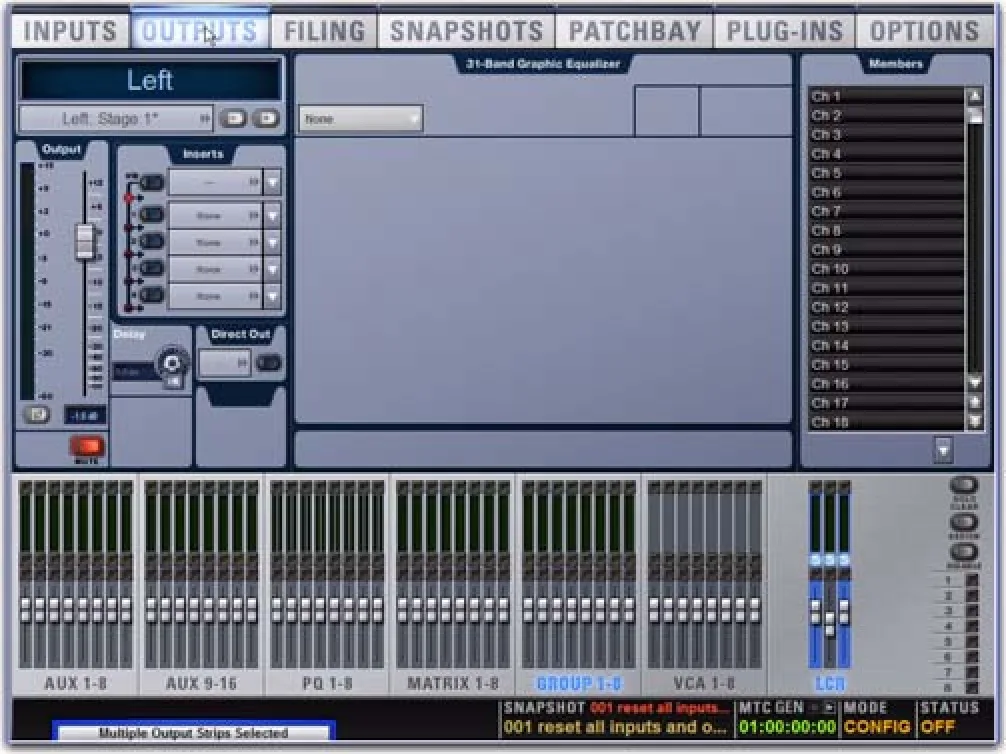

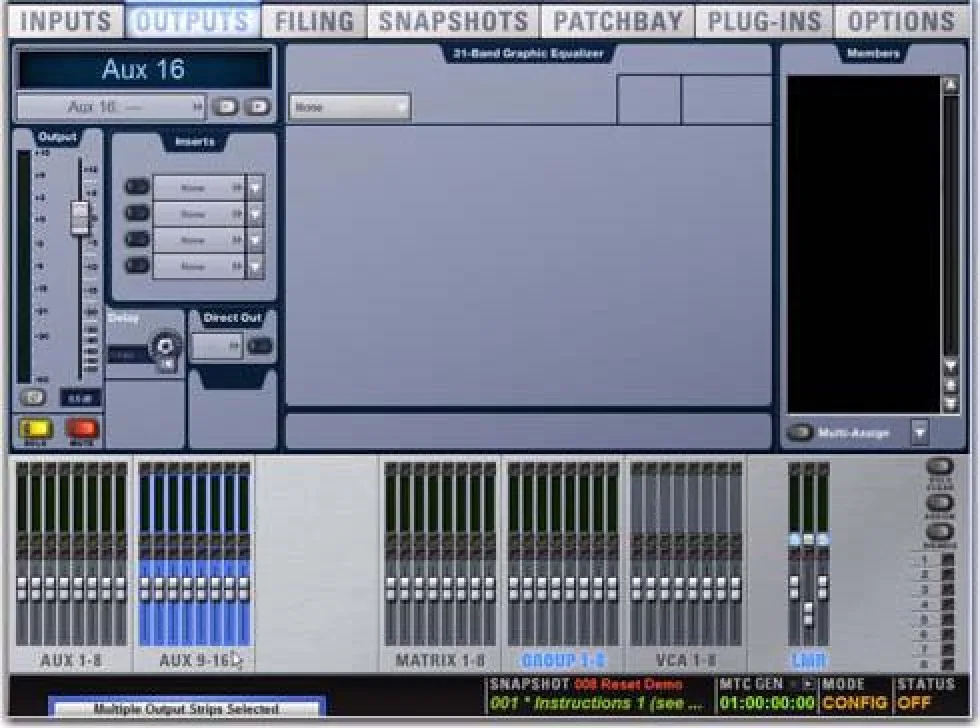

| Eq Graphiques | Jusqu'à 24 égaliseurs graphiques 31 bandes sur les sorties |

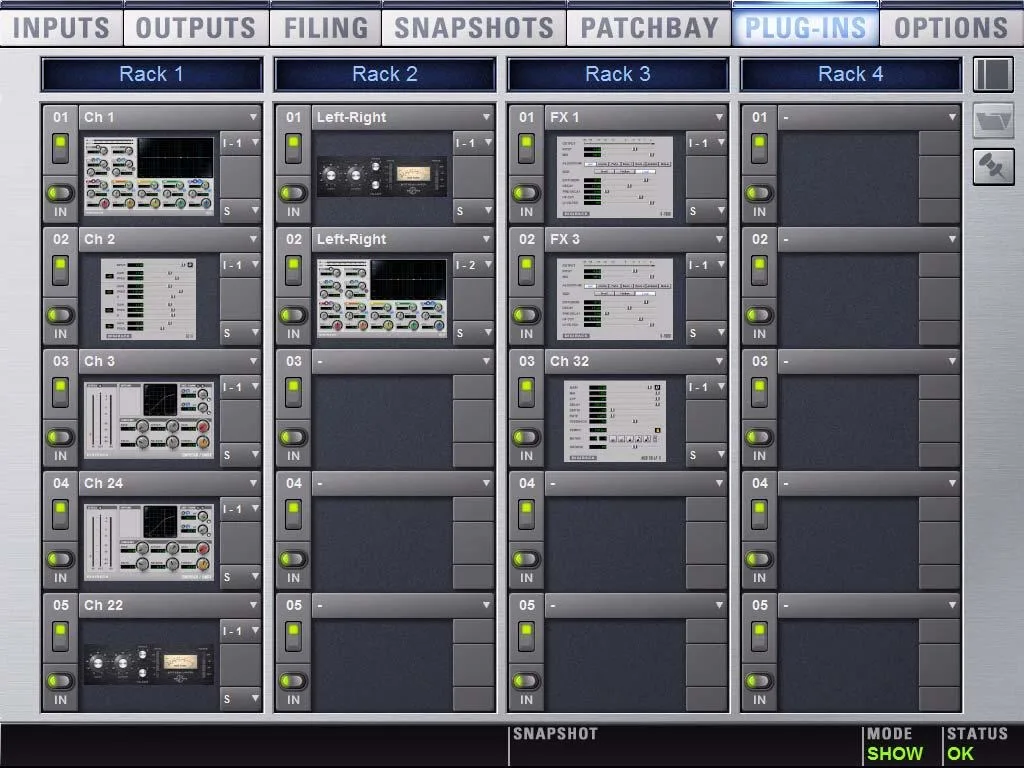

| Traitement | Traitement DSP dédié (architecture TDM), plug-ins VENUE au format TDM ; OS Windows XP Embedded |
| Connectique Snake | Liaison numérique propriétaire Digidesign (Snake) vers Stage Rack/Mix Rack ; carte MADI et intégration Pro Tools (HDx) en option pour l'enregistrement/la balance virtuelle |

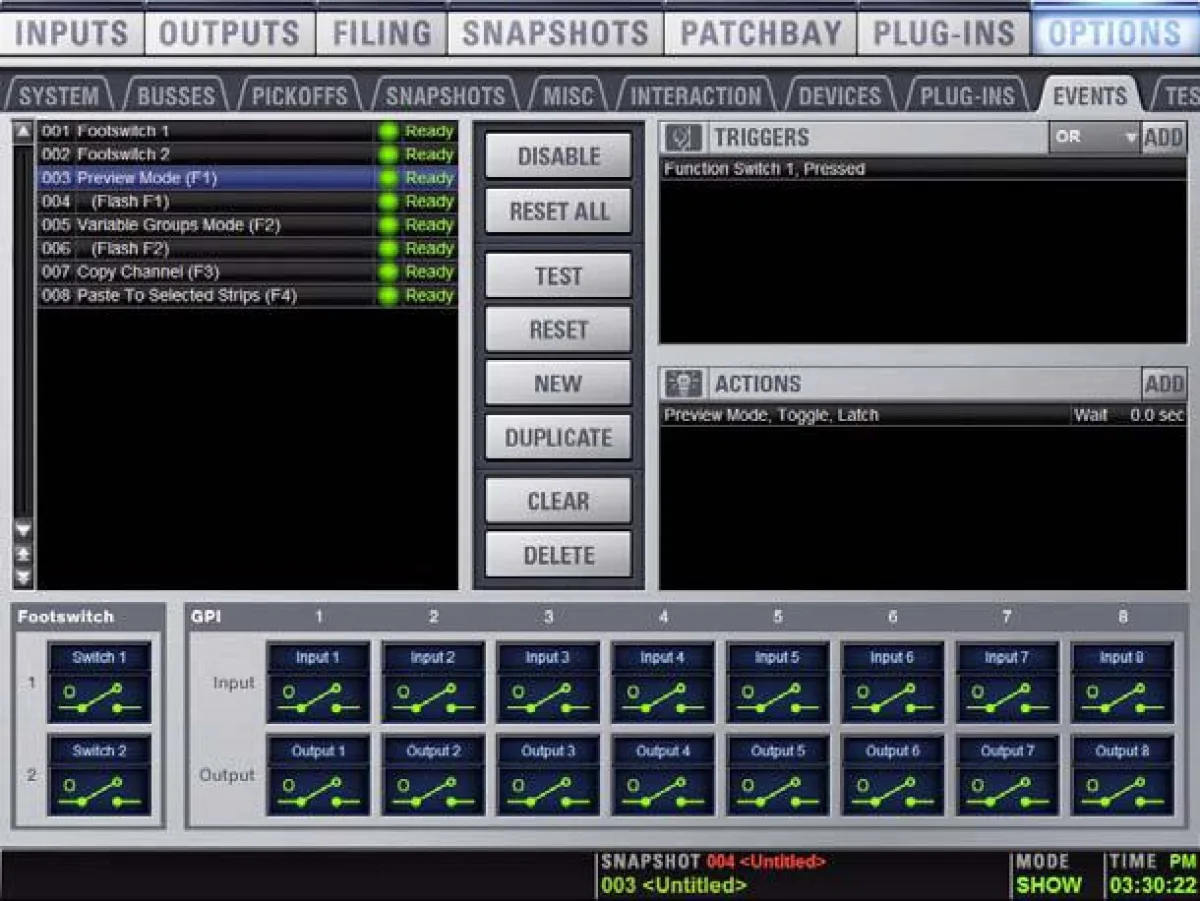

| Gpio | 8 entrées et 8 sorties GPI |

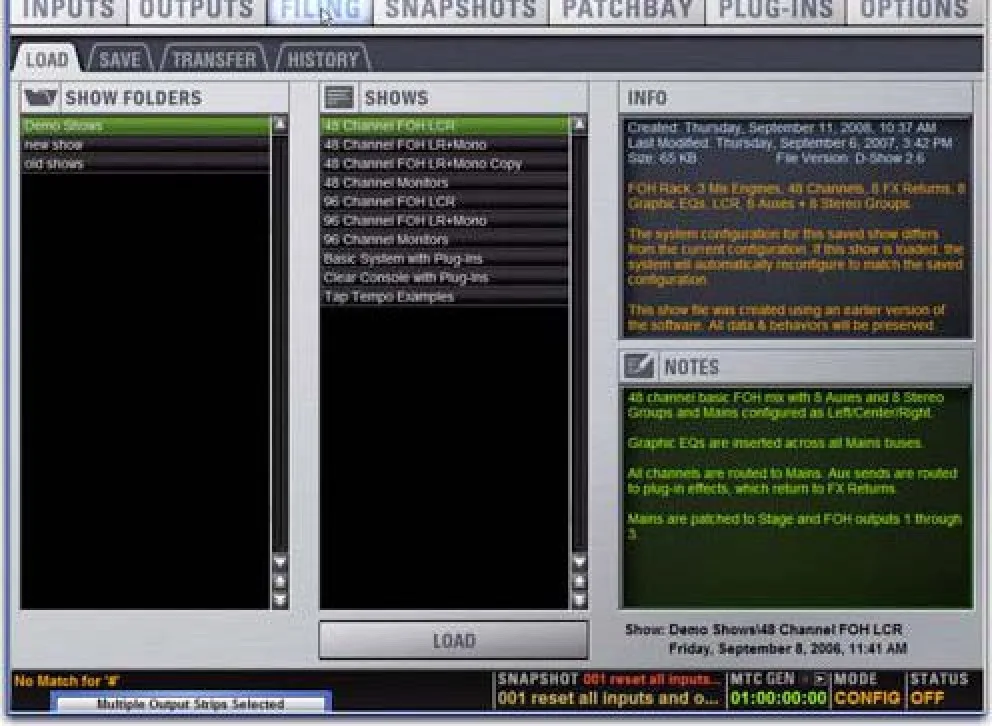

| Portabilite | Logiciel VENUE commun à toute la gamme : portabilité totale des show files entre systèmes |
| Dimensions | 1150 × 790 × 169 mm (format compact à 24 tranches de faders) |
Software

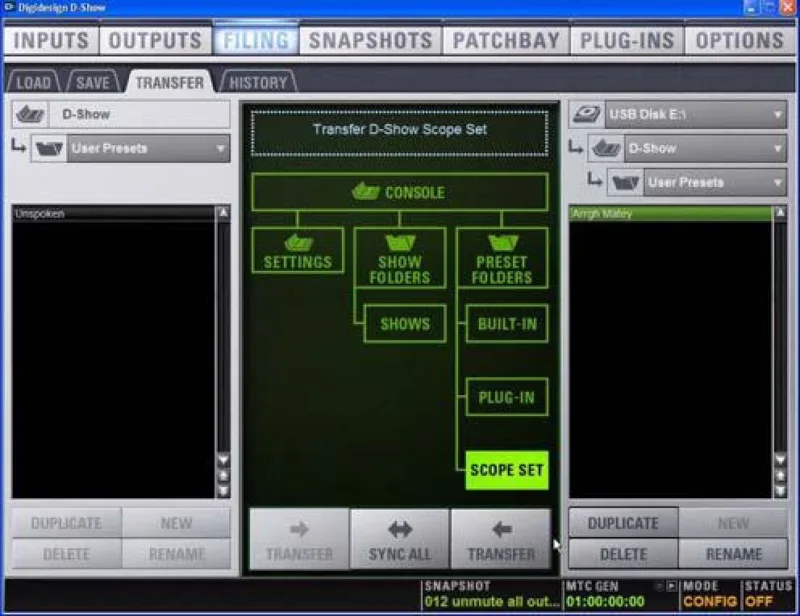

- VENUE Standalone SoftwareOffline editor to prepare and edit VENUE show files on a computer, without the console.
Accessories
Stagebox / rack
- Mix Rack
Rack combining I/O and DSP processing for a compact Profile system.
- Stage Rack (SR)
Stage I/O rack linked to the surface by the proprietary digital snake.
Documents
Editorial & artists
Our take
History & design

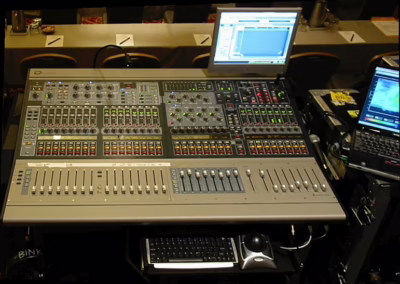

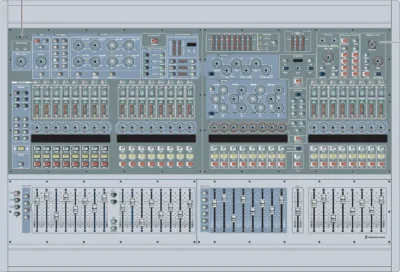

Introduced in 2007 (first under the Digidesign brand), the Profile is a compact control surface of the VENUE system. It does no processing itself: it drives a Stage Rack, remote racks or a Mix Rack that combines I/O and DSP. Depending on the paired rack, the system accepts up to 96 inputs and 24 buses.

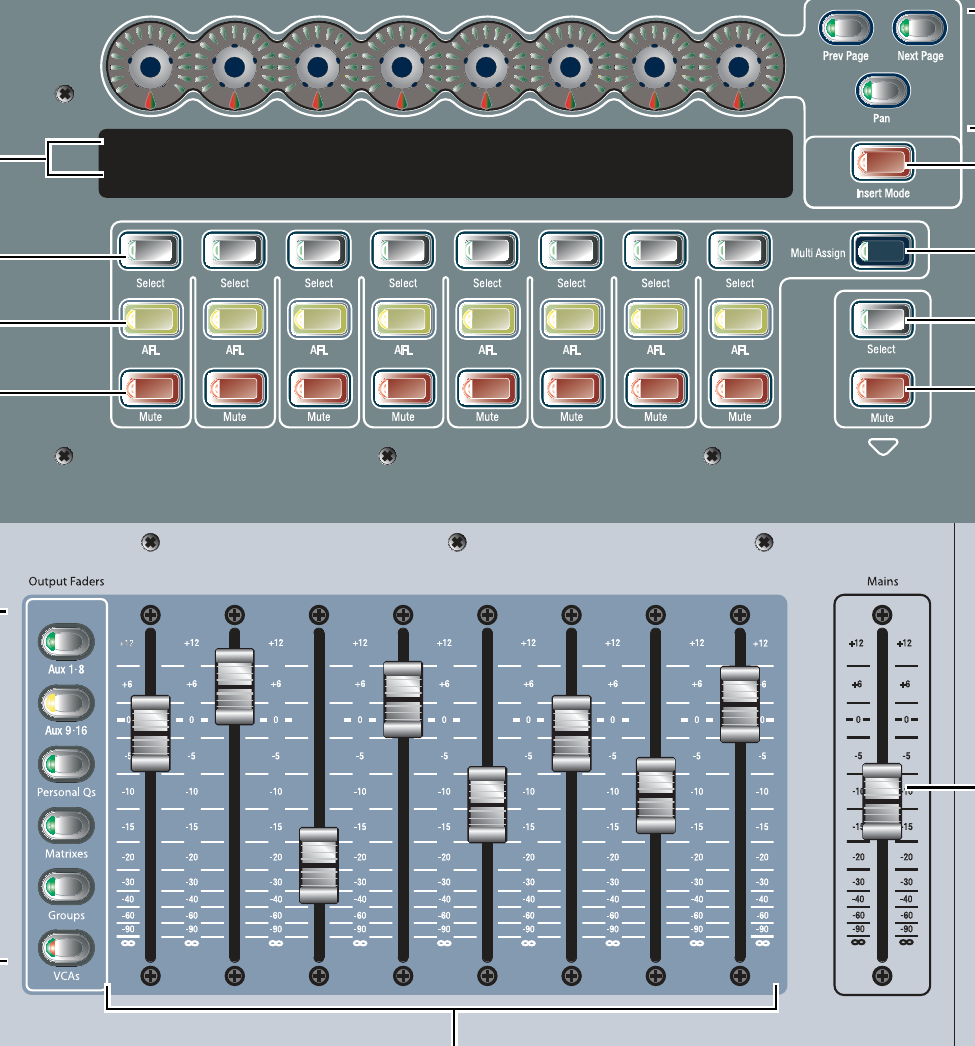

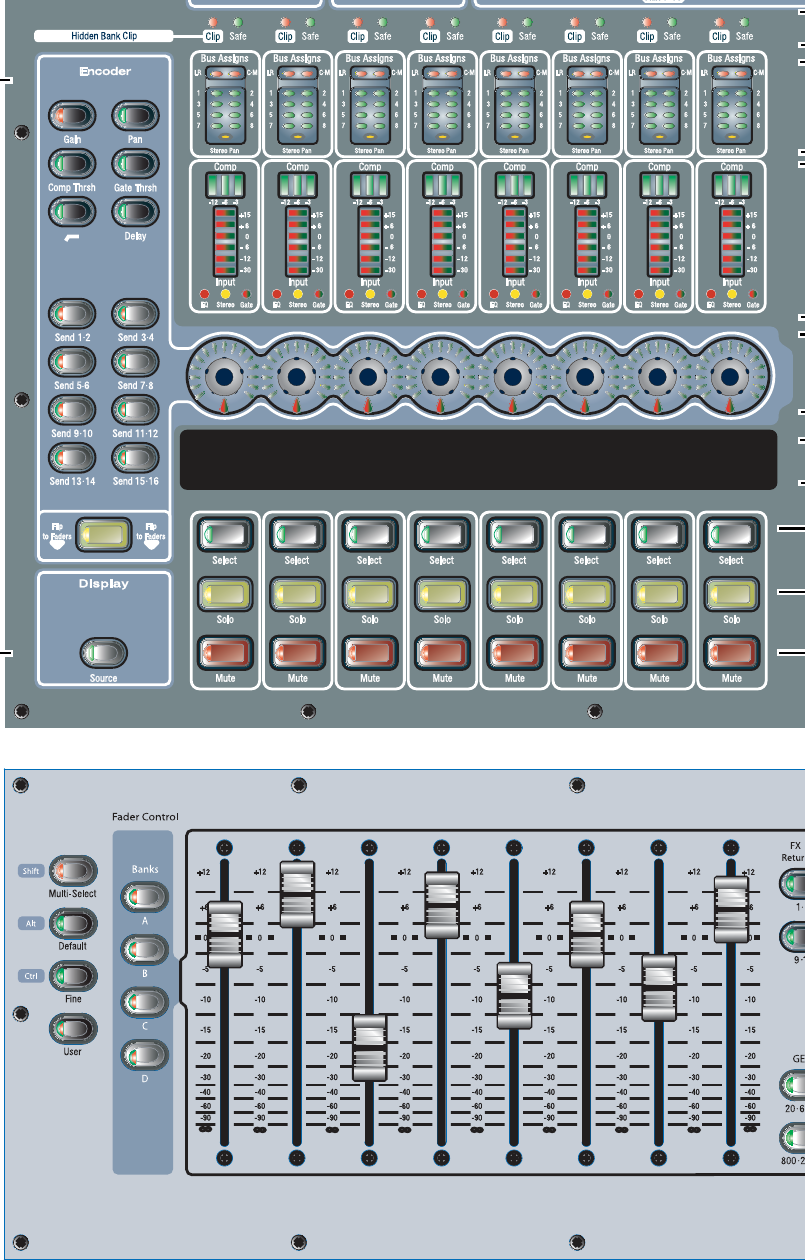

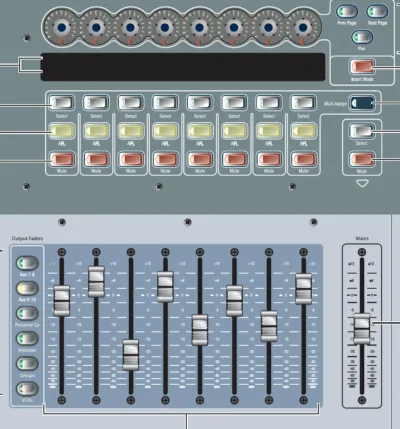

The surface carries 33 motorised faders (24 for input and FX-return banks, 8 for outputs and VCAs, 1 for the L-C-R master), eight rotary output encoders, dedicated dynamics and EQ encoders, and eight GPI inputs and outputs. Processing uses a TDM architecture with VENUE-format plug-ins. The VENUE software, shared across the range, guarantees show-file portability. Sales ended in the summer of 2016.
