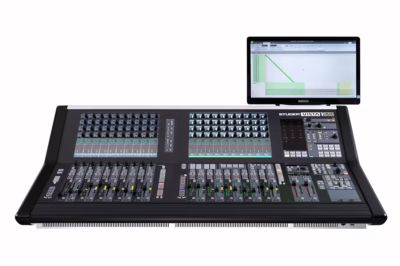

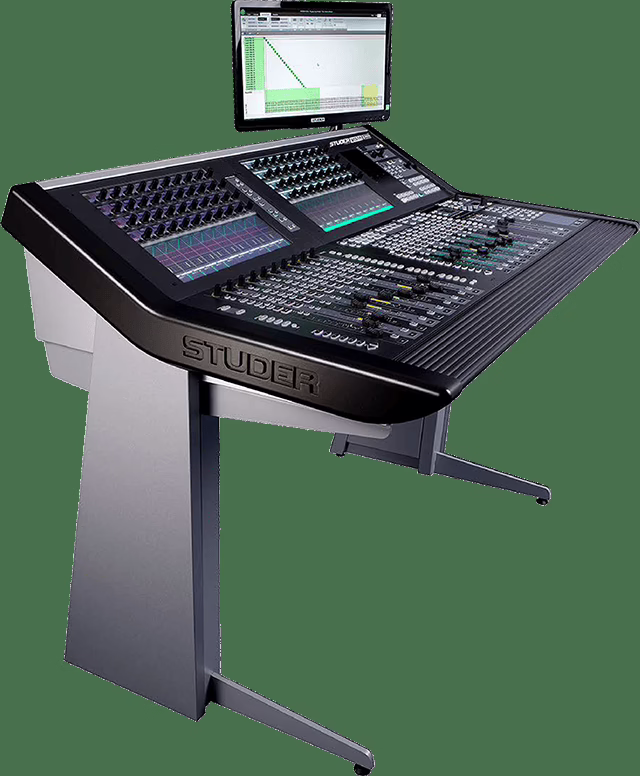

Studer Vista 1
The most compact Vista — Vistonics and a 96-channel engine in a transportable frame
Description
Technical
Specifications
Inputs / Outputs
| Mic inputs | 32 |
|---|---|
| Total outputs | 16 |
Processing
| DSP engine | Studer (96 canaux, mono/stéréo/5.1) |
|---|---|
| Max sample rate | 48,000 kHz |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | Yes |
| Vistonics | Interface Vistonics : 40 encodeurs rotatifs intégrés dans les écrans plats, look-and-feel identique aux Vista V et Vista X |
| Faders | Modèles 22 ou 32 faders motorisés ; châssis transportable (car-régie, ENG, petits studios) |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Dante / AES/EBU / ADAT / Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Other
| Dsp | Moteur DSP intégré de 96 canaux, gestion mono, stéréo et 5.1 |
|---|---|
| Io | Configuration standard : 32 entrées micro/ligne, 16 sorties ligne, 4 paires d'E/S AES en face arrière |
| Broadcast | Monitoring broadcast, talkback, red light, GPIO, bus N-x (mix-minus), automation par snapshots, contrôle de DAW |
| Expansion | Emplacement Studer D21m : MADI, AES, AoIP (Dante), ADAT, TDIF, CobraNet, Dolby E/Digital, SDI… |

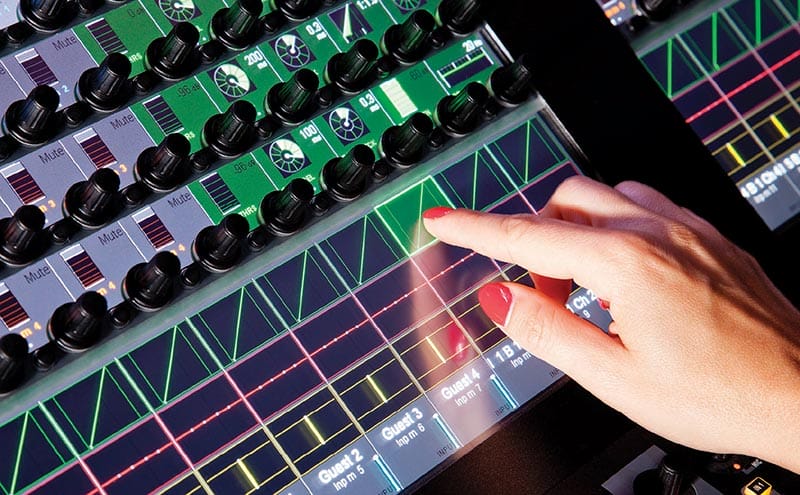

Strip & details
Rotate your phone to landscape for a better view of the strip.
Accessories
Stagebox / rack
- Studer Compact Stagebox
Compact Studer stagebox to remote the console's I/O over MADI/AoIP.
I/O card
- Carte d'extension D21m
D21m cards adding MADI, AES, Dante/AoIP, ADAT, Dolby, SDI… I/O.
Editorial & artists
Our take
History & design
The Studer Vista 1 is the most compact of the Vista range, designed for broadcast, live and production. It carries the Vistonics interface (40 on-screen rotary knobs) of the Vista V and Vista X for an identical look and feel in a transportable format. Its integral 96-channel DSP engine handles mono, stereo and 5.1.
The standard configuration offers 32 mic/line inputs, 16 line outputs and 4 pairs of AES I/O, with 22- or 32-fader models. It carries the expected broadcast features: monitoring, talkback, red light, GPIO, N-x (mix-minus) buses, snapshot automation and DAW control. I/O expands through the Studer D21m slot (MADI, AES, AoIP/Dante, ADAT, TDIF, CobraNet, Dolby E/Digital, SDI). It is ideal for OB/ENG vans, small studios and mobile productions where the console must be moved often.
