Description
Technical
Specifications
Processing
| Max sample rate | 65,535 kHz |
|---|---|
| Bit depth | 24 bits |
Surface
| Motorized faders | Yes |
|---|---|
| Screens | 5 |
| Touchscreen | Yes |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Dante / AES/EBU / Network |
|---|---|
| Redundant PSU | Yes |
| Redundant networking | Yes |
Other
| Moteur | Infinity Core à processeurs CPU : plus de 800 canaux audio et plus de 5 000 entrées/sorties |
|---|---|
| A Link | 12 ports A-Link haute capacité (1 536 canaux par port) pour l'intégration d'I/O D23m et le raccordement aux routeurs Evertz, Artel, Riedel… |
| Redondance | Technologie Quad Star : quatre processeurs indépendants (deux pour les bandeaux de faders, deux pour le meterbridge) pour une surface sans point de défaillance unique |
| Surface | Configurations 32, 42 ou 52 faders, meterbridge intégré en option ; interface tactile Vistonics et repérage FaderGlow |
| Production | Entièrement multicanal/surround, automation dynamique intégrée et contrôle distant de DAW |
Software
Other screenshots
Accessories
I/O card
- Studer D23m I/O System
Modular I/O system linked over A-Link: analogue, MADI, AES/EBU, Dante and broadcast interface cards.
Documents
Editorial & artists
Our take
History & design

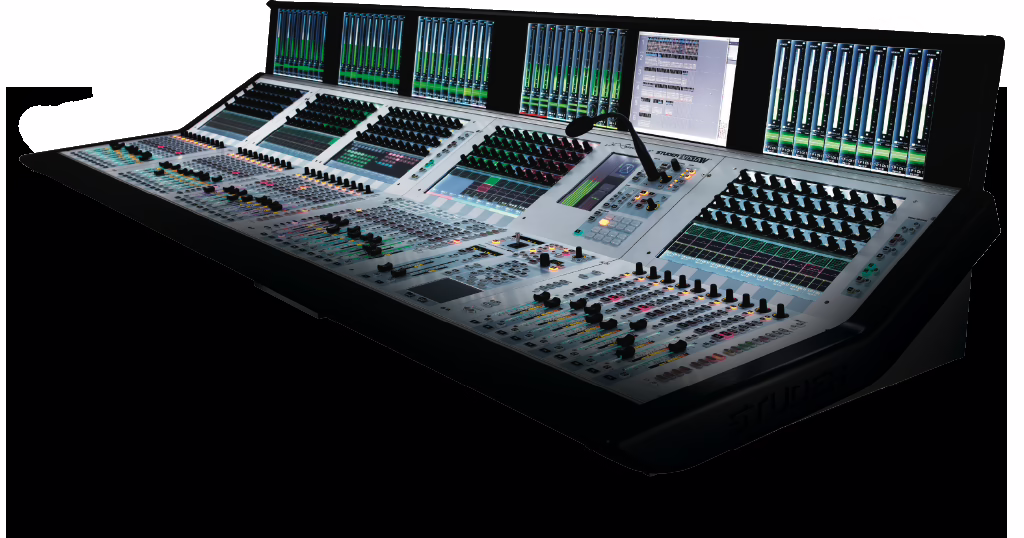

The Studer Vista V is a broadcast digital mixing console unveiled in 2014, carrying the Vista X's Infinity Core engine in a more compact frame. This CPU-based core delivers 800+ audio channels and 5,000+ inputs/outputs, with twelve high-capacity A-Link ports (1,536 channels each) for D23m I/O integration and direct connection to broadcast routing systems.

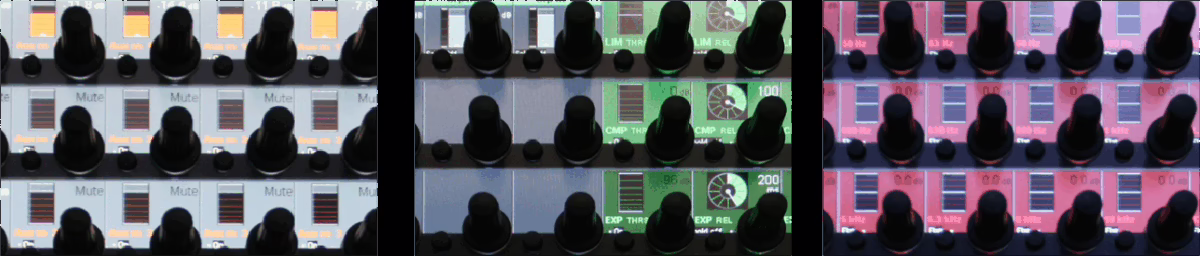

Reliability rests on Quad Star technology: four independent processors (two for the fader bays, two for the meterbridge) remove the single point of failure on the surface. The operator keeps Studer's Vistonics touch interface and colour-coded FaderGlow. The console comes in 32-, 42- or 52-fader versions with an optional built-in meterbridge, full surround handling, Dynamic Automation and DAW remote control.
