AMEK AMEK Big by Langley
In-line digitally-controlled analogue console with SuperTrue automation (1992)
Original launch price (new) 13,500 GBP
Description
Technical
Specifications
Processing
| Mix buses | 12 |
|---|---|
| Aux sends | 8 |
Surface
| Motorized faders | No |
|---|---|
| Fader layers | 1 |
| Touchscreen | No |
Recording
| Onboard recording | No |
|---|
Networking
| Redundant PSU | No |
|---|---|
| Redundant networking | No |
Other
| Architecture | En ligne intégrale, double trajet audio (CH + MIX) par tranche |
|---|---|
| Configurations | Deux versions : 28 voies (56 trajets) et 44 voies (88 trajets) |
| Entrees Stereo | 4 entrées ligne stéréo + 4 retours d'effets stéréo (modules Stereo Input/FX Return) |
| Bus Routage | 12 bus de routage câblés sur sorties dédoublées (magnéto 24 pistes sans repatch) |
| Aux | 8 départs auxiliaires (sends 3 & 4 routables vers les bus ; sends 1 & 2 avec mute MIDI) |
| Egaliseur | Égaliseur 4 bandes dérivé de l'Amek Angela, médiums réassignables au trajet CH, switch de Q sur le bas-médium |
| Preampli Micro | Un préampli micro par voie d'entrée |
| Automation | Automation SuperTrue (ordinateur Atari STE, développée avec Steinberg) : faders, mutes, la plupart des inverseurs et rappel total |
| Talking Recall | « Talking Recall » : une voix échantillonnée de Rupert Neve guide le rappel manuel des réglages |
| Virtual Dynamics | Virtual Dynamics en option (gates et compresseurs/limiteurs ajoutés par voie) |
| Metrologie | Pont de bargraphes LED intégré |
| Insert Direct | Insert et sortie directe sur chaque voie |

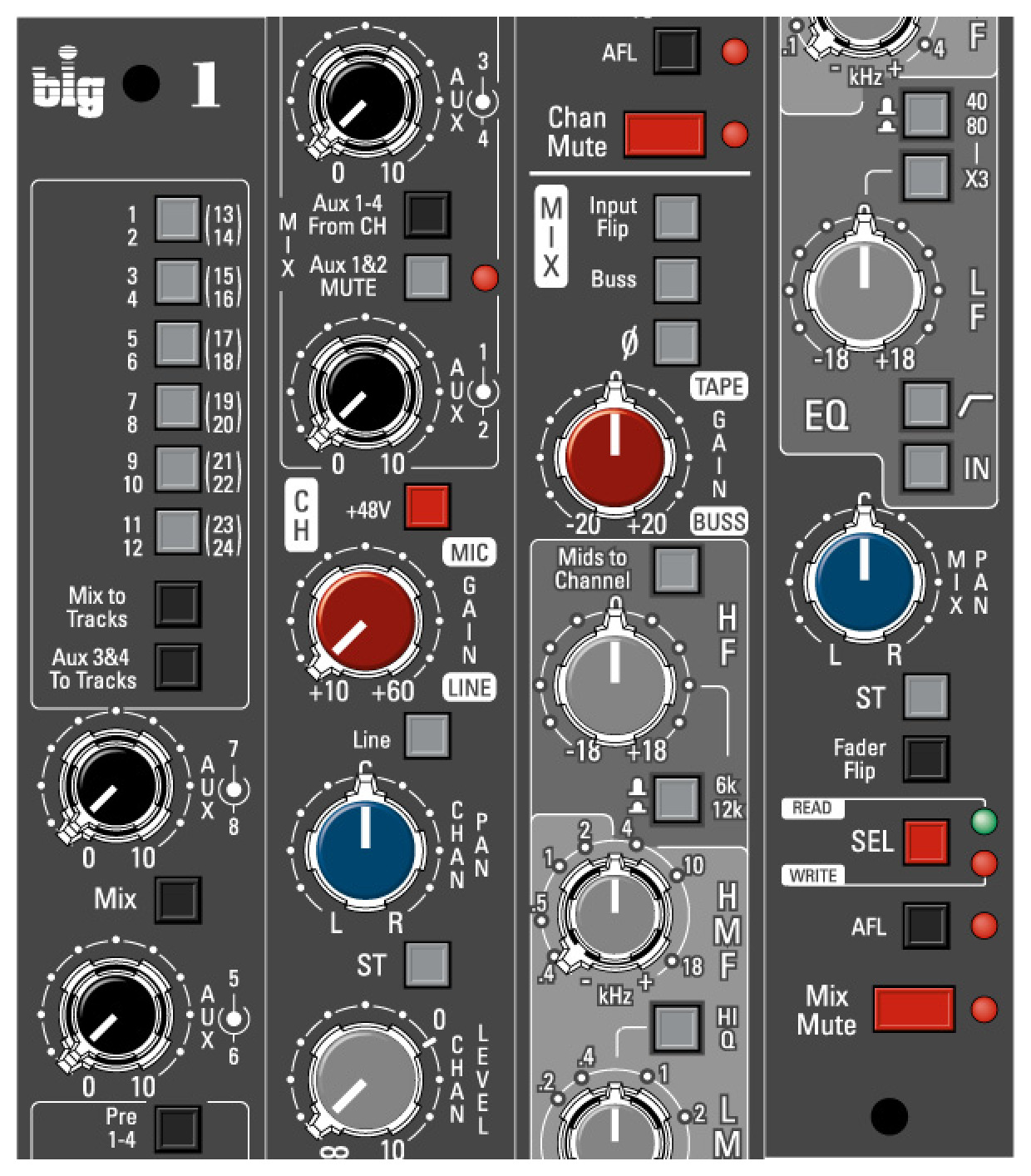

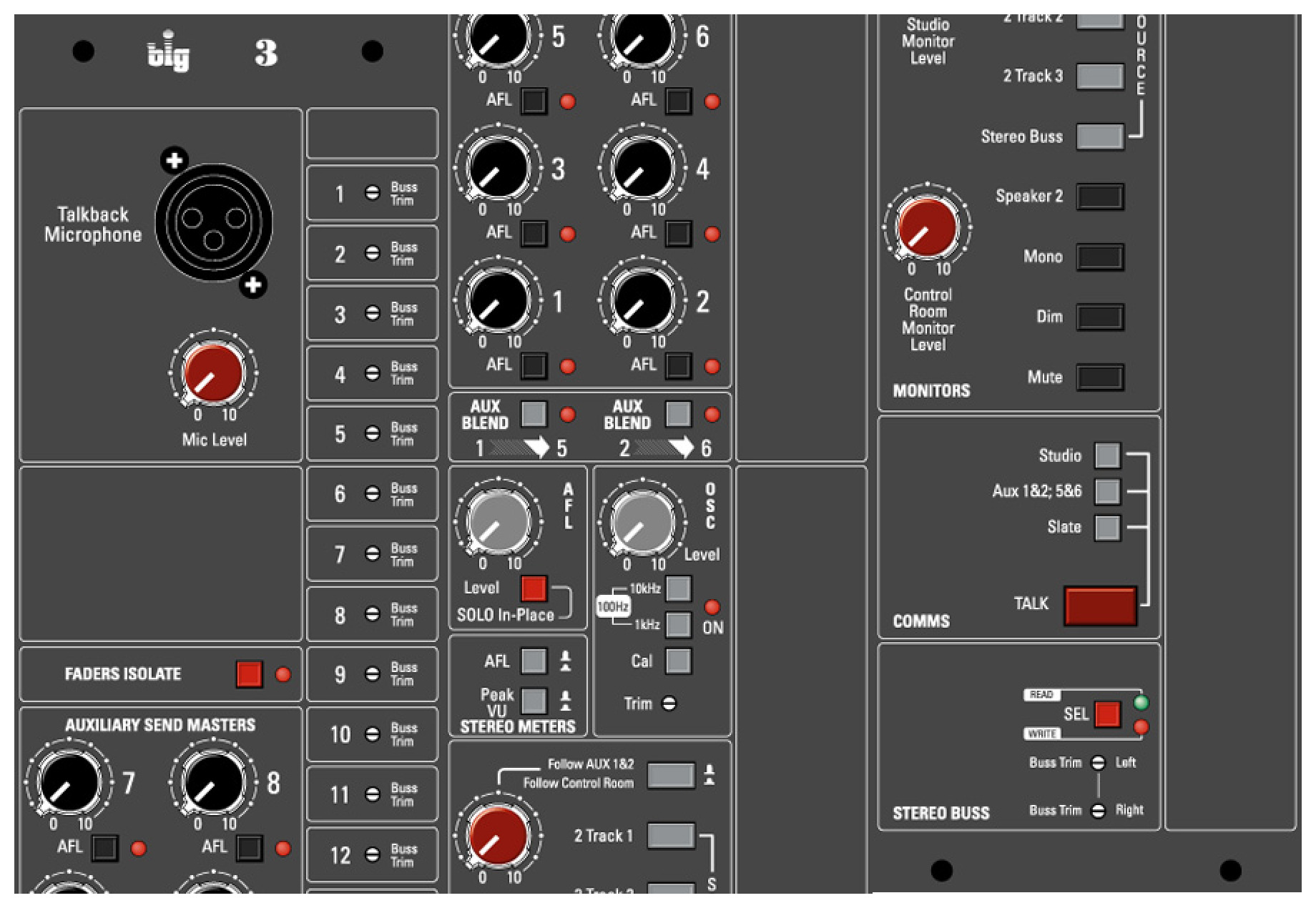

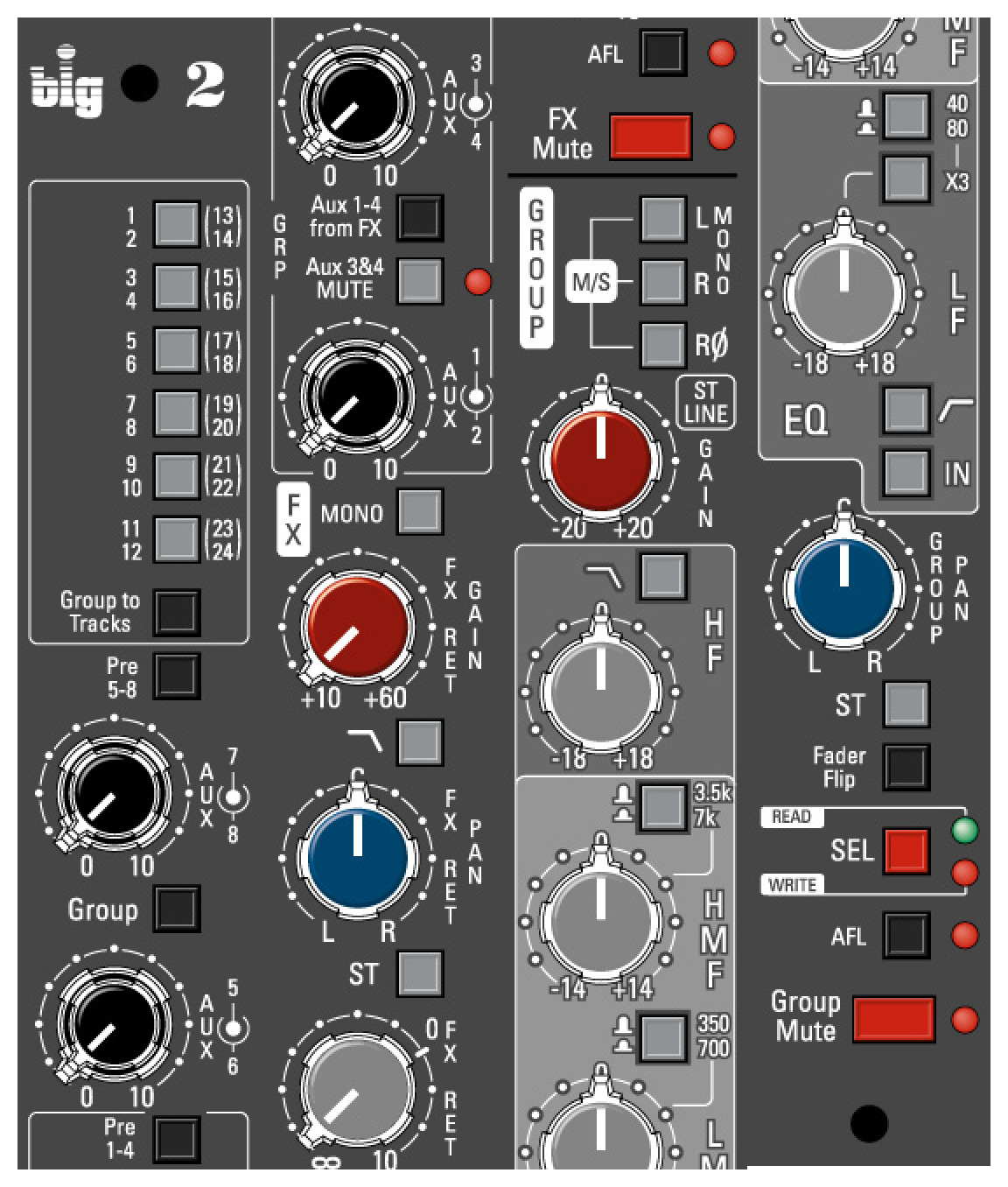

Strip & details
Rotate your phone to landscape for a better view of the strip.
Software
- SuperTrueAmek's proprietary automation software (faders, mutes, switches, full recall), developed with Steinberg and running on an Atari STE. This is the software driving the Big's automation.
Other screenshots
Accessories
License
- Virtual Dynamics (option)
Hardware/software upgrade adding per-channel gates and compressor/limiters.
Documents
Editorial & artists
Our take
History & design

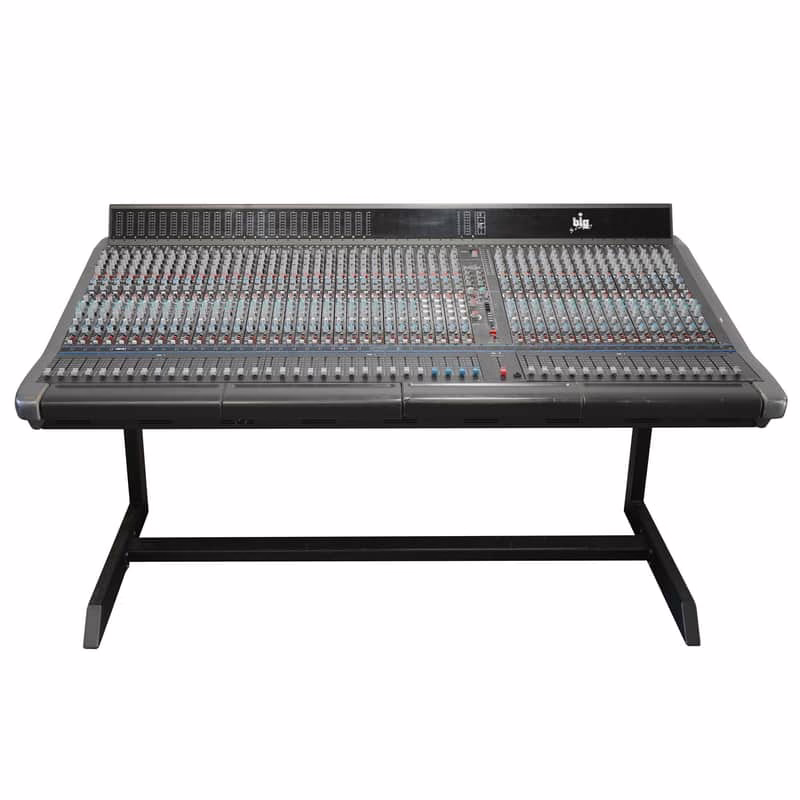

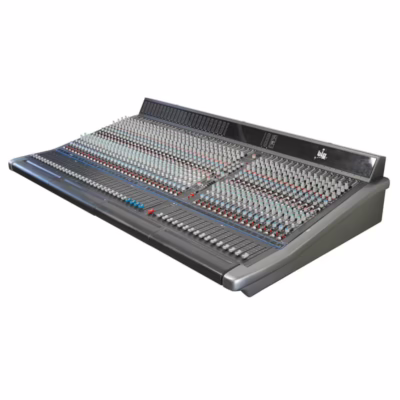

The Amek Big by Langley (1992) is a fully in-line, digitally-controlled analogue mixing console designed by Graham Langley for British maker Amek. The 'by Langley' suffix, introduced in the early 1990s on the Big, Recall and 501 consoles, marks the direct involvement of the brand's chief designer.
Each channel strip carries two audio paths (CH and MIX): the CH section has mic and line inputs, the MIX section has Buss and Tape inputs, with a flip switch to swap them. Routing relies on 12 busses wired to parallelled outputs — enough to feed a 24-track machine with no repatching — alongside 8 aux sends and a 4-band EQ derived from the Angela. The Big came in 28-channel (56 paths) and 44-channel (88 paths) versions, plus 4 stereo line inputs and 4 stereo FX returns.
Its SuperTrue automation, driven by an Atari STE and developed with Steinberg, handles faders, mutes and most switches with full recall. Amek added a party trick: Talking Recall, where a sampled Rupert Neve voice walks the operator from one control to the next during recall. Priced at £13,500 plus VAT in 1993, the Big offered facilities previously reserved for desks ten to twenty times more expensive. (Specs from the June 1993 Sound On Sound review and the Amek brochure.)
- Graham Langley — Concepteur (console signée « by Langley »)
Notable users
- Basement Jaxx
Console installée dans le studio du duo à Brixton (Londres), utilisée pour l'essentiel de leur discographie (dont de nombreux hits du UK Top 40).
