Description
Technical
Specifications
Processing
| DSP engine | Internal 28-bit digital engine |
|---|---|
| Max sample rate | 48 kHz |
| Bit depth | 20 bits |
| Processing resolution | 28 bits |
| Architecture | All-digital hybrid system: automated digital mixing console + 8-track 20-bit recorder on a proprietary cartridge in a single cabinet. |
| Sample rate | 44.1 kHz internal base; external clock from 44.1 kHz (-10%) to 48 kHz (+6%). |
| Bit depth — details | 20 bits on tape, claimed as a world first at the time; 28-bit internal processing. |
| Modularity and expansion | Expandable via the DRU8 companion unit (3U recorder-only 8-track rack) to reach 16 or 24 tracks while keeping the DMR8's automation and effects. |
Surface
| Screens | 1 |
|---|---|
| Touchscreen | No |

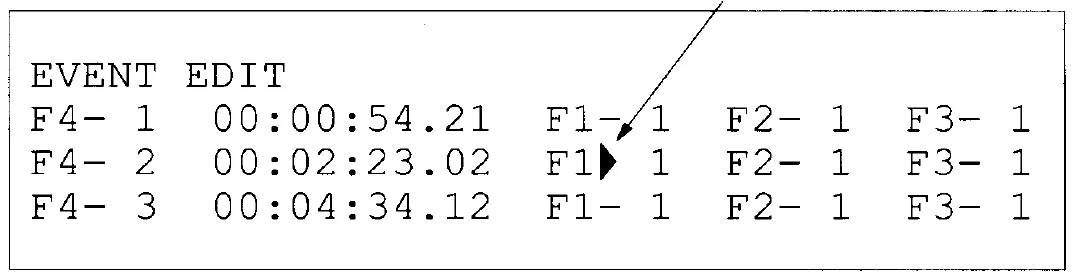

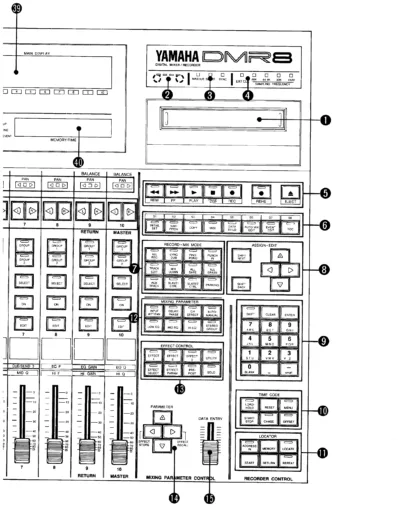

| Automation | Full timecode-synchronised automation (faders, on/off, pan, EQ); RECMIX modes: All Rec, Sync Dub, Ping-Pong, Punch In, Track Edit, Mixdown. |
Recording
| Onboard recording | Yes |
|---|---|
| Recording | 8 digital 20-bit tracks on proprietary M20P 8 mm tape (stationary S-DAT head). 22 min at 44.1 kHz / 20 min at 48 kHz per cartridge. |
Networking
| Networking & protocols | AES/EBU |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Other
| Software | System firmware V.3.0 documented in a dedicated Owner's Manual; available on the Internet Archive. |
|---|---|
| Price | Launch price estimated at around US$50,000 for the complete system (forum source, to be verified). |

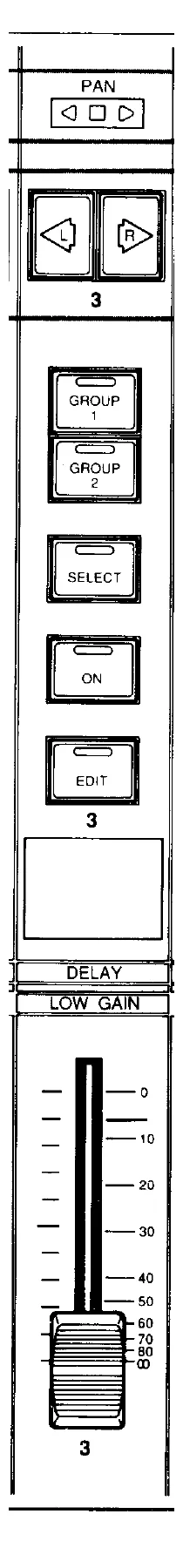

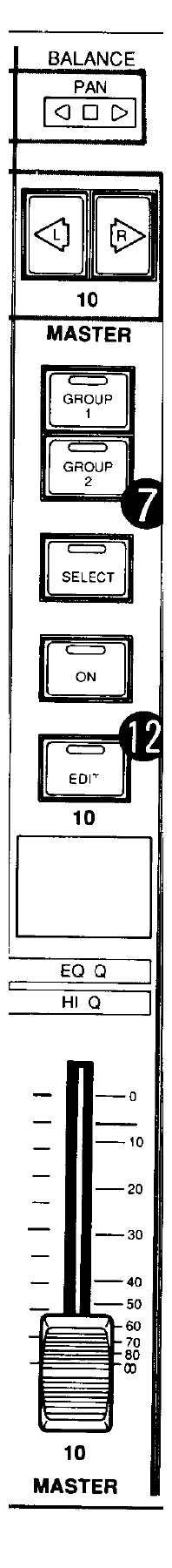

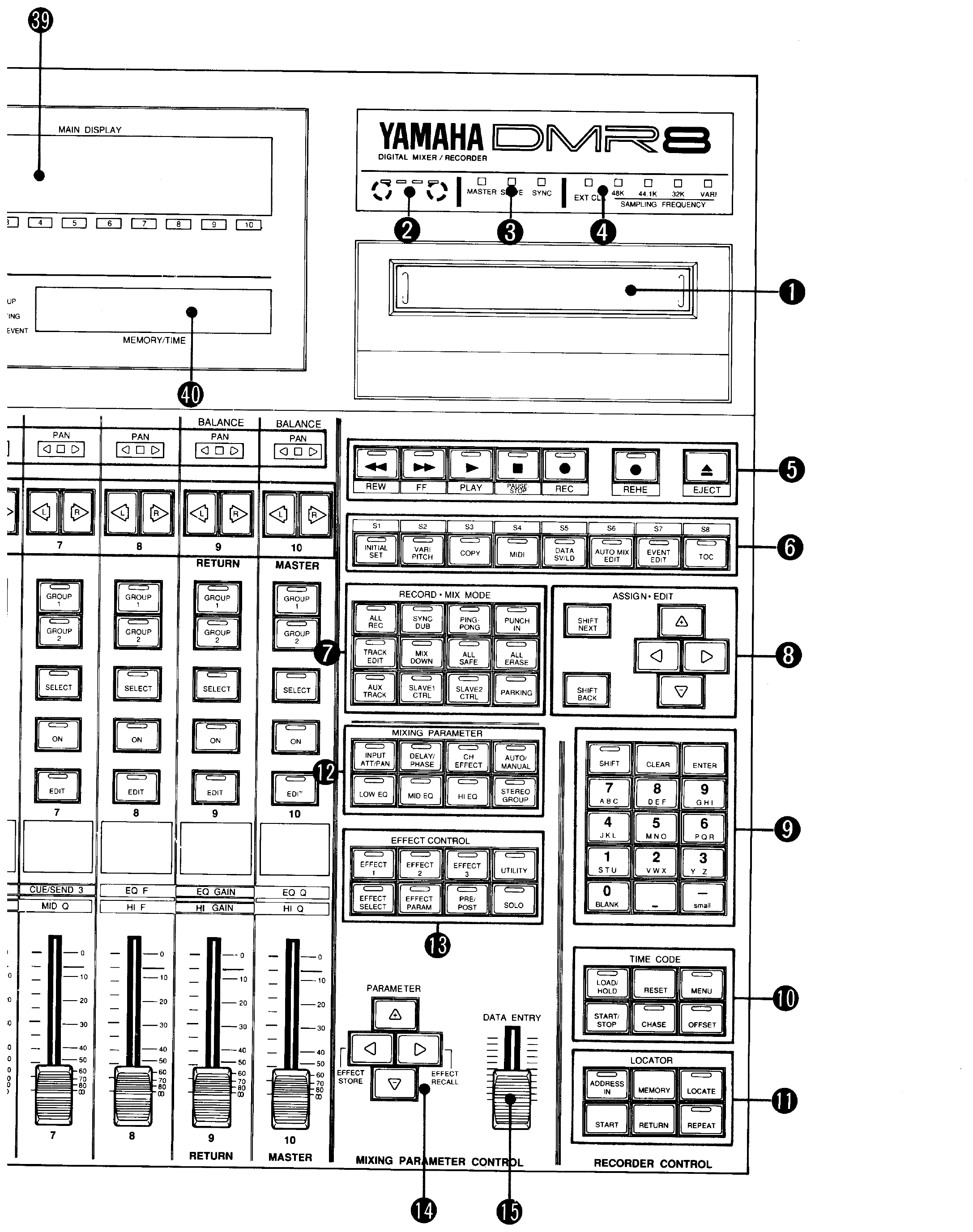

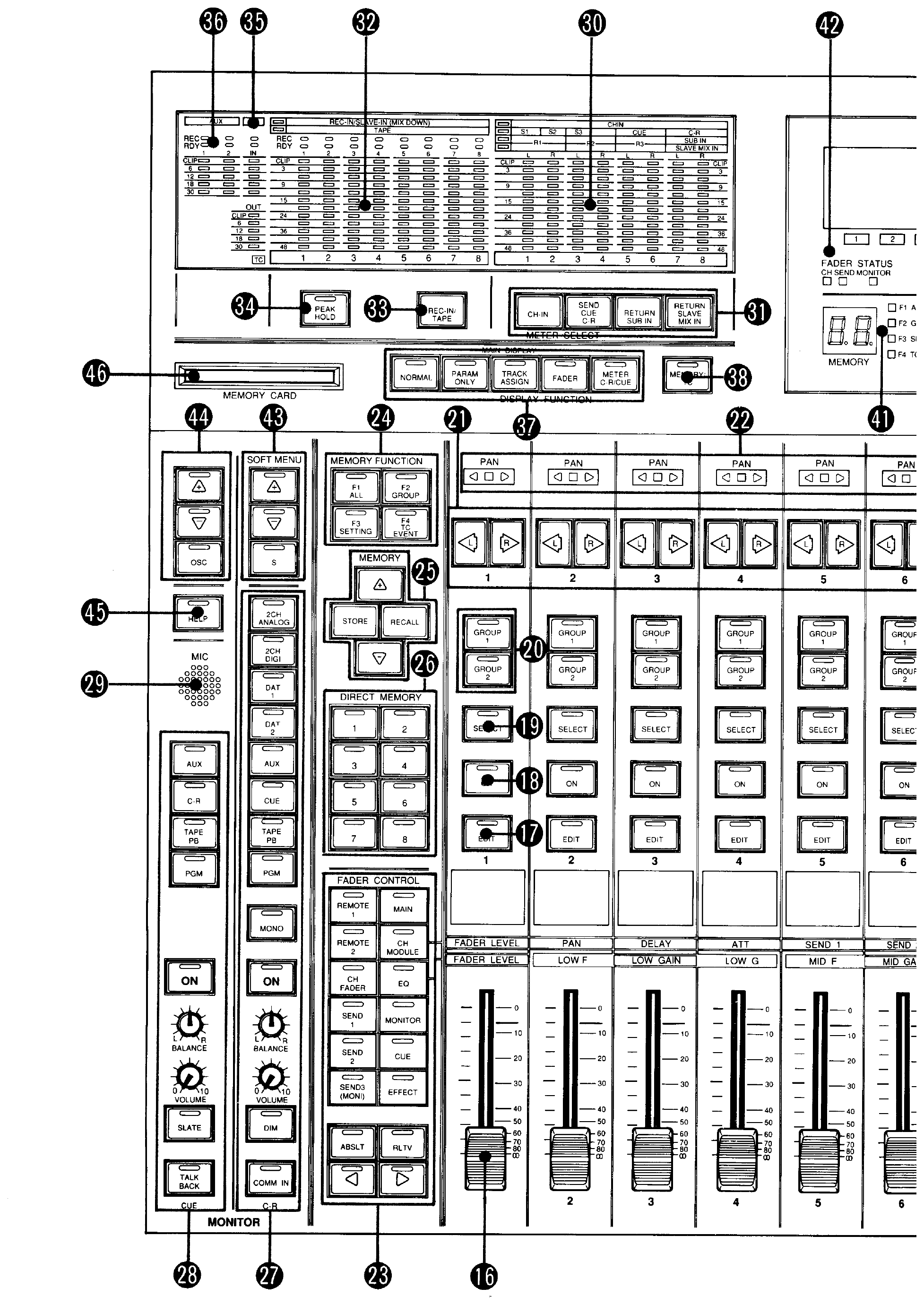

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software

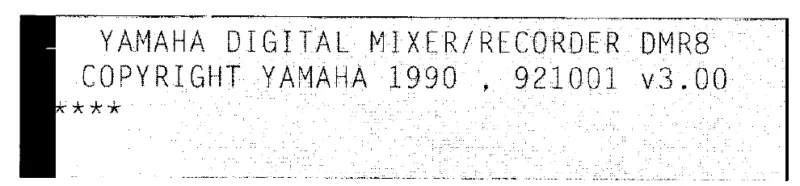

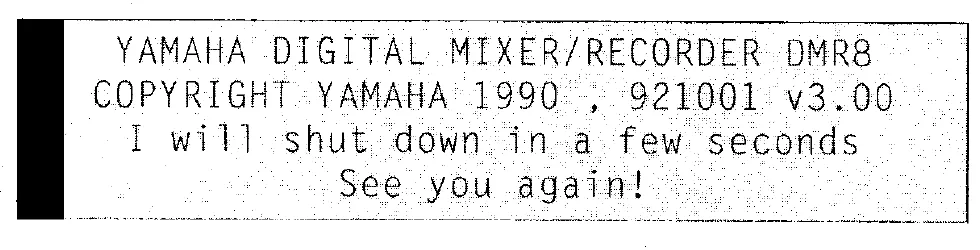

DMR8 System Software V.3.0DMR8 V.3.0 system firmware, documented by a dedicated V.3.0 Owner's Manual and supplement. Extends the automation, locator and RECMIX modes (All Rec, Sync Dub, Ping-Pong, Punch In, Track Edit, Mixdown).
Other screenshots
Accessories
Other
- Yamaha DRU8
Standalone 8-track digital recorder unit (3U rack, no console section) that chains to the DMR8 to reach 16 or 24 tracks while keeping the DMR8 automation and effects.
- M20P cartridge
Proprietary 8 mm tape cartridge for the DMR8/DRU8 duo: 22 min at 44.1 kHz / 20-bit or 20 min at 48 kHz / 20-bit, with a sync track kept separate from audio.
Editorial & artists
Our take
History & design
The Yamaha DMR8 (1990) combines an automated digital mixing console and an 8-track 20-bit digital recorder in one frame, using proprietary 8 mm tape (M20P cartridge, stationary S-DAT head). A single cartridge stores 22 minutes at 44.1 kHz or 20 minutes at 48 kHz, with a sync track independent of the audio.
Internally the DMR8 processes in 28 bits and delivers full timecode-driven automation (faders, on/off, pan, EQ). Its RECMIX modes (All Rec, Sync Dub, Ping-Pong, Punch In, Track Edit, Mixdown) organise the record/edit/mixdown flow. It scales through the DRU8 (standalone 3U 8-track recorder rack) to reach 16 or 24 tracks while keeping the DMR8's automation and effects. The V.3.0 firmware is the documented reference revision (dedicated Owner's Manual on Internet Archive).
