Description
Technical
Specifications
Processing
| Mix buses | 128 |
|---|---|
| Aux sends | 96 |
| DSP engine | Traitement et routage dans le NEXUS STAR (matrice 4096 x 4096), cartes MADI et fibre optique |
| Max sample rate | 48 kHz |
| Bit depth | 32 bits |
| Channels | Jusqu'à 300 voies audio réelles (7 cartes DSP), même puissance que l'AURUS |
| Buses | 128 bus de sommation, dont jusqu'à 96 auxiliaires / mix-minus |
Surface
| Motorized faders | Yes |
|---|---|
| Strips | Surface AURATUS, jusqu'à 48 tranches, faders motorisés et double encodeur rotatif STAGETEC par voie |
Networking
| Networking & protocols | MADI |
|---|
Other
| Converters | Convertisseurs 32 bits TrueMatch (brevet Stage Tec) |
|---|---|
| Concept | Concept Direct Access : accès direct à tous les paramètres (EQ, dynamique, AUX) depuis la tranche ou la section centrale |
| Samplerate | Fonctionnement en 48 kHz (système NEXUS) |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Editorial & artists
Our take
History & design

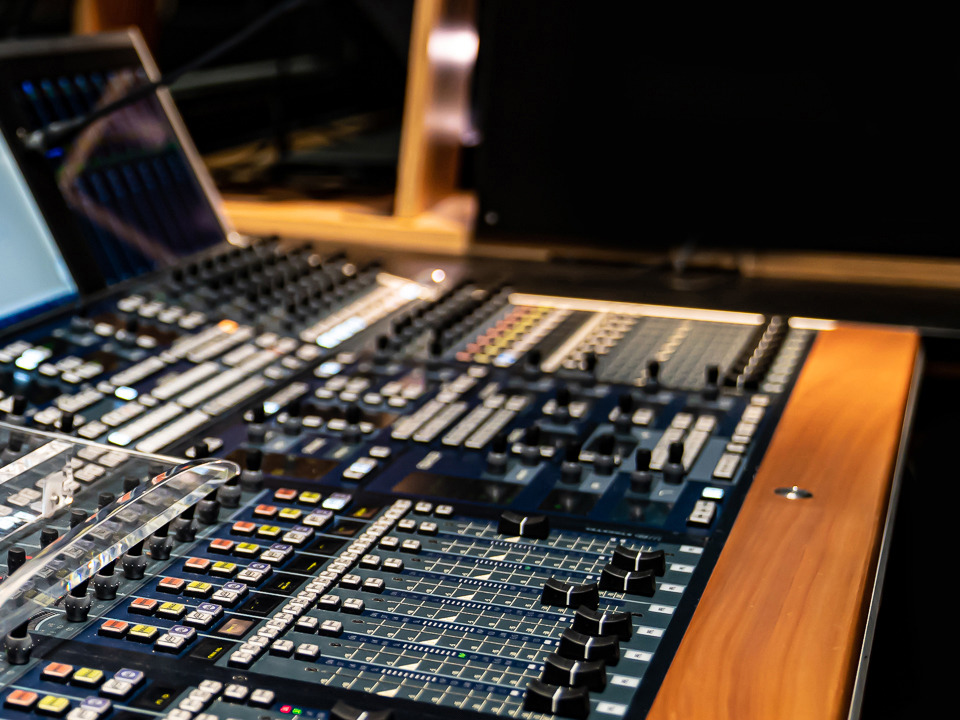

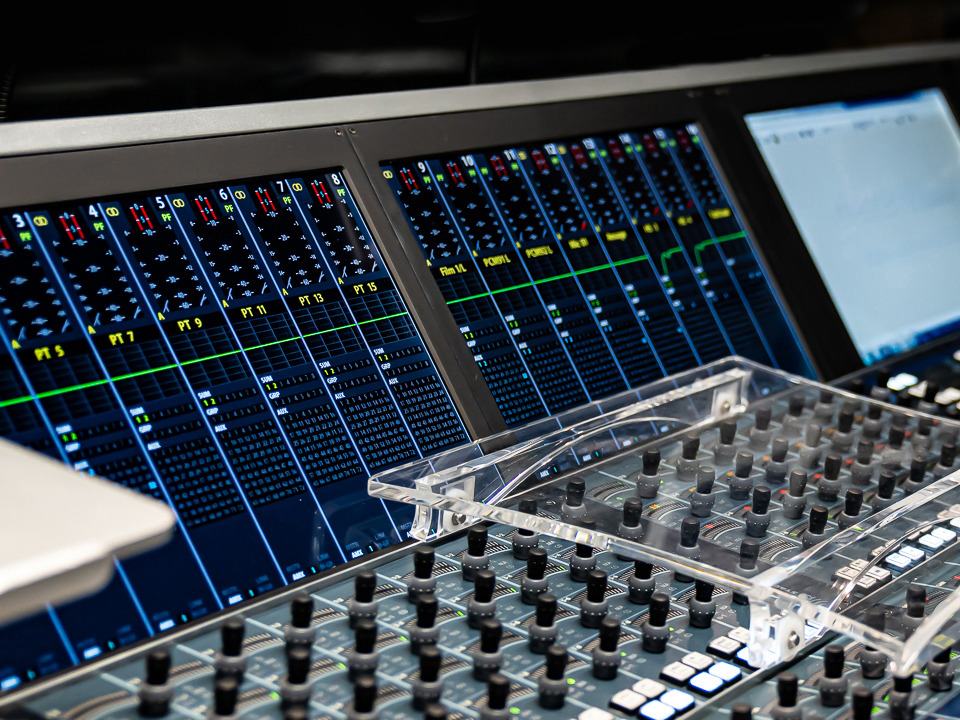

The Crescendo (now offered as Crescendo platinum) is Stage Tec's compact digital console. It carries the brand's Direct Access concept: every audio parameter — EQ, dynamics, auxiliaries — is reachable straight from the strip or the central section, with no cascading menus. The strips use Stage Tec's signature dual rotary encoders and clear displays that stay readable in low light.
The surface (AURATUS) is purely a user interface: all processing and routing live in the NEXUS STAR, with a 4096 x 4096 crosspoint matrix and MADI or fibre-optic cards. Fully expanded (seven DSP boards), the Crescendo delivers 300 real channels and 128 summing buses, up to 96 of them aux — enough for 96 separate mixes, for instance monitor feeds. The 32-bit TrueMatch converters, an in-house patent since 1996, give unmatched input dynamic range. Its shallow installation depth makes it easy to fit into compact control rooms.
Notable users

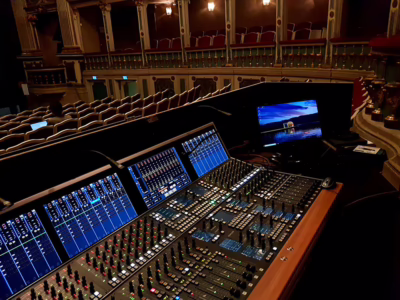

- Théâtre d'Erlangen
Sonorisation 3D via NEXUS et CRESCENDO-T
