Description
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | 16 mic/line inputs, 16 line outputs, 4 pairs of AES/EBU I/O locally · Up to 600 physical inputs/outputs at 96 kHz |
|---|
Processing
| Mix buses | 0 |
|---|---|
| Matrices | 36 |
| DCA/VCA groups | 36 |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Processing resolution | 64 bits |
| Processing engine | Tempest engine (4th generation) with Optimal Core Processing (OCP), low latency |
| Channel processing | 216 processing paths (168 fully processed, 48 without) |
| Groups and VCA/DCA | 36 VCAs |
| Matrices — details | 36 matrix outputs and 36 VCAs |
| Surround and immersive | Buses configurable as mono, stereo, LCR and 5.1 |
| Conversion | 24-bit / 96 kHz conversion |
| Audio performance | THD+N < 0.005% |
Surface
| Physical faders | 26 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | No |
| Faders | 24 + 2 fader frame (two banks of 12), 100 mm motorised faders freely assignable to channels/VCAs |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Dante / Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | 3 redundant coax MADI pairs + 1 redundant optical pair (up to 8 independent ports) |
| Stage boxes | Up to 8 SB 32.24 stageboxes via Blacklight II / X-Light (96 kHz, per-input gain control) |

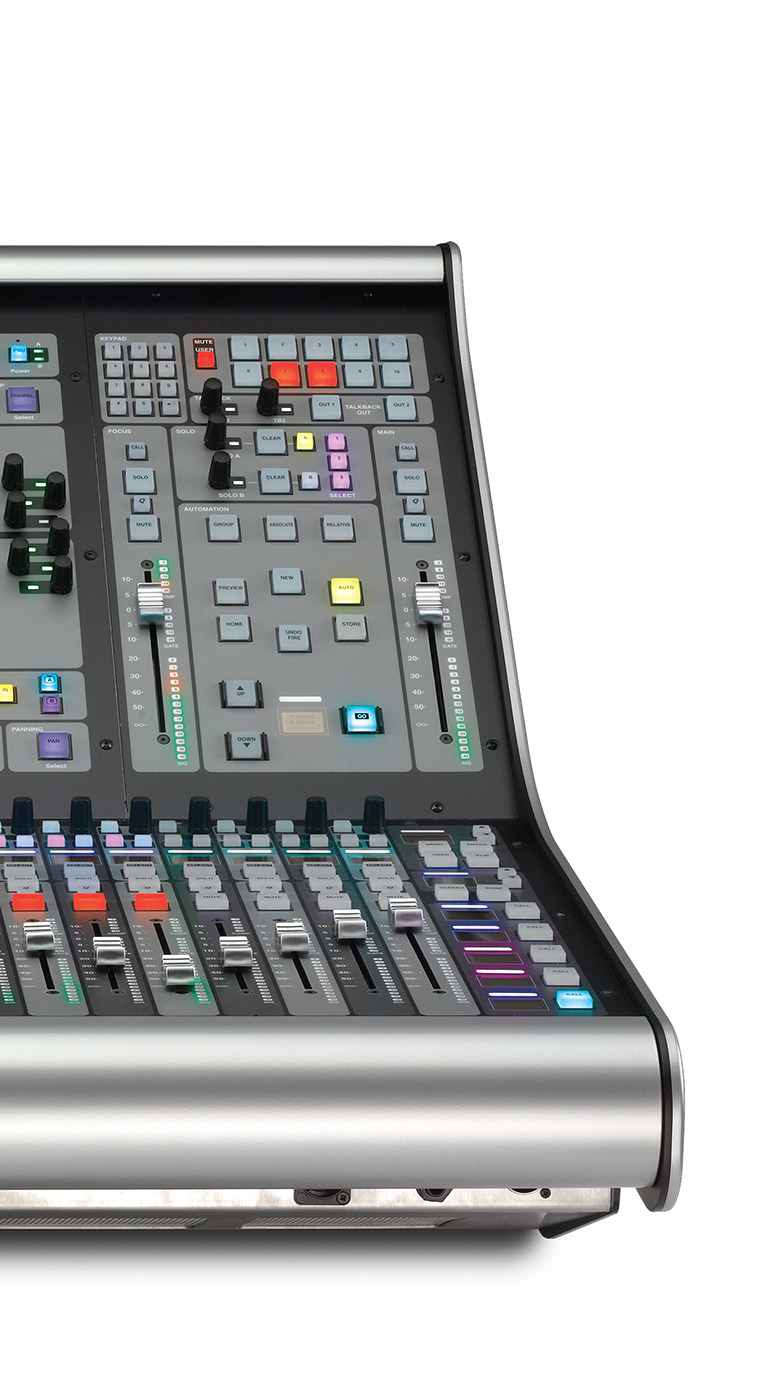

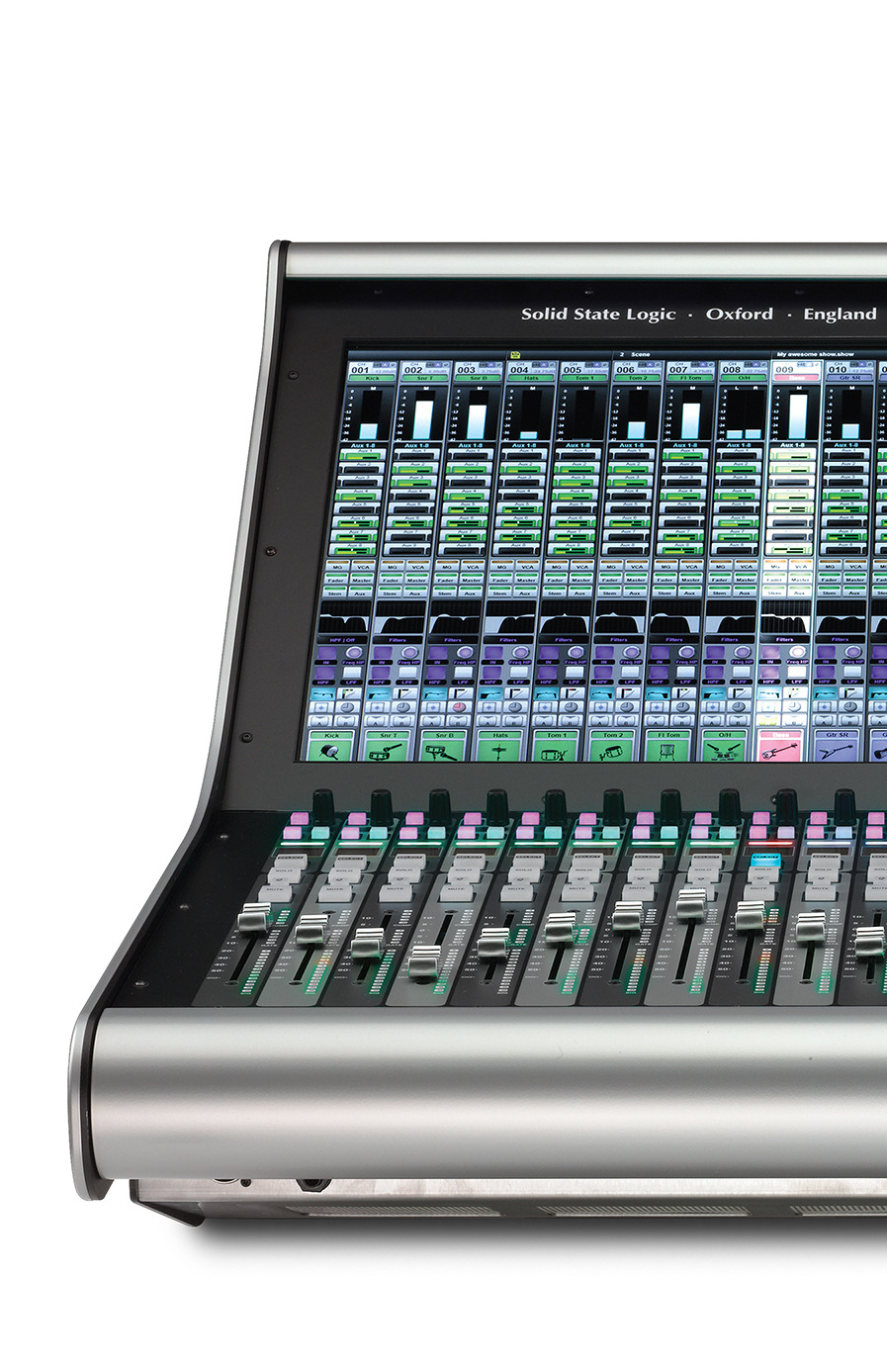

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- SSL Live RemoteRemote control app for SSL Live consoles from an iPad.
Accessories
Stagebox / rack
- SSL SB 32.24 Stagebox
32-in / 24-out stagebox, connected over Blacklight II, per-input gain control at 96 kHz.
- SSL Network I/O Stagebox
SSL network stagebox (remote-controlled preamps) linked to the console over the Blacklight optical network.
I/O card
- Dante option card
Dante network expansion card for audio-over-IP integration.
Documents
Editorial & artists
Our take
History & design
The SSL Live L350 is a live digital console built around the Tempest engine, SSL's fourth-generation audio processing platform, which uses Optimal Core Processing (OCP) for low-latency handling. It offers 216 processing paths (168 fully processed, 48 without), 36 matrix outputs and 36 VCAs, with buses configurable as mono, stereo, LCR and 5.1.
The surface takes a compact 24 + 2 fader format split across two banks of 12, with 100 mm motorised faders freely assignable to channels or VCAs. On the I/O side, the L350 handles up to 600 physical points at 96 kHz, distributed over SSL's proprietary Blacklight optical network (MADI over fibre), with MADI and Dante available. It carries the Live range's workflow (large touchscreen and dedicated processing section) into a smaller footprint.
Links
- Manufacturer SSL L350 Plus product page solidstatelogic.com
- Manufacturer Solid State Logic - Live Consoles solidstatelogic.com
- Manufacturer SSL Live announcement (2019) solidstatelogic.com
- Press article Audinate/Dante - SSL Live L350 getdante.com
- Press article AudioTechnology — SSL beefs up Live range audiotechnology.com
- Press article Church Production - First Impression: SSL Live churchproduction.com
