Description
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | Up to 568 inputs/outputs |
|---|
Processing
| Max sample rate | 96 kHz |
|---|---|
| Bit depth | 24 bits |
| Channel processing | 128 processing paths (96 full and 32 dry) |
| Matrices | 32 × 36 matrix |
| Groups and VCA/DCA | 36 VCAs |
| Effects and plug-ins | 48 FX slots |
| Sample rate | 24-bit / 96 kHz conversion, 64-bit internal processing, 96 kHz engine |
Surface
| Touchscreen | No |
|---|
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Dante |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Documents
Editorial & artists
Our take
History & design

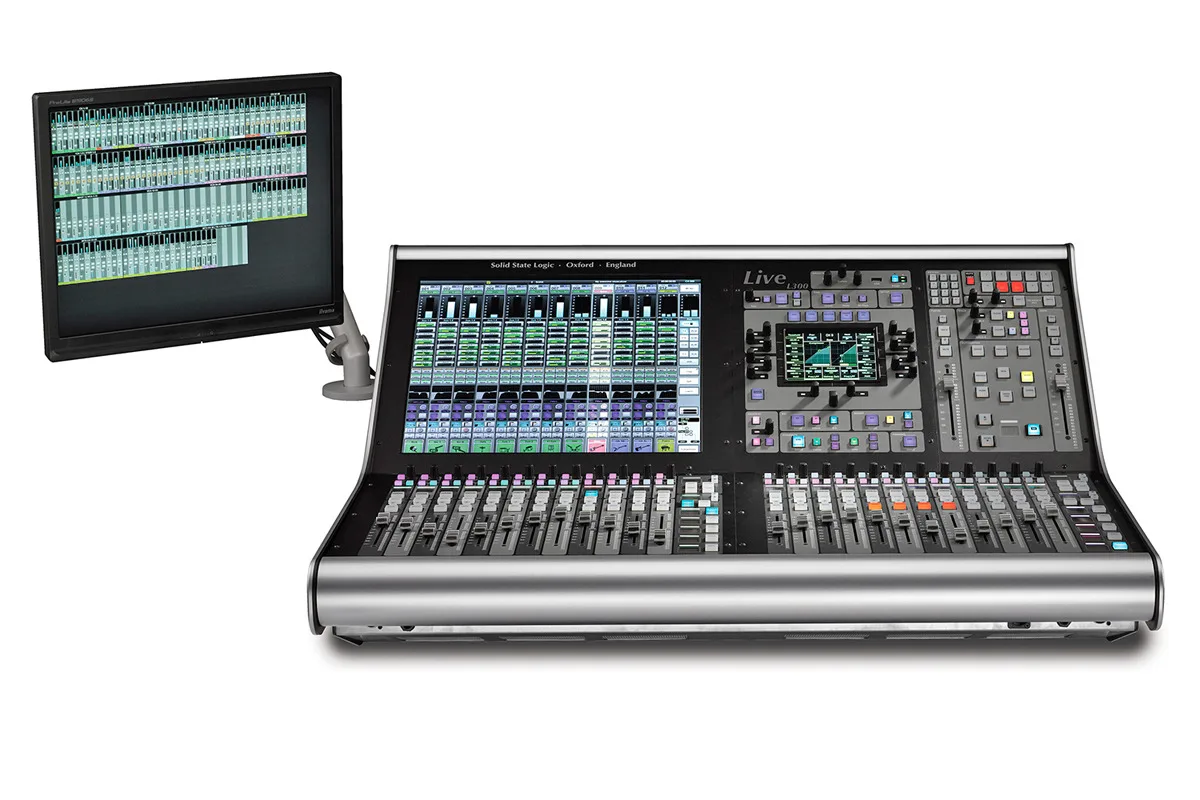

The SSL Live L300 is a compact digital mixing console launched by Solid State Logic in the mid-2010s, derived from the L500. It handles up to 568 inputs/outputs and 128 processing paths (96 full and 32 dry), a 32 × 36 matrix, 36 VCAs and 48 FX slots.
Conversion is 24-bit / 96 kHz, internal processing is 64-bit, and the engine runs at 96 kHz. The L300 reuses the L500's fader tiles and brings the Master Tile and Control Tile into a single area, with controls identical to those of the L500. More compact, it targets touring, fixed installation, houses of worship and theatre while keeping the SSL sonic signature.
