Description
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | 192 scalable input/output paths |
|---|
Processing
| Matrices | 36 |
|---|---|
| DSP engine | Tempest Engine |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Processing resolution | 64 bits |
| Architecture | 288 processing paths (full/dry split varies by source); Optimal Core Processing |
| Groups and VCA/DCA | Freely assignable VCAs (48 VCAs, or 32 VCAs + 10 mute groups depending on source) |
Surface
| Physical faders | 38 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |
| Faders | 36 + 2 motorised faders, assignable channels |
| Screens — details | 19-inch central touchscreen |
Networking
| Networking & protocols | MADI / Dante |
|---|---|
| Audio networking | Blacklight MADI-over-fibre network; optional Dante (X-Light interface) |
Other
| Year / dates | Premiered at NAMM 2019, available from February 2019 |
|---|---|
| Lineage | SSL Live range (L100 to L650); joined by the L550 Plus |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Other screenshots
Editorial & artists
Our take
History & design

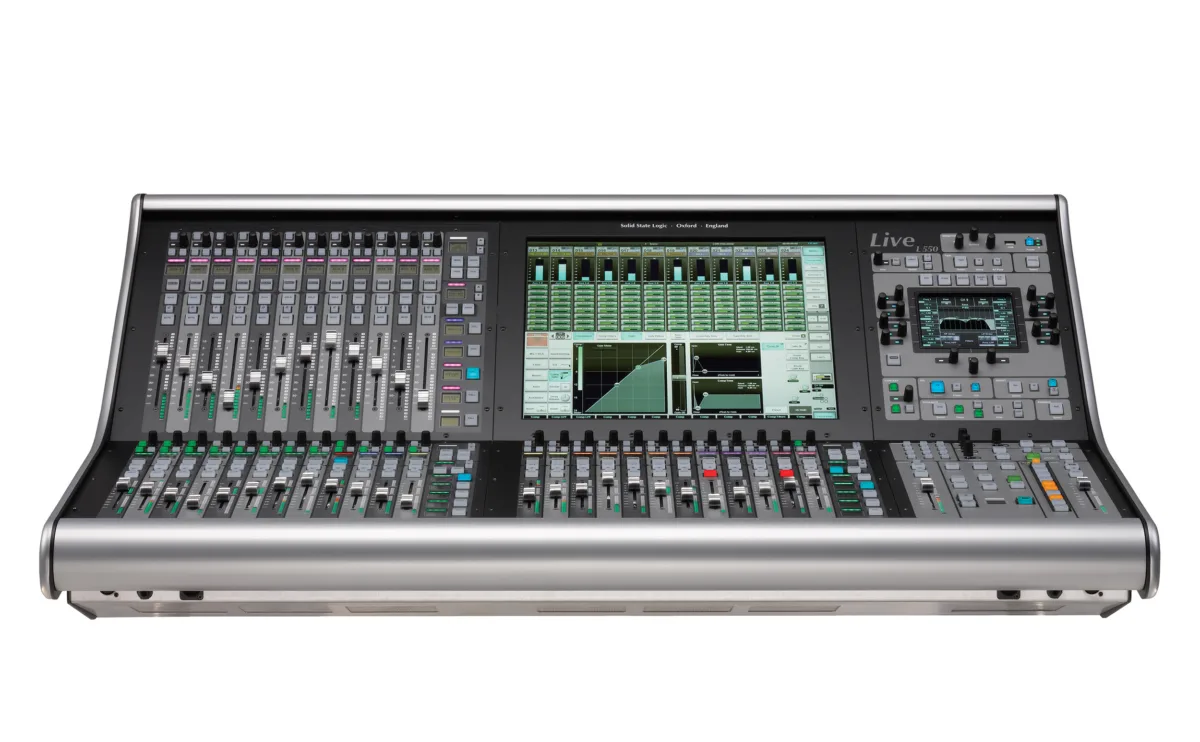

Premiered at NAMM 2019 and available from February 2019, Solid State Logic's L550 is the most fully equipped console in the Live range. It is built on the Tempest engine, a fourth-generation digital platform with 64-bit processing and Optimal Core Processing (OCP) architecture.
The L550 offers 288 processing paths, a 36 × 36 output matrix and 192 scalable input/output paths, all at 96 kHz. Its surface carries 36 + 2 motorised faders and a 19-inch central touchscreen, with assignable channels and freely assignable VCAs. Connectivity relies on the Blacklight MADI-over-fibre network, with Dante available as an option.
The Live range spans the L100 to the L650; the L550 has since been joined by an L550 Plus version.
