Technical
Specifications
Inputs / Outputs
| Total inputs | 12 |
|---|---|
| Mic inputs | 8 |
| Inputs | 4 XLR/jack combo mic-line, 4 XLR mic inputs, 2 Hi-Z inputs, stereo RCA line input |
| Outputs | Balanced XLR and jack main outputs, 2 XLR aux outputs, 2 headphone outputs |
Processing
| DSP engine | HARMAN dbx, DigiTech and Lexicon processing |
|---|---|
| Max sample rate | 48 kHz |
| Bit depth | 24 bits |
| Effects and plug-ins | Lexicon reverbs, delays and chorus, DigiTech amp modelling, dbx AFS2 automatic feedback suppression |
| Channel processing | Per channel: 4-band parametric EQ, high-pass filter, compressor, de-esser and gate |
| EQ | 31-band graphic EQ and compressor on every output |
| Architecture | Rackable digital mixer with no physical surface, operated remotely |
Surface
| Physical faders | 0 |
|---|---|
| Motorized faders | No |
| Touchscreen | No |
| Remote and tablet control | HTML5 browser control from up to 10 devices over built-in Wi-Fi, with no app to install |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | 2-track USB media player/recorder |
Networking
| Networking & protocols | USB |
|---|
Other
| Software | Embedded HTML5 interface compatible with iOS, Android, macOS, Windows and Linux |
|---|---|
| Year / dates | Launched in 2015, alongside the Ui16 |
| Price | Around €300 / £350 at dealers; 2015 launch price to be confirmed |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software

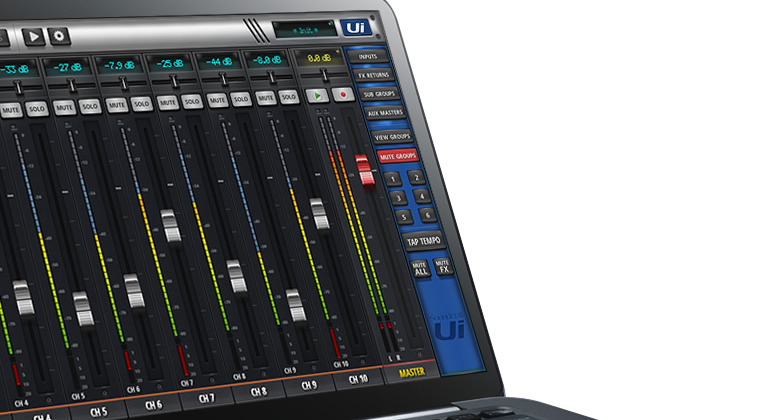

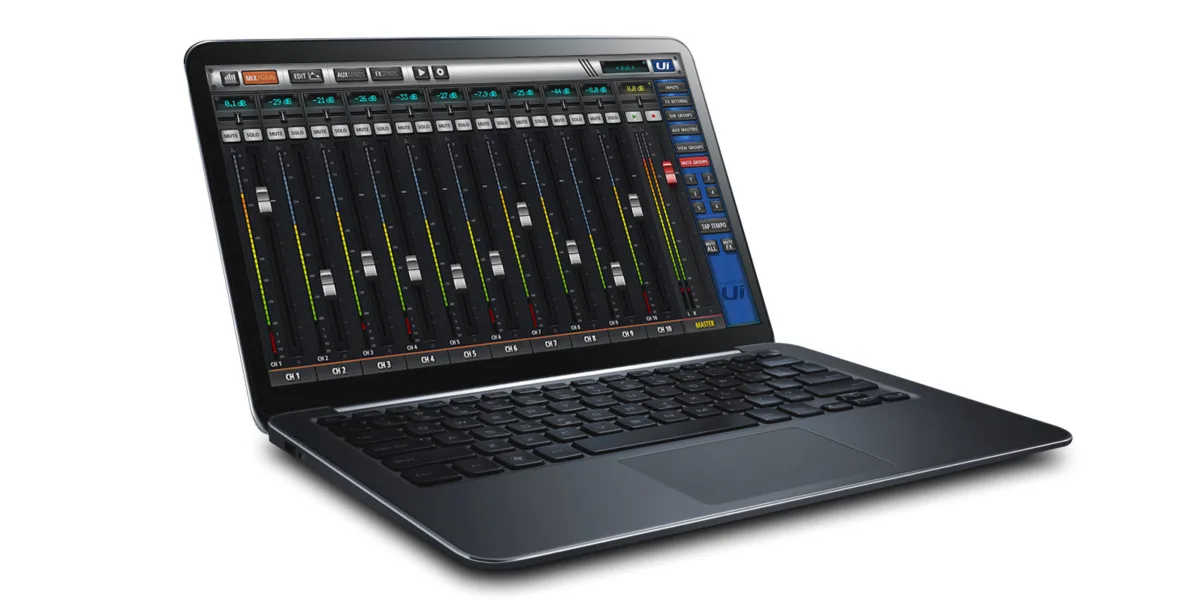

- Soundcraft UiHTML5 mixing interface embedded in the console, opened in a browser over Wi-Fi, with no installation.
Other screenshots
Editorial & artists
Our take
History & design

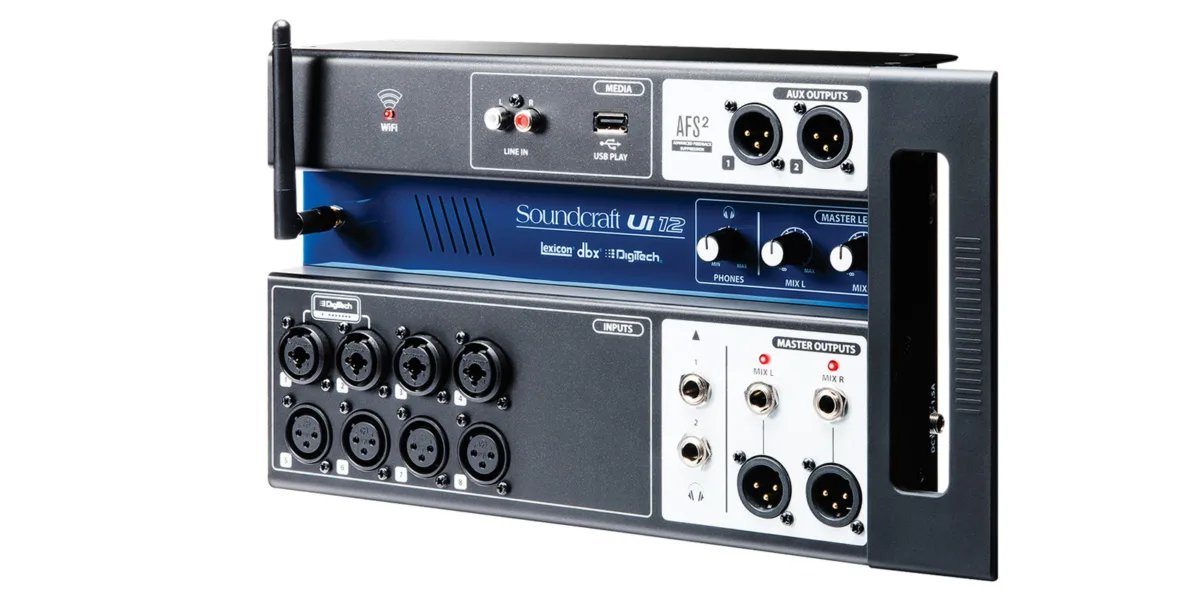

The Soundcraft Ui12, launched in 2015, is a rackmount digital mixer with no control surface: everything is operated remotely through an embedded HTML5 interface, from any browser, with no app to install. The built-in Wi-Fi supports up to ten simultaneous devices (smartphone, tablet, computer).

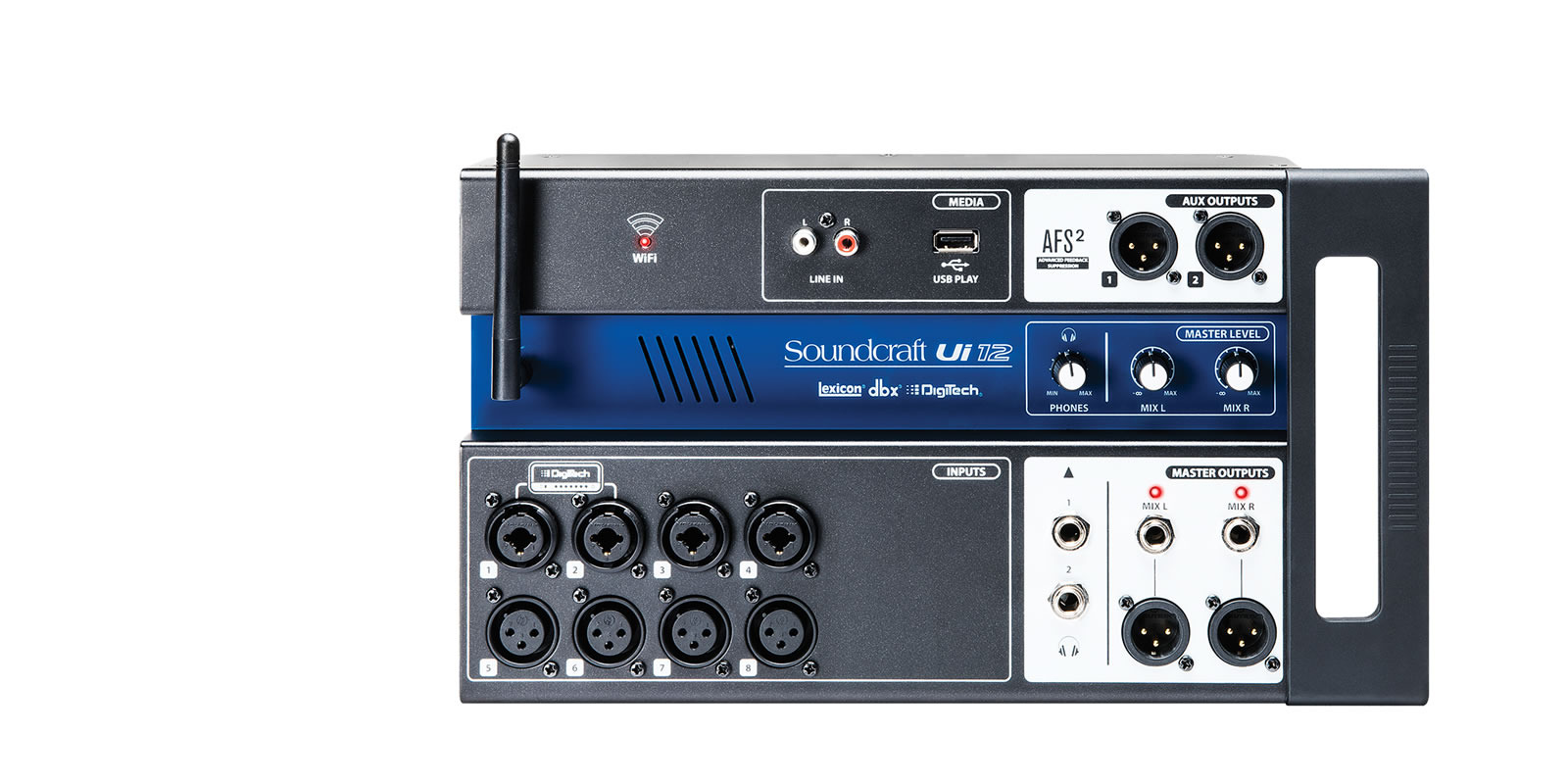

For connectivity it offers four XLR/jack combo mic-line inputs, four additional XLR mic inputs, two Hi-Z inputs, a stereo RCA line input and a two-track USB media player. Outputs include balanced XLR and jack main outputs, two XLR aux outputs and two headphone outputs.

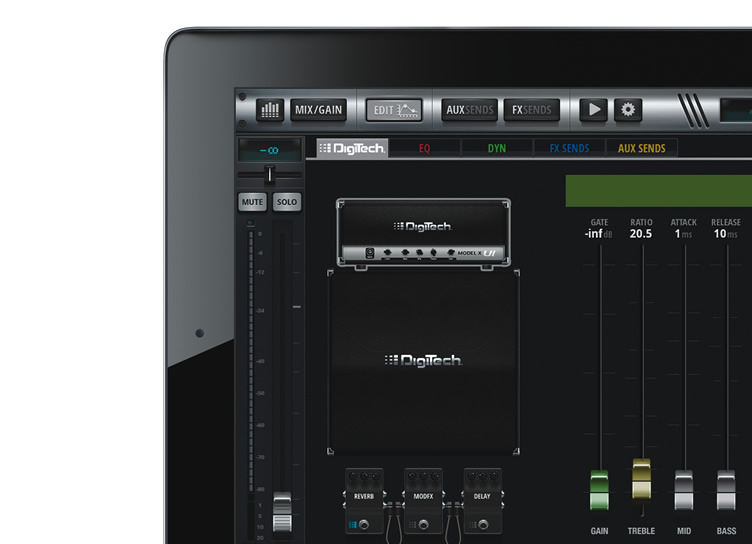

Processing is by HARMAN: Lexicon reverbs, delays and chorus, DigiTech amp modelling and dbx AFS2 automatic feedback suppression. Every channel has a 4-band parametric EQ, high-pass filter, compressor, de-esser and gate; every output has a 31-band graphic EQ and a compressor.
