Mackie Onyx24
24-channel analog mixer with multitrack USB recording
Manufacturer’s list price 899 USD as of 2021
Description
Where to buy
Manufacturer’s list price 899 USD as of 2021
Mackie Onyx24 chez Thomann
See offer
Technical
Specifications
Inputs / Outputs
| Total inputs | 24 |
|---|---|
| Mic inputs | 18 |
| Mic preamps | 18 Onyx mic preamps, up to 60 dB of gain, low noise |
| Computer interface | 24×4 class-compliant USB audio interface, Bluetooth stereo playback |
Processing
| Aux sends | 3 |
|---|---|
| DSP engine | Built-in digital effects processor (reverb, delay, chorus) |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| EQ | 3-band Perkins “British” EQ with swept mid and switchable high-pass filter |
| Effects and plug-ins | Built-in effects processor: reverbs, delays, chorus |
| Channels | 24 channels: 14 mono mic/line, 4 stereo mic/line, 1 stereo line |
Surface
| Motorized faders | No |
|---|---|
| Screens | 1 |
| Touchscreen | No |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | 24×4 USB (96 kHz/24-bit) to Mac/PC + 2×2 stereo SD-card recorder |
Networking
| Networking & protocols | USB |
|---|---|
| Redundant PSU | No |
Physical
| Weight | 12.7 kg |
|---|
Other
| Software | Bundled Waveform OEM (Tracktion) and DAW Essentials plug-ins |
|---|---|
| Year / dates | Onyx series relaunched late 2020, a “Best of NAMM 2021” award winner |
| Price | About US$900 (dealer price, 2021) |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- Waveform OEMTracktion Waveform (OEM edition) digital audio workstation bundled with the console, including the DAW Essentials plug-in set.
Other screenshots
Editorial & artists
Our take
History & design

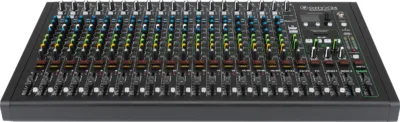

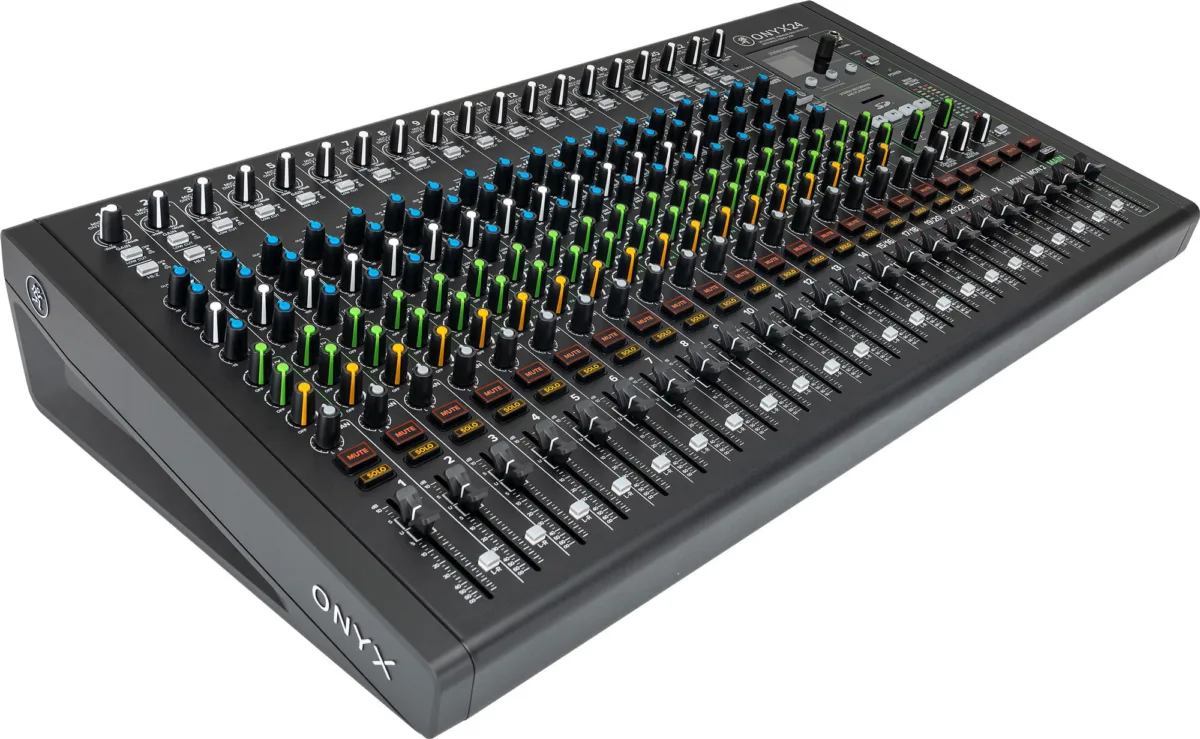

The Mackie Onyx24 is the largest desk in the Onyx series relaunched in late 2020. Fully analog in the signal path, it carries 18 Onyx mic preamps (up to 60 dB of gain) across 14 mono and 4 stereo mic/line channels plus a stereo line input, for 24 channels in total.

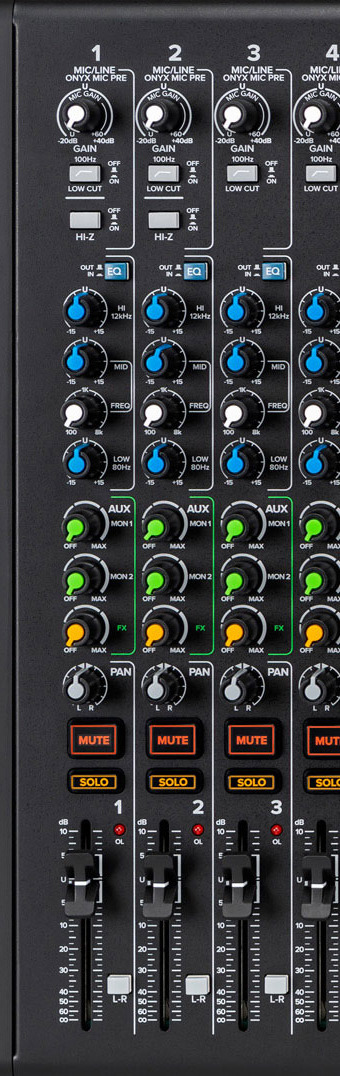

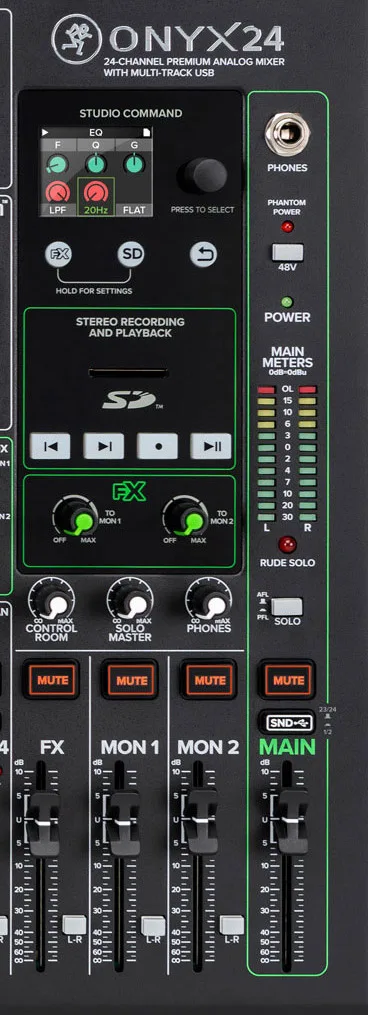

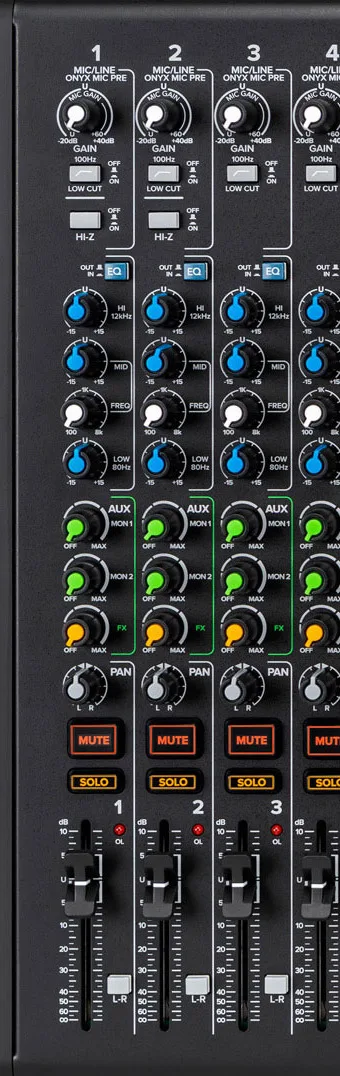

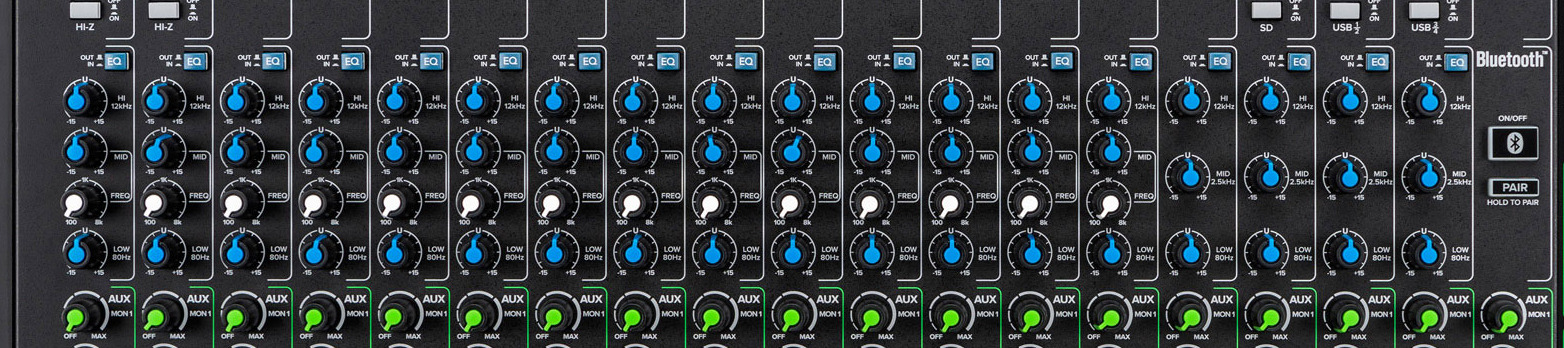

Every channel offers a 3-band Perkins “British” EQ with swept mid, a high-pass filter and three aux sends. A built-in effects processor (reverbs, delays, chorus) and a small colour-screen command section round out the surface.
Its headline feature is the 24×4 class-compliant USB interface at 96 kHz/24-bit: the console records twenty-four tracks to a Mac or PC, and also offers an SD-card stereo recorder and Bluetooth playback. Waveform OEM and a DAW Essentials plug-in bundle are included.
