Mackie DLZ Creator
Adaptive touchscreen digital mixer for podcast and streaming
Manufacturer’s list price 799 USD as of 2023
List price at launch 799 USD as of 2023
Description
Where to buy
Manufacturer’s list price 799 USD as of 2023
Mackie DLZ Creator : Thomann
See offer
Technical
Specifications

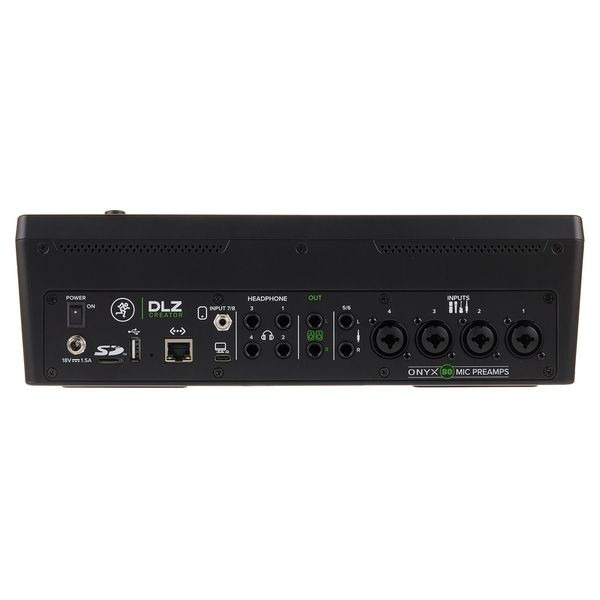

Inputs / Outputs
| Mic inputs | 4 |
|---|---|
| Mic preamps | 4 Onyx80 preamps on XLR/TRS combo, up to 80 dB gain; 2 TRS line inputs |
| Inputs / outputs | Dual USB (Type A and Type C), Bluetooth 5.0, SD card slot, 4 TRS headphone outputs |
Processing
| Max sample rate | 48 kHz |
|---|---|
| Bit depth | 24 bits |
| Bit depth (details) | 24-bit / 48 kHz conversion |
Surface
| Physical faders | 9 |
|---|---|
| Motorized faders | No |
| Screens | 1 |
| Touchscreen | Yes |
| Screens (details) | 10.1-inch color touchscreen, adaptive interface (Easy, Enhanced, Pro modes) |
| Automation | Mix Agent: setup and level-setting assistant; AutoMix manages up to 4 mics |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | SD card + USB |
| Recording | Multitrack recording to SD card and USB interface |
Networking
| Networking & protocols | USB |
|---|
Physical
| Weight | 2.8 kg |
|---|

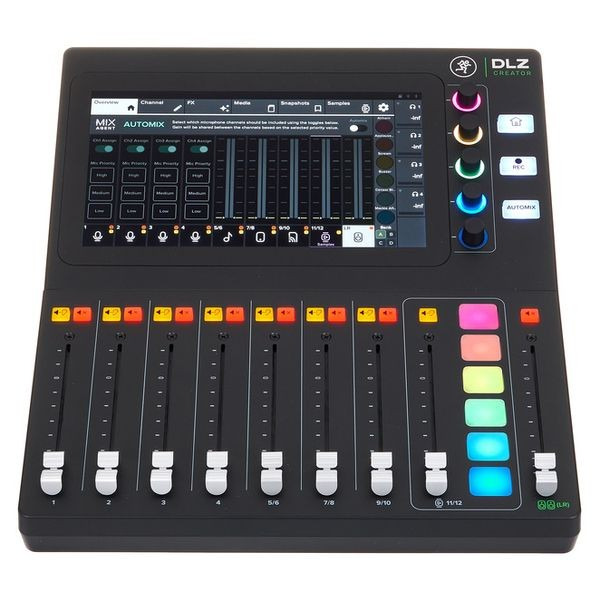

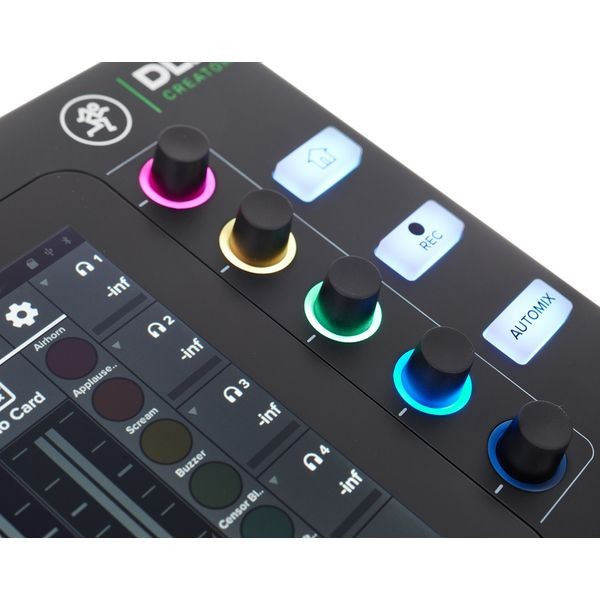

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- Mackie USB Driver (DLZ Creator)Download
Mackie USB audio driver required on Windows to use the DLZ Creator as a multitrack audio interface. No driver is needed on macOS. Download from the Downloads & Resources section of the product page.
Other screenshots




















Documents
Editorial & artists
Our take
History & design

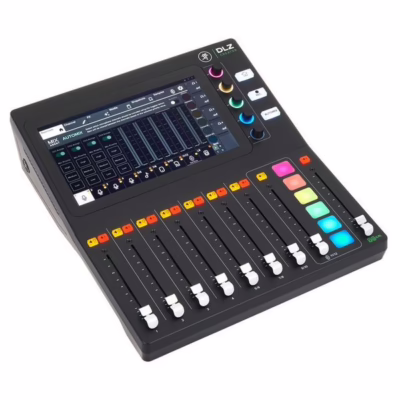

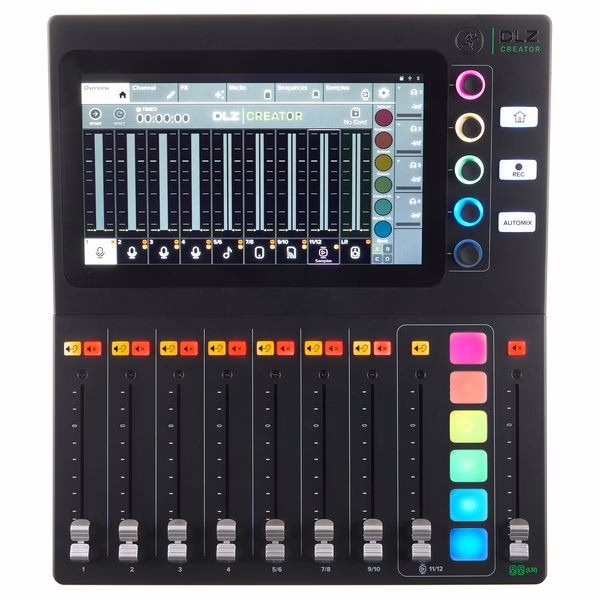

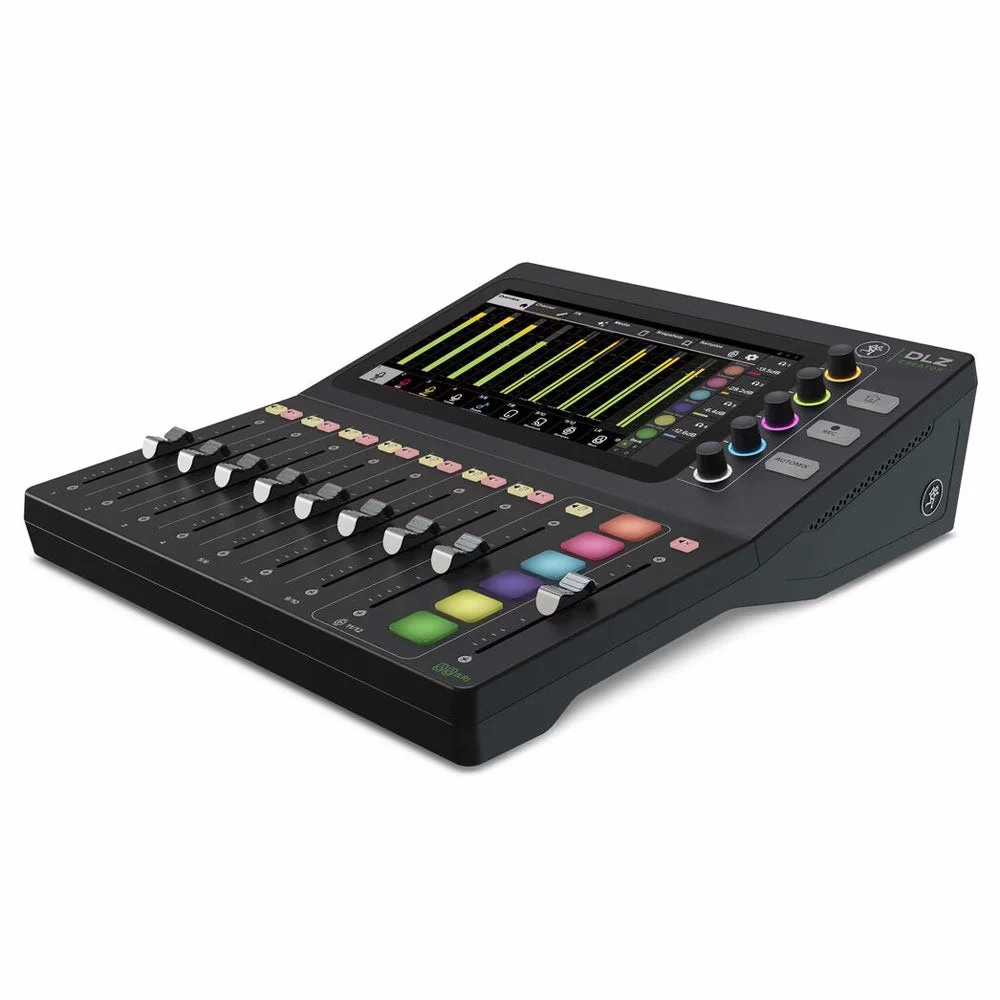

The DLZ Creator is a desktop digital mixer designed for content creation: podcast, streaming, video. It centres on a 10.1-inch color touchscreen and four Onyx80 mic preamps delivering up to 80 dB of gain on XLR/TRS combo connectors. Colored pads fire jingles and effects, and dedicated headphone knobs serve each participant.

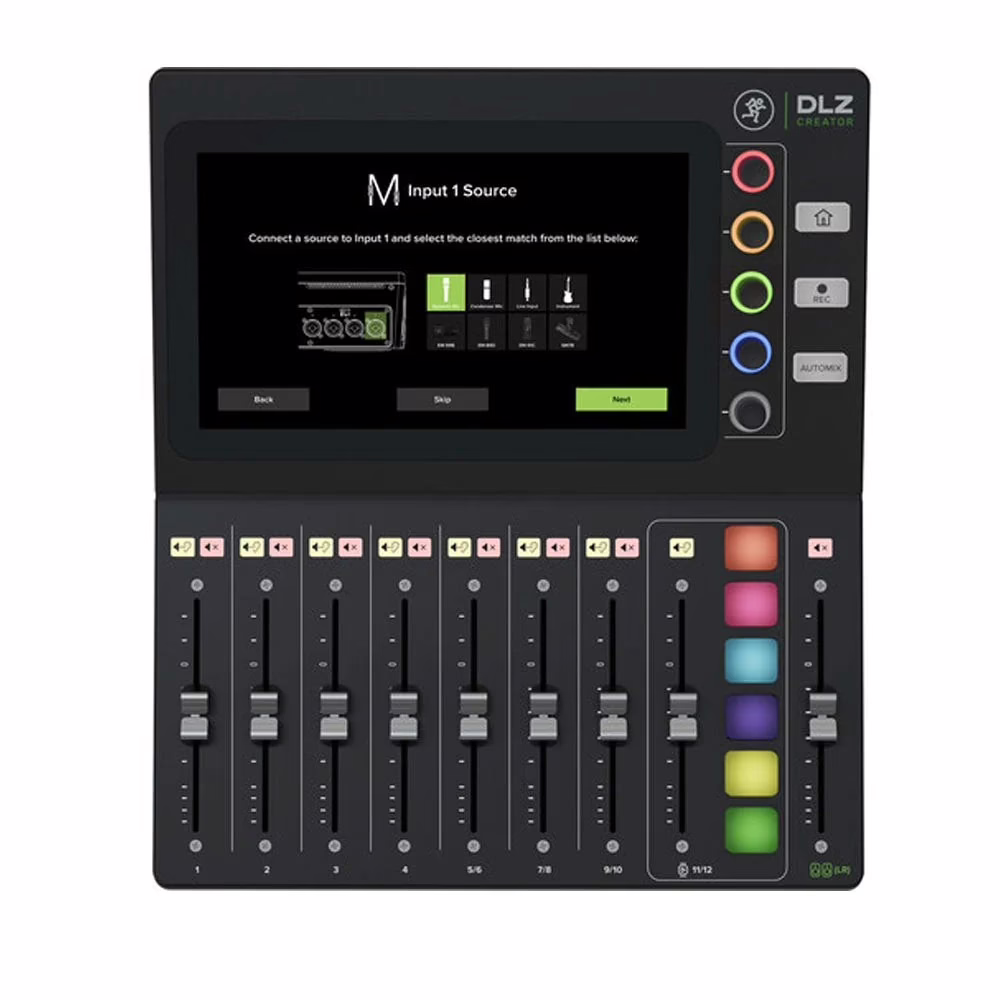

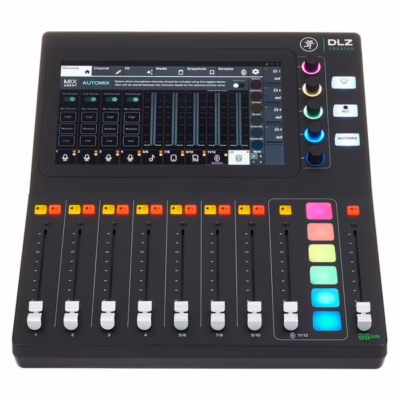

Its signature is the adaptive interface: three modes (Easy, Enhanced, Pro) reshape the display to the user's experience, while Mix Agent technology guides setup and level-setting. AutoMix automatically manages up to four mics so no one is buried, even when everyone speaks at once. Dual USB (Type A and Type C), Bluetooth 5.0 and an SD card slot allow multitrack recording and slot the unit into a video production workflow.
