Description
Technical
Specifications
Inputs / Outputs

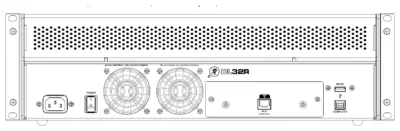

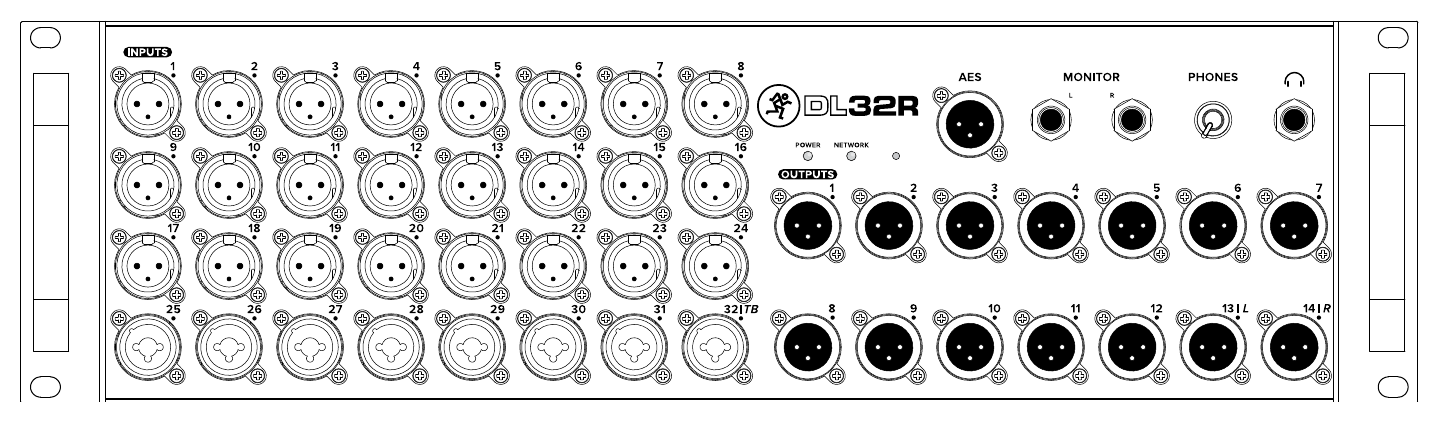

| Mixer | DL32R : 32 entrées micro/ligne (préamplis Onyx+), 18 sorties assignables, routage flexible |
|---|
Surface
| Physical faders | 17 |
|---|---|
| Motorized faders | No |
| Touchscreen | No |

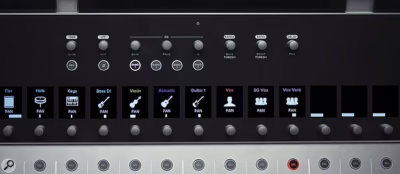

| Surface | DC16 : 17 tranches, faders motorisés tactiles Alps 100 mm, encodeur par voie, 26 écrans couleur rétro-éclairés |
| Ipad | Jusqu'à 3 iPad connectés (docks avec charge intégrée) |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | Dante |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Other
| Architecture | Système modulaire : surface de contrôle DC16 (Dante) + mixeur rack DL32R + application Master Fader (iOS) |
|---|---|

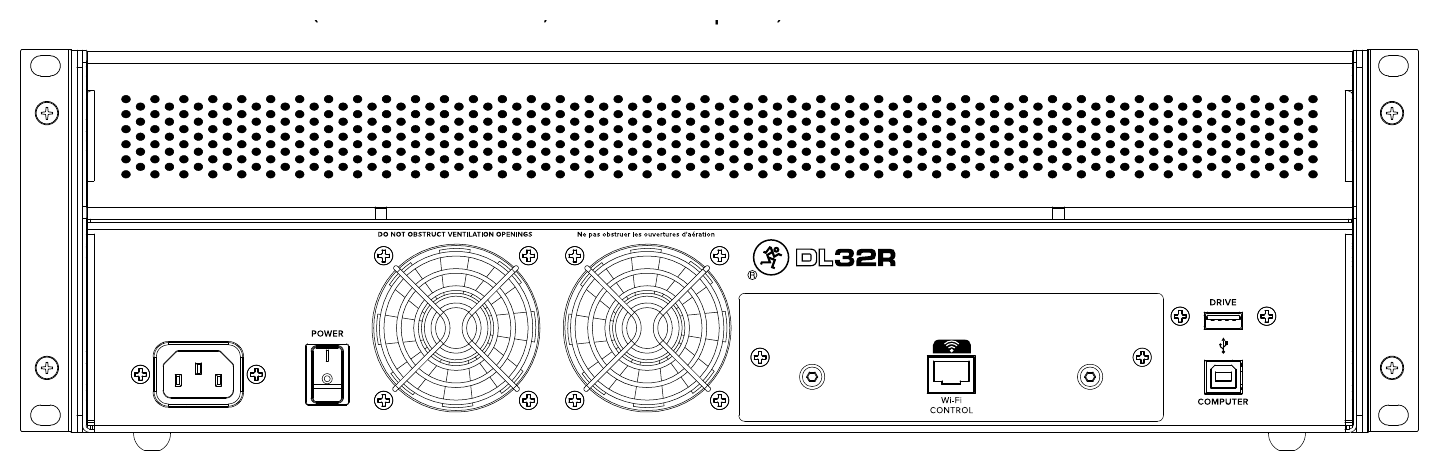

| Connectivity | Dante (4x4 sur la DC16 via double Ethercon verrouillable), entrée talkback XLR, entrée stéréo 3,5 mm |

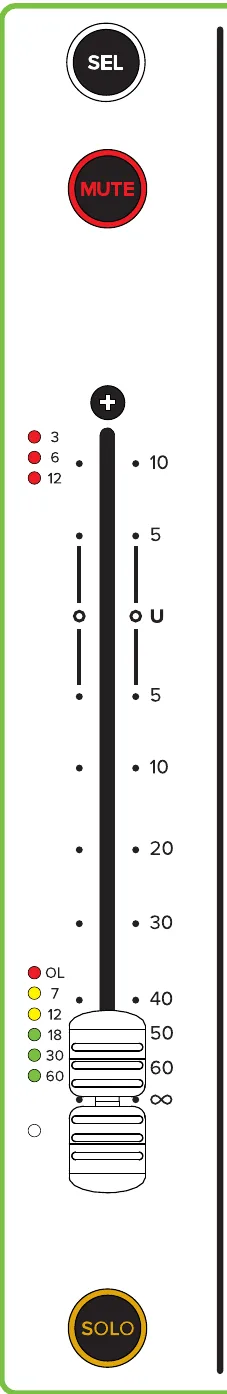

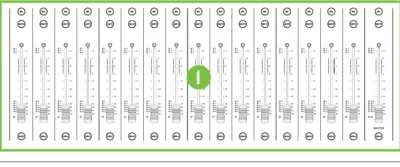

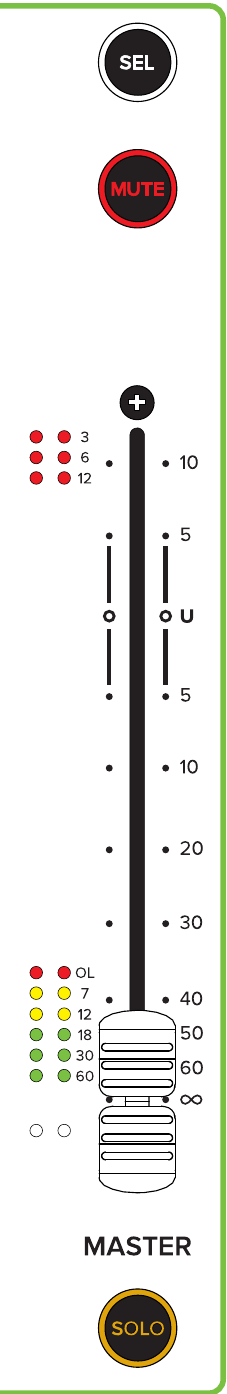

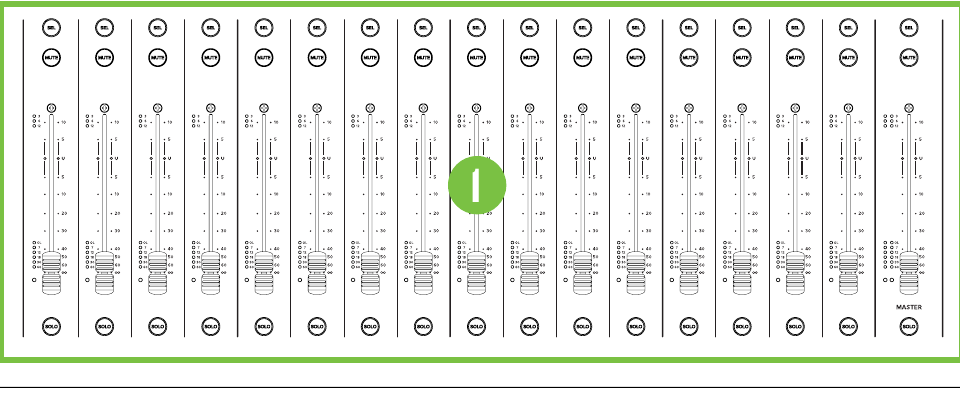

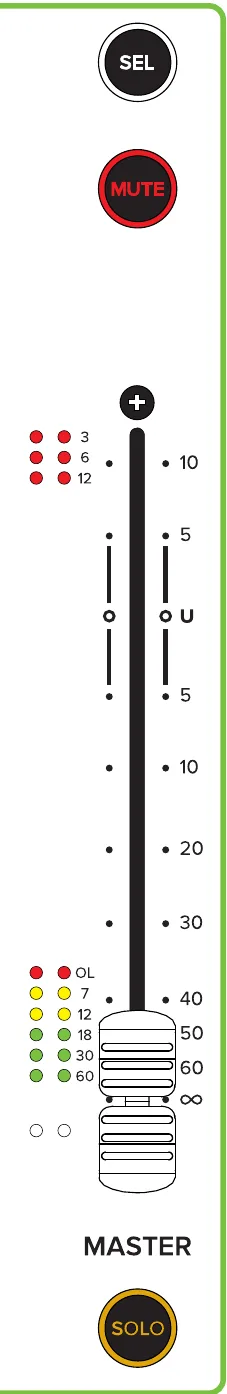

Strip & details
Rotate your phone to landscape for a better view of the strip.
Software

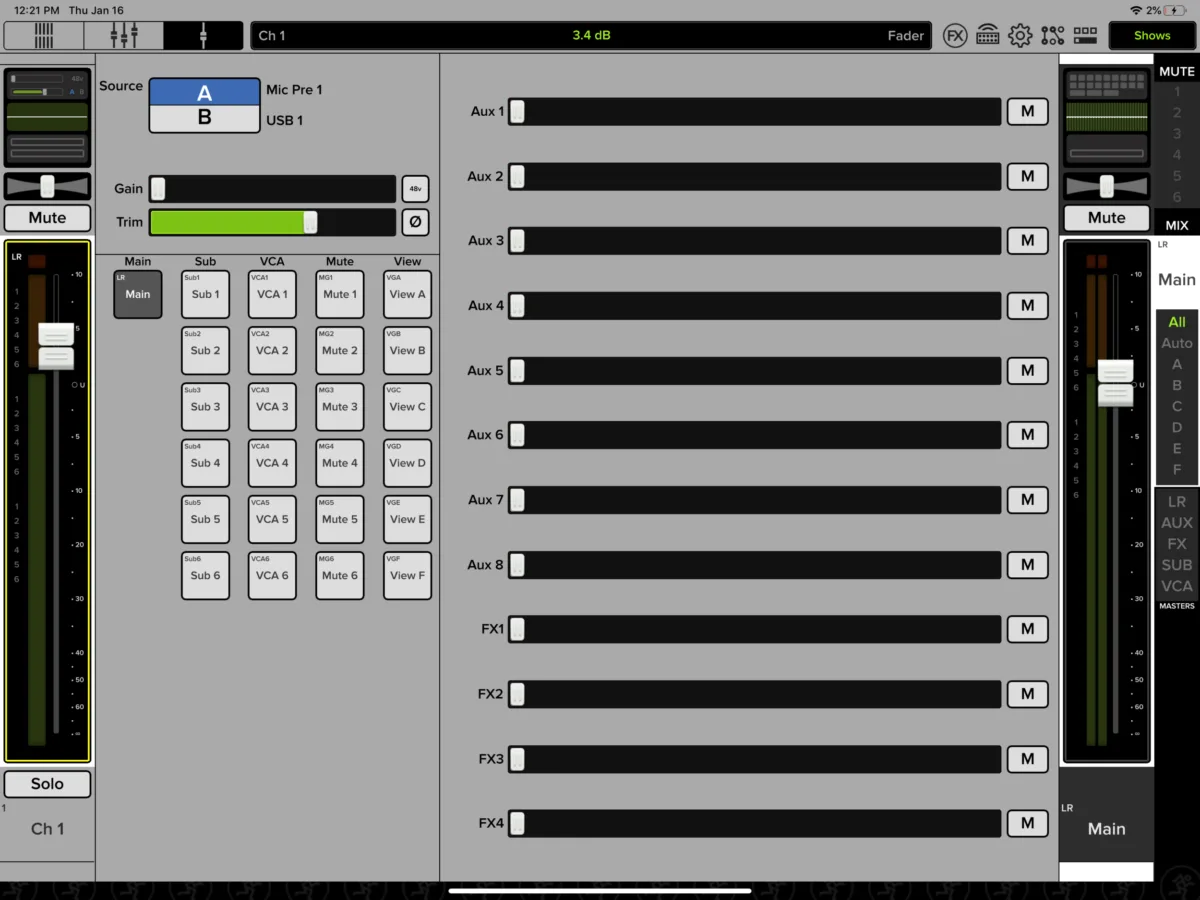

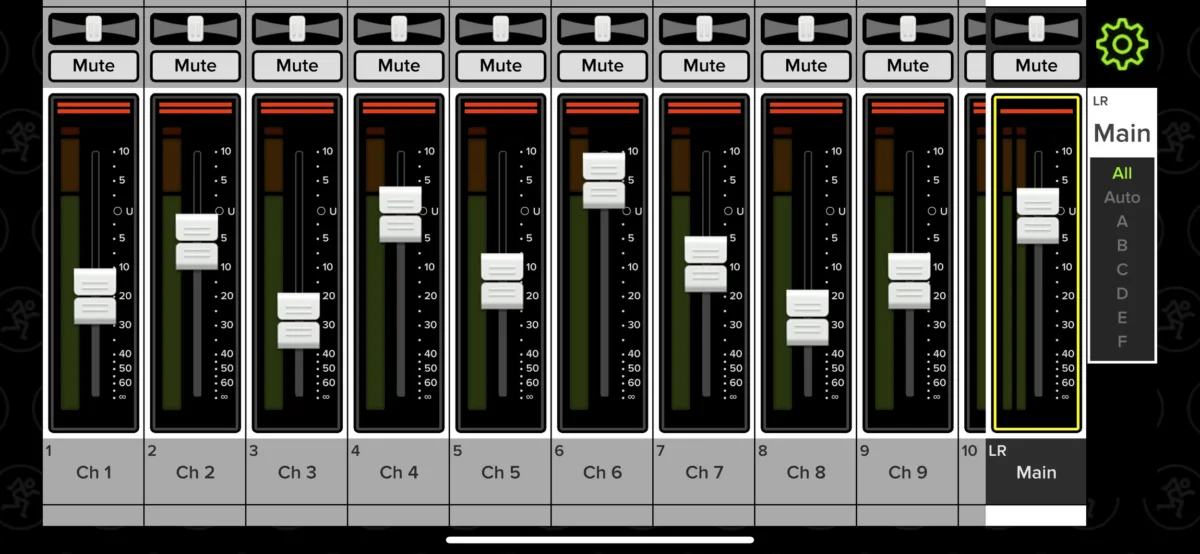

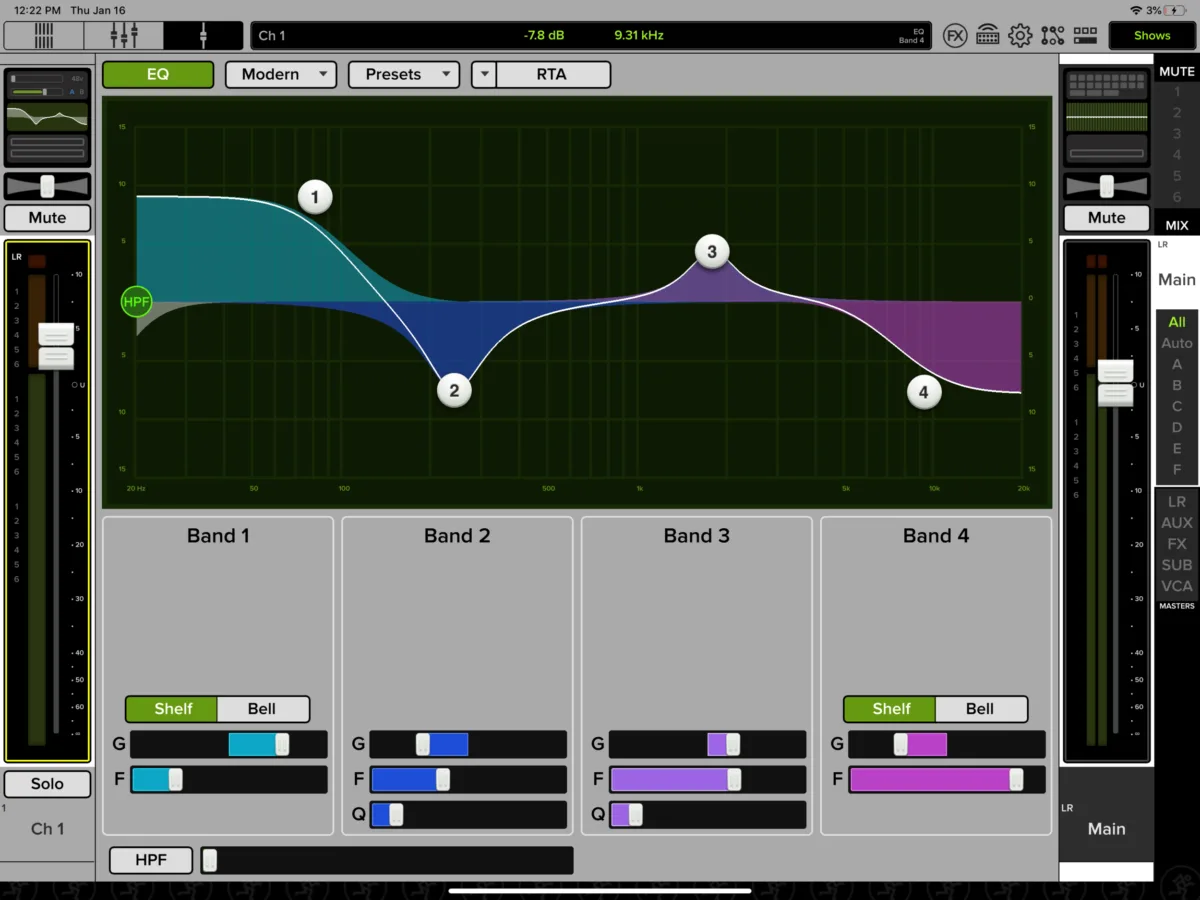

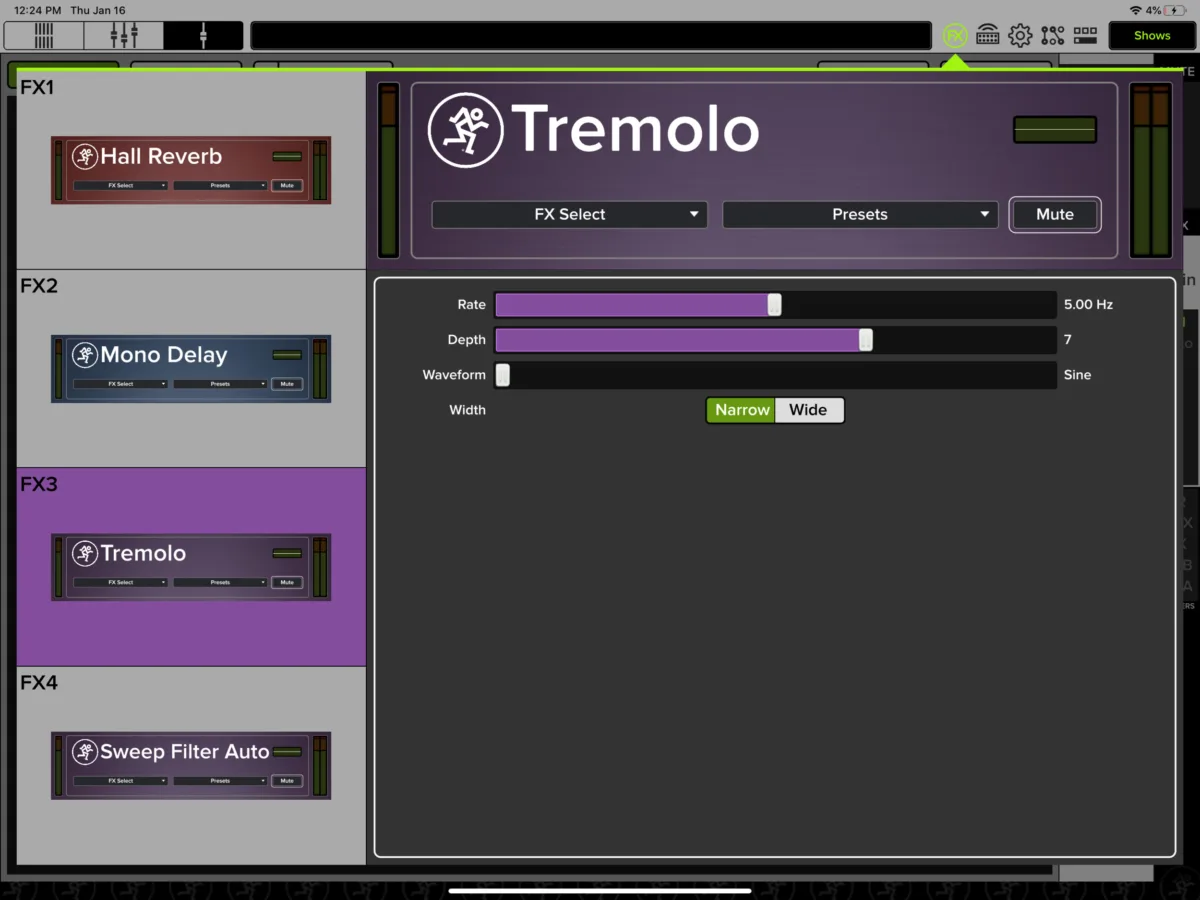

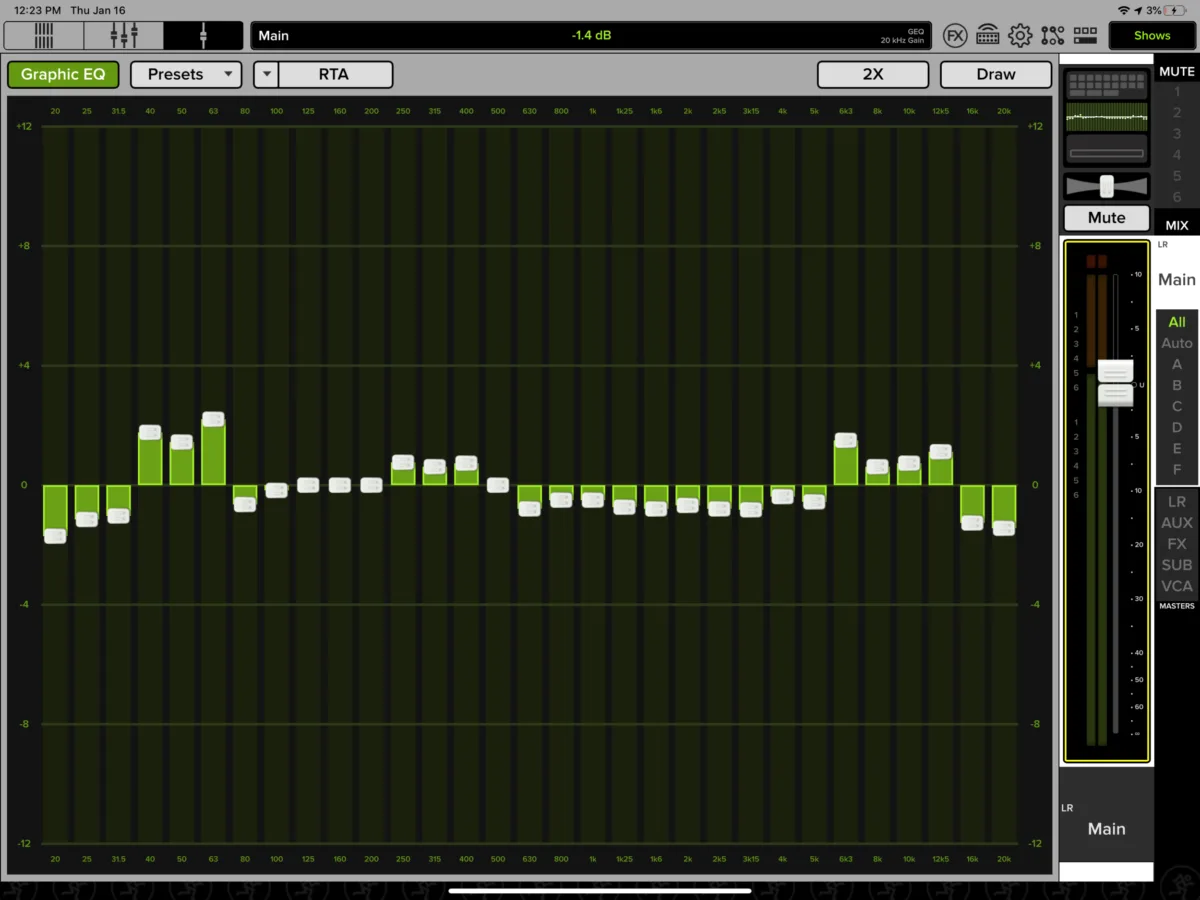

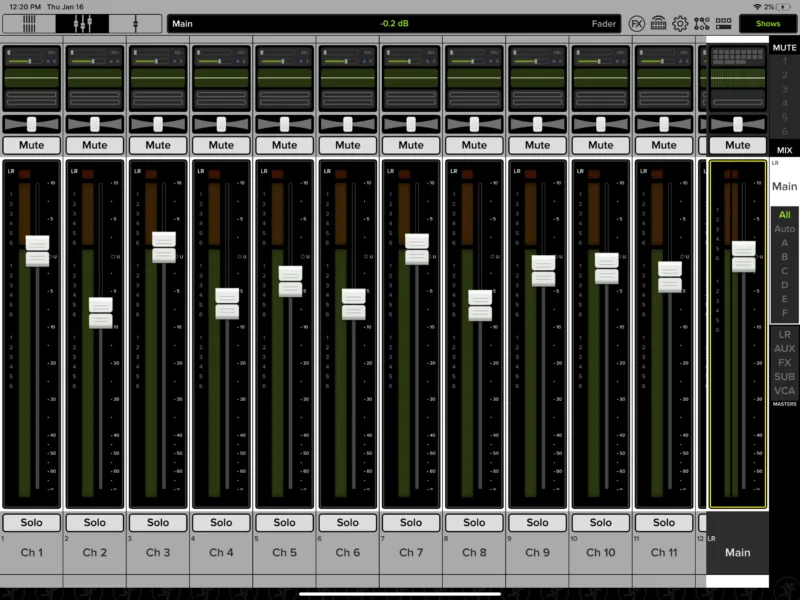

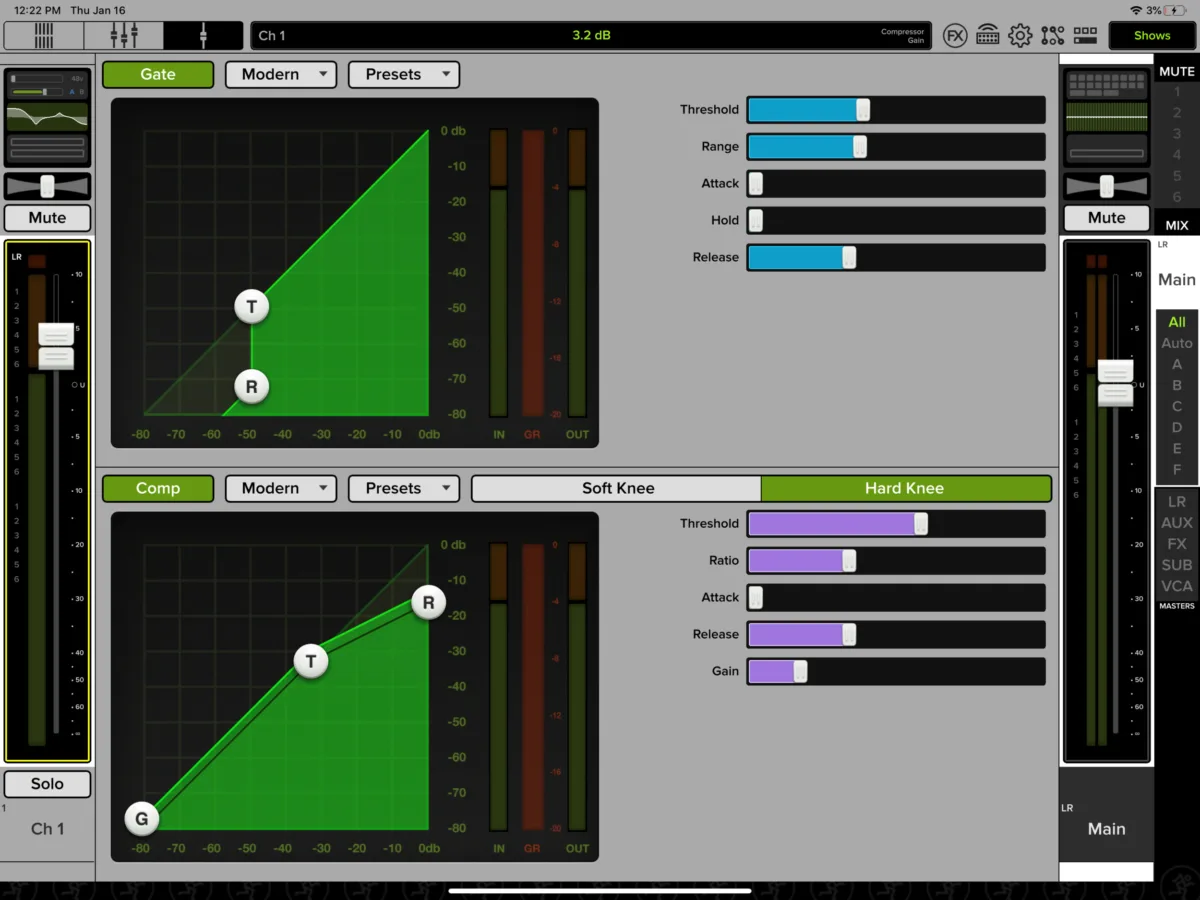

- Mackie Master FaderControl app for the AXIS system (and DL mixers) from iPad/tablet.
Accessories
I/O card
- Mackie DL Dante Expansion Card
Dante expansion card for the AXIS system's DL32R mixer.
Editorial & artists
Our take
History & design

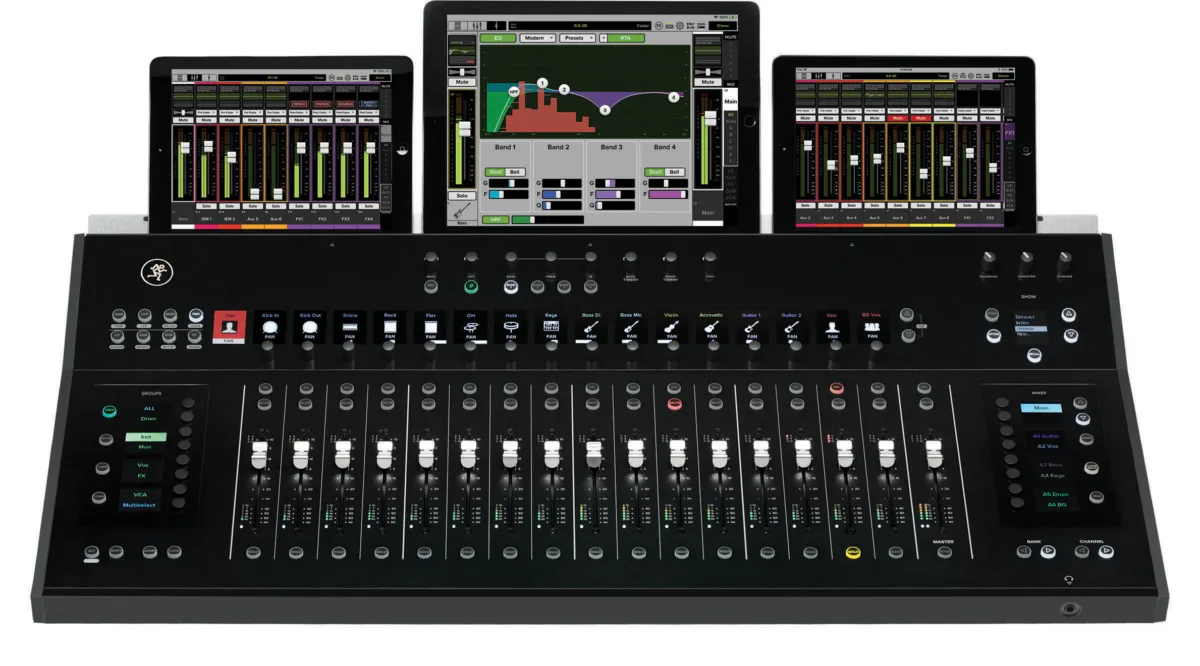

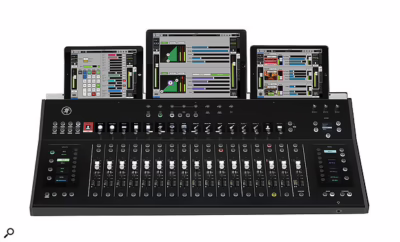

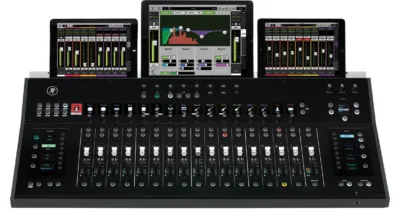

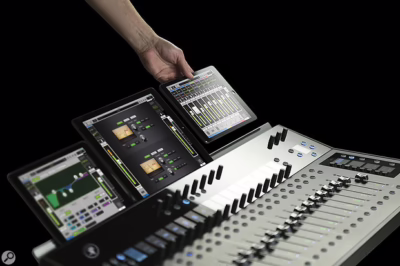

The Mackie AXIS Digital Mixing System is a digital live mixing system introduced in 2016. It pairs the Dante-connected DC16 control surface with the DL32R rack mixer and the Master Fader iOS app. The DC16 offers 17 channel strips with 100mm Alps motorised touch faders, a per-channel encoder and 26 backlit colour screens, plus three iPad docks with built-in charging. The DL32R adds 32 mic/line inputs with Onyx+ preamps and 18 assignable outputs with flexible routing. The system communicates over Dante (4x4 on the surface, dual locking Ethercon).
