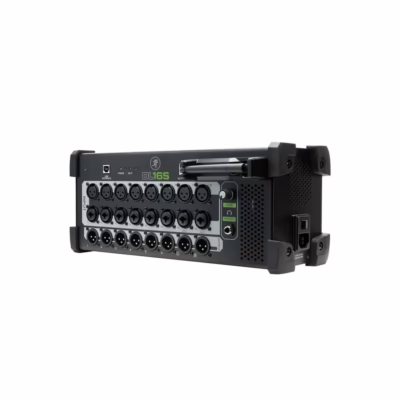

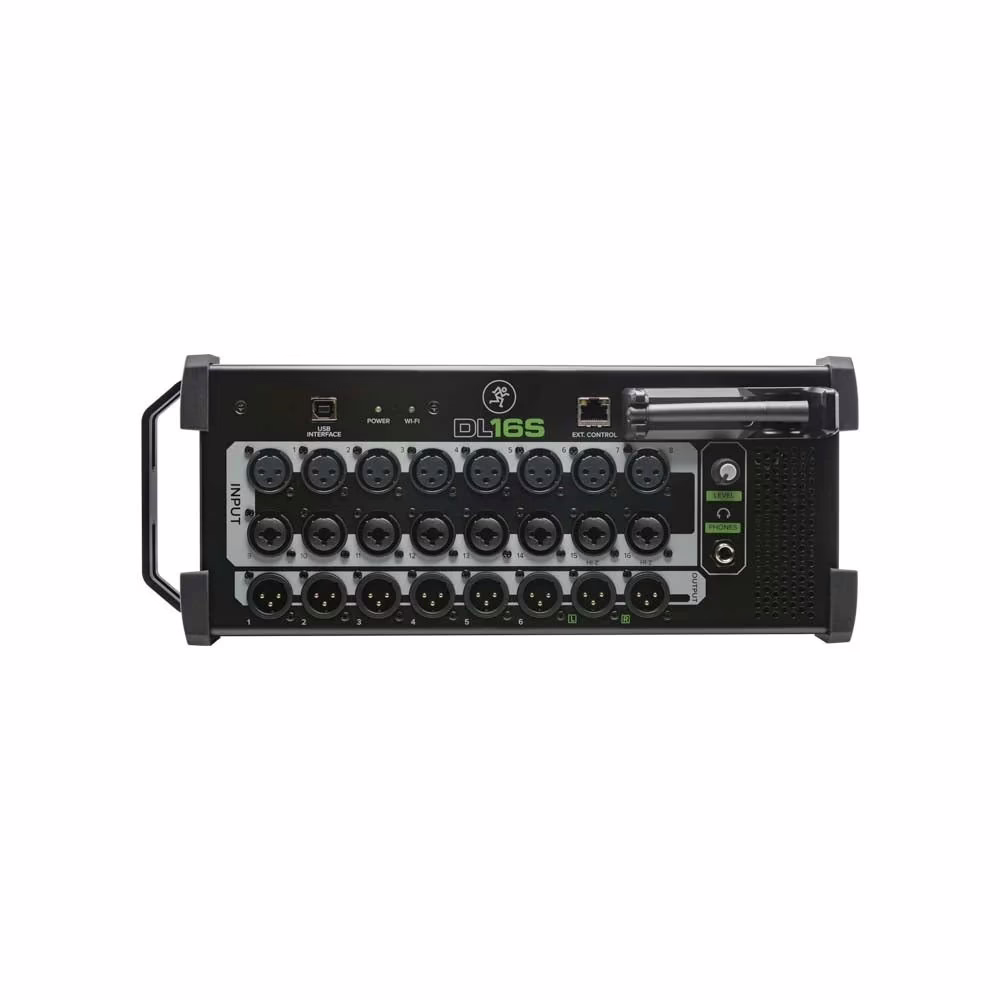

Mackie DL16S
16-channel rack digital mixer, Wi-Fi app control
Manufacturer’s list price 999 USD as of 2018
List price at launch 999 USD as of 2018
Description
Where to buy
Manufacturer’s list price 999 USD as of 2018
Mackie DL16S — Sweetwater
See offer
Technical
Specifications
Inputs / Outputs
| Mic inputs | 16 |
|---|
Processing
| Mix buses | 13 |
|---|---|
| Aux sends | 6 |
| Max sample rate | 48 kHz |
| Bit depth | 24 bits |
| Processing | EQ paramétrique 4 bandes, coupe-bas, gate et compression par voie ; 4 processeurs d'effets ; EQ graphique 31 bandes sur les sorties |
Surface
| Control | Pilotage sans fil Wi-Fi intégré via l'application Master Fader (iOS, Android, Windows, macOS), jusqu'à 20 appareils simultanés |
|---|---|
| Physical faders | 0 |
| Motorized faders | No |
| Touchscreen | No |
Recording
| Recording | Interface USB 16 x 16 pour l'enregistrement multipiste sur ordinateur |
|---|
Networking
| Networking & protocols | USB |
|---|
Physical
| Width | 358 mm |
|---|---|
| Depth | 147 mm |
| Height | 142 mm |
| Weight | 2.8 kg |
Other
| Preamps | 16 préamplis micro Onyx+, 32 voies de mixage |
|---|---|
| Io | 8 XLR + 6 combo XLR/jack + 2 combo mic/ligne/Hi-Z en entrée ; 8 sorties XLR assignables |
| Buses | 13 bus de sortie : 6 auxiliaires et 6 sous-groupes stéréo-liables, bus principal L/R |
| Format | Boîtier rackable robuste, sans faders : toute l'ergonomie passe par l'application |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Software

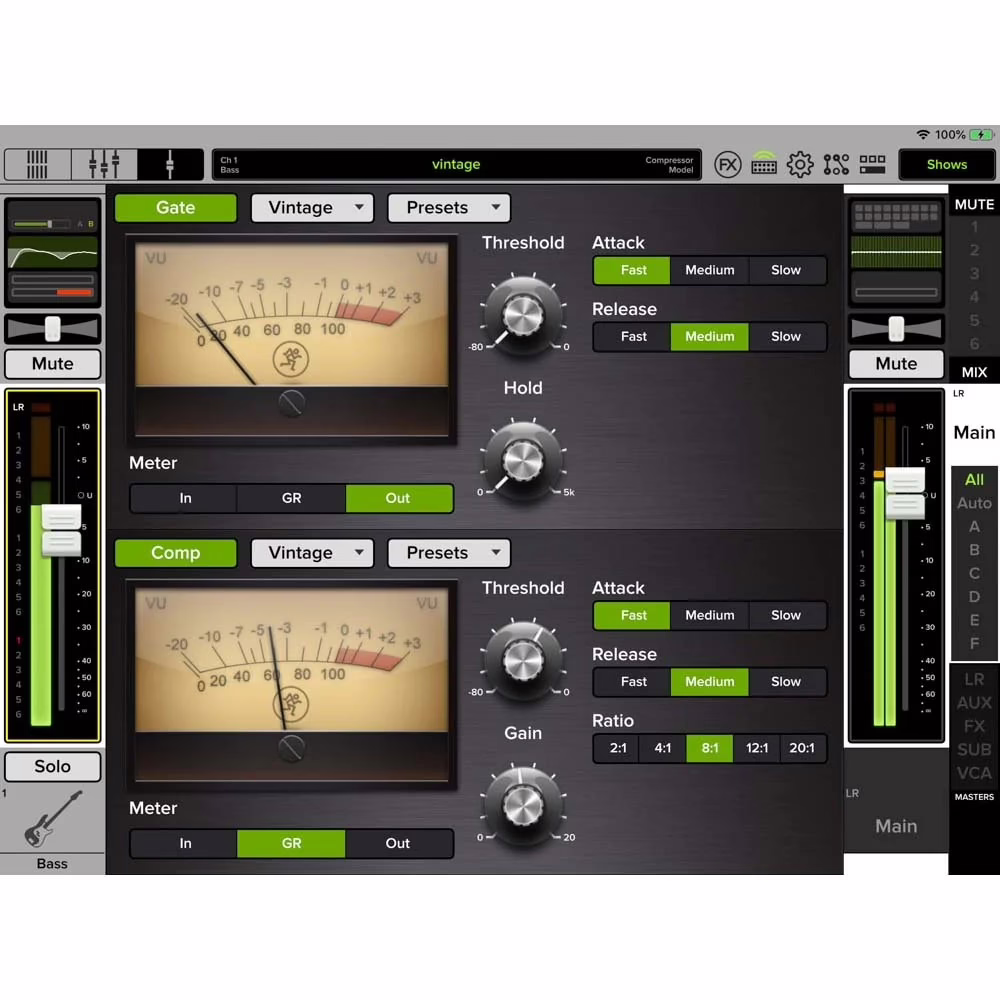

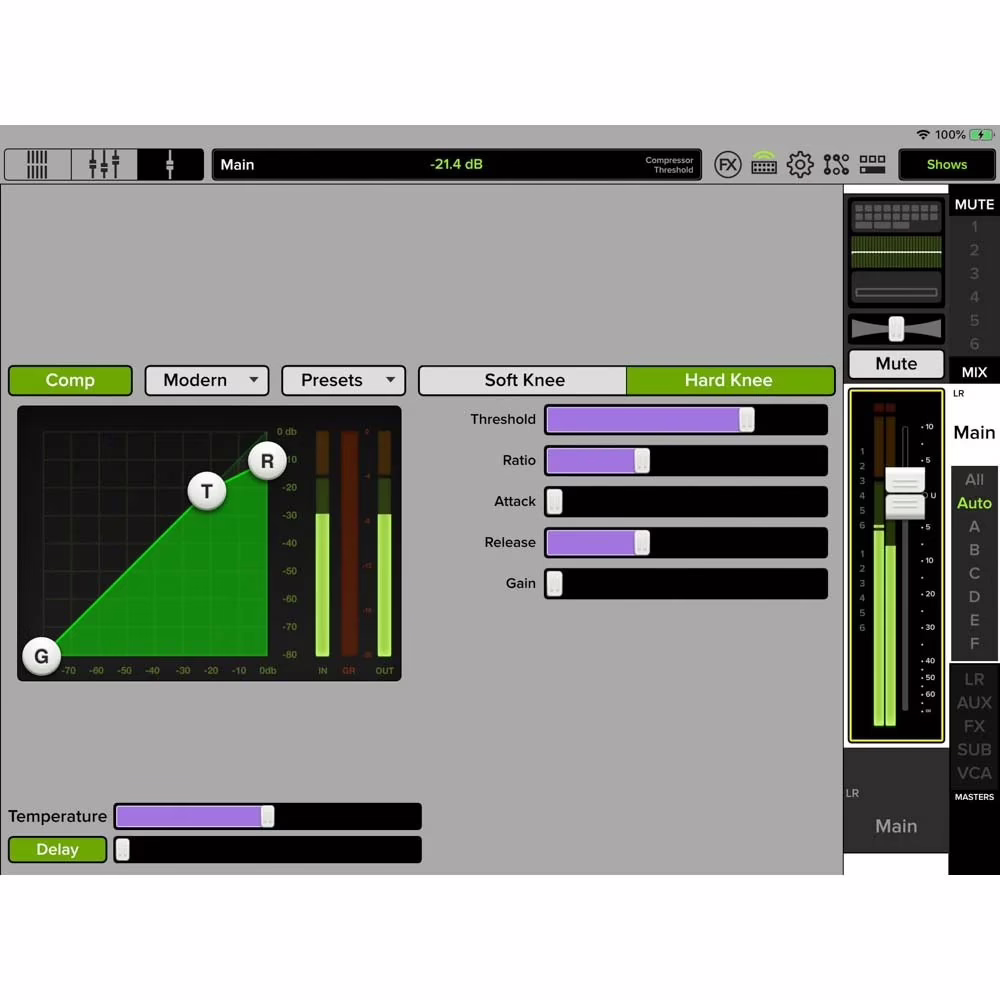

- Master FaderControl app for the DL mixers: full mixing, EQ, dynamics, FX, scenes, up to 20 devices at once.Download
Other screenshots
Editorial & artists
Our take
History & design
The DL16S is the 16-channel model in Mackie's DL series, fully controlled by the Master Fader app (iOS, Android, Windows, macOS) over built-in Wi-Fi. It offers sixteen Onyx+ mic preamps, thirty-two mixing channels, thirteen output buses (six aux and six stereo-linkable subgroups plus the main bus) and four FX processors. Every channel has a four-band parametric EQ, highpass filter, noise gate and compression; the outputs add a 31-band graphic EQ, compressor/limiter and alignment delay.

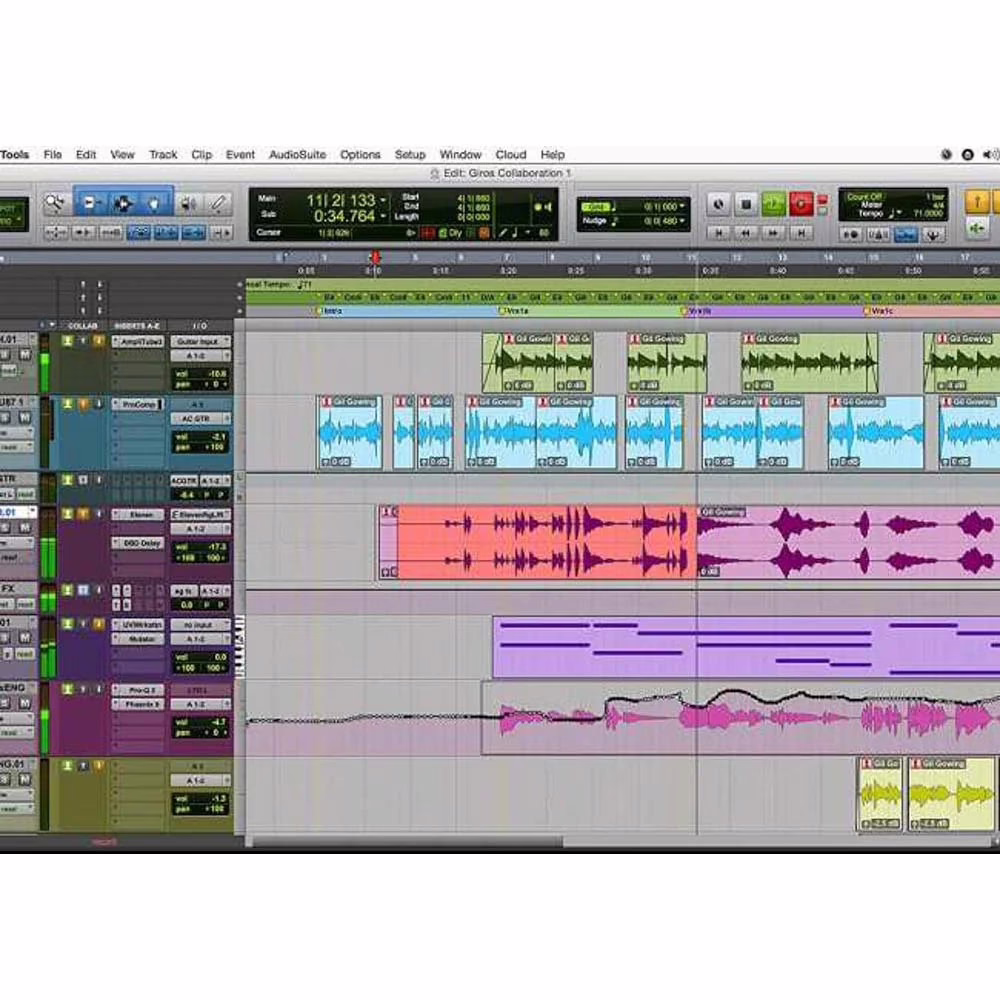

Its form factor is the main draw: a rugged rack-mountable box with no control surface, placed close to the sources to save cabling. Up to twenty devices can control it at once — handy for musician-run monitor mixes. The 16 x 16 USB interface handles multitrack recording and playback to a computer.
