KLOTZ Digital VADIS D.C.II
Modular, router-based digital broadcast console (VADIS system)
Description
Technical
Specifications
Processing
| DSP engine | VADIS 880 digital audio engine/router (modular) |
|---|---|
| Max sample rate | 48 kHz |
| Architecture | Fully modular, routed digital broadcast console built on the VADIS 880 engine/router, which accepts audio, data and DSP modules with no input/output limit |
Surface
| Physical faders | 12 |
|---|---|
| Touchscreen | No |
| Control surface | 12-fader control surface (configurations up to 24 faders depending on the studio), with an optional 4-fader producer mini-console |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | AES/EBU / Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | Yes |
| Audio networking | VADIS digital audio network over optical fibre; analogue, digital and optical interface cards; high-capacity routing (up to 256x256 on VADIS interfaces) |
Other
| Applications | On-air and production for radio and TV studios, OB vans and multi-site broadcast networks · Major broadcast success: the 1,000th VADIS D.C.II was sold in 2006 (NPR) |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Diagrams
Rotate your phone to landscape for a better view of the diagram.
Software
Logiciel de contrôle VADISConfiguration and control software for the VADIS system driving the D.C.II console, the VADIS 880 router and the digital-audio network (studio-customisable features).
Other screenshots
Accessories
Other

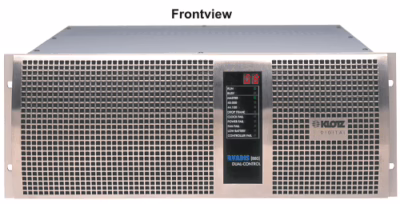

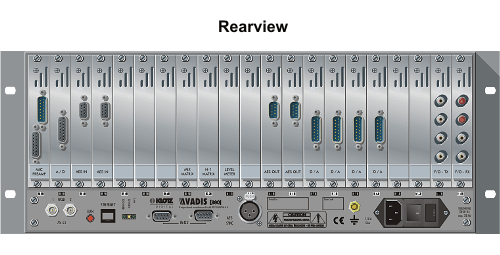

- VADIS 880
Digital-audio engine/router at the heart of the VADIS system, hosting the D.C.II's audio, data and DSP modules.
Fader extension
- 4-fader producer mini console
Small 4-fader surface for the producer, complementing the main control surface.
Editorial & artists
Our take
History & design
The KLOTZ Digital VADIS D.C.II is a digital mixing console for radio and television, fully modular and router-based, part of the VADIS system (Variable Audio Distribution and Interface System) from German maker KLOTZ Digital. Rather than a standalone console, it is a control surface attached to a networked digital-audio infrastructure: at its core the VADIS 880 engine/router accepts audio, data and DSP modules with no I/O limit and distributes audio over fibre between studios, control rooms and remote sites.
The base surface has 12 faders (24-fader configurations exist, with an optional 4-fader producer mini-console). VADIS interfaces handle analogue, digital and optical cards and high-capacity routing (up to 256x256). Designed for on-air and production alike, the D.C.II achieved wide commercial success in world broadcast, KLOTZ Digital announcing the sale of its 1000th unit to NPR in 2006.
- Thomas Klotz — Founder of KLOTZ Digital
Notable users
- NPR (National Public Radio)
1,000th VADIS D.C.II sold by KLOTZ Digital (2006)
- ABC TV (Australie)
Deployment of VADIS D.C.II consoles in TV production
- XM Satellite Radio
Among the first VADIS D.C.II customers
- Austereo
Among the first VADIS D.C.II customers
- YLE
Among the first VADIS D.C.II customers
- Deutsche Welle
User of VADIS / D.C.II systems
- Focus on the Family
Several studios equipped with VADIS D.C.II (12- and 24-fader surfaces)
