Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 48 |
|---|---|
| Mic inputs | 24 |
| Line inputs | 24 |
| Total outputs | 12 |
Processing
| Mix buses | 16 |
|---|---|
| Aux sends | 16 |
| Matrices | 10 |
| DSP engine | Stealth Digital Processing / FPGA |
| Max sample rate | 65,535 kHz |
Surface
| Physical faders | 21 |
|---|---|
| Motorized faders | Yes |
| Screens | 2 |
| Touchscreen | Yes |
| Worksurface | 21 faders motorisés tactiles 100 mm, 26 encodeurs rotatifs tactiles |
Recording
| Onboard recording | Yes |
|---|---|
| Recording | UB MADI : interface audio USB Type B jusqu'à 48 voies pour enregistrement/lecture (virtual soundcheck) |
Networking
| Networking & protocols | MADI / AES/EBU / USB / Dante / SoundGrid / Optocore |
|---|---|
| Redundant PSU | No |
| Expansion | MADI BNC, 2 slots DMI (jusqu'à 64 E/S par slot : Dante, MADI, Optocore, Waves, etc.) |
Other
| Channels | 48 voies Flexi mono/stéréo à traitement complet |
|---|---|
| Busses | 16 bus auxiliaires/sous-groupes Flexi, matrice 10 × 8 |
| Local Io | 24 entrées micro/ligne XLR, 12 sorties ligne, E/S AES/EBU, GPI/GPO, word clock |
| Amm | Compatible DMI-AMM (mixage automatique de micros), contrôle OSC des snapshots |
| Psu Note | Alimentation unique (non redondante) |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Documents
Editorial & artists
Our take
History & design

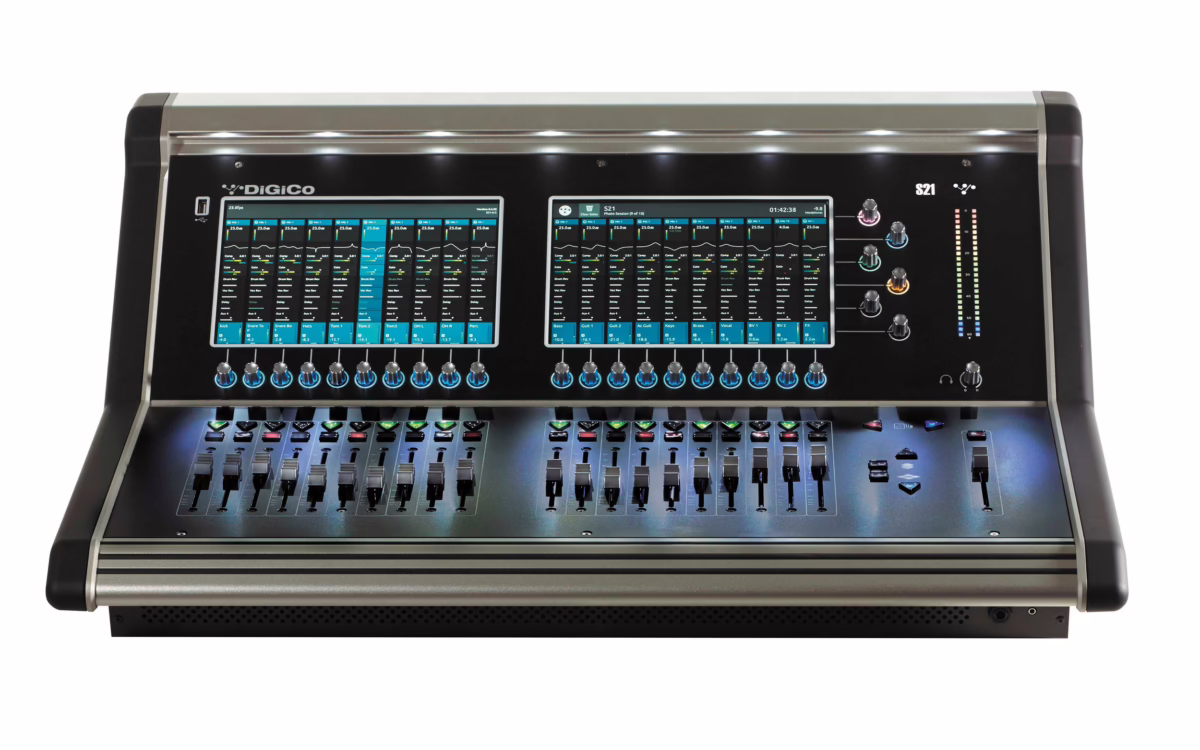

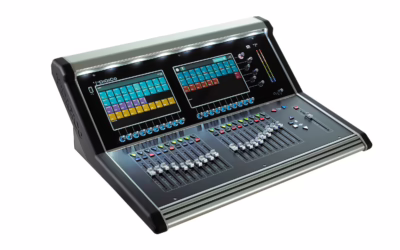

The DiGiCo S21 is a digital mixing console introduced in 2015, the first of an S range designed to bring Stealth Digital Processing to an unprecedented price point for the British manufacturer. It offers 48 Flexi channels (mono or stereo) with full processing, 16 Flexi aux/sub-group busses and a 10 × 8 matrix, all driven from a fully assignable surface.

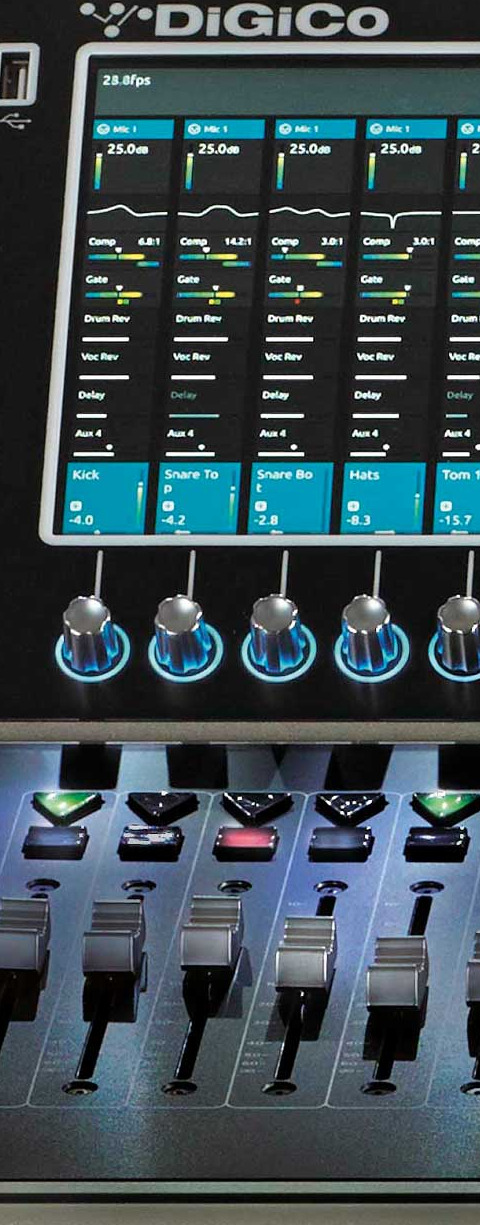

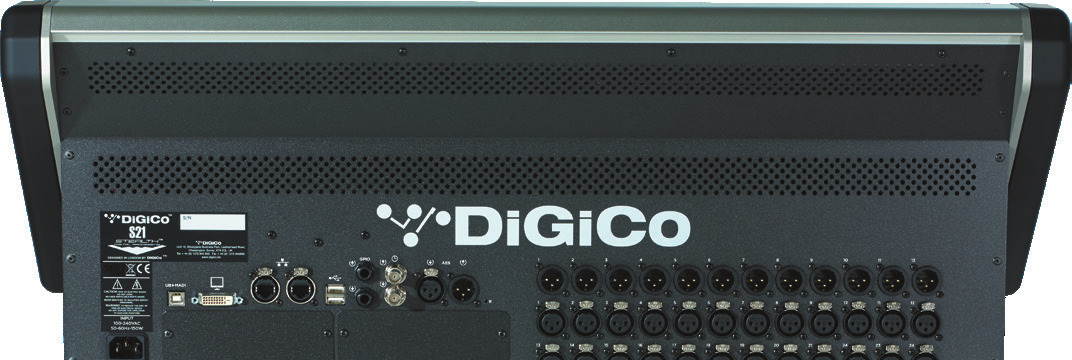

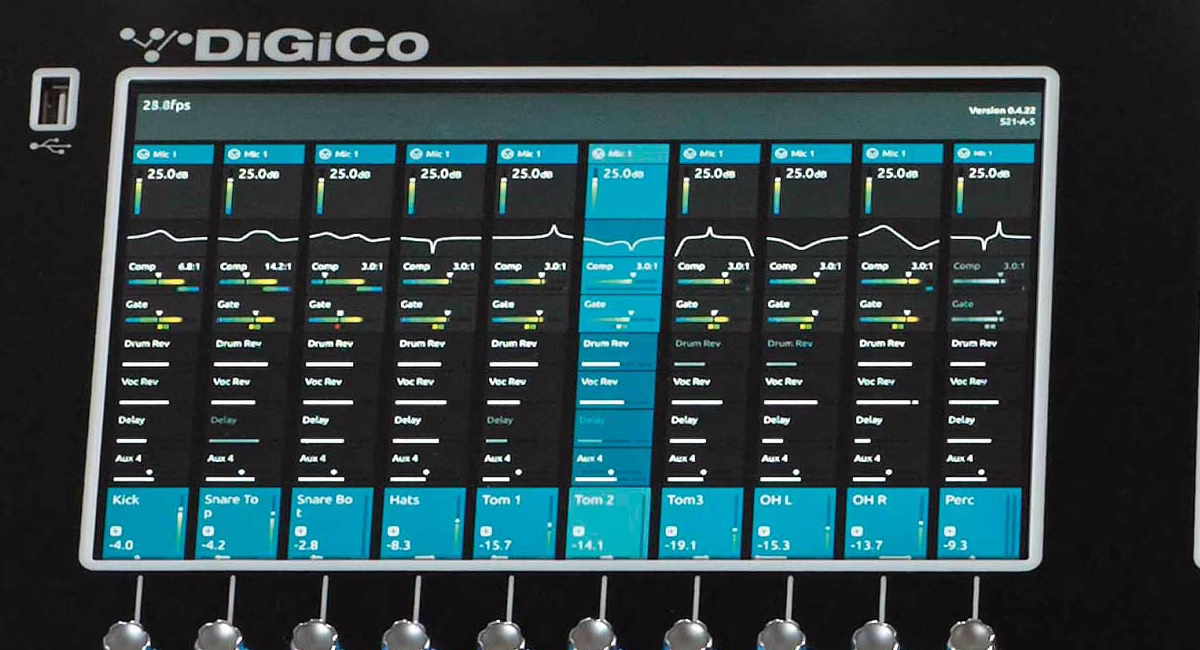

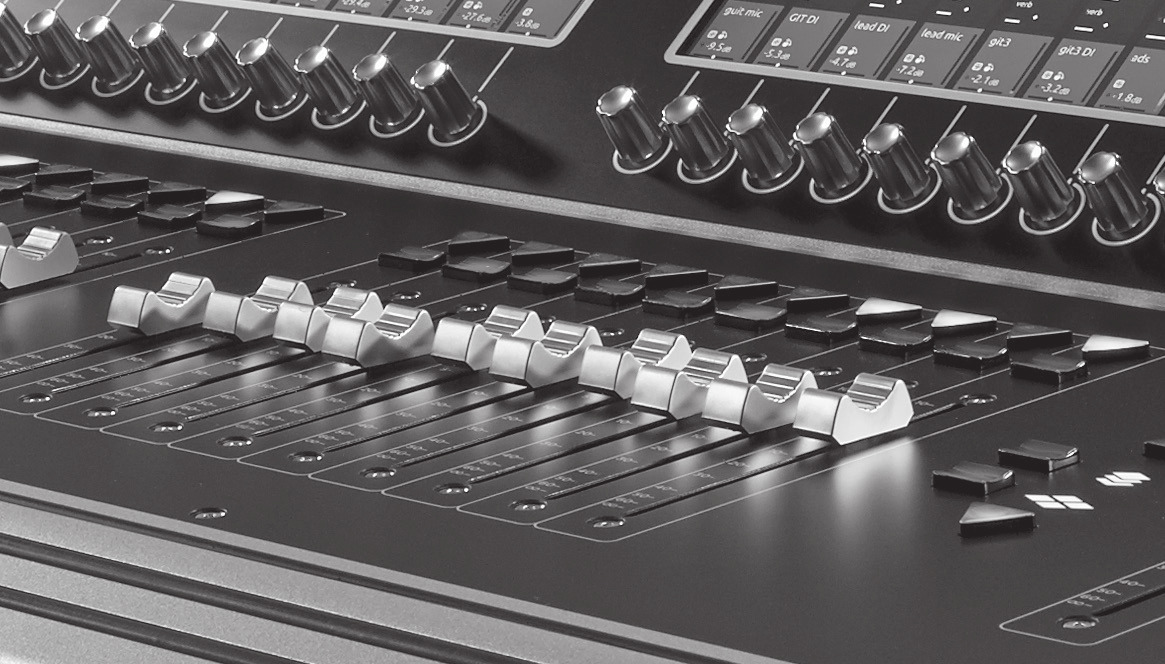

The surface uses 21 touch-sensitive 100 mm motorised faders, 26 touch-sensitive rotaries and two 10-inch multitouch screens. Local I/O includes 24 mic/line inputs, 12 line outputs, AES/EBU I/O, GPI/GPO and word clock. Expansion runs through a MADI BNC port and, above all, two DMI slots taking up to 64 I/O each (Dante, MADI, Optocore, Waves SoundGrid and other cards). The UB MADI interface turns the console into a USB audio interface of up to 48 channels for recording and virtual soundcheck.
The S21 is also controlled via offline software and an iPad app, and accepts the DMI-AMM module for automatic microphone mixing. It has a single power supply.
