Description
The SD12 brings DiGiCo's Stealth Digital Processing into a compact, affordable format: 72 channels at 96 kHz, two large touchscreens and an impressive reserve of dynamic processing (119 Dynamic EQs, 119 Multiband Compressors). FOH/monitor versatility that explains its success on tour and in venues.
Where to buy
DiGiCo SD12 96 chez Sweetwater
See offer
Technical
Specifications
Inputs / Outputs
| Total inputs | 72 |
|---|---|
| Mic inputs | 8 |
| Total outputs | 8 |

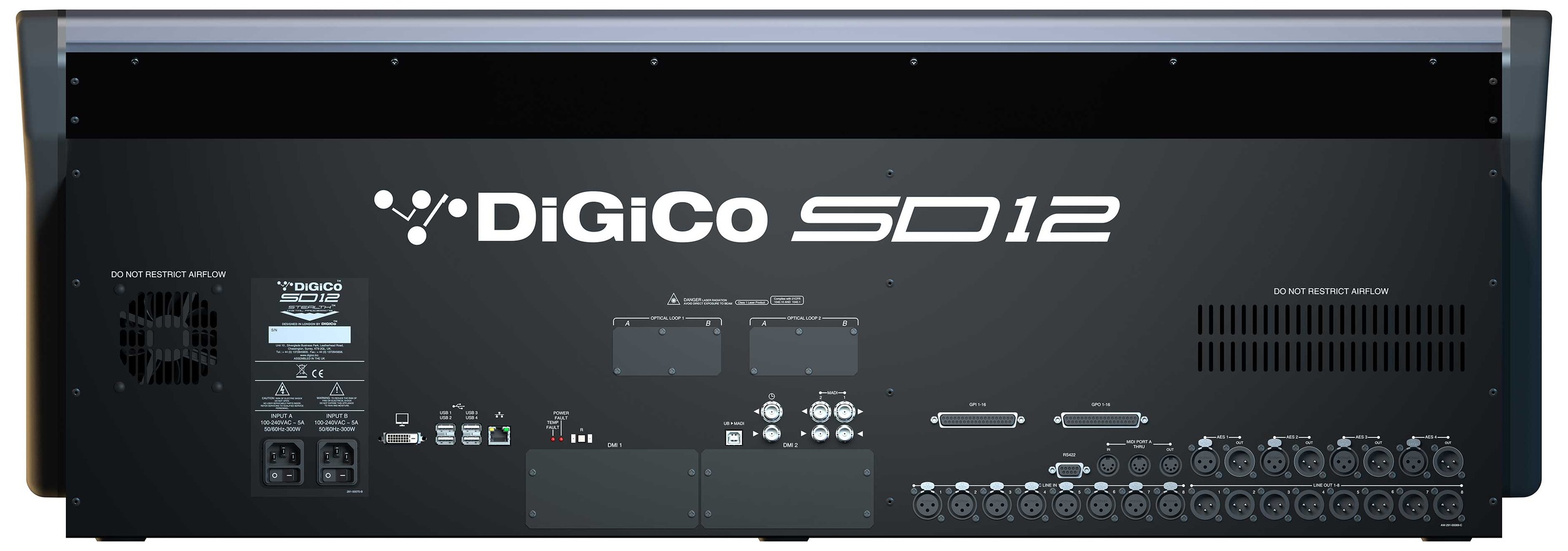

| Inputs / outputs | 8 mic/line, 8 line out, 8 AES/EBU, dual MADI (SD12 96) |
| Expansion cards | 2 DMI option slots (Dante, Waves, MADI, optics…) |
Processing
| Mix buses | 36 |
|---|---|
| Matrices | 8 |
| DCA/VCA groups | 12 |
| Max sample rate | 96 kHz |
| Processing resolution | 40 bits |
| Channels | 72 channels at 48 / 96 kHz |
| Buses | 24 aux/group buses + 12x8 matrix, LR |
| Channel processing | Stealth Digital Processing, Super FPGA, Core 2 software · Per channel: delay, 24 dB/oct HP/LP filters, 4-band PEQ, DYN 1 and DYN 2 |
| Dynamics | 119 Dynamic EQs, 119 Multiband Compressors, 119 DiGiTuBes |
Surface
| Physical faders | 26 |
|---|---|
| Motorized faders | Yes |
| Screens | 2 |
| Touchscreen | Yes |
| Faders | 26 physical faders |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Optocore / Dante / AES/EBU |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Physical
| Width | 1,124 mm |
|---|---|
| Depth | 795 mm |
| Height | 389 mm |
| Weight | 42 kg |
Power
| Power draw | 140 W |
|---|

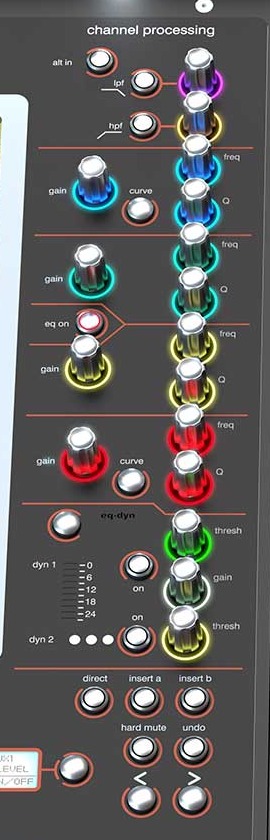

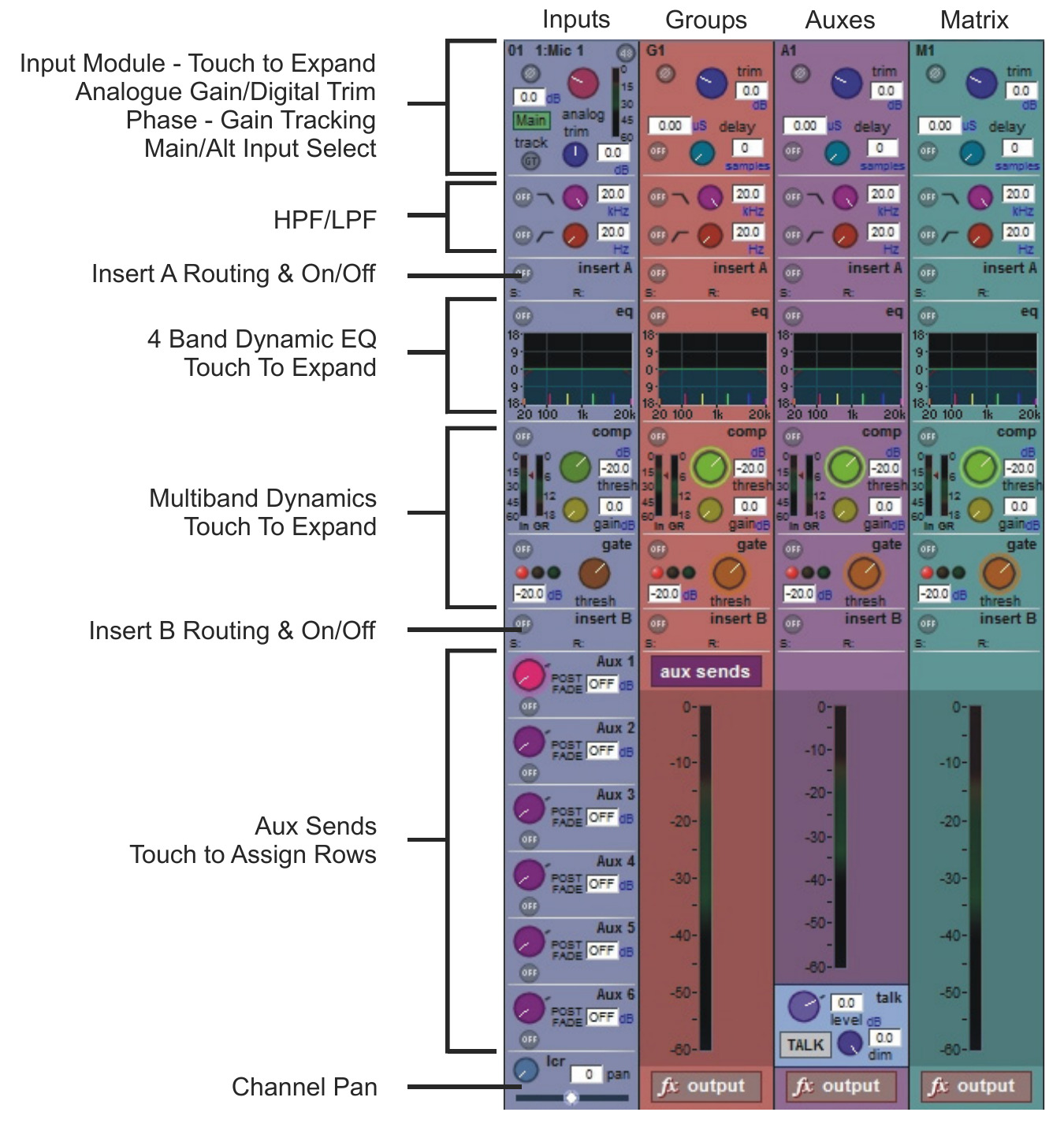

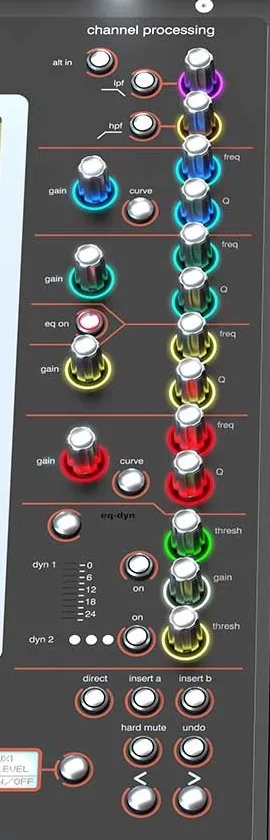

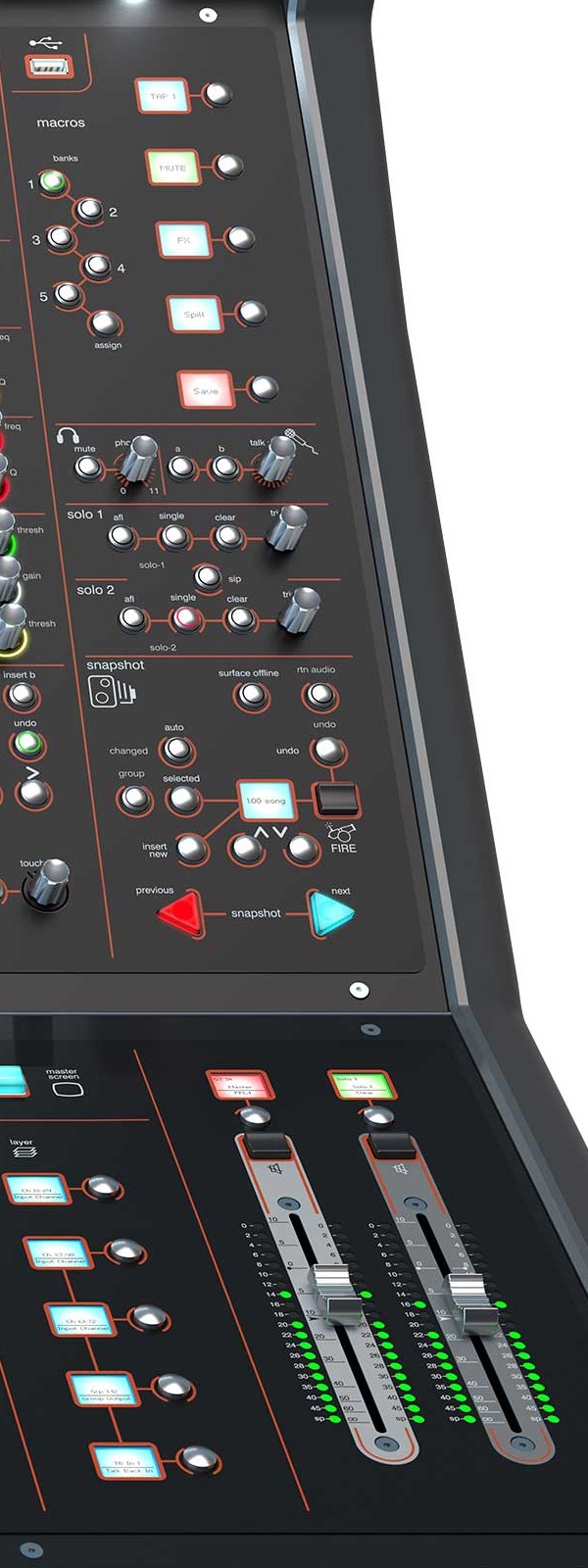

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
DiGiCo SD12 Offline Software vV22 (V2242, juin 2026)Offline session-preparation and control software for the SD12.Download
DiGiCo Core2 V2 (app iPad SD)Download

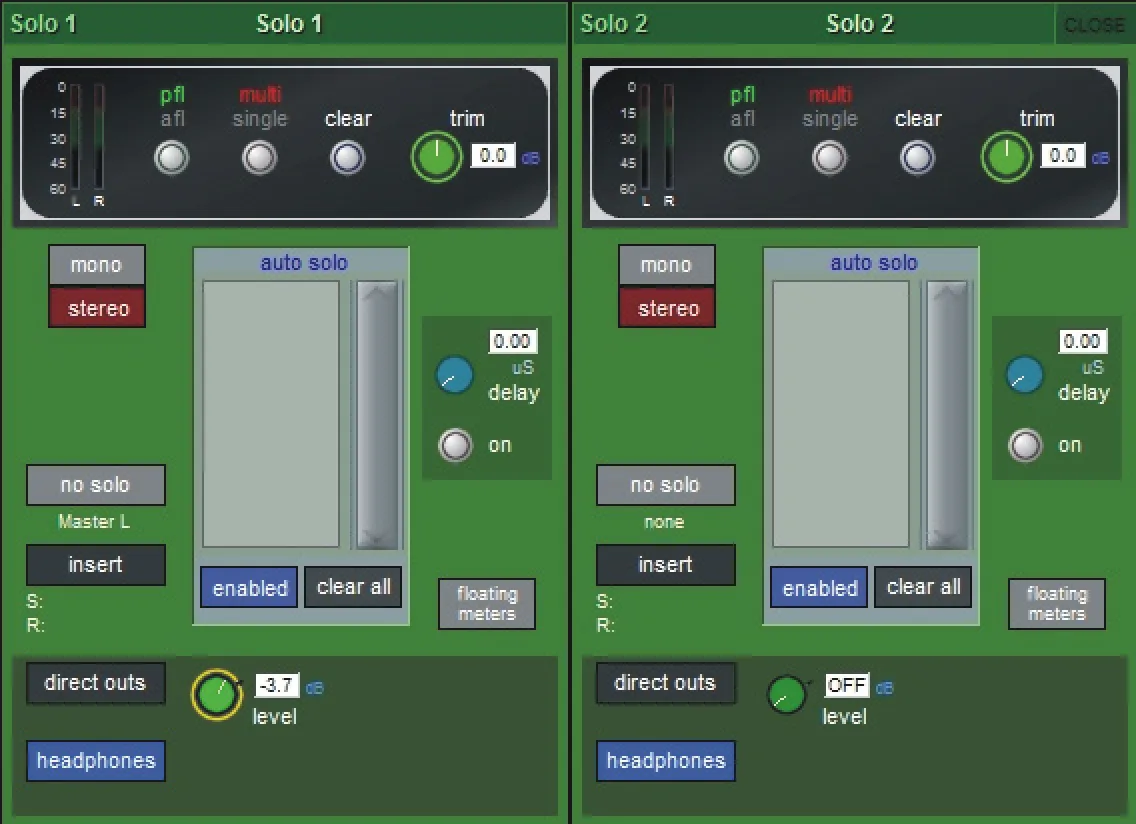

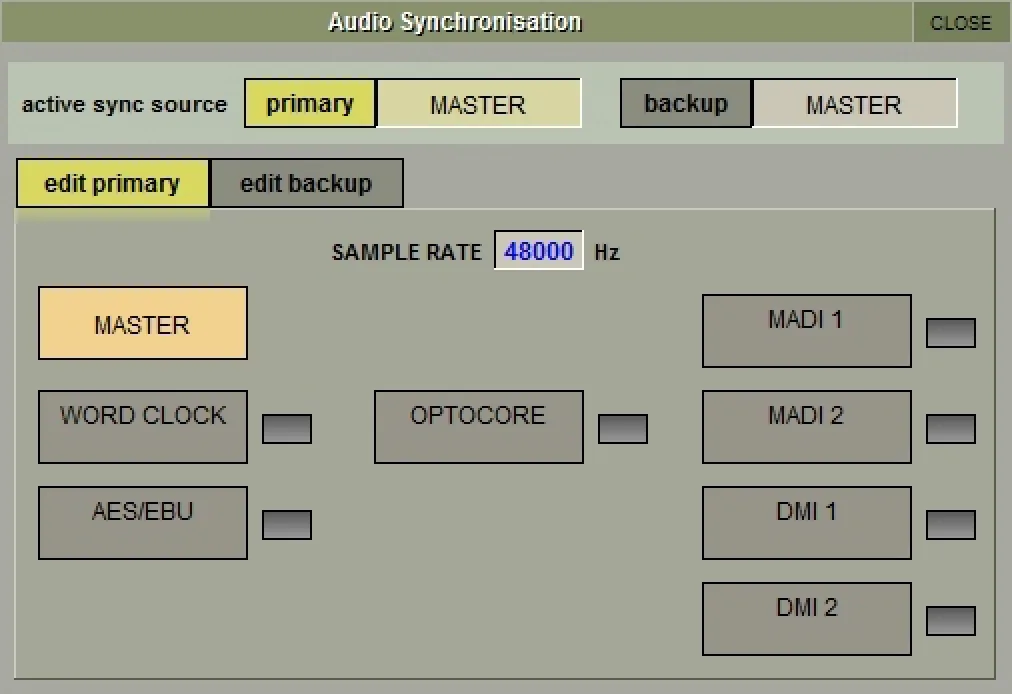

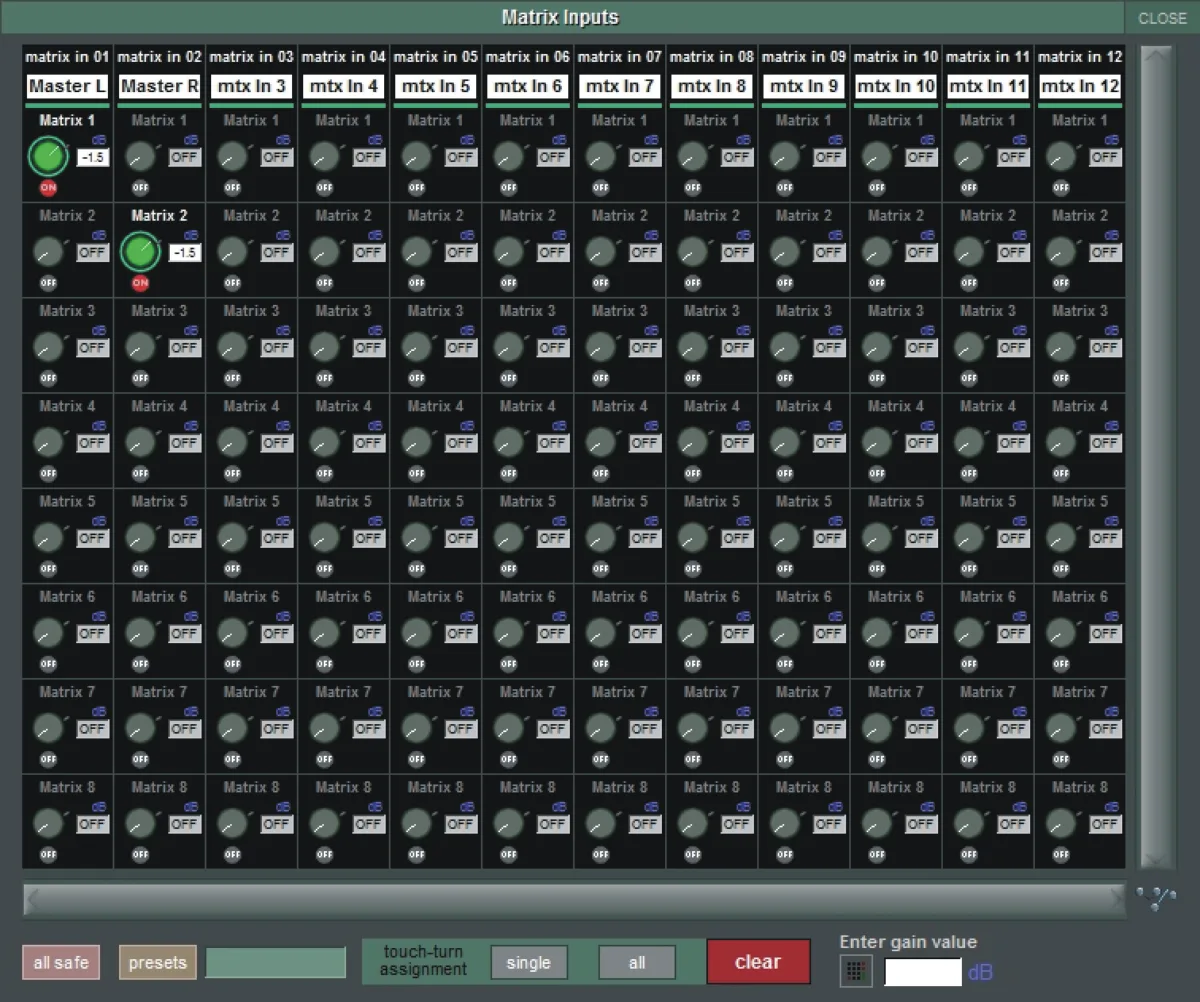

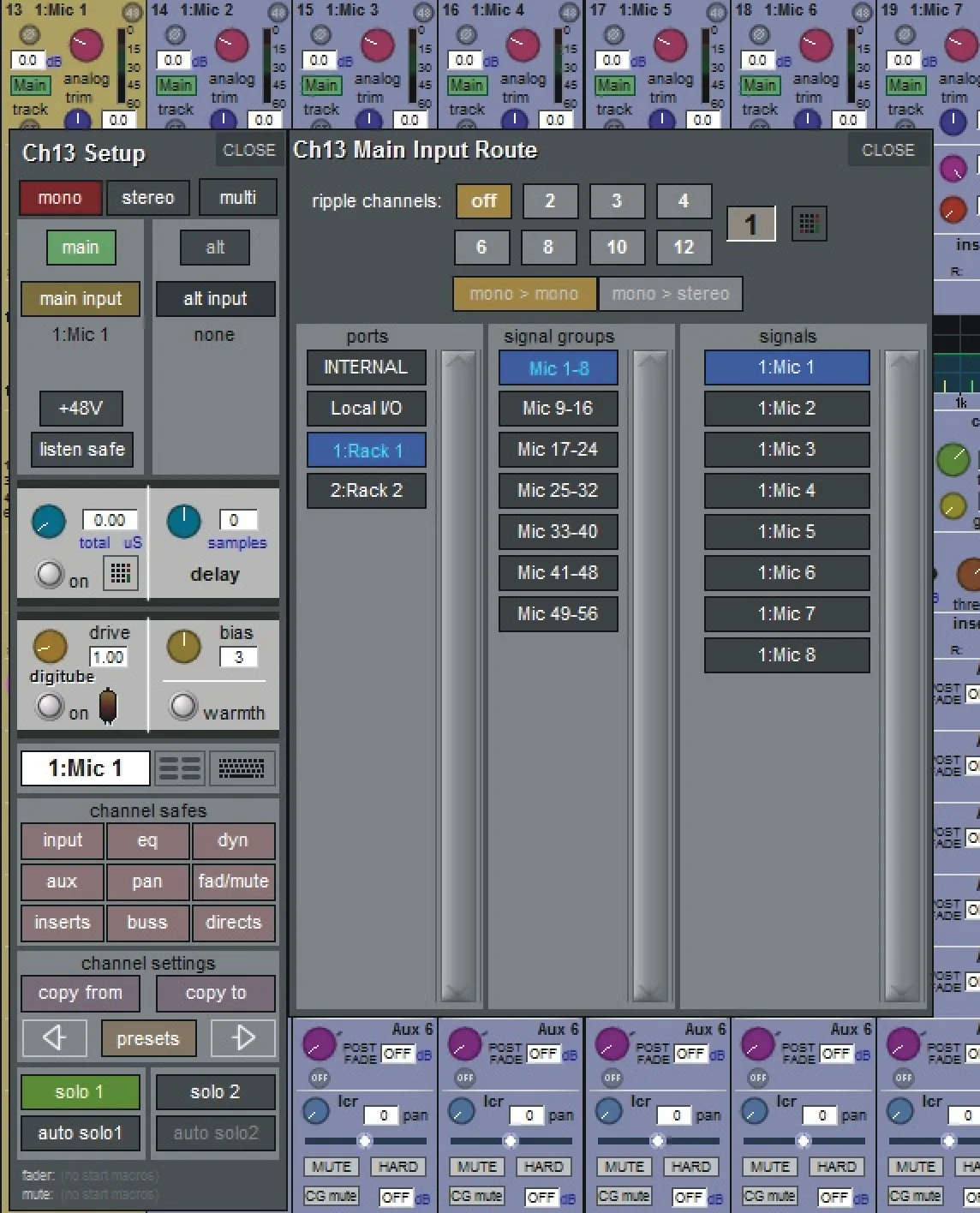

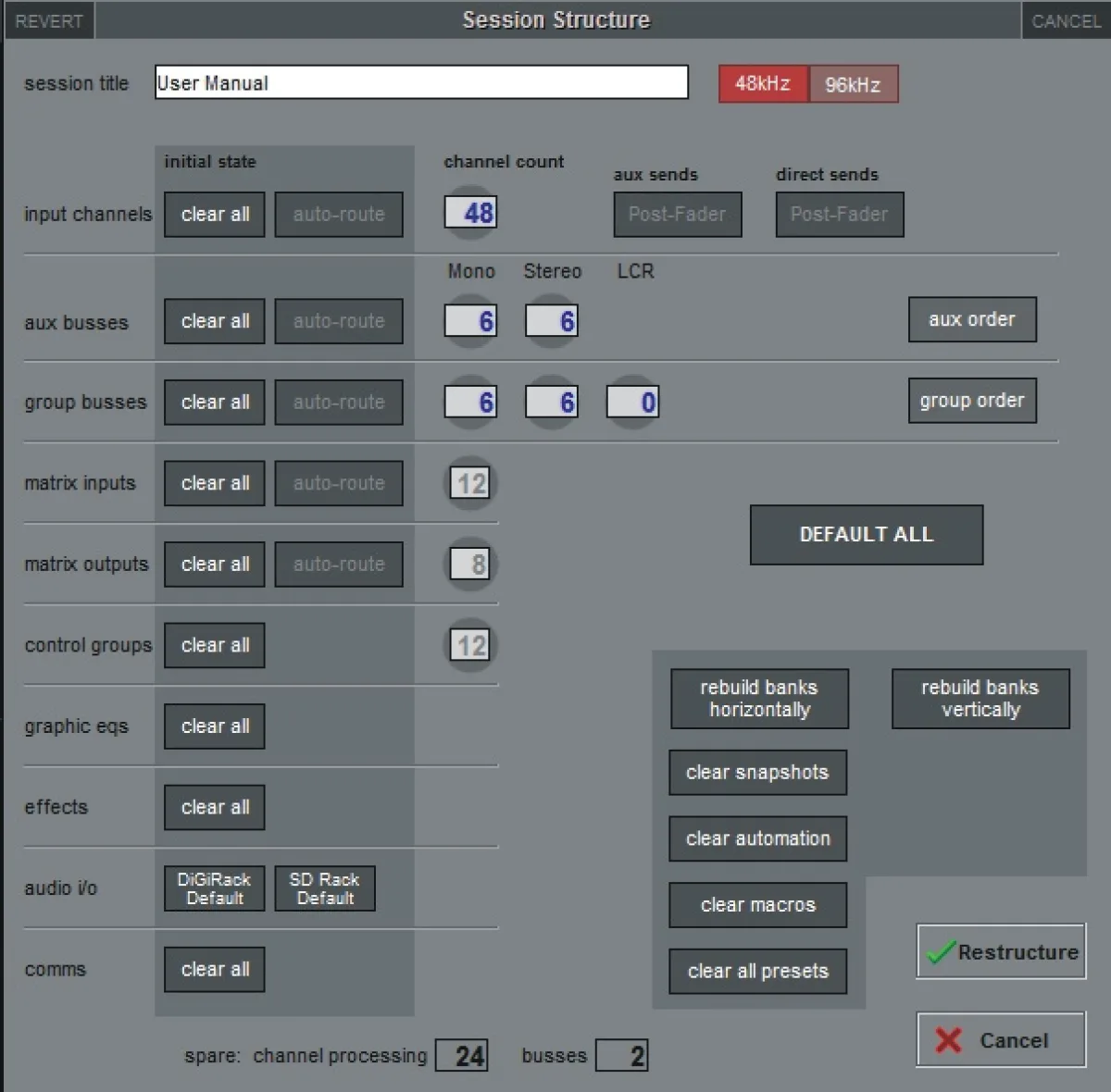

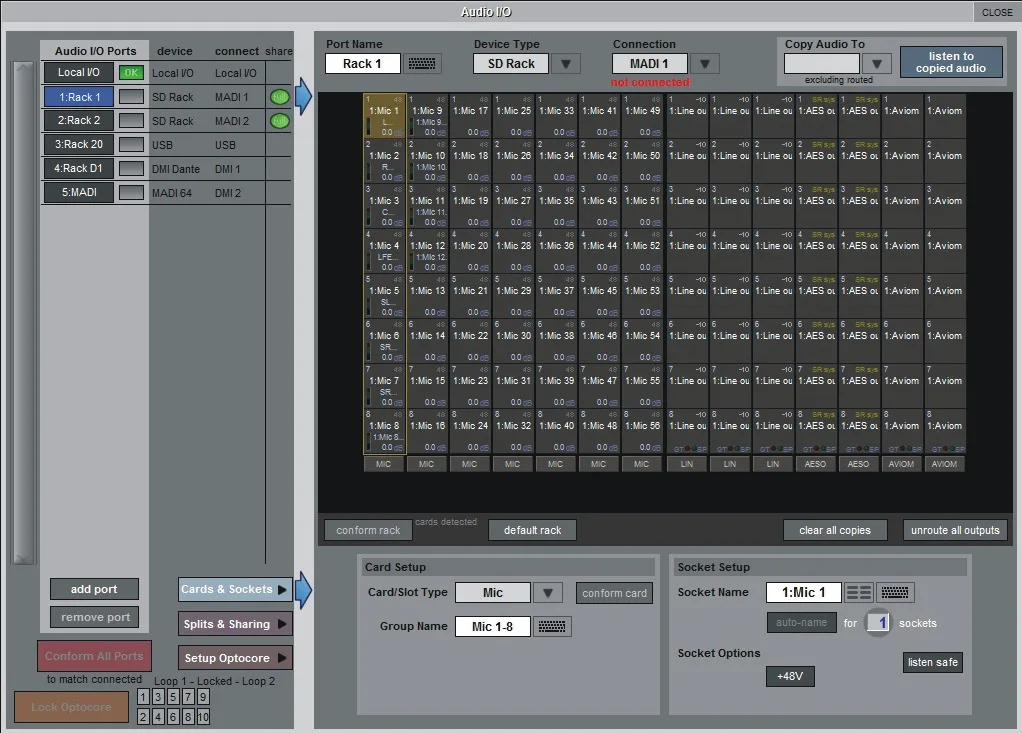

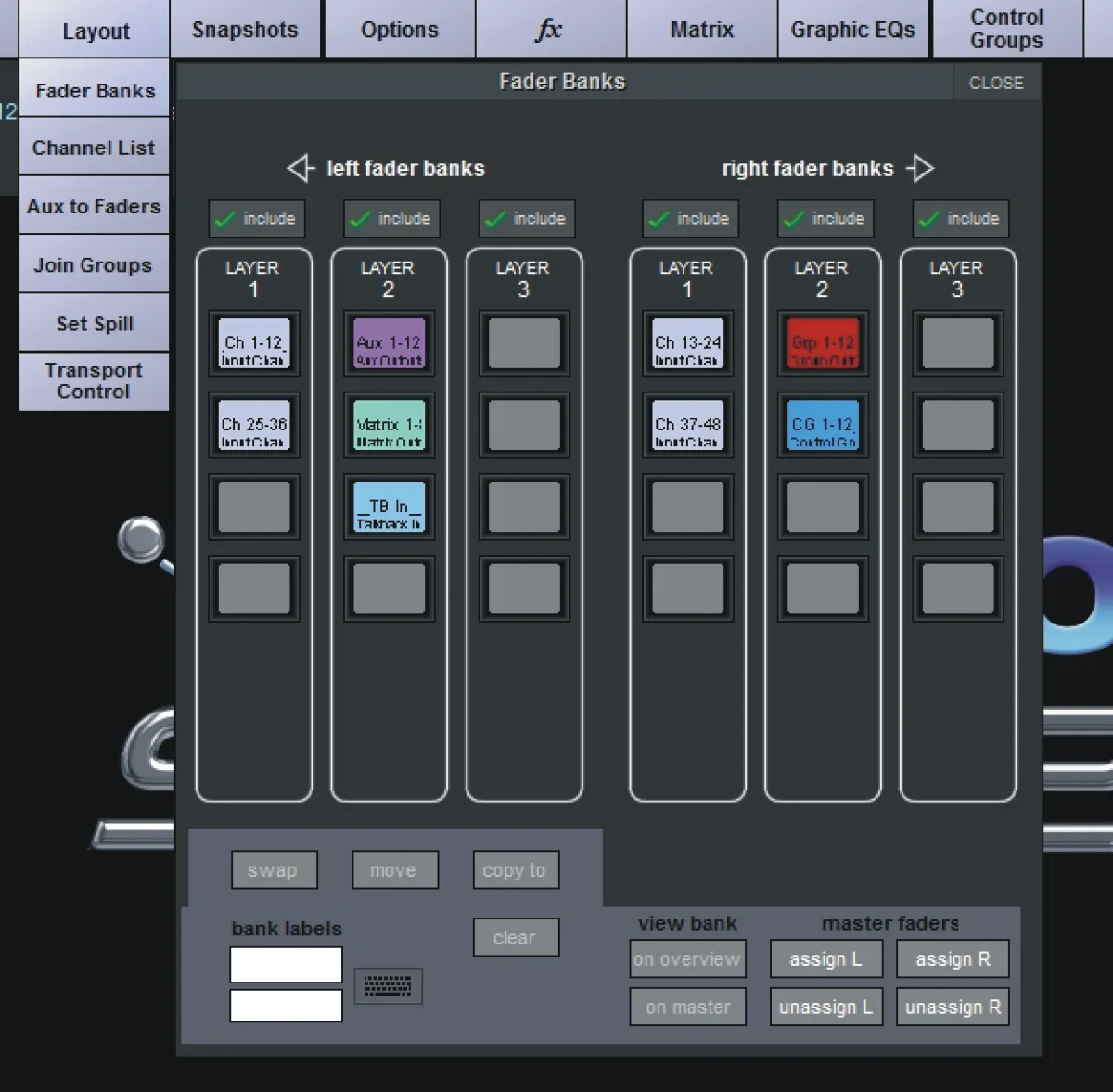

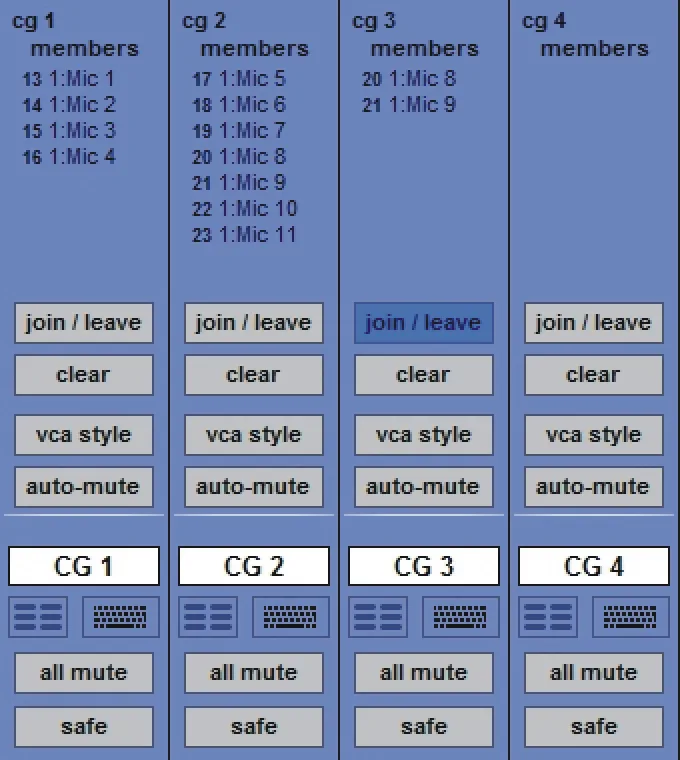

Other screenshots
Accessories
Stagebox / rack
- DiGiCo SD-Rack / D-Rack
I/O racks connected to the SD12 over MADI or optics (Optocore).
I/O card
- DMI modules
DMI option cards (Dante, Waves SoundGrid, MADI, AES, optics, KLANG, AVB…).
Documents
Editorial & artists
Our take
History & design

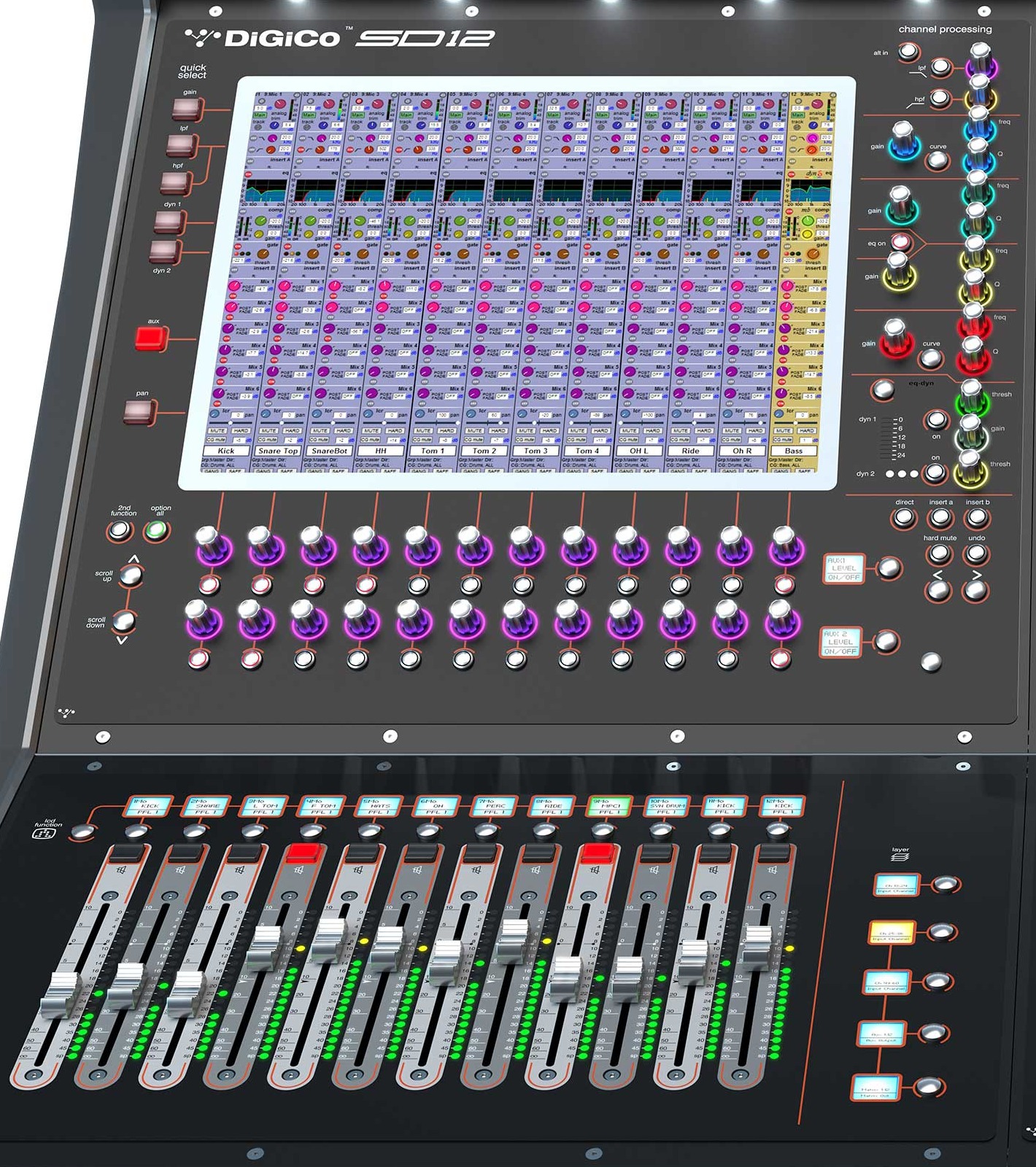

Released in 2016, the DiGiCo SD12 is a 72-channel console running at 48 or 96 kHz, driven by Stealth Digital Processing on Super FPGA and Core 2 software. The surface has 26 physical faders and two 15-inch LCD touchscreens.

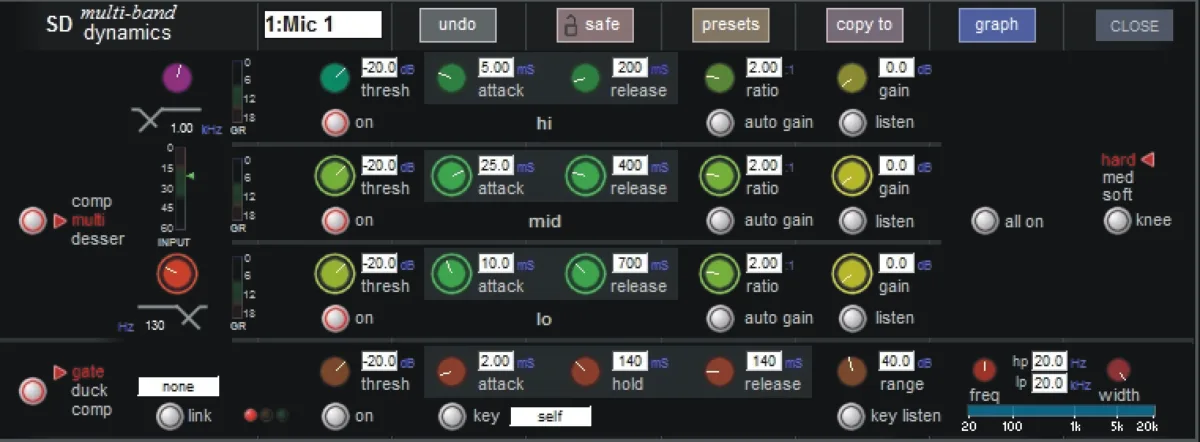

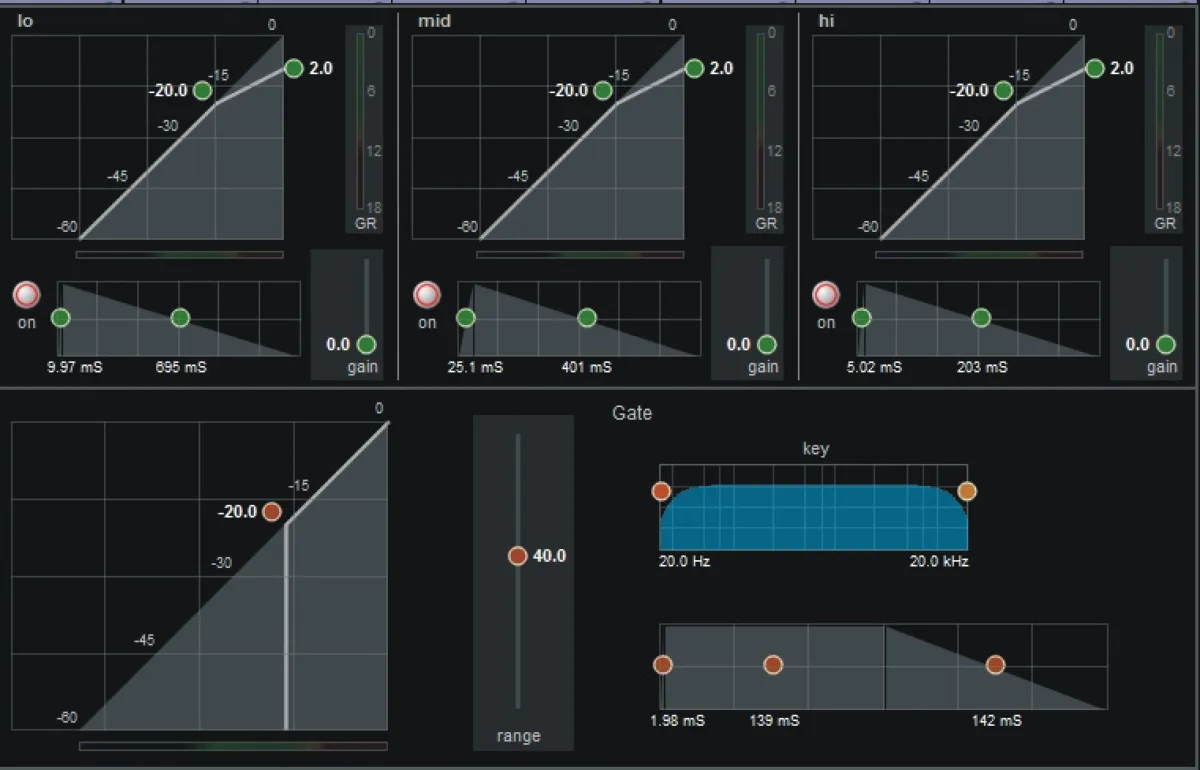

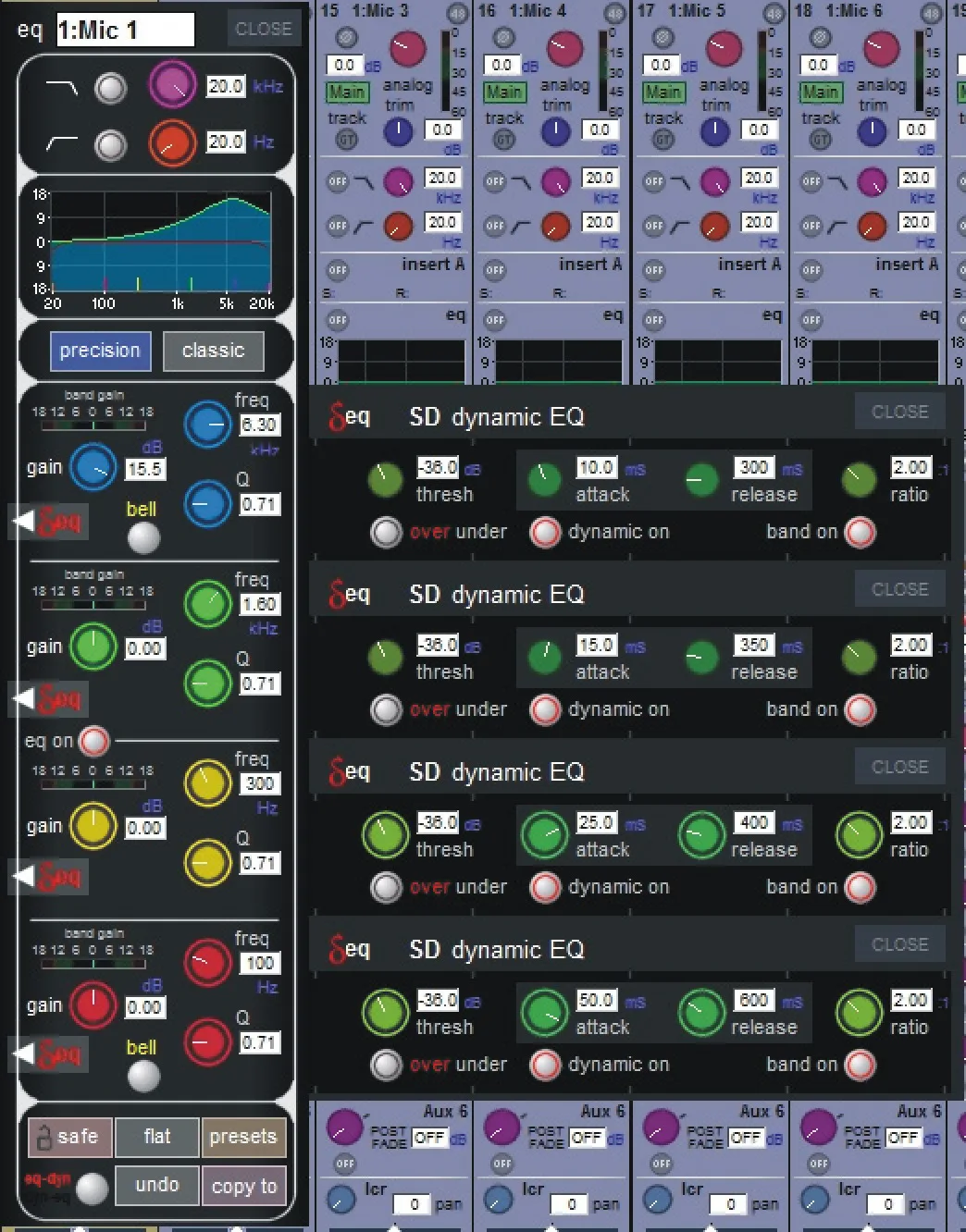

Each channel has a delay, 24 dB/octave high- and low-pass filters, a 4-band parametric EQ, and the DYN 1 (compressor, de-esser or multiband compressor) and DYN 2 (gate, compressor or ducker) modules. On board are 119 assignable Dynamic EQs, 119 Multiband Compressors and 119 DiGiTuBes. The SD12 96 version adds 8 mic/line inputs, 8 outputs, 8 AES/EBU and dual MADI, plus two DMI option slots (Dante, Waves, optics, etc.).
