Description
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | Total capacity of around 224 physical inputs/outputs via remote racks |
|---|
Processing
| Processing engine | Stealth Digital Processing (FPGA-based engine) |
|---|---|
| Channels | 64 channels (D5 56) or 96 channels (D5 56E) depending on configuration |
| Frame | Control surface + 2 to 3 remote I/O racks linked by fibre and/or MADI |
| Channel processing | Full EQ and dynamics on every channel; snapshot automation |
| Sample rate | Sample rate 48 kHz (96 kHz depending on version) - to be confirmed for the broadcast variant |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | No |
| Control surface | Touchscreen surface with meter bridge |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Optocore |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | 2 MADI ports (56) or 4 MADI ports (56E); Optocore optical-fibre link |
Power
| Power supply | Redundant power supply |
|---|
Other
| Broadcast features | Dedicated mix-minus buses, GPIO, surface redundancy: to be verified |
|---|

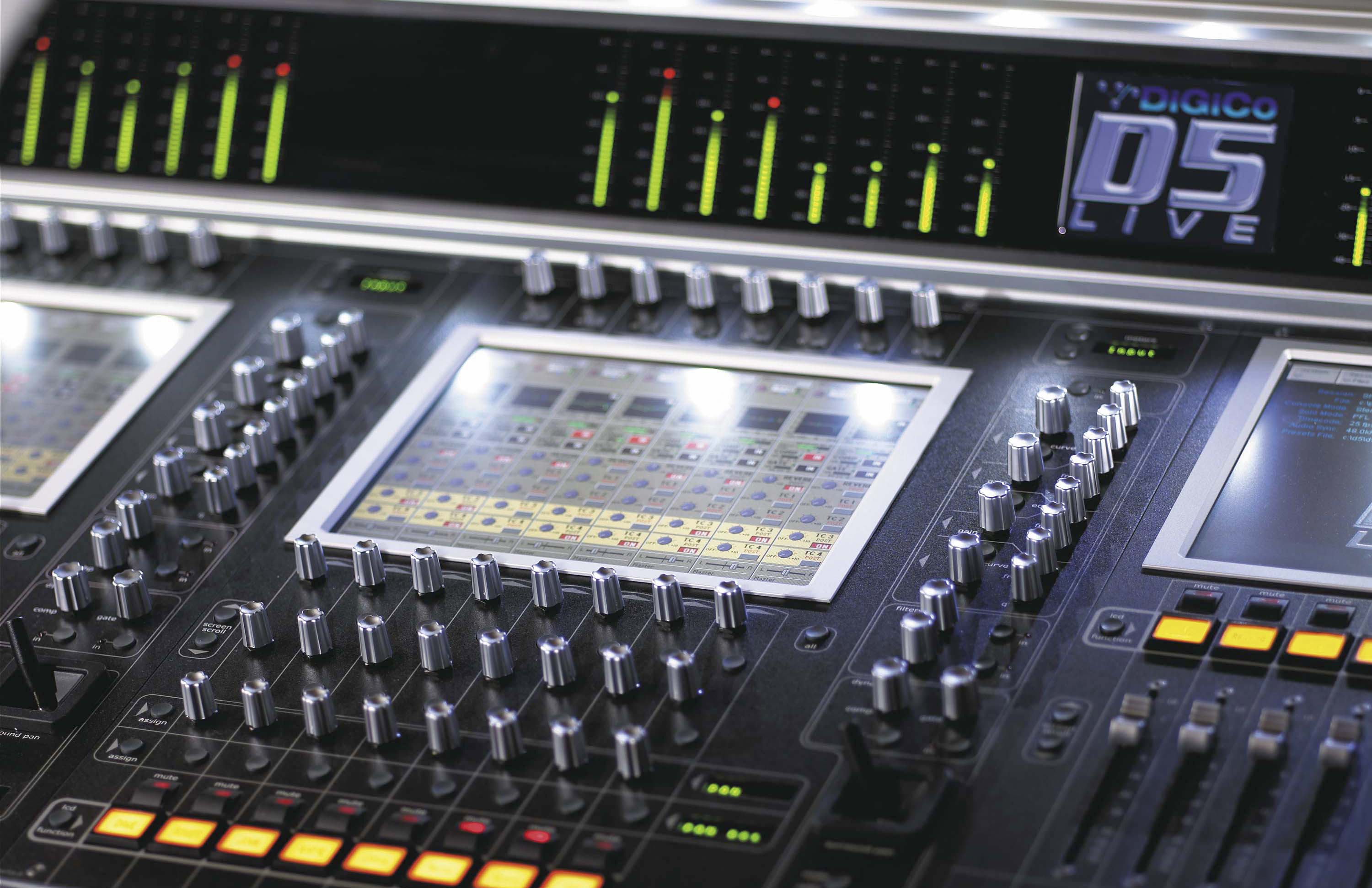

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
DiGiCo D5 Offline Software v4.469DownloadD5 platform software installed on an external PC: offline session preparation and remote control of the console (DiGiCo tech note TN136). Last archived release: V4.469.
Other screenshots

















Documents
Editorial & artists
Our take
History & design

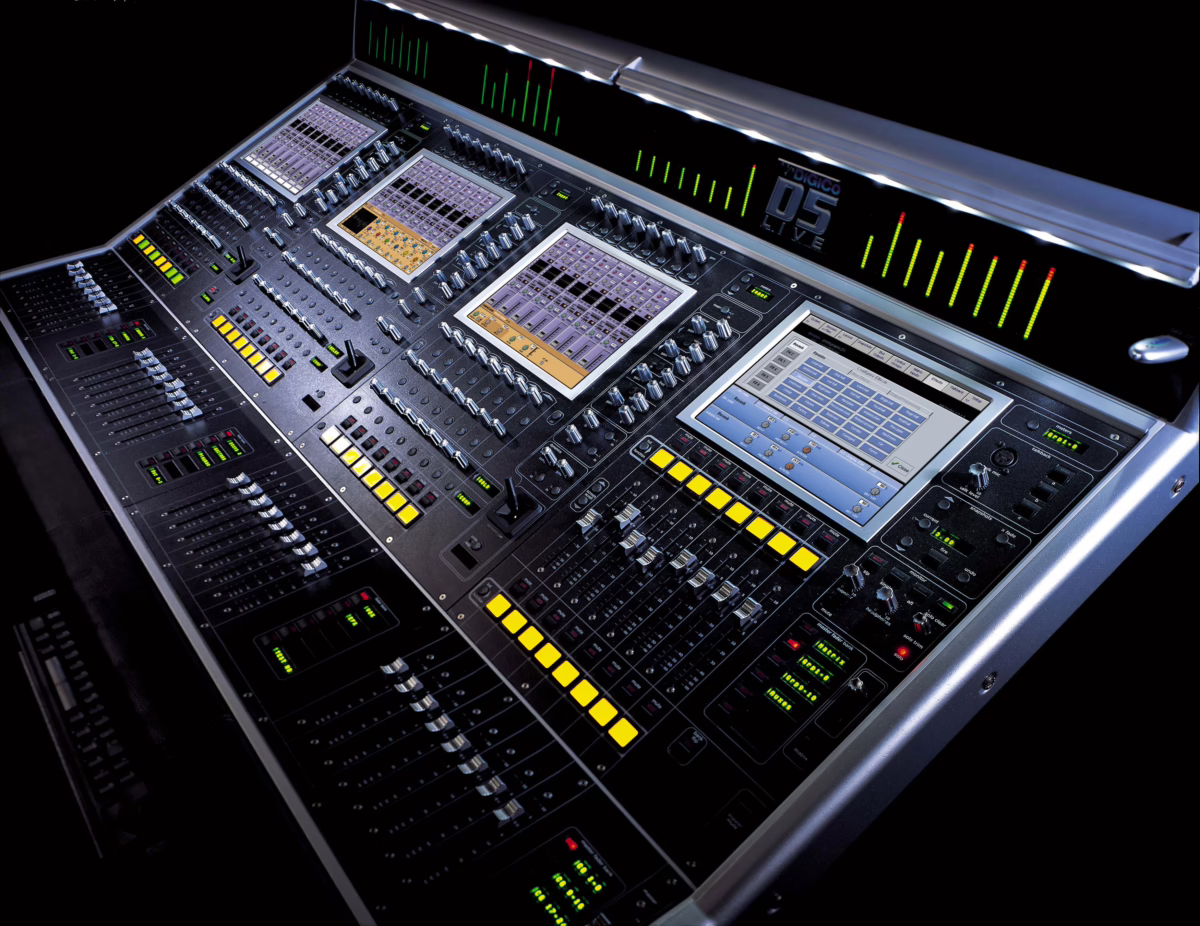

The DiGiCo D5 Broadcast is the broadcast/OB variant of the D5 platform, DiGiCo's first console. It shares the D5 Live architecture: a touchscreen control surface linked by optical fibre (Optocore) and/or MADI to two or three remote I/O racks, all driven by the FPGA-based Stealth Digital Processing engine.
Depending on configuration, the D5 platform processes 64 channels (56 version, 2 MADI ports) or 96 channels (56E version, 4 MADI ports), for a total capacity of around 224 physical inputs/outputs. Every channel carries full EQ and dynamics with snapshot automation. Redundant power and fibre-remoted racks address the reliability demands of live and outside-broadcast work.
The purely broadcast-specific features of this variant (dedicated mix-minus buses, GPIO, surface redundancy) are not all reliably documented and are flagged for verification rather than reconstructed. The D5 was superseded by the SD series (including the SD5B for broadcast).
- James Gordon, Founder, managing director
