Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 120 |
|---|---|
| Mic inputs | 8 |
| Line inputs | 8 |
| Total outputs | 8 |
Processing
| Mix buses | 48 |
|---|---|
| Aux sends | 48 |
| Matrices | 16 |
| DCA/VCA groups | 24 |
| DSP engine | Stealth Digital Processing / Super FPGA (virgule flottante) |
| Max sample rate | 65,535 kHz |
| Fx Geq | 16 processeurs d'effets stéréo internes, 24 égaliseurs graphiques 32 bandes, DiGiTube et EQ dynamique sur chaque voie et bus |
Surface
| Physical faders | 37 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |
| Worksurface | 37 faders motorisés tactiles 100 mm (3 × 12 + master) ; version compacte SD8-24 à 24 faders |
| Screen | 1 écran tactile LCD 15 pouces haute résolution, 38 bargraphes LED 20 segments |
Recording
| Onboard recording | Optional |
|---|
Networking
| Networking & protocols | MADI / Optocore / SoundGrid / AES/EBU / USB |
|---|---|
| Redundant PSU | Yes |
| Redundant networking | Yes |
Other
| Channels | 120 voies d'entrée mono à traitement complet |
|---|---|
| Busses | 48 bus auxiliaires/sous-groupes, matrice 16 × 16, master LR/LCR/LCRS/5.1 |
| Local Io | 8 entrées micro/ligne XLR, 8 sorties ligne, E/S AES/EBU (8 voies), MIDI, word clock BNC |
| Redundancy | Doubles alimentations redondantes de série, mise en miroir possible avec une seconde SD8 |
| Price Note | Prix public de lancement à vérifier |

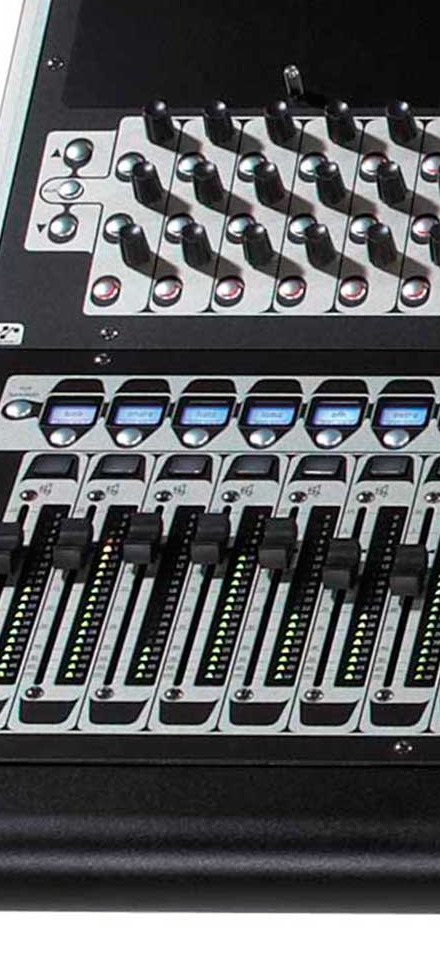

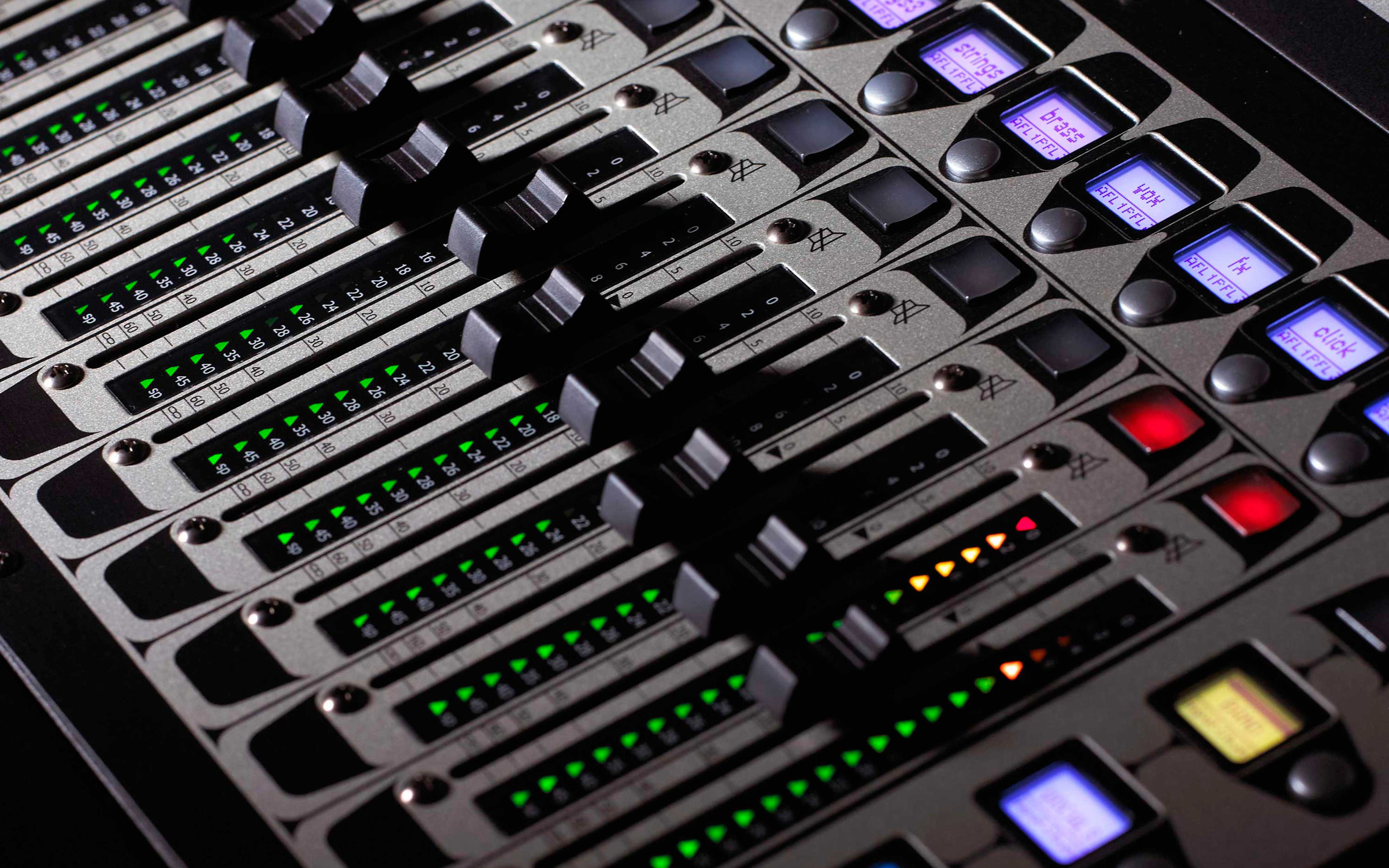

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- DiGiCo Offline SoftwareDiGiCo offline software to prepare and edit SD8 sessions on a computer (channels, snapshots, patch).Download
Other screenshots
Documents
Editorial & artists
Our take
History & design

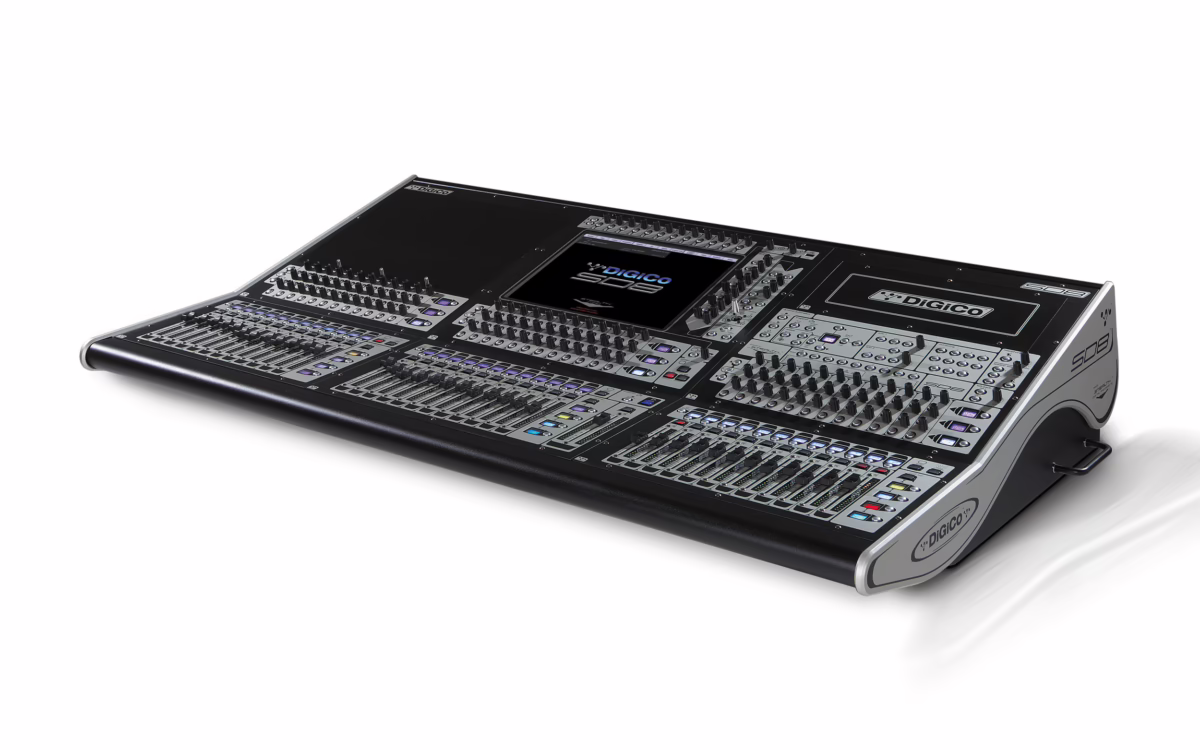

The DiGiCo SD8 is a digital mixing console introduced in 2009, sitting below the SD7 in the British manufacturer's SD range. It inherits the flagship's Stealth Digital Processing engine and floating-point Super FPGA architecture, applied to 120 input channels, 48 aux/sub-group busses, a 16 × 16 matrix and an LR/LCR/LCRS/5.1 master buss, all with full processing (DiGiTube, 4-band parametric and dynamic EQ, dual dynamics, two insert points per channel).

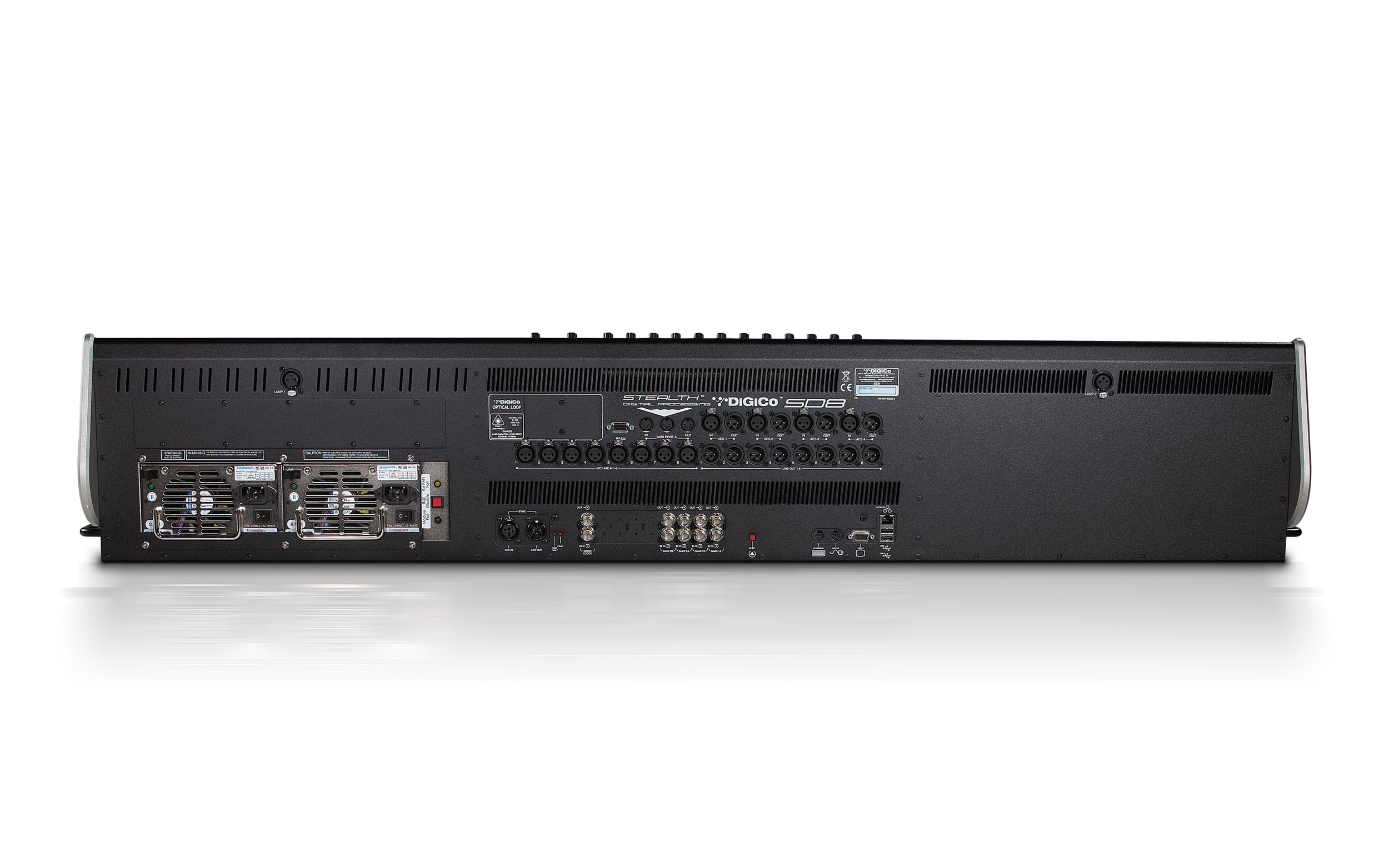

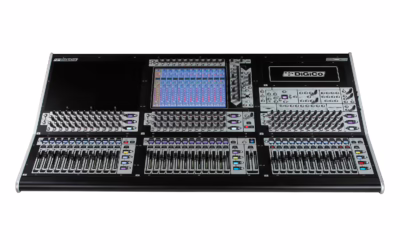

The standard surface carries 37 touch-sensitive 100 mm motorised faders in three banks of twelve plus a master fader, under a single 15-inch LCD touchscreen; a compact SD8-24 version reduces this to 24 faders. Assignable layers let any bank show input or output channels. Local I/O includes eight XLR mic/line inputs, eight line outputs, AES/EBU I/O, two redundant MADI BNC ports and an optional multimode Optocore interface; expansion runs through DiGiCo stageboxes (SD-Rack, D-Rack) and an optional Waves SoundGrid card.
The SD8 ships with dual redundant power supplies and can be mirrored with a second SD8 for surface redundancy. It is also controlled through offline software and an iPad app.
