Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 132 |
|---|---|
| Mic inputs | 8 |
Processing
| Mix buses | 64 |
|---|---|
| Matrices | 24 |
| DCA/VCA groups | 24 |
| DSP engine | Stealth Digital Processing / Super FPGA (virgule flottante) |
| Max sample rate | 96 kHz |
Surface
| Physical faders | 37 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |
| Worksurface | 3 banques de 12 faders motorisés + 1 fader master (bargraphes LED), écran tactile TFT 15" |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / Optocore / AES/EBU |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Other
| Capacity | 144 canaux au total, jusqu'à 132 voies d'entrée, 218 EQ et compresseurs multibandes |
|---|---|
| Buses | 64 bus assignables (groupes/aux), 56 aux/sous-groupes, matrice 24×24, master LR/LCR/LCRS/5.1 |
| Master Fx | 24 EQ graphiques 32 bandes ganguables, 24 effets stéréo (palette de 33), 24 groupes de contrôle (VCA) |
| Local Io | E/S locales : 8 micro/ligne in, 8 line out, 8 AES mono, 2 MADI redondants, 16 GPI/GPO (extensibles à 32) |
| Optocore | Boucle optique Optocore : jusqu'à 14 SD-Racks et 5 moteurs redondants, 1 152 points d'E/S |
| Variants | Déclinaisons SD10, SD10-24, SD10B et SD10T (version théâtre) |
Accessories
Stagebox / rack
- DiGiCo SD-Rack
Main SD-series I/O rack, connected over Optocore (up to 14 per loop).
- DiGiCo D-Rack
Compact entry-level stagebox compatible with the SD10 (Cat5/MADI link).
Documents
Editorial & artists
Our take
History & design

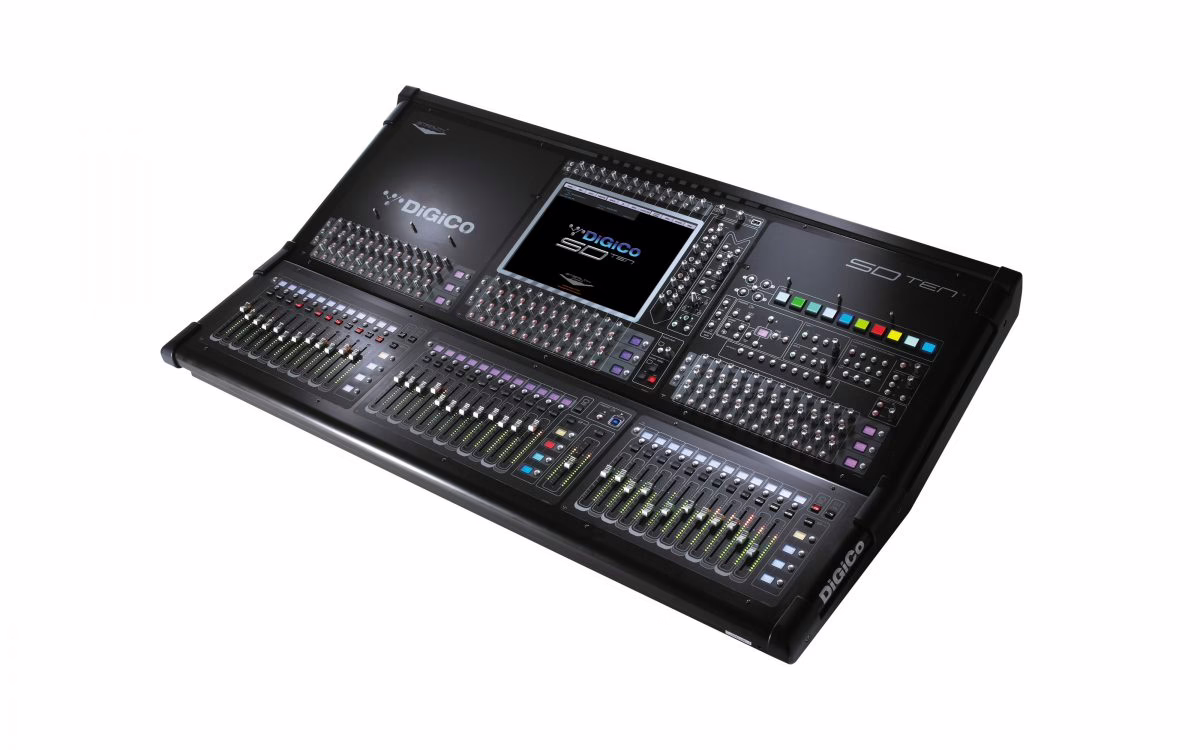

The DiGiCo SD10 is a 144-channel digital mixing console positioned as the mid-format of the SD series. It offers up to 132 input channels, 218 EQs and multiband compressors, 64 assignable buses, a 24×24 matrix and LR/LCR/LCRS/5.1 masters. The master section includes 24 32-band graphic EQs, 24 stereo effects from a palette of 33, and 24 control groups (VCAs).
It all runs on Stealth Digital Processing and floating-point Super FPGA technology at 96 kHz. The worksurface has three banks of twelve motorised faders plus a master fader, each with its own LED bargraph, around a 15" TFT touchscreen.
Local I/O includes 8 mic/line inputs, 8 line outputs, 8 mono AES, two redundant MADI links and 16 GPI/GPO expandable to 32. Over Optocore, up to 14 SD-Racks and five redundant engines share an optical loop totalling 1,152 I/O points. The SD10 comes in SD10-24, SD10B and SD10T (theatre) variants.
