Description
To me the Rivage PM10 is Yamaha's return to the very top of live sound: a 144-channel/96 kHz DSP-R10 engine, more analogue-sounding SILK/VCM preamps and a redundant TWINLANe network. A heavy system, but built for big productions.
Technical
Specifications
Inputs / Outputs
| Total inputs | 144 |
|---|---|
| Mic preamps | VCM modelling and SILK circuit inspired by Rupert Neve Designs |
Processing
| Mix buses | 72 |
|---|---|
| Matrices | 36 |
| DCA/VCA groups | 24 |
| DSP engine | DSP-R10 |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Architecture | Modular system: CS-R10 surface + DSP-R10 engine + RPio622 I/O racks |
| Channels | 144 input channels, 72 mix buses, 36 matrix buses |
| Bit depth — details | 24-bit / 96 kHz processing |
Surface
| Physical faders | 38 |
|---|---|
| Motorized faders | Yes |
| Screens | 2 |
| Touchscreen | Yes |
| Faders | CS-R10: three banks of 12 motorised faders |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | Dante / MADI / Network |
|---|---|
| Redundant PSU | Yes |
| Redundant networking | Yes |
| Audio networking | Proprietary TWINLANe network (up to 400 ch at 96 kHz over fibre, redundant ring); Dante and MADI via HY cards |
Physical
| Width | 1,549 mm |
|---|---|
| Depth | 848 mm |
| Height | 417 mm |
| Weight | 85 kg |
Power

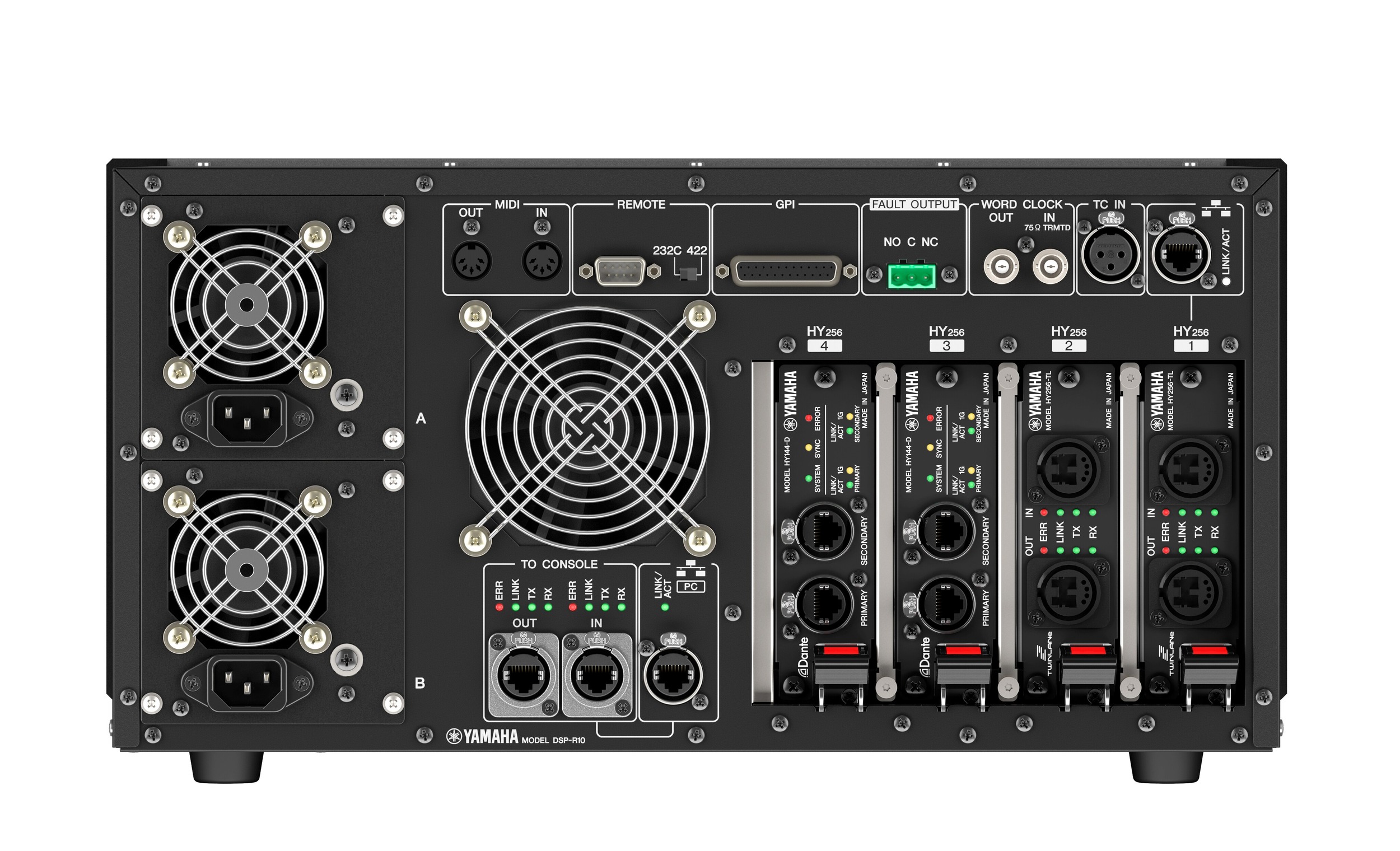

| Power supply | Dual redundant power supplies on the DSP-R10 engine |
|---|

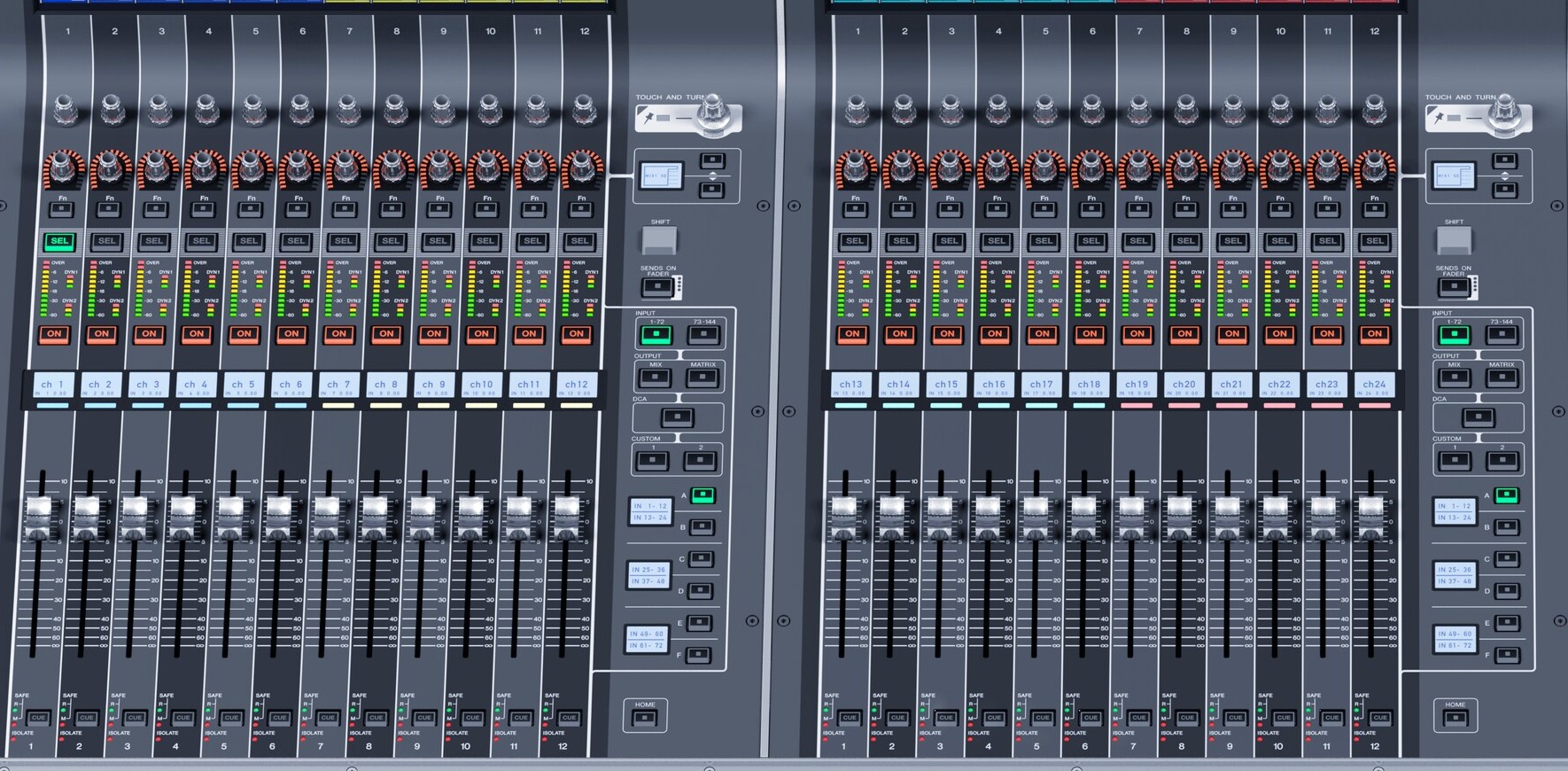

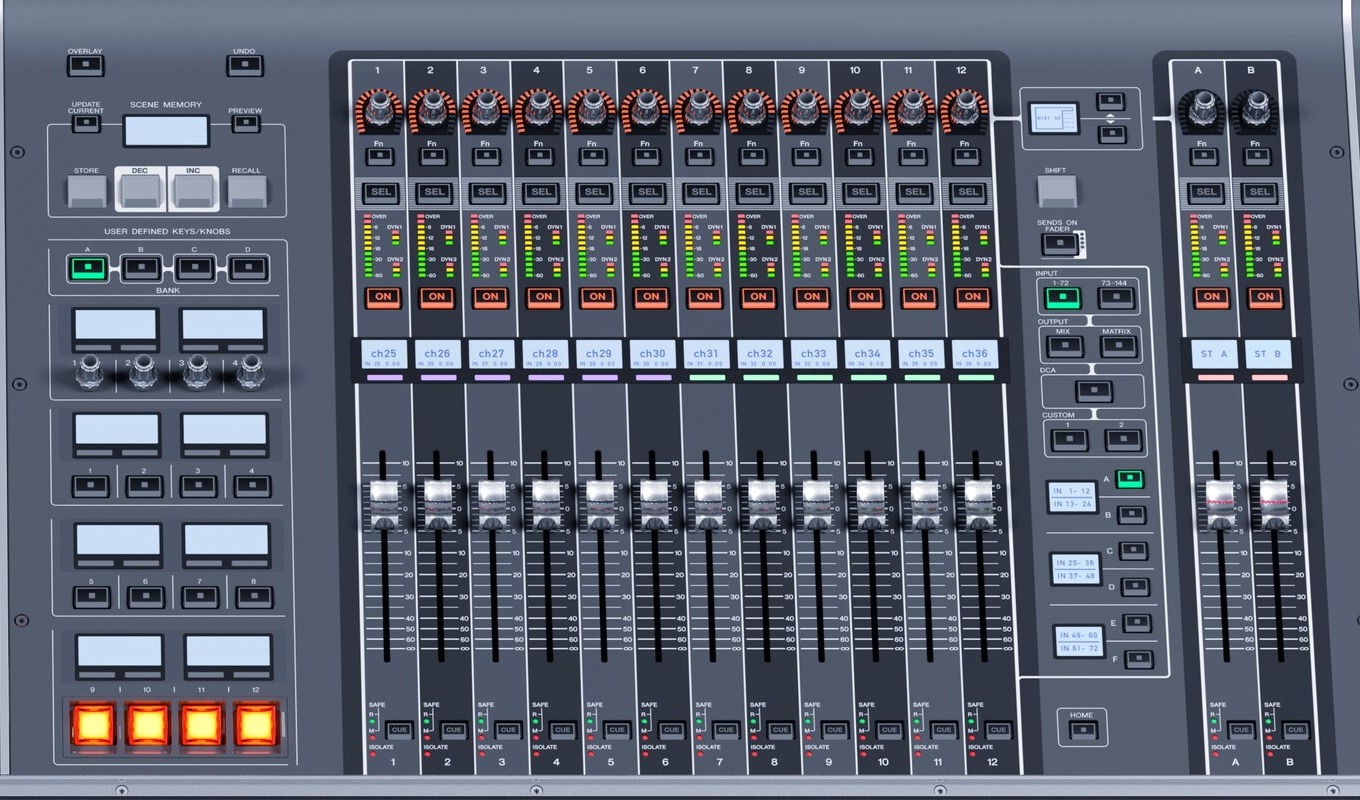

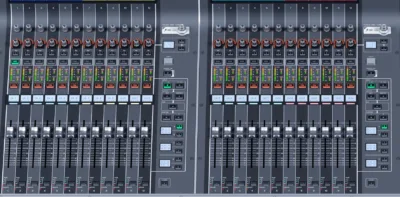

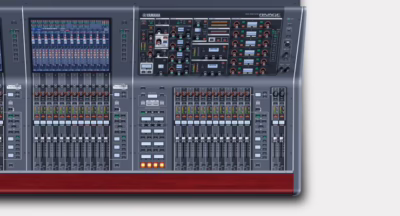

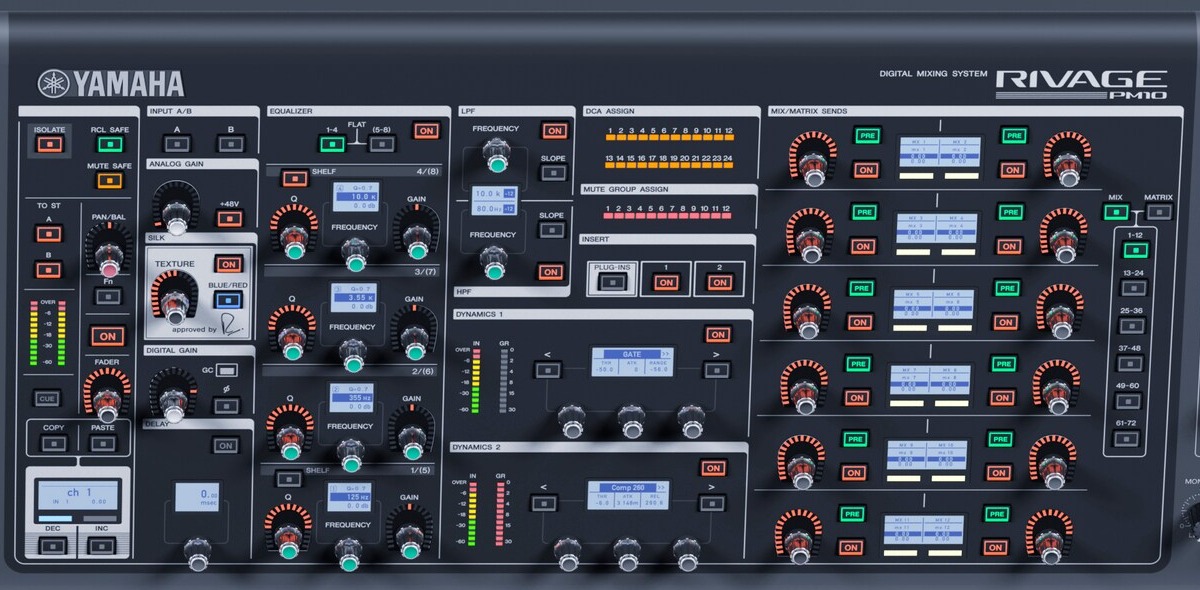

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.

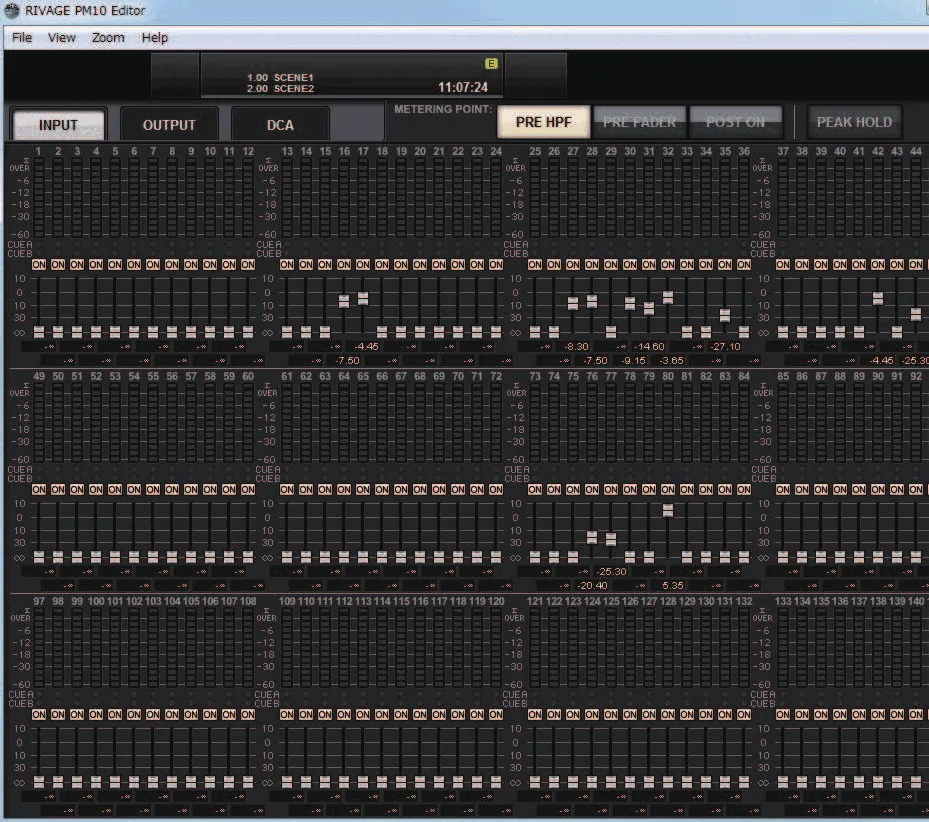

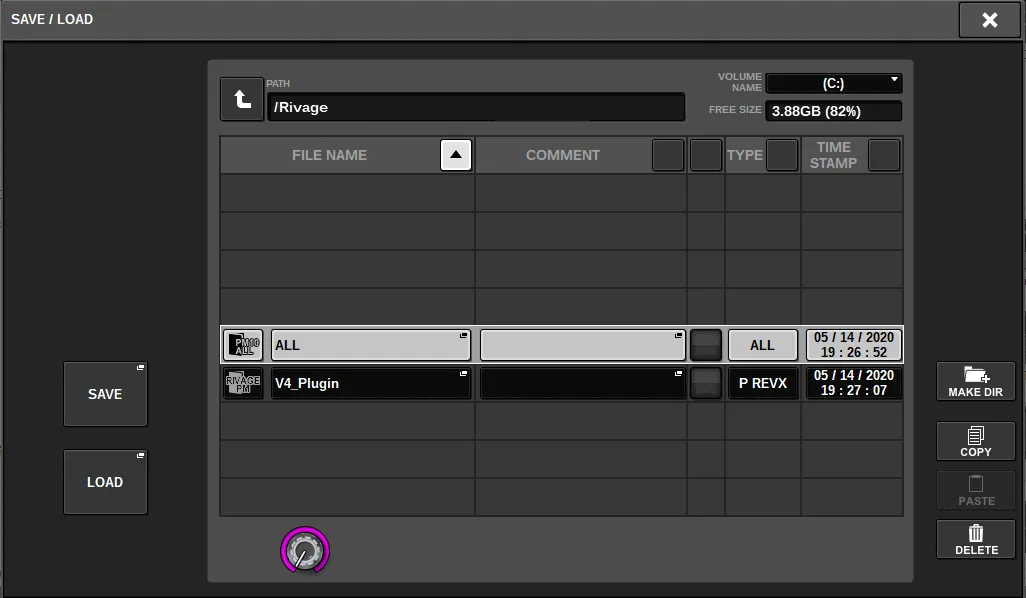

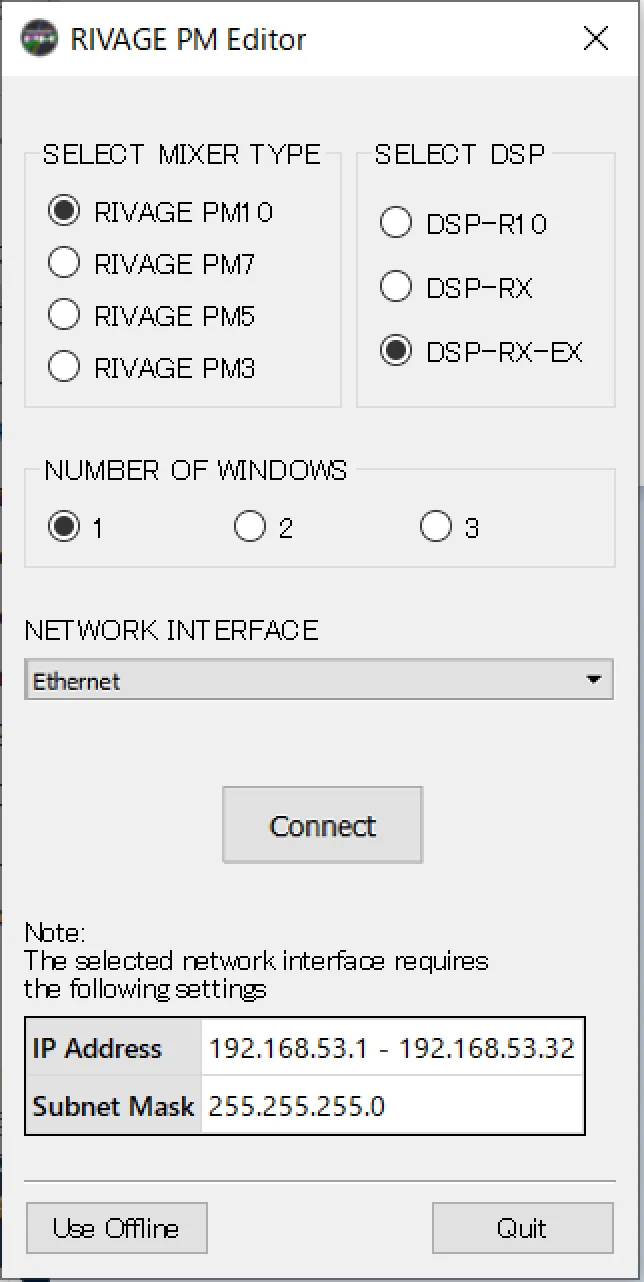

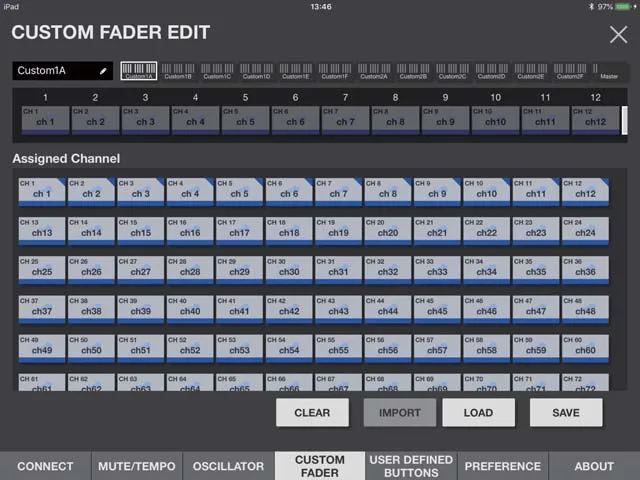

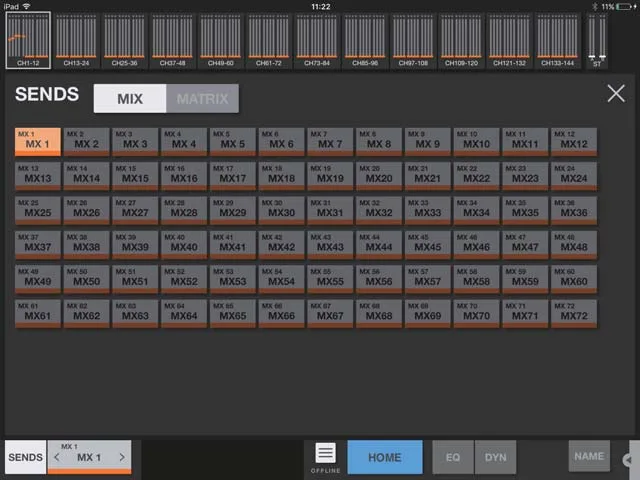

Software

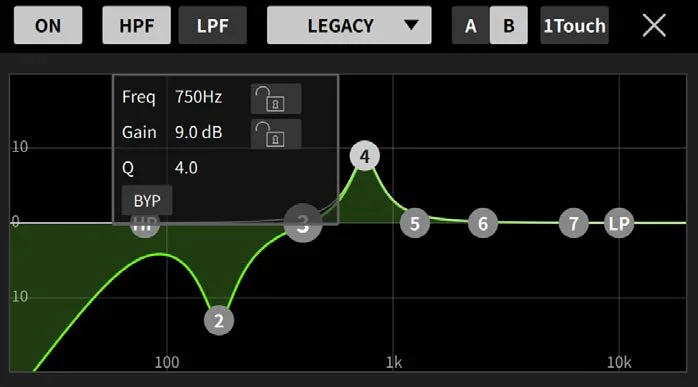

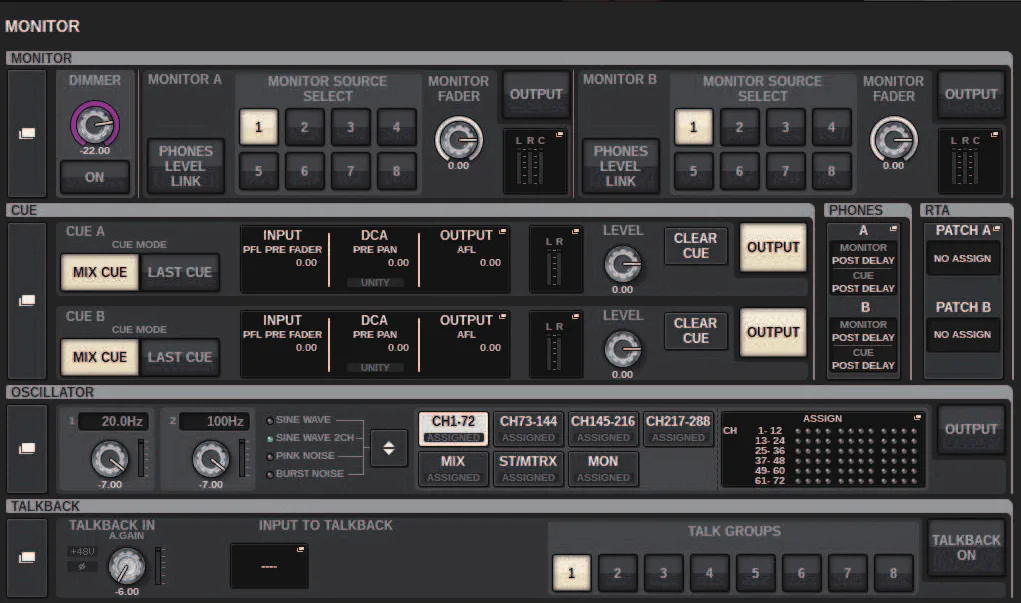

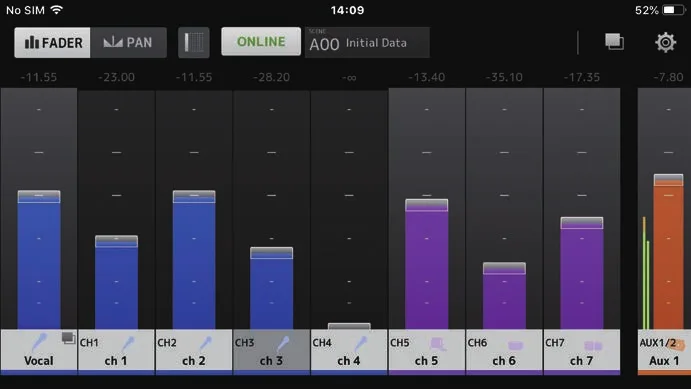

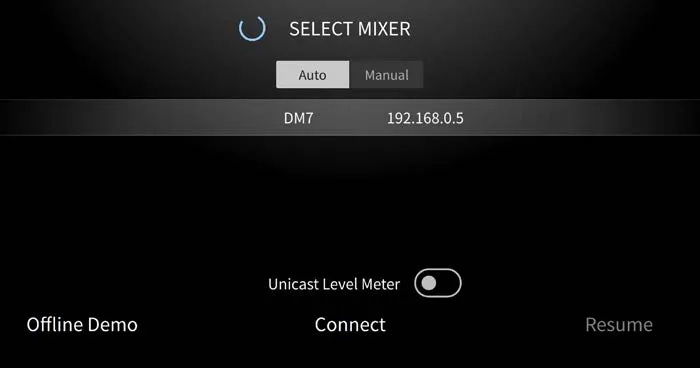

MonitorMixDownload

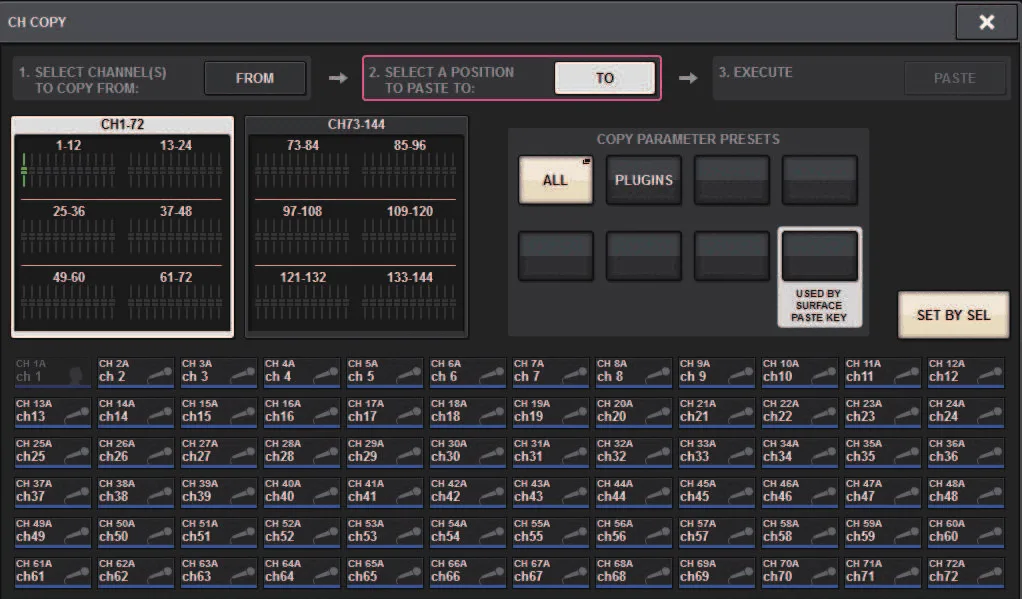

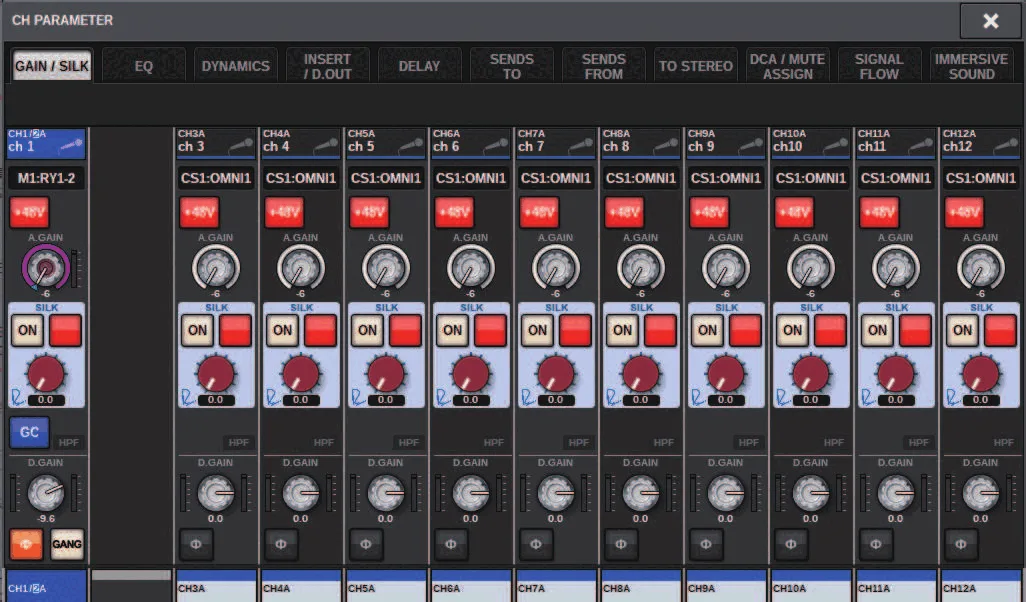

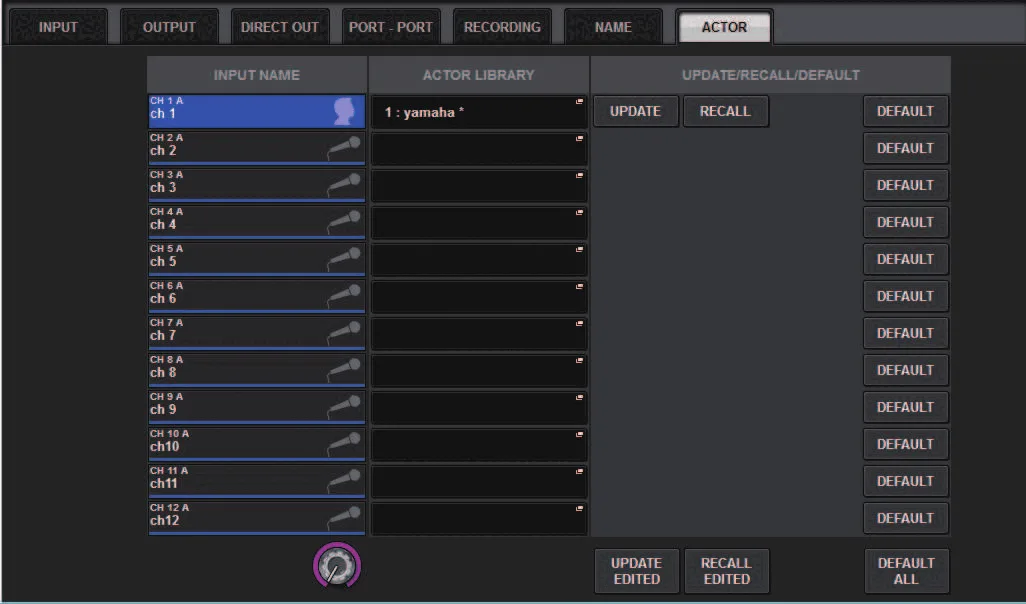

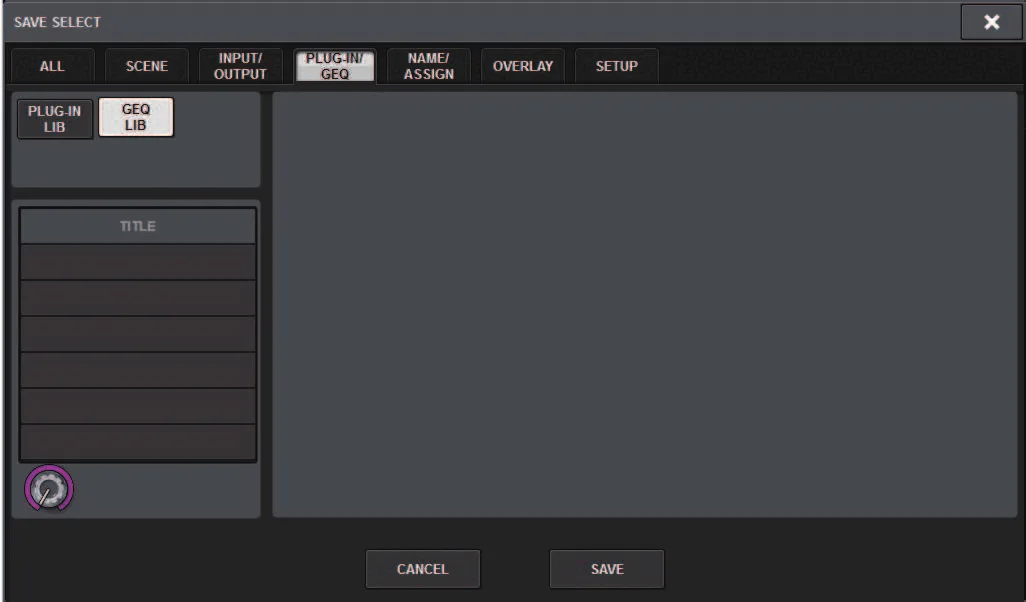

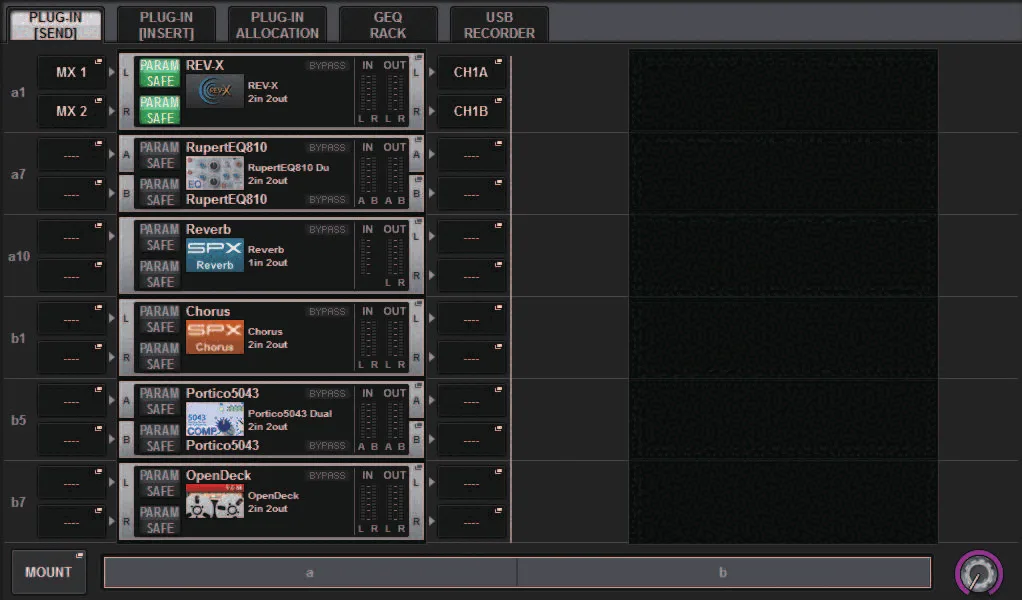

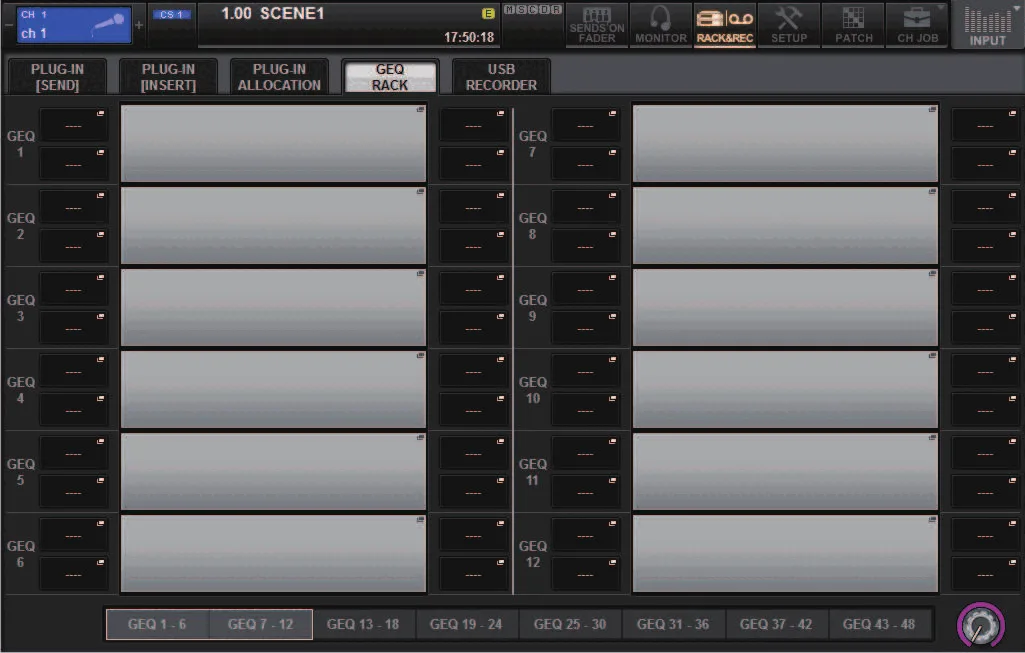

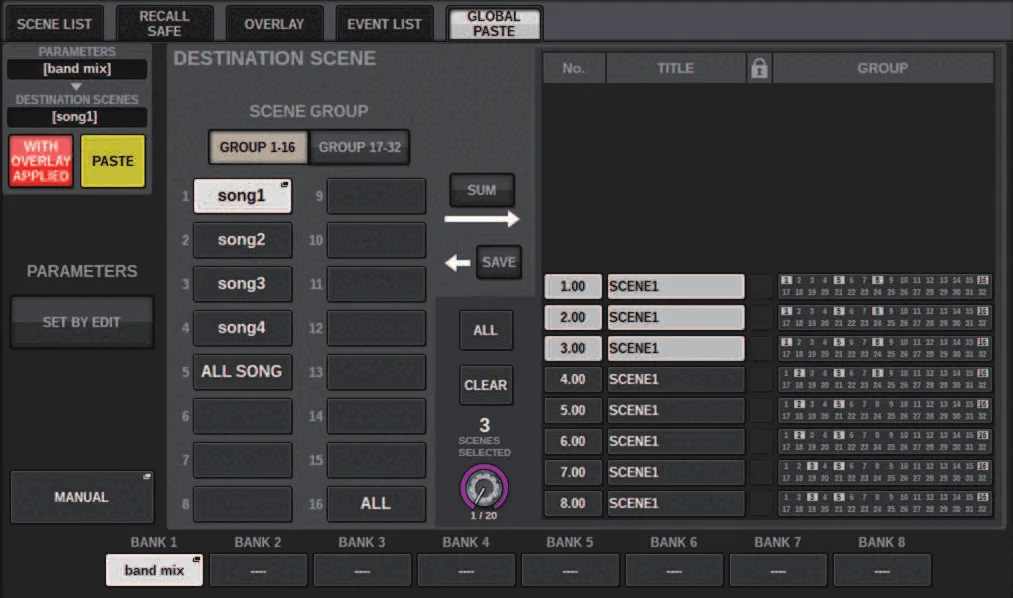

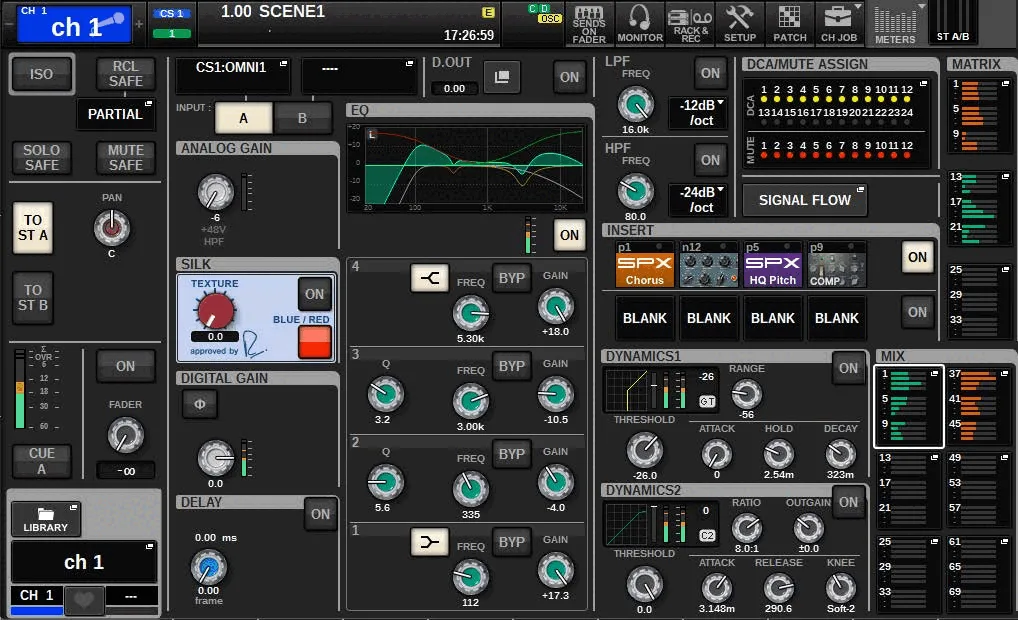

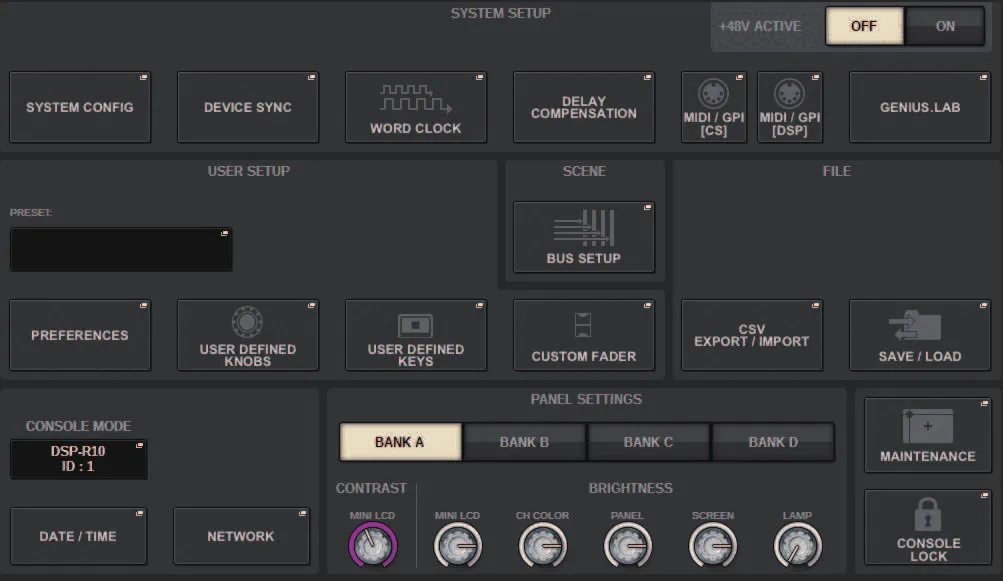

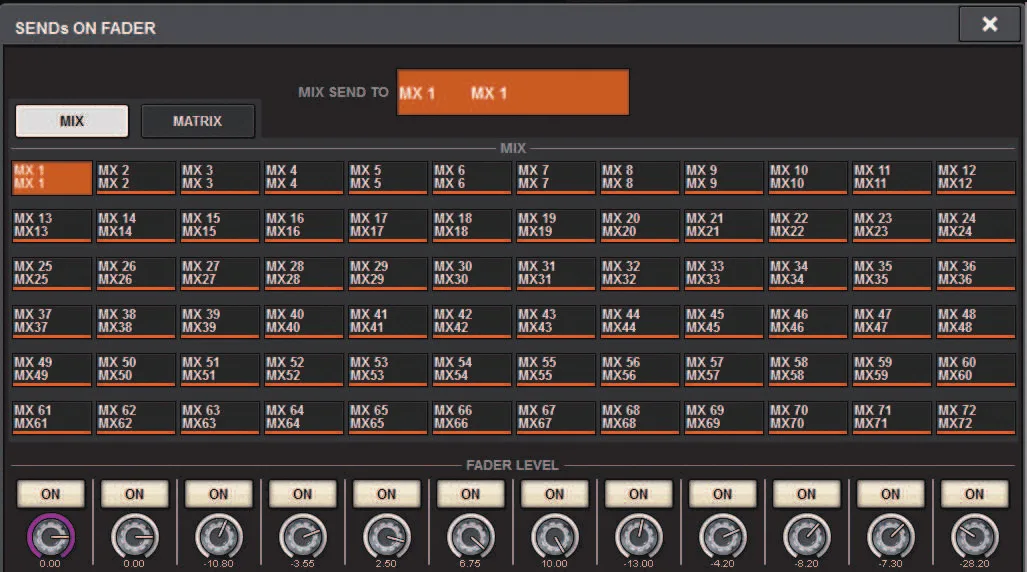

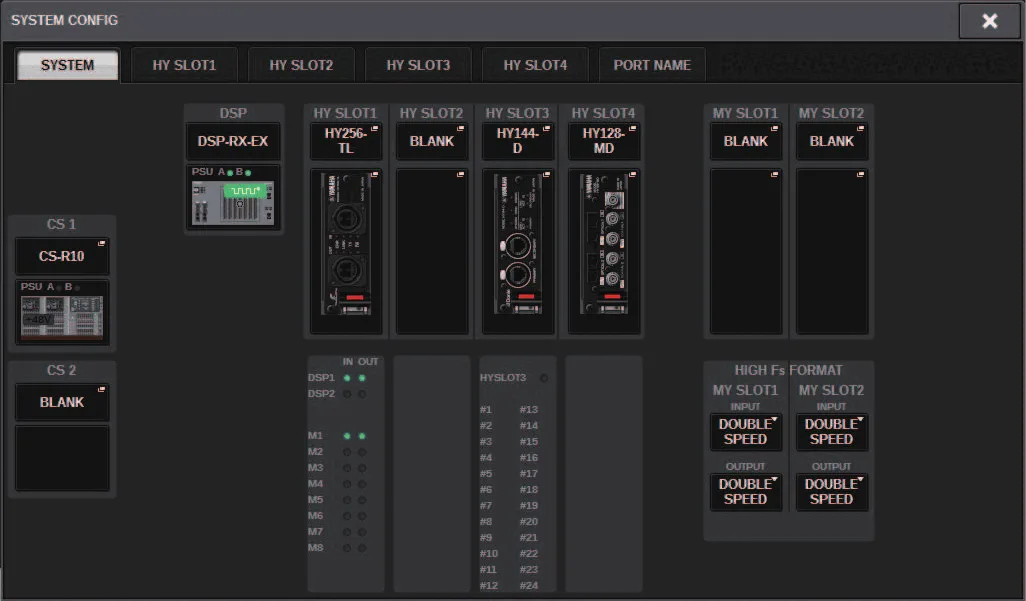

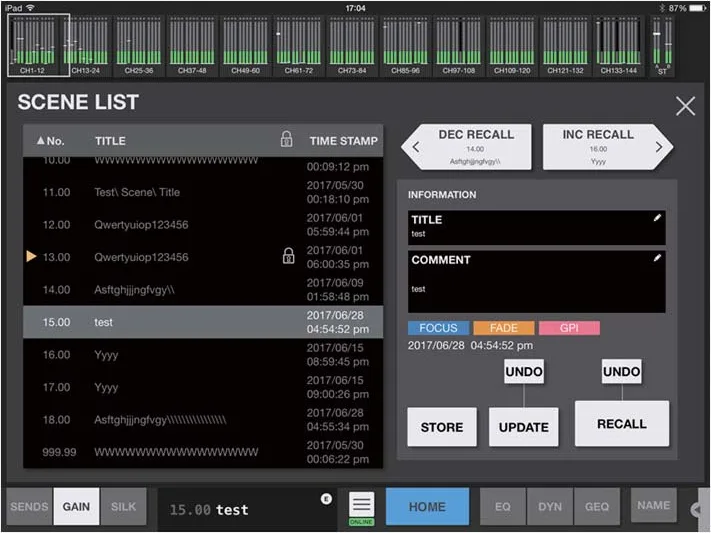

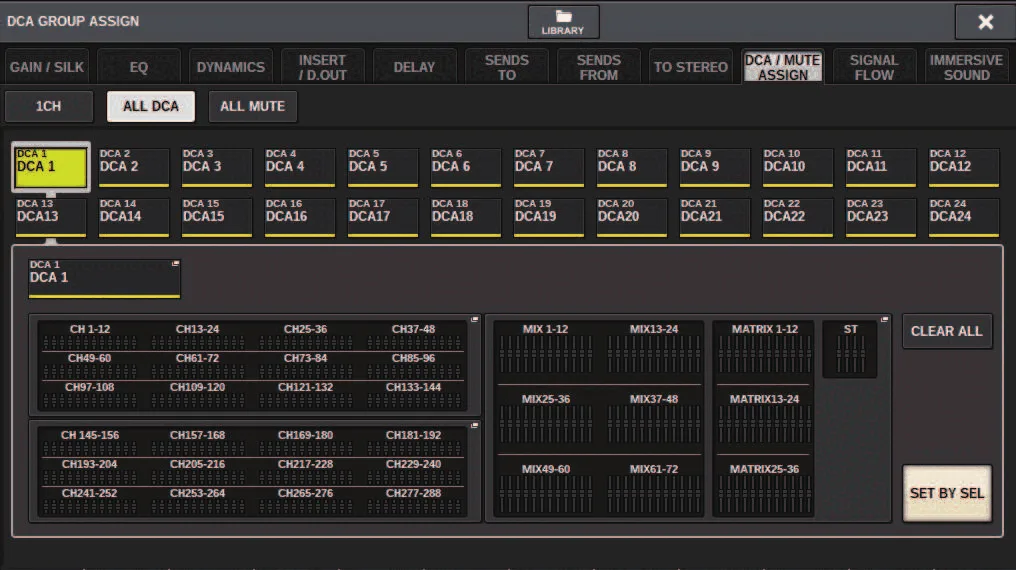

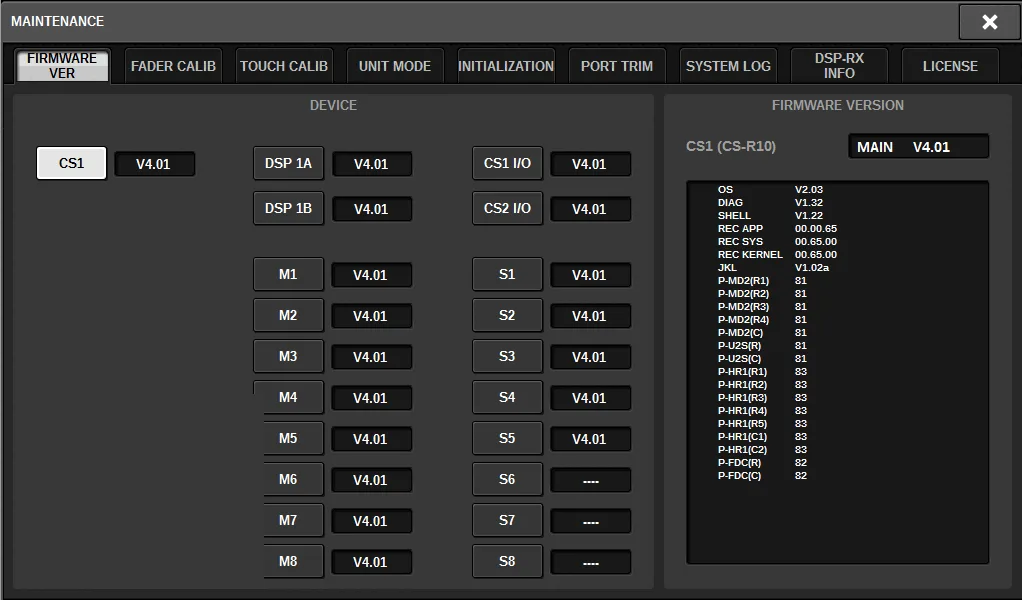

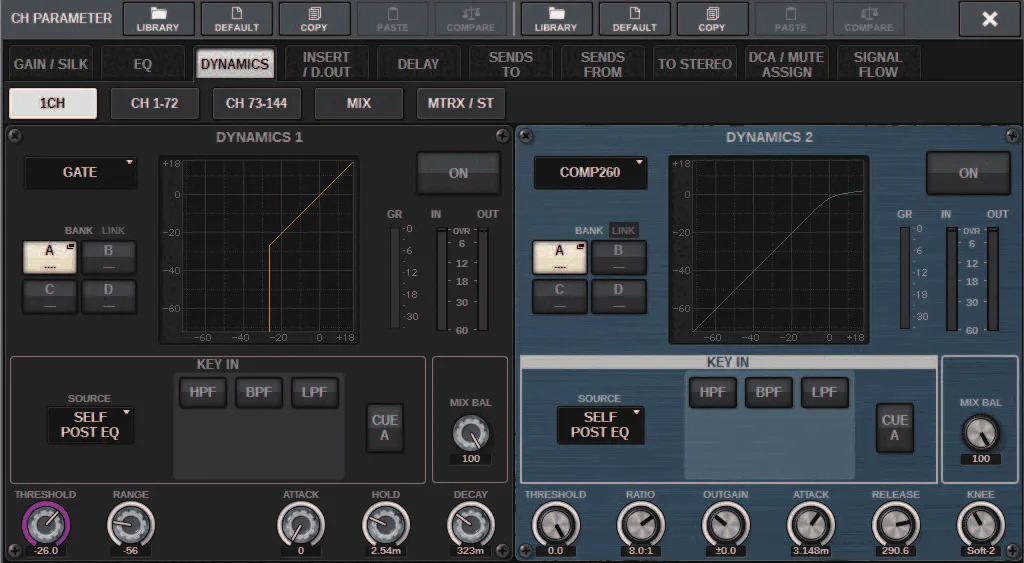

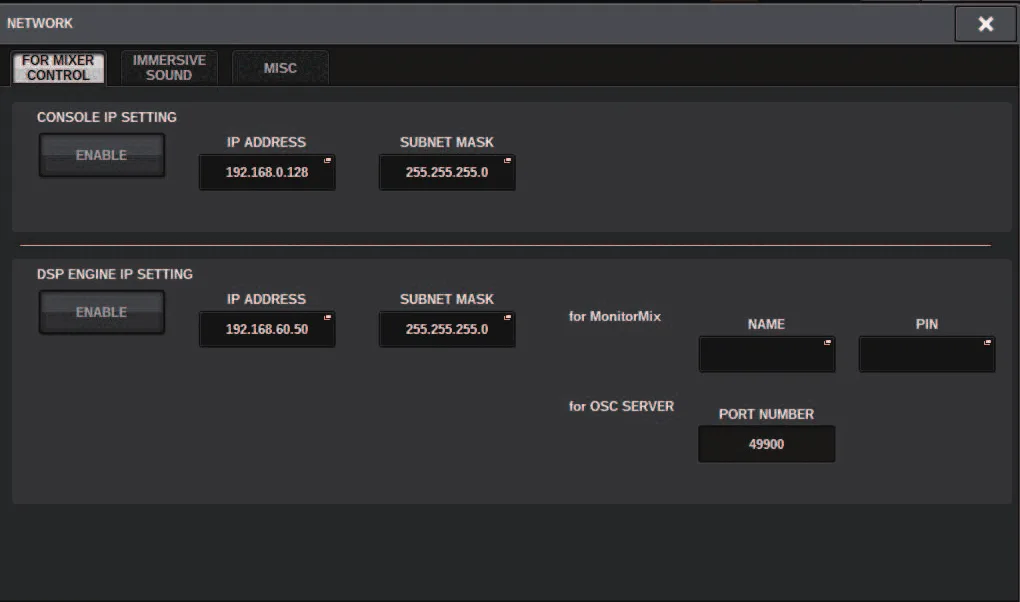

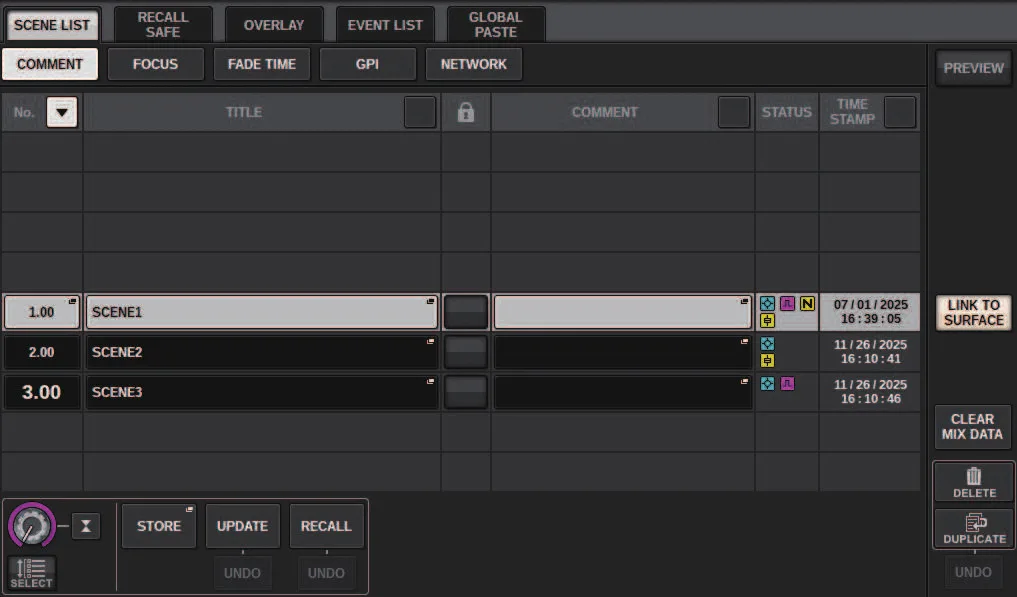

Other screenshots
Editorial & artists
Our take
History & design

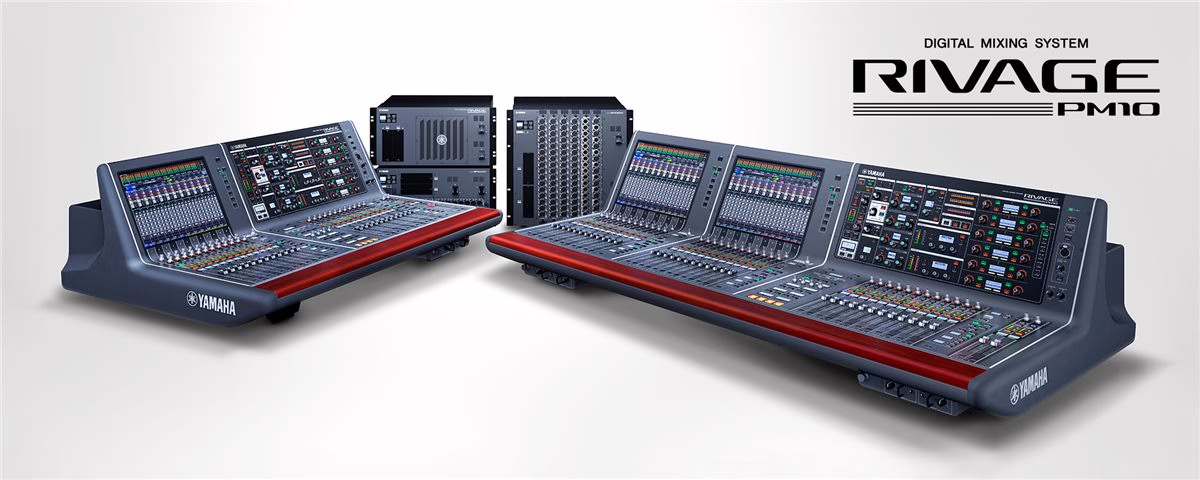

The RIVAGE PM10 is Yamaha's live-sound flagship, previewed at InterBEE 2014 and released in 2015. It is a modular system in three blocks: the CS-R10 control surface, the DSP-R10 mixing engine and the RPio622 I/O rack, tied together by the proprietary TWINLANe digital audio network.
The DSP-R10 engine handles 144 input channels, 72 mix buses and 36 matrix buses at 24-bit/96 kHz. The CS-R10 surface lays out three banks of twelve motorised faders and large touchscreens with the 'Touch and Turn' knob, following Yamaha's familiar 'Selected Channel' approach. Preamps and processing include VCM modelling and the SILK circuit inspired by Rupert Neve Designs.

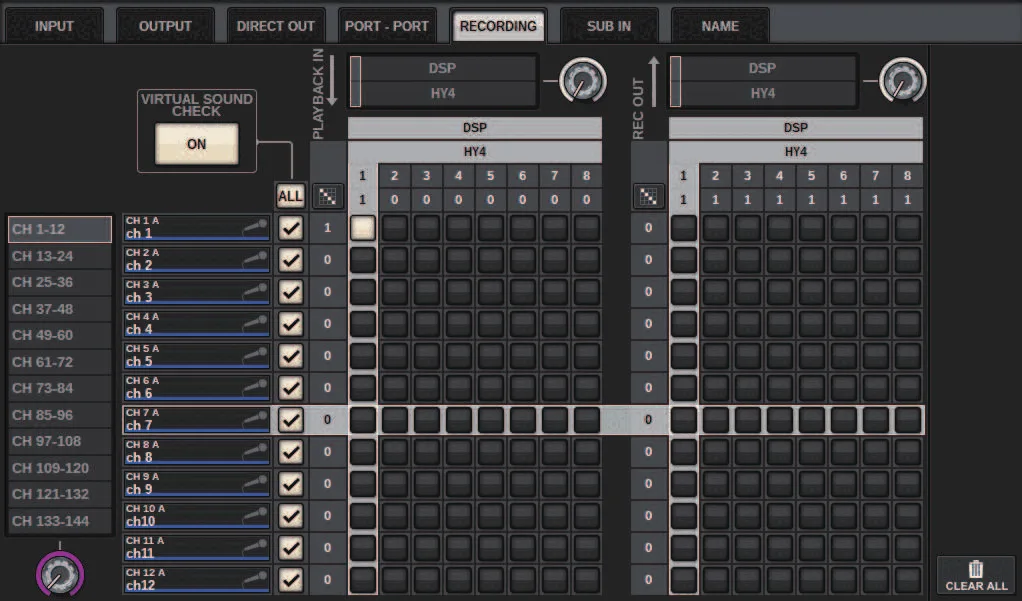

The TWINLANe network carries up to 400 channels at 96 kHz over optical fibre in a redundant ring: up to two DSP-R10 engines and eight RPio622/RPio222 racks can share a single loop. HY cards add Dante and MADI for interconnection and multitrack recording. The engine carries two redundant power supplies.
Notable users
- Tears for Fears
North American tour · FOH: Doug Kimball (Hi-Tech Audio, Clearwing)
- José Carreras — tournée « A Life In Music »
Tour mixed at FOH on a Rivage PM10 by sound engineer Peter Schneekloth
- Katy Perry
Witness World Tour · FOH: Toby Francis (Clair Global)
- Jamiroquai
World tour of arenas and festivals (Automaton album) · FOH: Rick Pope
- Foo Fighters
North American tour · FOH: Bryan Worthen (Hi-Tech Audio); PM10 at both FOH and monitors
- Paul Simon
Homeward Bound – The Farewell Tour · FOH: Michael Conner (Clair Global)
