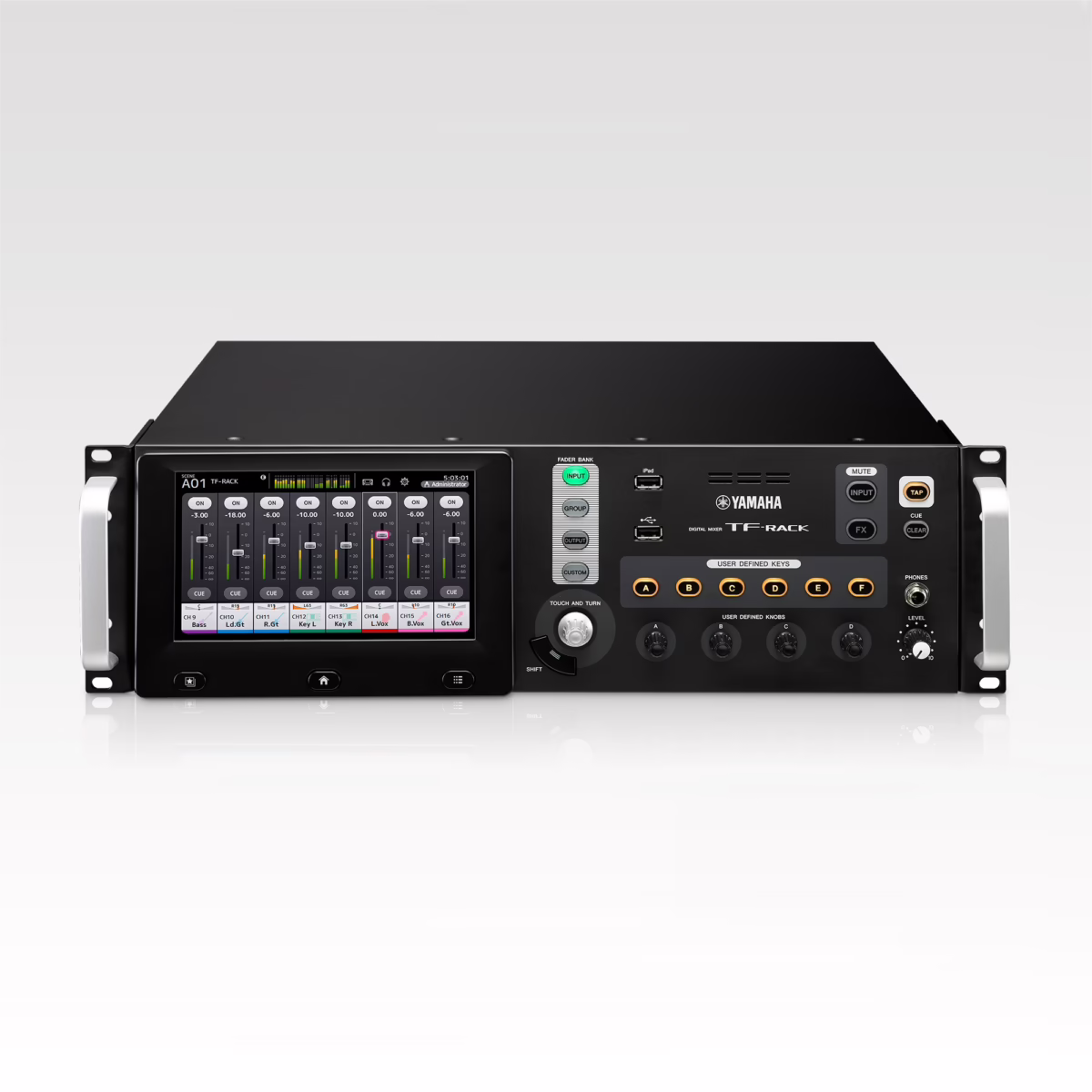

Name: Yamaha TF-Rack
Brand: Yamaha
Availability: InStock

Description

The whole TF3 in a rack: the TF-Rack leans on the StageMix app instead of faders to bring 40 channels, the GainFinder workflow and Yamaha's Dante ecosystem to mobile rigs and space-tight installations.

Technical

Specifications

Inputs / Outputs

Total inputs	16
Mic inputs	16
Line inputs	16
Total outputs	16
Inputs / outputs	16 mic/line combo inputs, 8 XLR + 8 TRS outputs

Processing

Mix buses	20
Aux sends	20
DCA/VCA groups	8
Max sample rate	48 kHz
Bit depth	24 bits
Channels	40 channels (32 mono + 2 stereo + 2 returns)
Aux sends (details)	20 AUX buses (8 mono + 6 stereo) + STEREO + SUB
Effects and plug-ins	8 effect processors + 10 graphic EQs
Modularity and expansion	1 NY expansion slot (optional NY64-D Dante card)

Surface

Physical faders	0
Motorized faders	No
Touchscreen	No
Ergonomics	Fader-less: controlled via the TF StageMix app (iPad) and TF Editor

Recording

Onboard recording	Yes
Recording type	USB
Recording	2-track record/playback to USB flash drive

Networking

Networking & protocols	Dante / USB
Redundant PSU	No
Redundant networking	No

Physical

Width	480 mm
Depth	409 mm
Height	132 mm
Weight	9.2 kg

Power

Power draw	85 W

Software

TF Editor
Offline editor Windows macOS
Offline and online editor for the TF series to prepare and control mixes from a computer.
Download
TF StageMix
Remote app iPadOS
Wireless iPad control app, essential to the fader-less TF-Rack.
Download
MonitorMix
Remote app iOS Android
Personal monitor mix app for performers.
Download

Other screenshots

TF-Rack TouchFlow OVERVIEW screen: encoders and parameters of 8 channels (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack INPUT screen (GainPatch): gain, +48V, phase and input patch (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack EQ screen: 4-band EQ and HPF with analyser (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack GATE screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack COMP screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack SEND TO AUX screen: sends to the Aux buses (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack FX screen: effect editing (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack effect type list (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack GEQ screen: graphic EQ (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack AUTOMIXER screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack ASSIGN screen: channel DCA and mute groups (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack DCA ASSIGN screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack LIBRARY screen with QuickPro presets (Audio-Technica microphones) (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack SCENE screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack FADE TIME screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack METER screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack RECORDER screen: recording and playback (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack CUE/MONITOR screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack OSCILLATOR screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack SETUP screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack RECALL SAFE screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack MUTE GROUP ASSIGN screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack SLOT SETUP screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack OMNI OUT screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack BUS SETUP screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack CUSTOM FADER BANK screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack USER DEFINED CONTROLS screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack PREFERENCE screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack NETWORK screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack ACCESS PERMISSION screen (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack CH NAME screen: channel name, icon and colour (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack DELAY screen on a Matrix output (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack AUX bus OVERVIEW screen: EQ, GEQ, compressor and SEND FROM (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack OUTPUT screen: output gain, phase, OMNI OUT patch and send to the ST or SUB bus (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF-Rack SEND FROM screen: sends from 8 channels to an AUX bus with ON, pan and Pre (capture from the TF Series Reference Manual, interface shared across the range) - Yamaha TF Series Reference Manual, © Yamaha

TF Editor: channel window (CH VIEW) (capture made on a TF series console, software shared across the range) - Yamaha TF Editor User's Guide, © Yamaha

MonitorMix: parametric EQ of the monitor mix (capture from the Yamaha MonitorMix V2.4 guide, app shared across the range) - Yamaha MonitorMix User Guide, © Yamaha
