Technical
Specifications

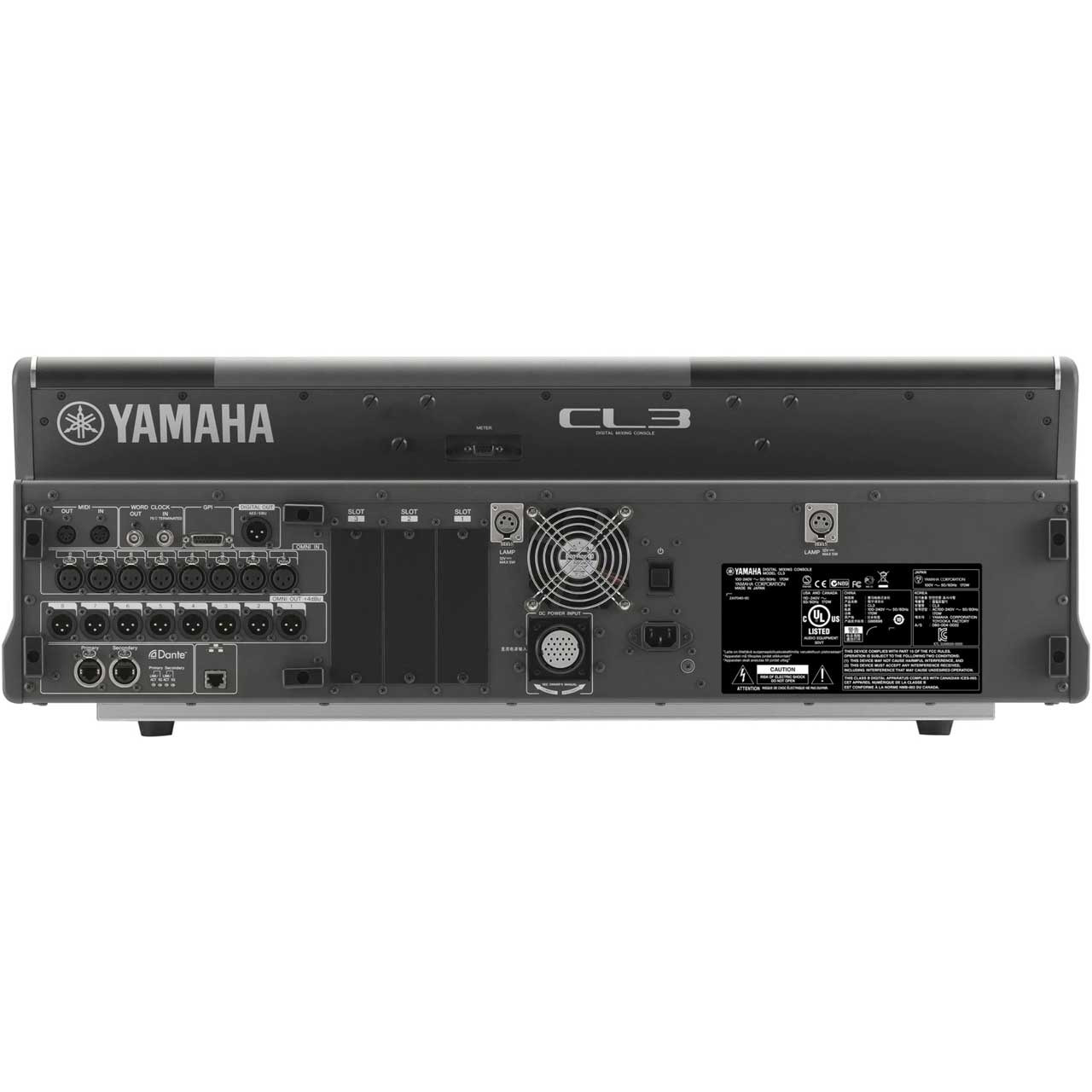

Inputs / Outputs
| Total inputs | 72 |
|---|---|
| Mic inputs | 8 |
| Mic preamps | 8 local mic preamps (remote via Rio) |
| Expansion cards | 2 mini-YGDAI slots |
Processing
| Mix buses | 24 |
|---|---|
| Matrices | 8 |
| DCA/VCA groups | 16 |
| DSP engine | Yamaha engine, 48/96 kHz processing |
| Max sample rate | 96 kHz |
| Channels | 72 channels (64 mono + 8 stereo) |
| Buses | 24 mix buses, stereo and mono buses |
| Groups and VCA/DCA | 16 DCA groups, 8 mute groups |
| Effects and plug-ins | Premium Rack (Rupert Neve Designs Portico emulations) and Yamaha effects |
| Sample rate | 44.1 / 48 / 96 kHz |
Surface
| Physical faders | 26 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |
| Faders | 26 motorised faders (16 + 8 Centralogic + 2 master) |
| Screens — details | Main touchscreen |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | 2-track USB memory recorder |
| Recording | 2-track USB recorder/player |
Networking
| Networking & protocols | Dante |
|---|---|
| Redundant PSU | No |
| Redundant networking | Yes |
| Audio networking | Integrated redundant Dante card |
| Stage boxes | Rio-series stageboxes (Rio3224-D, Rio1608-D...) |

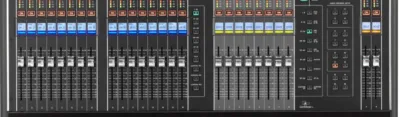

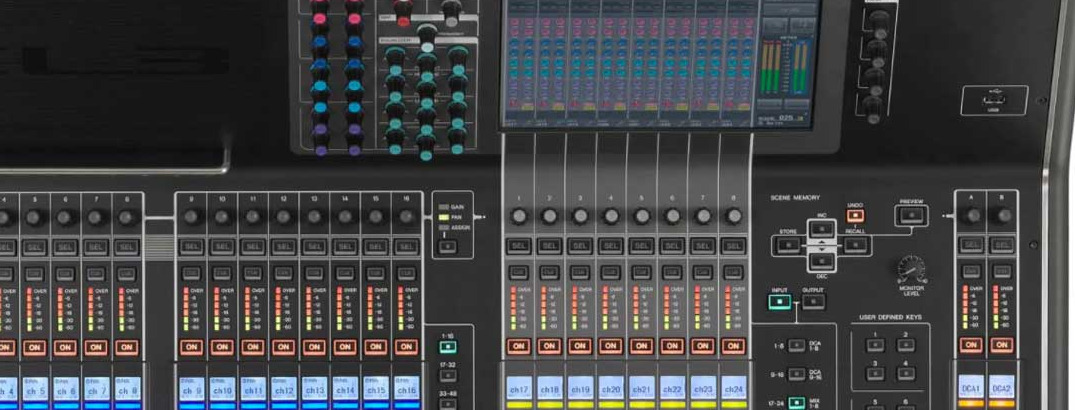

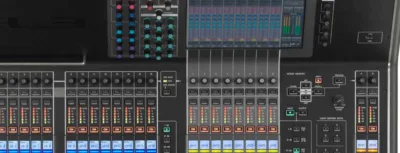

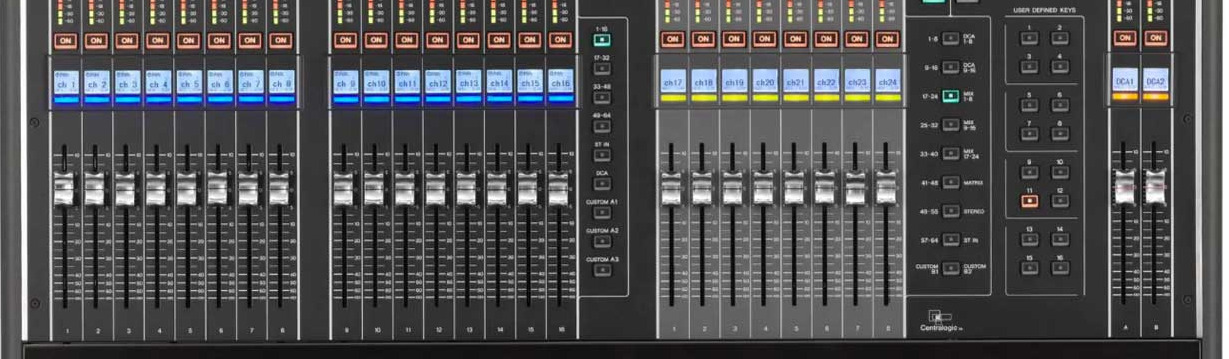

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Editorial & artists
Our take
History & design

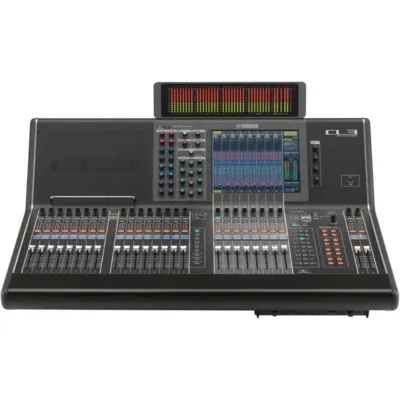

Introduced in 2012, the Yamaha CL3 is a 72-channel digital console (64 mono and 8 stereo) with 24 mix buses, 8 matrices, a stereo bus and a mono bus. It includes a redundant Dante network card as standard to drive the Rio-series stageboxes and any Dante device, with 8 local mic preamps on the surface.

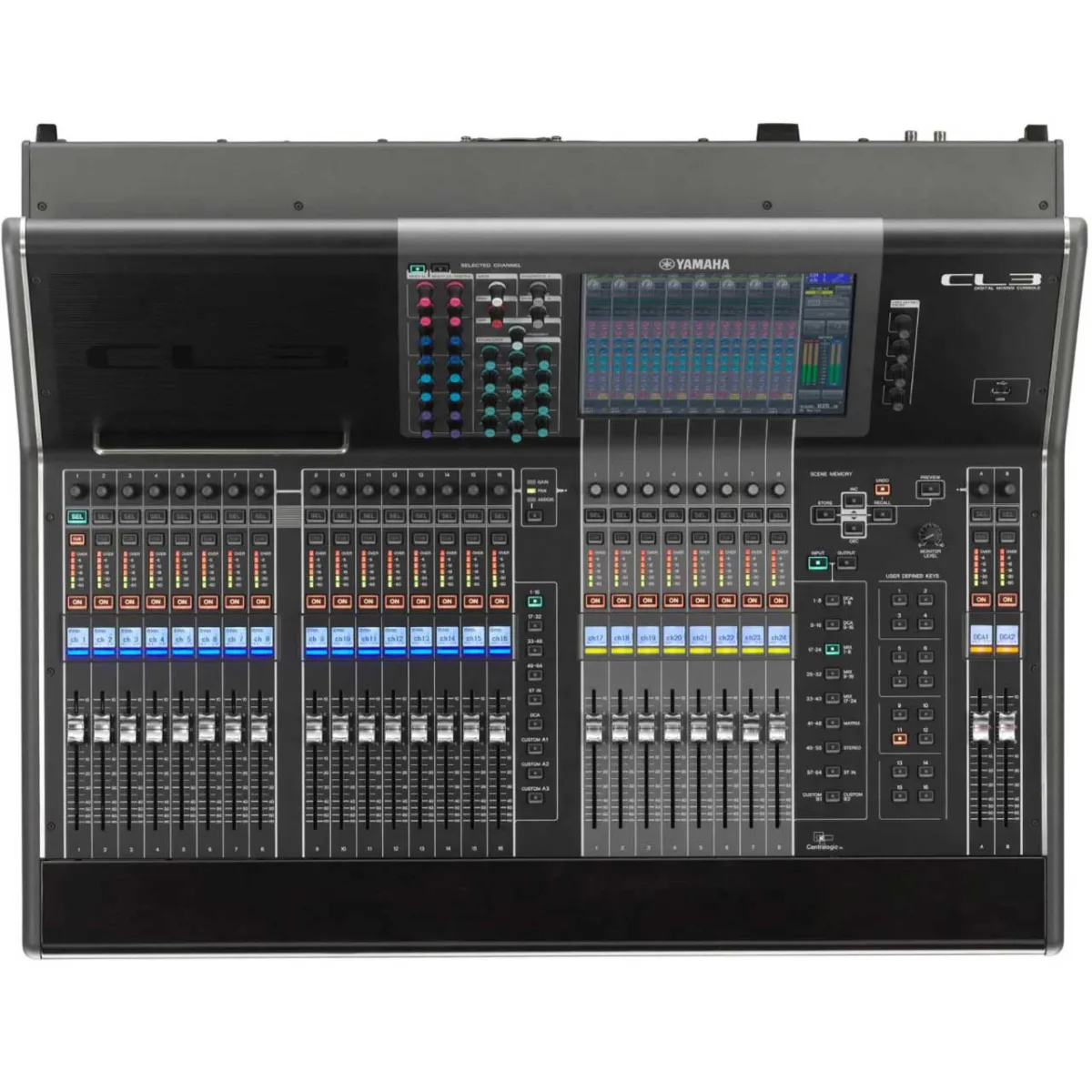

The surface offers 16 faders in the left section, 8 faders in the central Centralogic section and 2 master faders, all around a touchscreen. Processing includes the Portico emulations from Rupert Neve Designs (Premium Rack) and Yamaha's own effects. The CL3 sits between the CL1 (more compact) and the CL5 (wider) in a range sharing the same engine.
