Solid State Logic

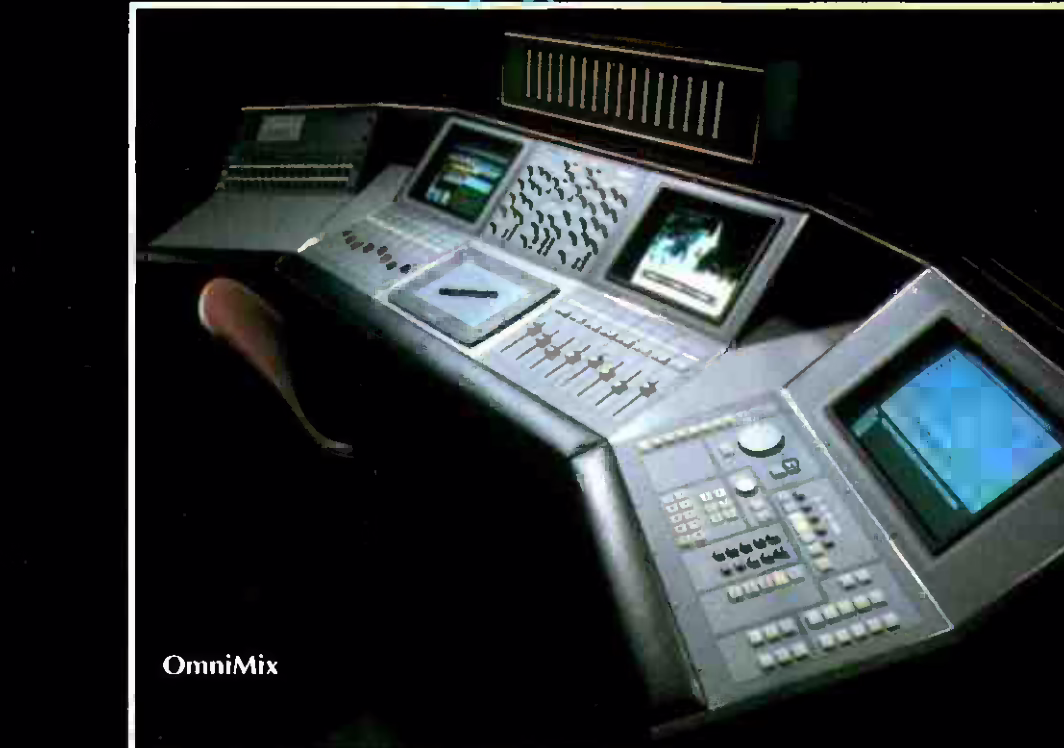

Solid State Logic OmniMix

Integrated surround mixing system for film/TV post-production, Scenaria's big brother (UK, 1993)

Description

The SSL OmniMix (1993) is Scenaria's “multi-format surround” big brother: an integrated audio-for-picture post-production system combining a 24-track random-access recorder, multi-channel editor, 38-channel digital mixer and video playback. It adds a configurable output-bus structure for 4, 5 or 6-channel surround, plus MotionTracking™ (surround pan automation) and Spatial Processing™ (spatialisation effects). As an engineer, it's a piece of history: in the early 1990s SSL essentially defined what computer-based surround mixing to picture would become — work crowned by the Queen's Award.

Technical

Specifications

Processing

DSP engineSSL integrated digital mixing system (38-channel mixer)
ArchitectureIntegrated audio-for-picture post-production system derived from Scenaria: a 24-track random-access recorder, multi-channel editor, 38-channel digital mixing system and random-access video playback in a single station. (Source: SSL Digital advertisement, Studio Sound, August 1993.)
Surround and immersiveOmniMix adds to Scenaria's capabilities a configurable output-bus structure for multi-format 4, 5 or 6-channel surround, plus a wide variety of stem mixes. · MotionTracking™: dynamic automation of panning to an exact position within the surround sound field. · Spatial Processing™: advanced digital audio effects designed to emulate the characteristics of objects moving through space and time.
Sample rateDigital sampling in the 44.1/48 kHz range (standard for SSL systems of the period — to be confirmed against SSL technical documentation).

Surface

TouchscreenNo

Recording

Onboard recordingYes
Recording type24-track random-access disk recorder (Scenaria basis)

Networking

Networking & protocolsAES/EBU
Redundant PSUNo
Redundant networkingNo
Audio networkingIntegration with the SoundNet network — presented by SSL as the only multi-user digital audio network system, with a central database of audio held on hard disk or optical disc.

Other

AwardsSSL's digital-audio work for post-production was recognised with the Queen's Award for Technological Achievement.
