Description
Technical
Specifications

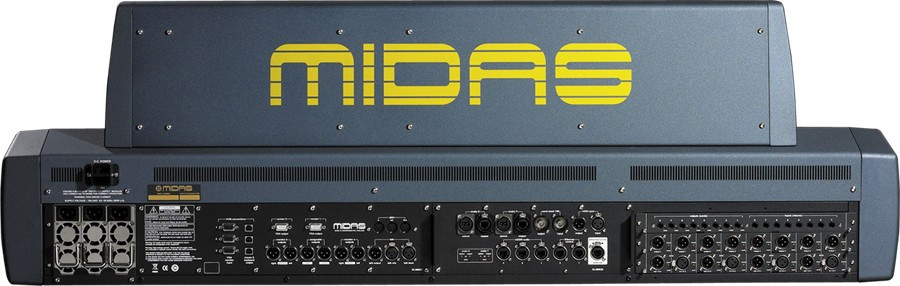

Inputs / Outputs
| Mic preamps | Remote-controlled Midas XL4 discrete Class-A mic preamps |
|---|---|
| Inputs / outputs | Up to 288 inputs / 294 outputs at 96 kHz via HyperMAC + AES50 |
Processing
| Channels | 88 simultaneously processed input channels |
|---|---|
| Sample rate | 96 kHz |
| Conversion | 24-bit / 96 kHz converters |
| Channel processing | 40-bit floating-point processing |
| Effects and plug-ins | 8 onboard stereo effects engines |

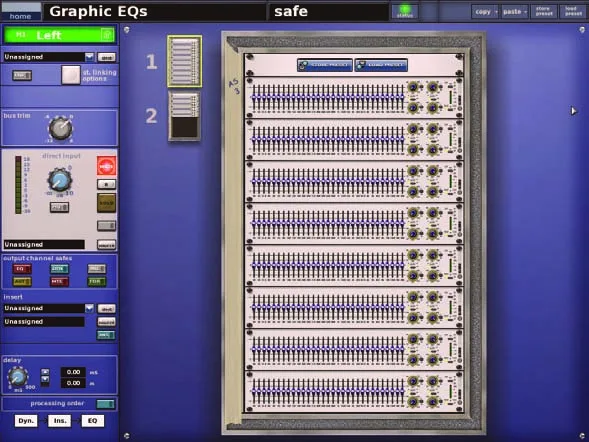

| EQ | 4-band parametric EQ + HP/LP filters per input · 6-band parametric EQ on outputs · 8 × 31-band graphic EQ |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | No |
| Faders | Number of motorised faders to be confirmed |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | AES50 / MADI |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |

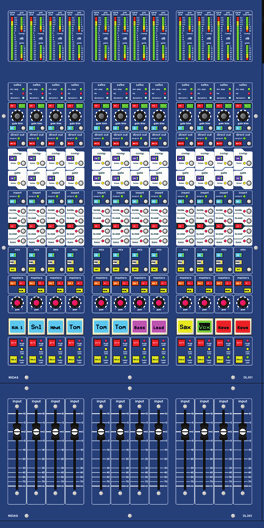

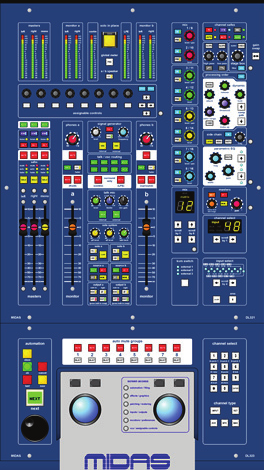

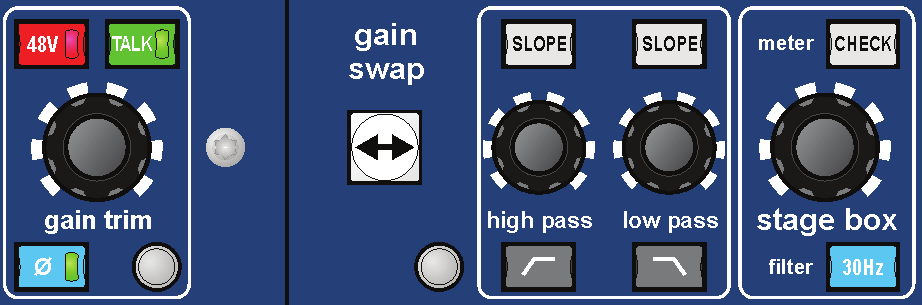

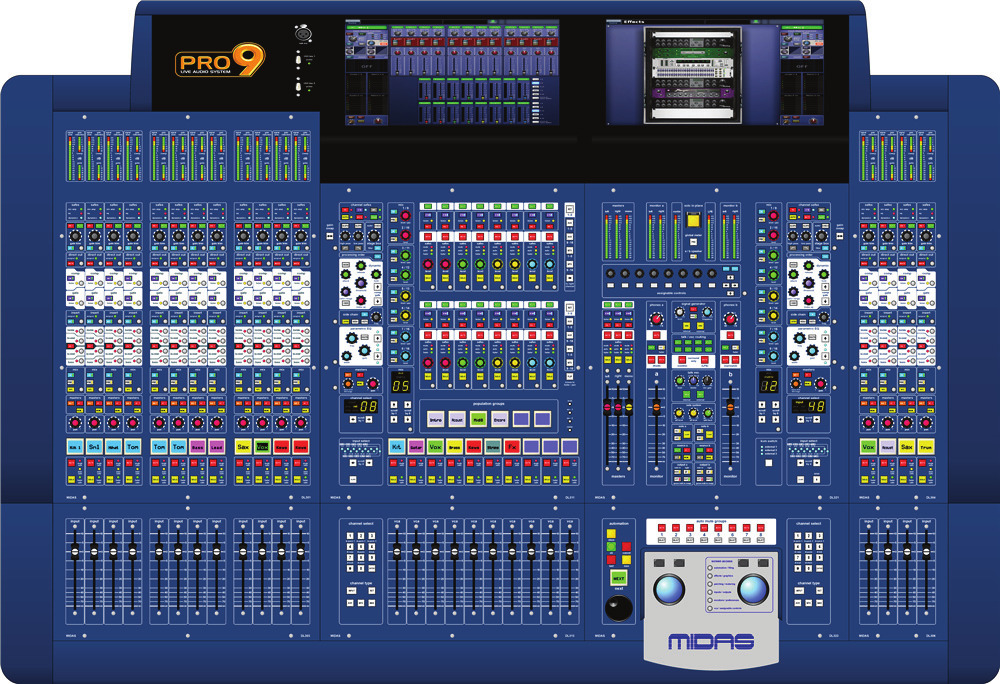

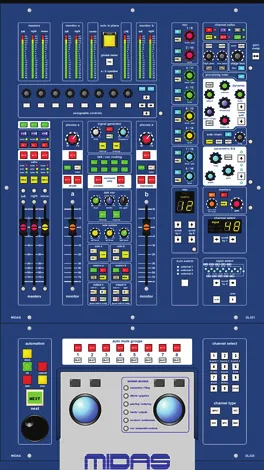

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software

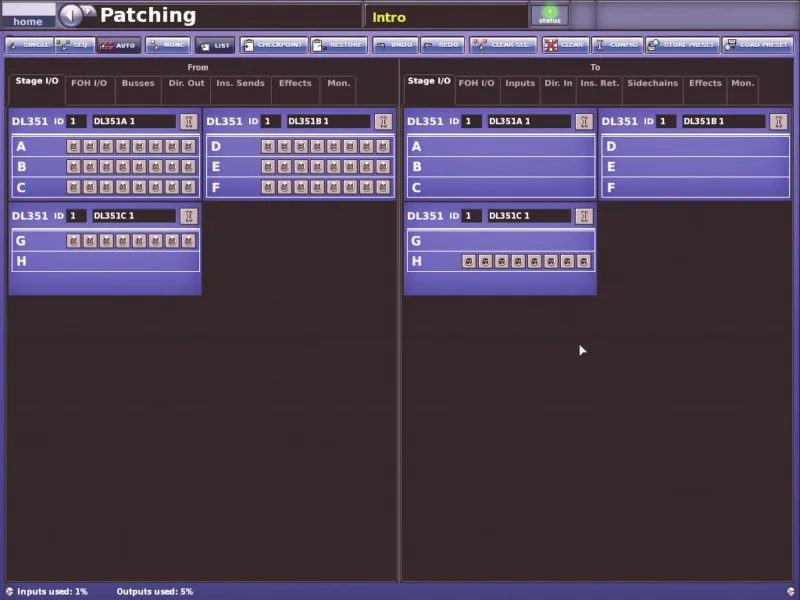

Midas PRO Series Offline EditorOffline editor to prepare sessions, patches and scenes on a computer ahead of the show, common to the PRO Series range.

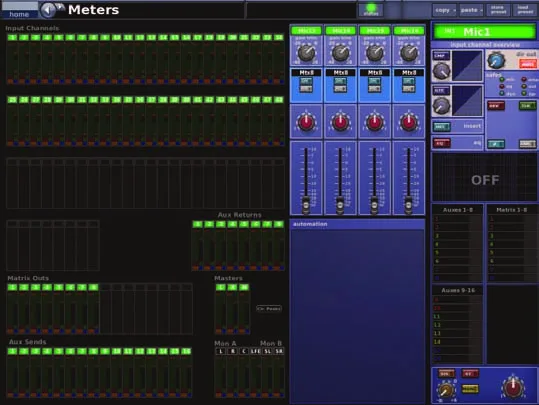

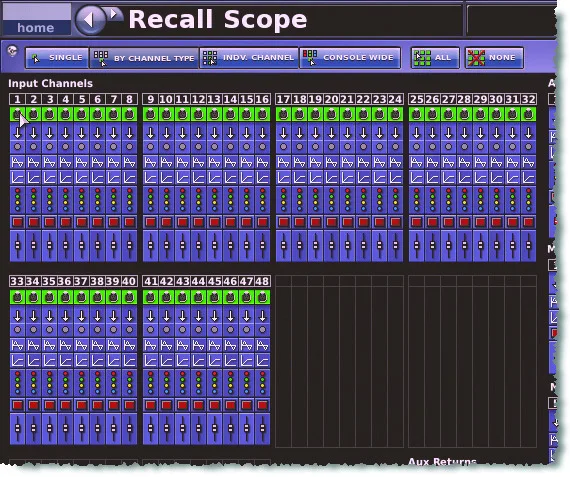

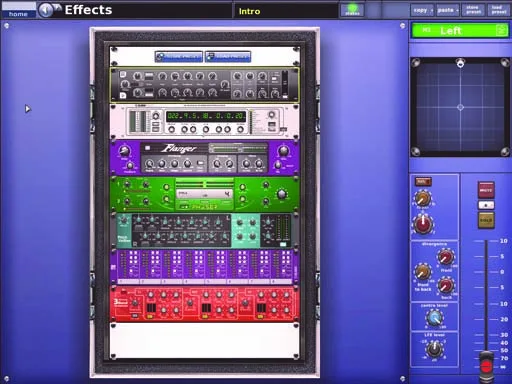

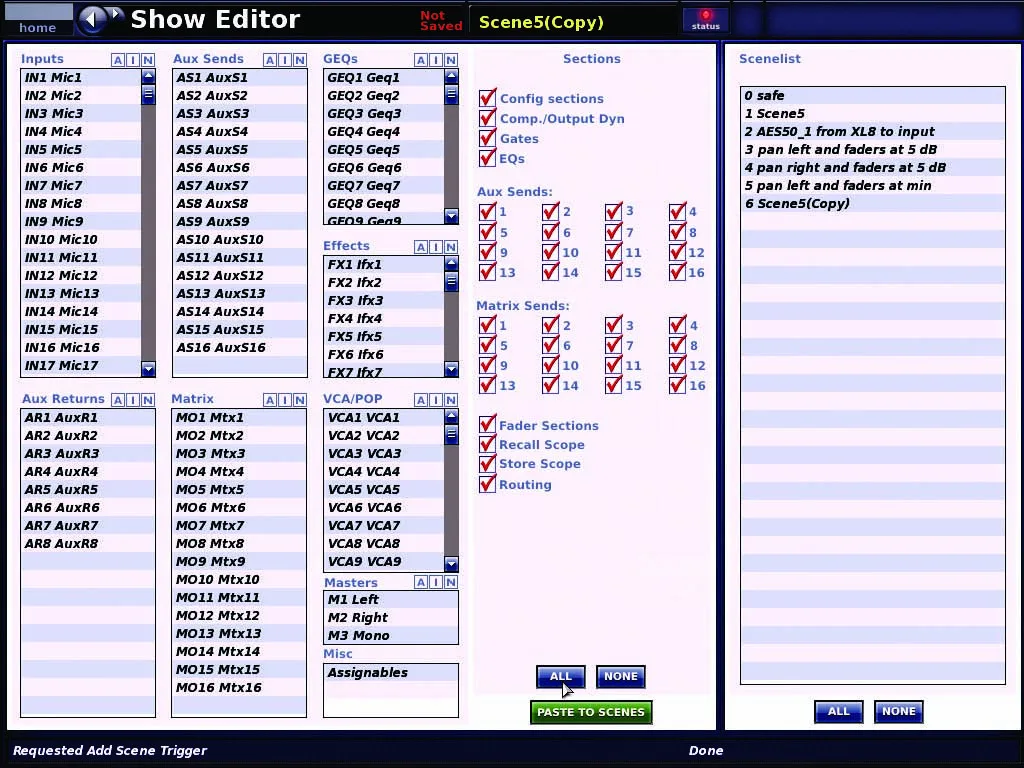

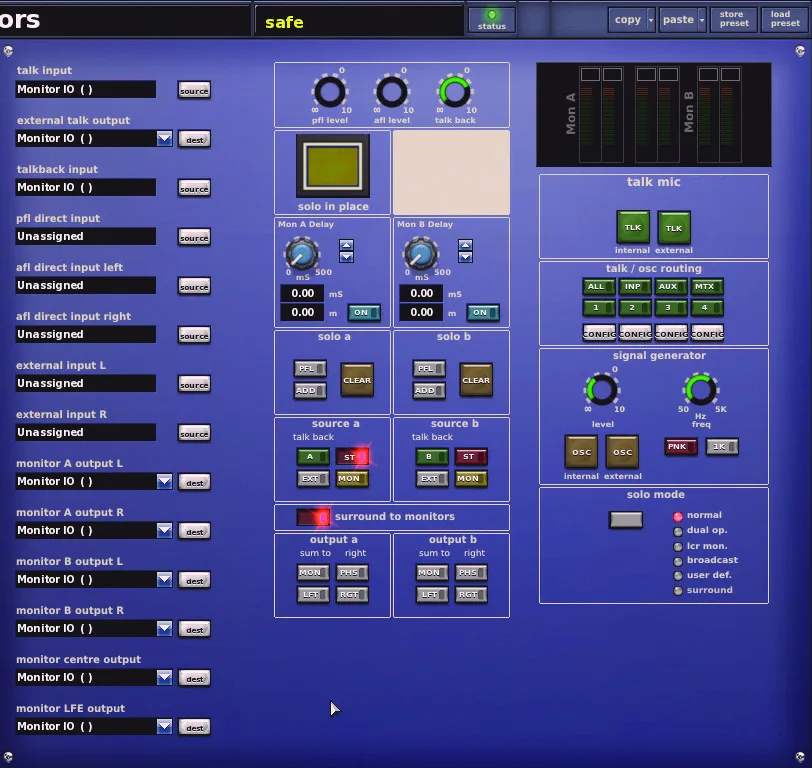

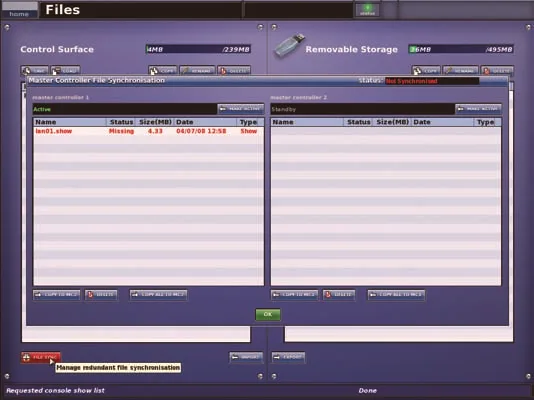

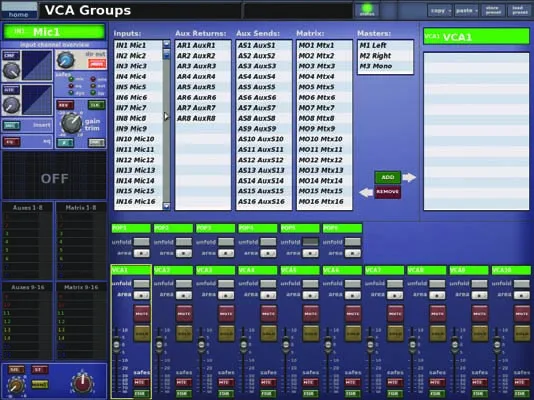

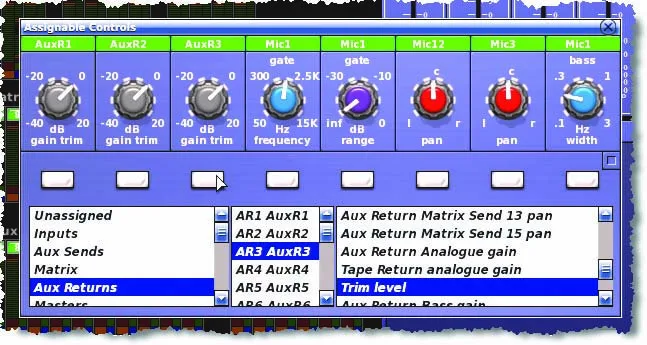

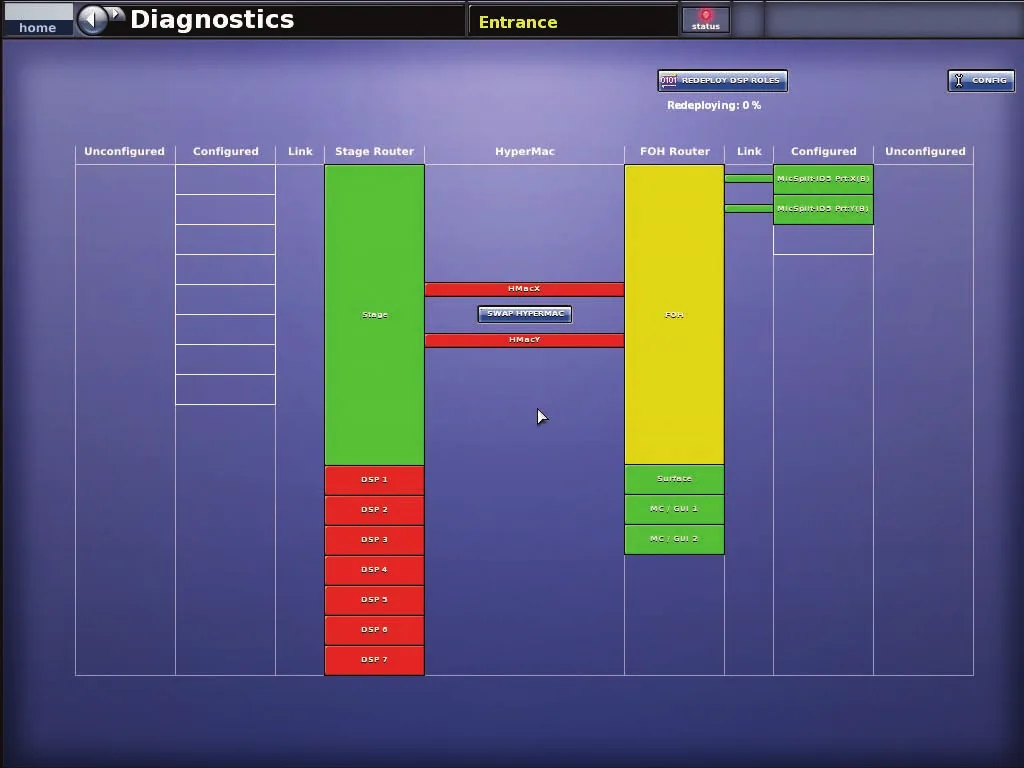

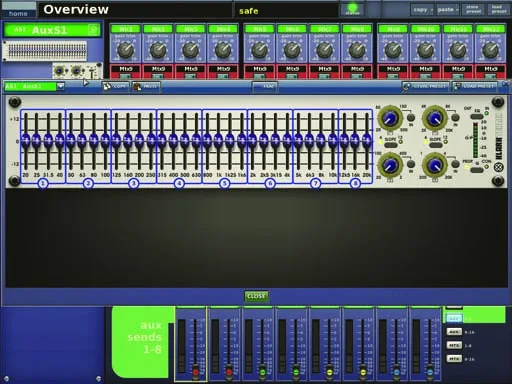

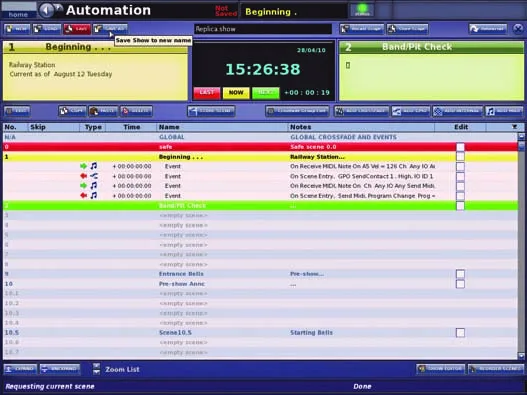

Other screenshots
Accessories
Stagebox / rack
- DL series stagebox (AES50)

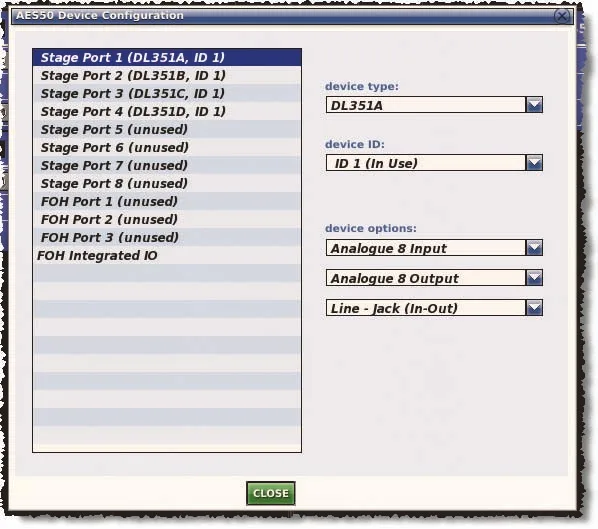

The PRO9 connects to Midas DL-series stageboxes over AES50 to remote the stage I/O (exact models to be confirmed per configuration).
Documents
Editorial & artists
Our take
History & design

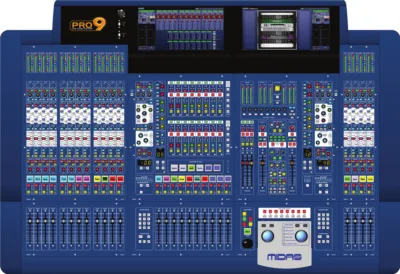

The Midas PRO9 is a digital live-sound mixing console introduced in 2010 at the top of the PRO Series (PRO1/PRO2/PRO2C/PRO3/PRO6/PRO9/PRO X). It offers 88 simultaneously processed input channels, 35 phase-coherent mix buses and 40-bit floating-point processing at 96 kHz. It carries the discrete Midas XL4 mic preamps and provides 8 effects engines, per-channel parametric EQ and 8 × 31-band graphic EQ. Connectivity relies on AES50 and the proprietary HyperMAC bus, for a capacity of up to 288 inputs and 294 outputs at 96 kHz. The PRO9 shares the interface and workflow of the other PRO Series consoles.
Notable users
- Evanescence
World tour, European leg · FOH: Eddie Mapp (Clair Brothers)
- System of a Down
2011 tour · FOH: Alan “Nobby” Hopkinson
- Slipknot
Summer festival tour · FOH: Dave “Shirt” Nicholls (Stage Audio Services)
- Dolly Parton
Better Day World Tour · monitors: Jason Glass (Thunder Audio)
