Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 64 |
|---|
Processing
| Mix buses | 35 |
|---|---|
| DCA/VCA groups | 10 |
| DSP engine | Midas DL371 (5 cartes DL371A, 24 Gflops) |
| Max sample rate | 65,535 kHz |
| Bit depth | 24 bits |
| Processing resolution | 40 bits |
Surface
| Physical faders | 29 |
|---|---|
| Motorized faders | Yes |
| Fader layers | 1 |
| Screens | 2 |
| Touchscreen | No |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | AES50 / Network |
|---|---|
| Redundant PSU | Yes |
| Redundant networking | Yes |
Physical
| Width | 1,365 mm |
|---|---|
| Depth | 924 mm |
| Height | 431 mm |
| Weight | 90 kg |
Other
| Architecture | 64 voies d’entrée, 35 bus de mélange, traitement 40 bits virgule flottante à 96 kHz |
|---|---|
| Moteur | Moteur audio DL371 (5 cartes DL371A, 24 Gflops) ; évolutif vers la configuration PRO9 (88 voies) |
| Faders | 29 faders motorisés Midas PRO de 100 mm |
| Navigation | Navigation sans couches par 10 groupes VCA et 6 groupes POPulation |
| Reseau | Réseau AES50 et HyperMAC : jusqu’à 288 entrées / 294 sorties assignables à 96 kHz |
| Preamplis | Préamplis micro Midas (via stageboxes DL sur AES50), réputés pour leur qualité |
| Redondance | Alimentations et liaisons réseau redondantes |
Accessories
Stagebox / rack
- Stagebox Midas DL371 / DL351 (série DL)
Remote AES50 stageboxes carrying the Midas mic preamps.
Other
- Carte DSP DL371A
DSP engine card (fitted when upgrading toward PRO9).
Editorial & artists
Our take
History & design

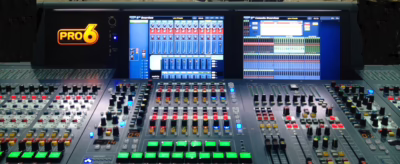

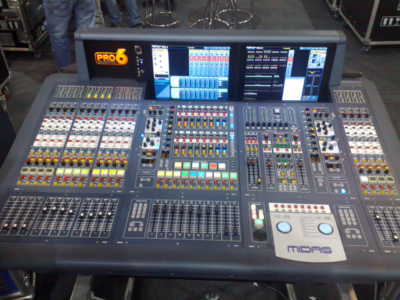

The Midas PRO6 is a live digital mixing console launched in 2008, following the XL8. It processes 64 input channels to 35 mix buses, with 40-bit floating-point processing at 96 kHz from the DL371 audio engine (five DL371A cards, 24 Gflops). The Control Centre surface carries 29 Midas PRO 100 mm motorised faders and favours layer-free navigation via 10 VCA and 6 POPulation groups.
Connectivity is built on AES50 and HyperMAC networking, dynamically assigning up to 288 inputs and 294 outputs at 96 kHz through remote DL stageboxes fitted with Midas preamps. The console offers redundant power supplies and network links. By adding DSP and I/O modules, the PRO6 could be upgraded to PRO9 configuration (88 channels), a longevity asset. Its dimensions (1365 × 924 × 431 mm) and weight (90 kg) place it among mid-size touring surfaces.
