Midas M32R
The M32 in a rack, same Midas PRO preamps
Manufacturer’s list price 3,299 USD as of 2026
Description
Where to buy
Manufacturer’s list price 3,299 USD as of 2026
Technical
Specifications
Inputs / Outputs
| Total inputs | 40 |
|---|---|
| Mic inputs | 16 |
| Total outputs | 16 |
| Mic preamps | 16 Midas PRO mic preamps |
| Computer interface | 32 x 32 USB audio interface (expansion card) |
| Inputs | 16 XLR mic inputs, 8 local XLR outputs |
Processing
| Mix buses | 16 |
|---|---|
| Matrices | 6 |
| DCA/VCA groups | 8 |
| DSP engine | 40-bit floating-point engine (X32 architecture) |
| Max sample rate | 48 kHz |
| Channels | 40 input channels |
| Buses | 25 buses (16 mix, 6 matrices, LR, mono/centre) |
| Groups and VCA/DCA | 8 DCA groups, 6 mute groups |
| Conversion | 192 kHz ADC/DAC converters |
| Effects and plug-ins | 8 stereo effects processors |
| Frame | Rackable chassis (9U) |
Surface
| Physical faders | 17 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | No |

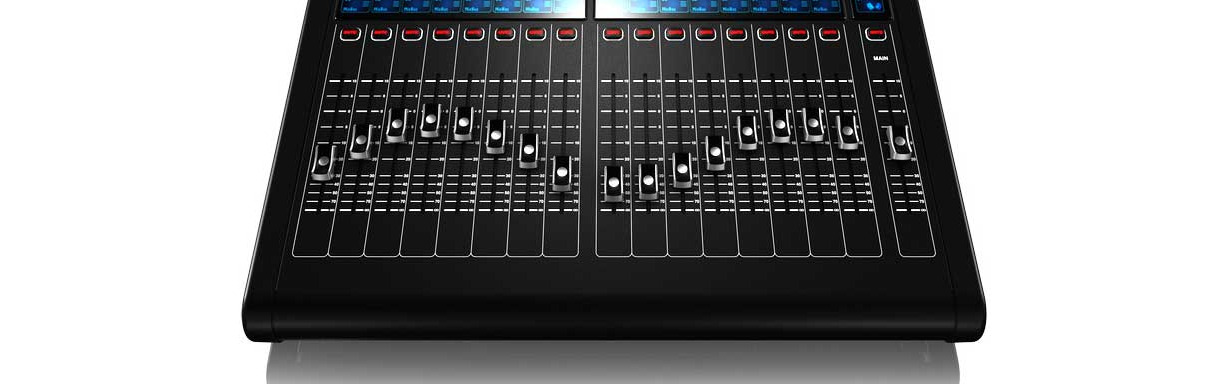

| Faders | 17 motorised 100 mm faders (1 million cycles) |

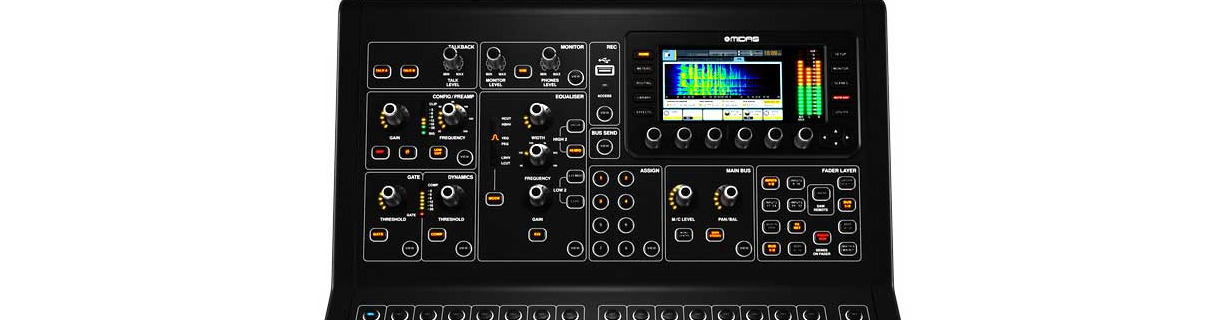

| Screens — details | 5-inch colour TFT display |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | AES50 / USB |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |

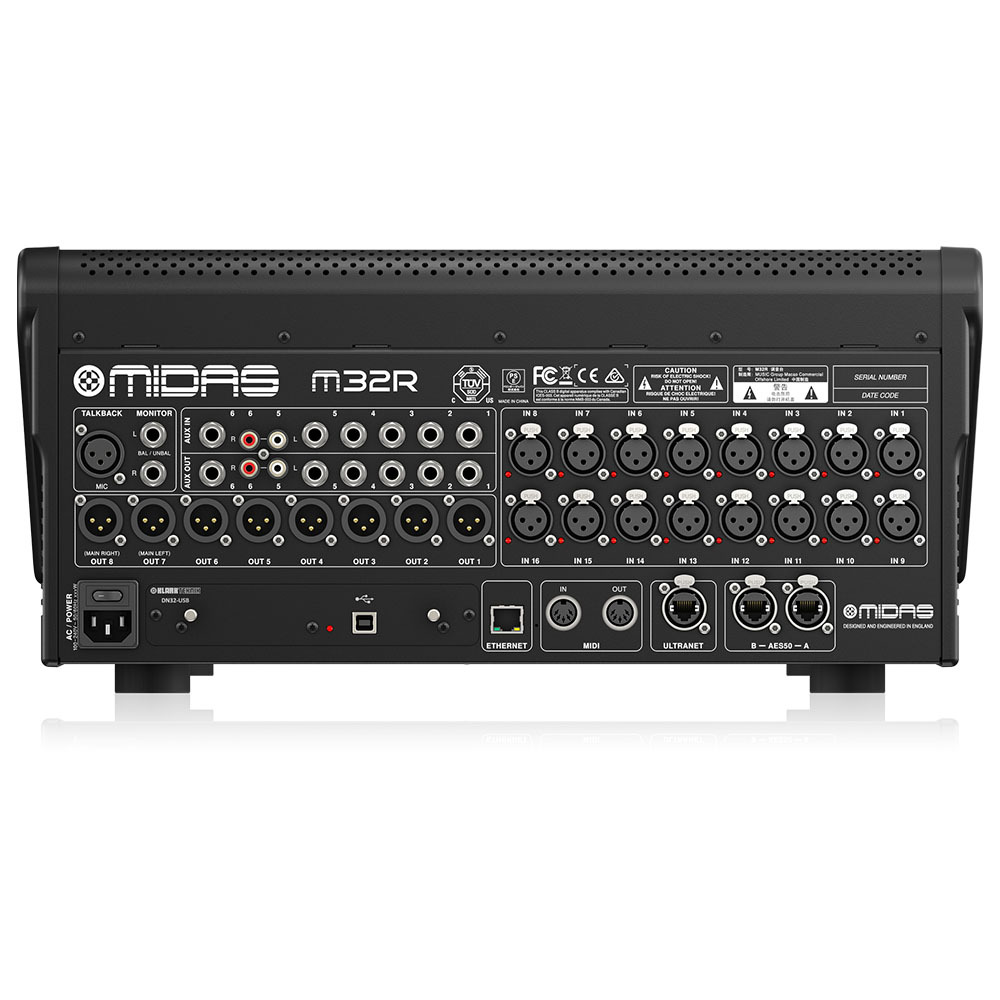

| Audio networking | 2 AES50 ports (96 in / 96 out) |
| Stage boxes | Midas DL16 and DL32 stageboxes over AES50 |
Other
| Price | Indicative 2026 price: ~USD 3,299 (M32R LIVE, dealer MSRP) |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Editorial & artists
Our take
History & design
Introduced in 2015, the Midas M32R carries the engine and sonic design of the M32 into a smaller rackable form factor (9U). It handles 40 input channels and 25 buses (16 mix buses, 6 matrices, main LR and mono/centre), with 16 Midas PRO mic preamps on the surface and ADC/DAC conversion up to 192 kHz.
The surface offers 17 motorised 100 mm faders and a 5-inch colour TFT display driven by encoders. For networking, two AES50 ports open 96 inputs and 96 outputs to the DL16 and DL32 stageboxes, an Ultranet P16 port feeds personal monitoring, and an expansion slot takes a 32-channel USB audio card. The range includes the M32R LIVE and M32R Player variants.
