AMS Neve Logic 3
The most compact assignable digital console of the Logic series (post-production)
Description
To me the Logic 3 is the clever entry point into AMS Neve's Logic world: assignable architecture, Desk Designer, per-path EQ/dynamics and L1/L2-compatible automation, all in a 9U chassis for post.
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | AES/EBU, SDIF and MADI; external analogue/digital insert points |
|---|
Processing
| Channels | Up to 32 mono inputs (or 16 stereo) |
|---|---|
| Buses | 8 group/recording buses, 4 stereo auxes, stereo/surround output |
| EQ | 4-band parametric EQ + 2-stage filters on every channel |
| Dynamics | Compressor, limiter and expander/gate on every channel |
| Channel processing | 32-bit floating point, double precision for the EQ |
| Sample rate | 44.1 / 48 kHz, varispeed ±10% |
| Conversion | 16/20-bit A/D cards, 16/20-bit D/A outputs |
| Architecture | Assignable: DSP pool allocated via the Desk Designer software |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | No |

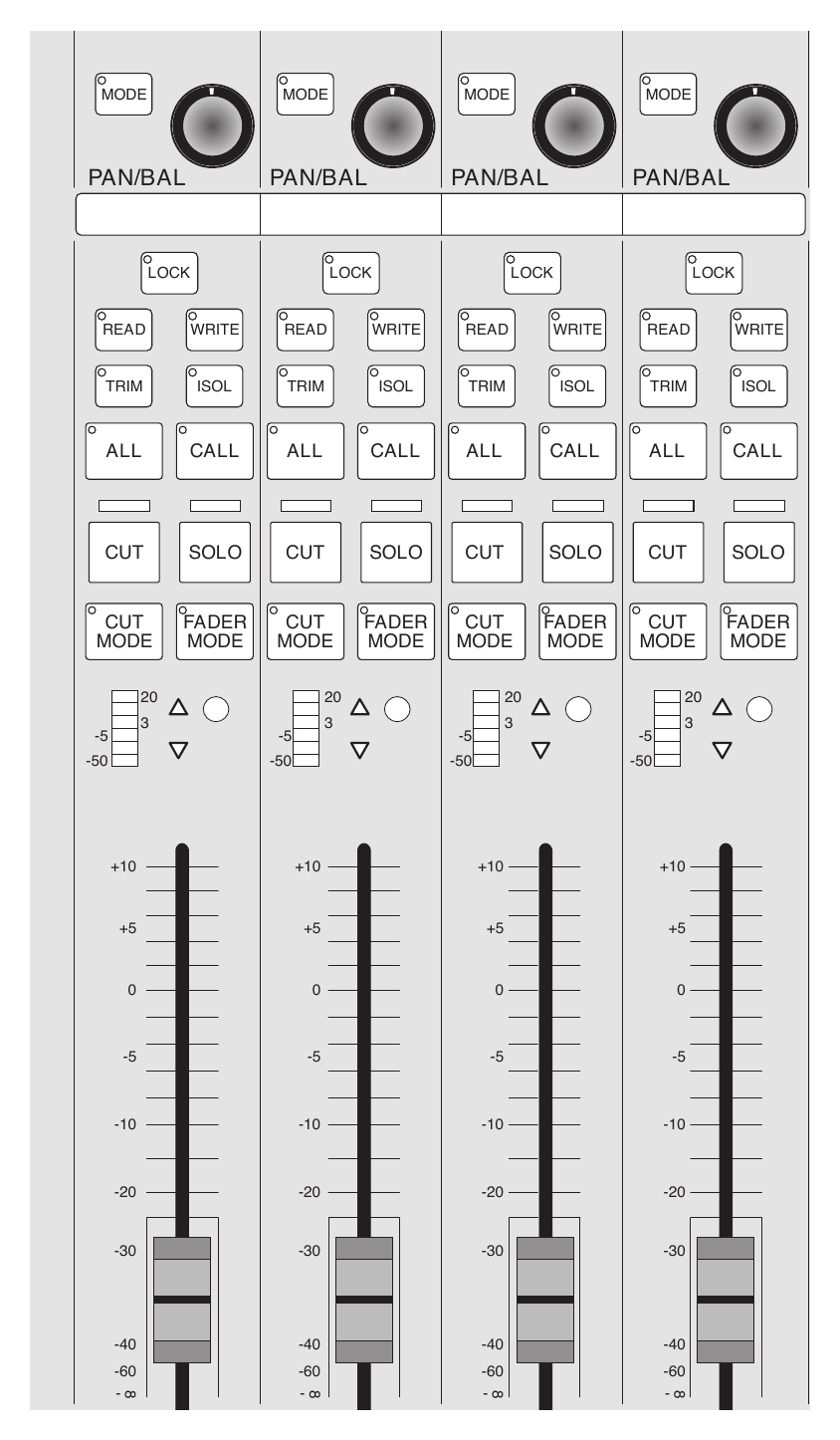

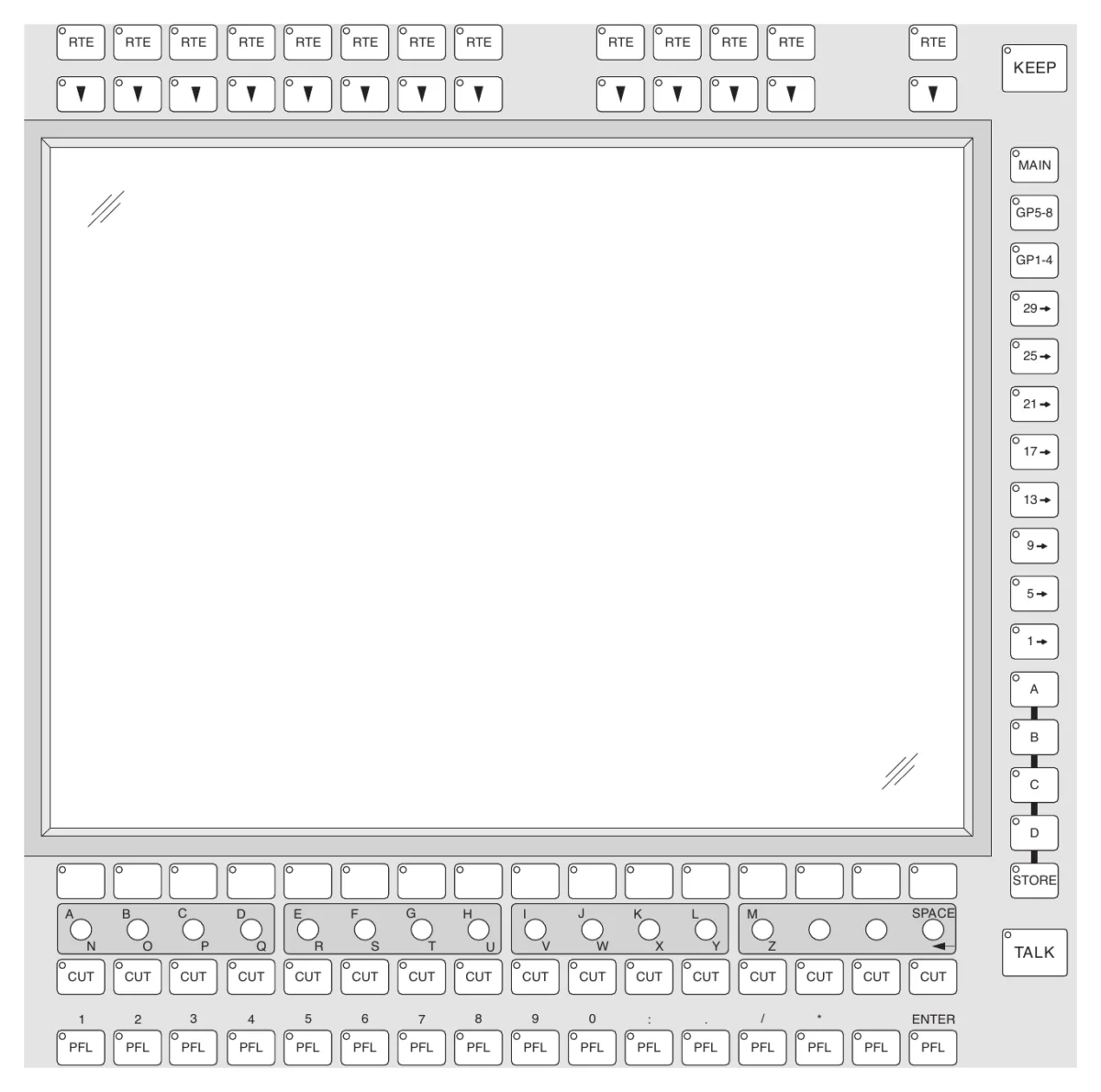

| Control surface | 9U 19" chassis, colour TFT screen, 16 Logicator, 4 assignable motorised faders |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI / AES/EBU |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |

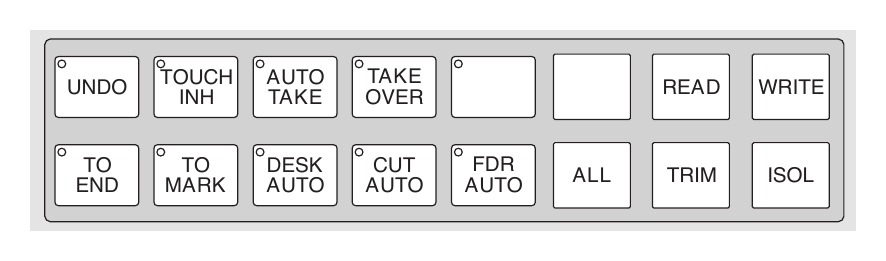

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software

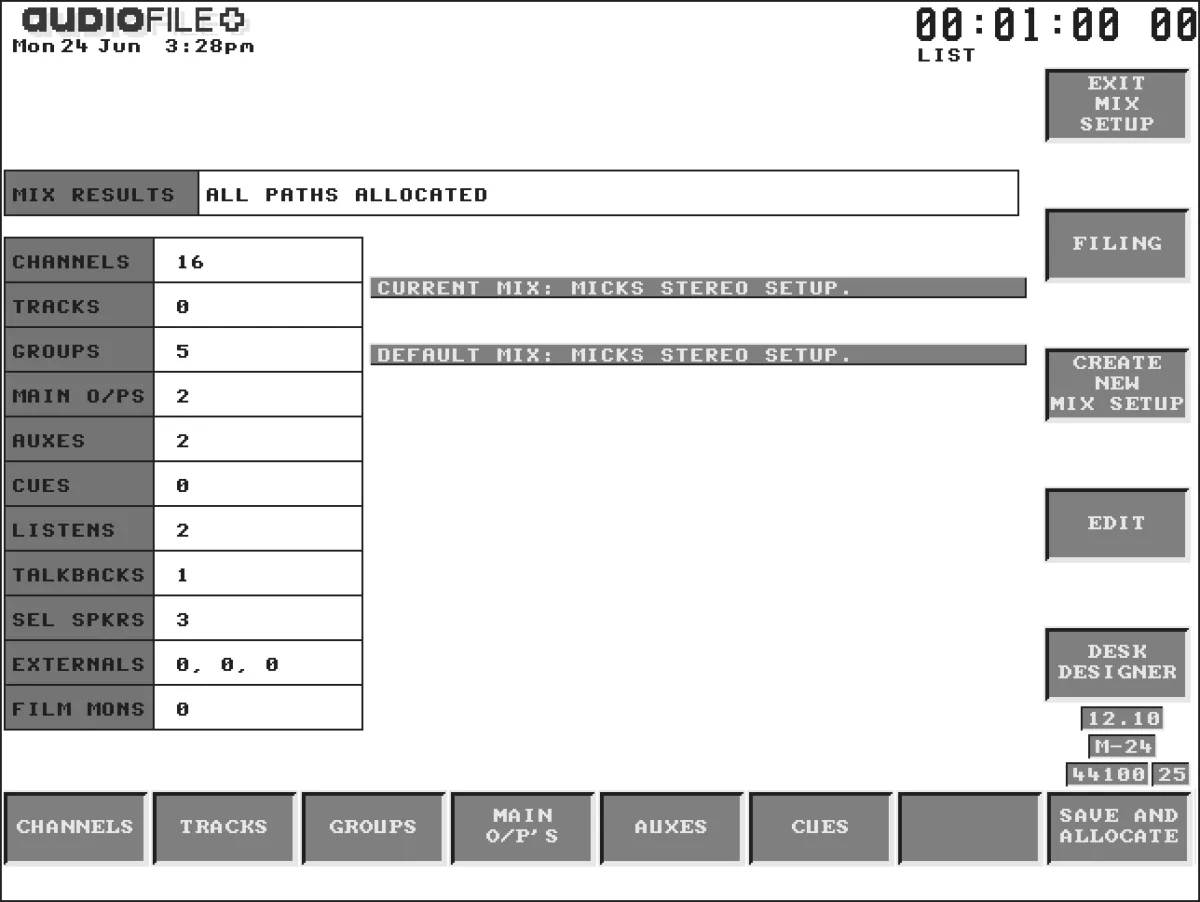

- Desk DesignerAMS Neve configuration software: the user builds the console (path count, processing order, I/O mapping) then assigns it to the surface. All configurations are stored to disk and recallable.
- __note__AMS Neve configuration software: the user builds the console (path count, processing order, I/O mapping) then assigns it to the surface. All configurations are stored to disk and recallable.
Other screenshots
Editorial & artists
Our take
History & design

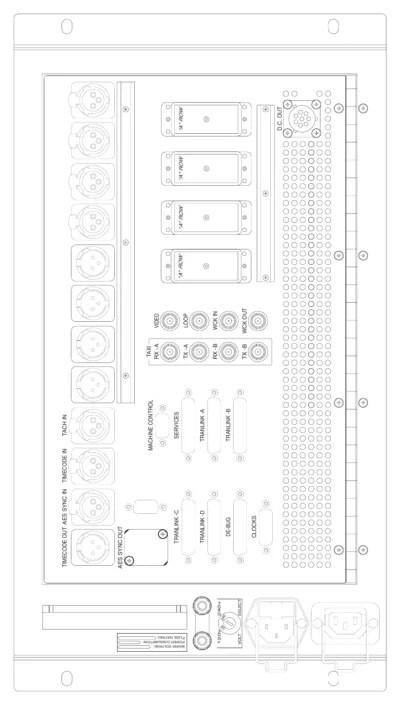

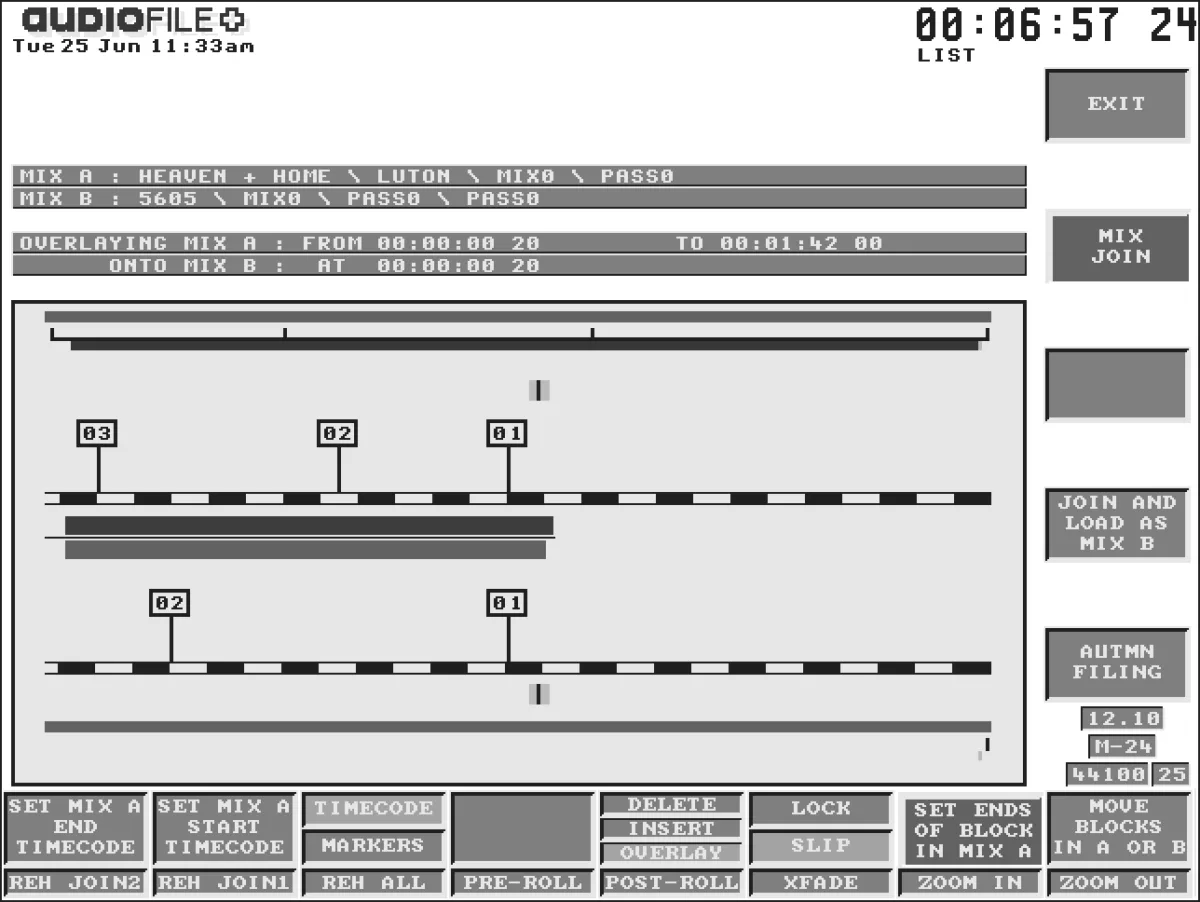

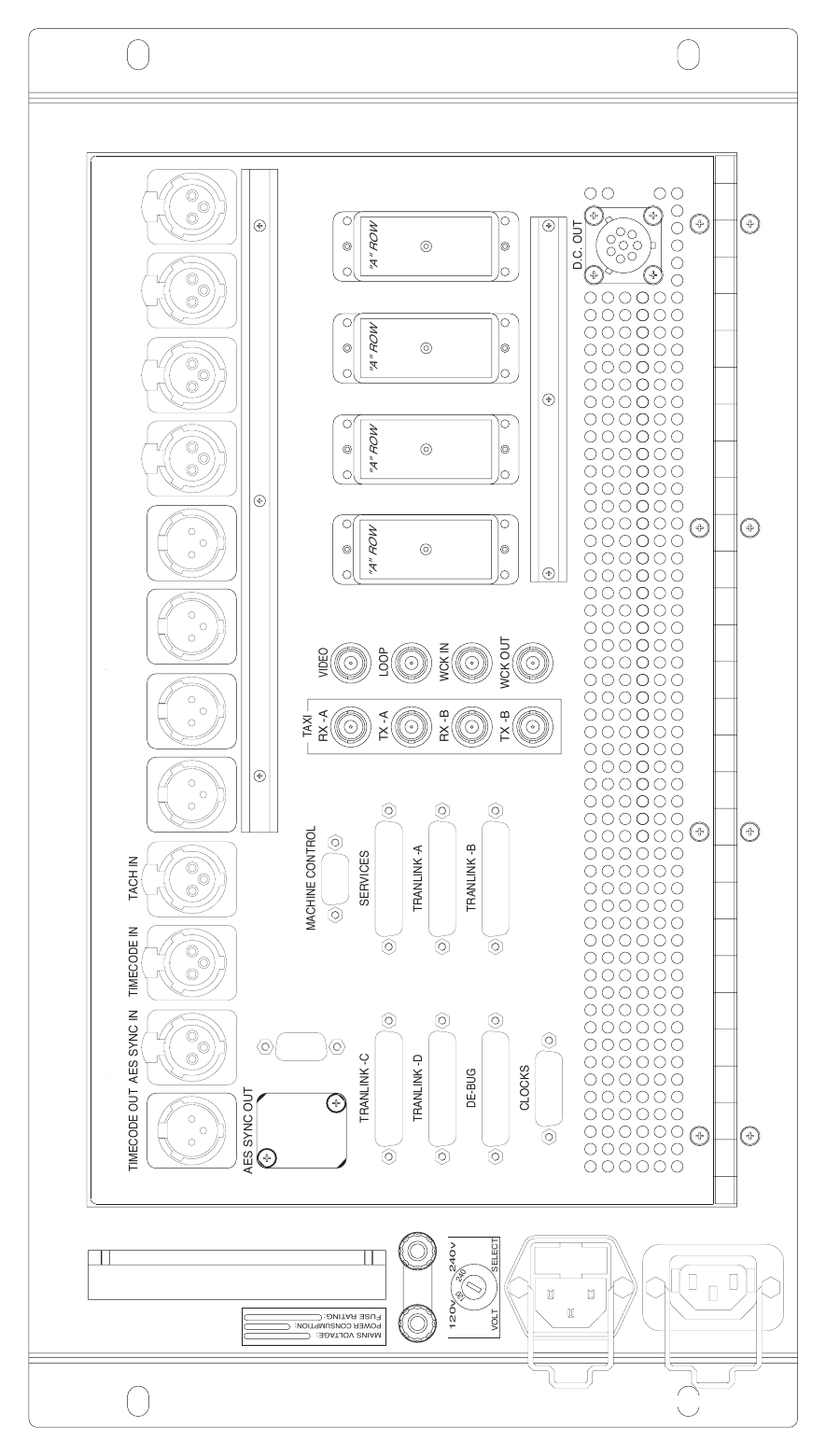

The Logic 3 (or L3) is the smallest member of AMS Neve's Logic series of all-digital consoles, designed for post-production, mix-to-picture and multimedia rooms short on space. It accepts up to 32 input sources (or 16 stereo) routed to 8 output busses, 4 stereo aux sends and a stereo or surround master output. Every path carries a 4-band parametric EQ, two-stage filters, a compressor, a limiter and an expander/gate. Like the whole Logic series, the L3 uses an assignable architecture: a pool of DSP resources the user allocates to physical controls through the Desk Designer software. The surface fits in a 9U 19-inch chassis built around a color TFT screen, sixteen backlit Logicator encoders and a bank of four assignable motorized faders. The DSP rack, which can sit remotely in a machine room, holds 16/20-bit A-to-D cards and AES/EBU, SDIF and MADI I/O. The system runs at 44.1 or 48 kHz (±10% varispeed) with 32-bit floating-point processing (double precision for EQ). The L3 integrates with the AudioFile hard-disk editor/recorder (8/16/24 tracks) and its automation stays compatible with the Logic 1 and 2.
