Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 64 |
|---|---|
| Inputs / outputs | 3 x TDIF-1 (24 ch), ADAT (8 ch) |
| Expansion cards | 4 expansion slots (FireWire, ADAT, AES/EBU, analog, TDIF, surround monitor cards) |
Processing
| Mix buses | 24 |
|---|---|
| Aux sends | 12 |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Channels | 64 mixing channels (48 full-function + 16 simple channels) |
| Buses | 24 buses, 12 aux sends, 48 direct outputs, 1 stereo bus |
| Channel processing | Dedicated full-channel section: dynamics, EQ, aux and panning on direct controls · 4-band parametric EQ + dynamics on every channel; 2 effect processors |
| Surround and immersive | Three surround matrices |
| Bit depth (details) | 44.1 / 48 / 88.2 / 96 kHz, 24-bit |
Surface
| Physical faders | 25 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | No |
| Faders | 25 x 100 mm motorised touch-sensitive faders (24 channel + 1 stereo), 24 LED-ring encoders |
| DAW control | DAW controller, USB connectivity |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | ADAT / AES/EBU / USB |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Physical
| Dimensions | 933 x 824 x 230 mm, 35 kg, 90 W |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
IF-FW/DM FireWire driverDriver for the IF-FW/DM FireWire card: digital audio interface and DAW control surface for the DM-4800.Download
TMCompanion v1.70
Other screenshots
Accessories
Meterbridge
- MU-1000
Optional LED meter bridge.
I/O card
- IF-FW/DM
FireWire card: interface and DAW control surface.
- IF-AE/DM
8-channel AES/EBU card.
- IF-SM/DM
Multichannel surround monitoring card.
Documents
Editorial & artists
Our take
History & design

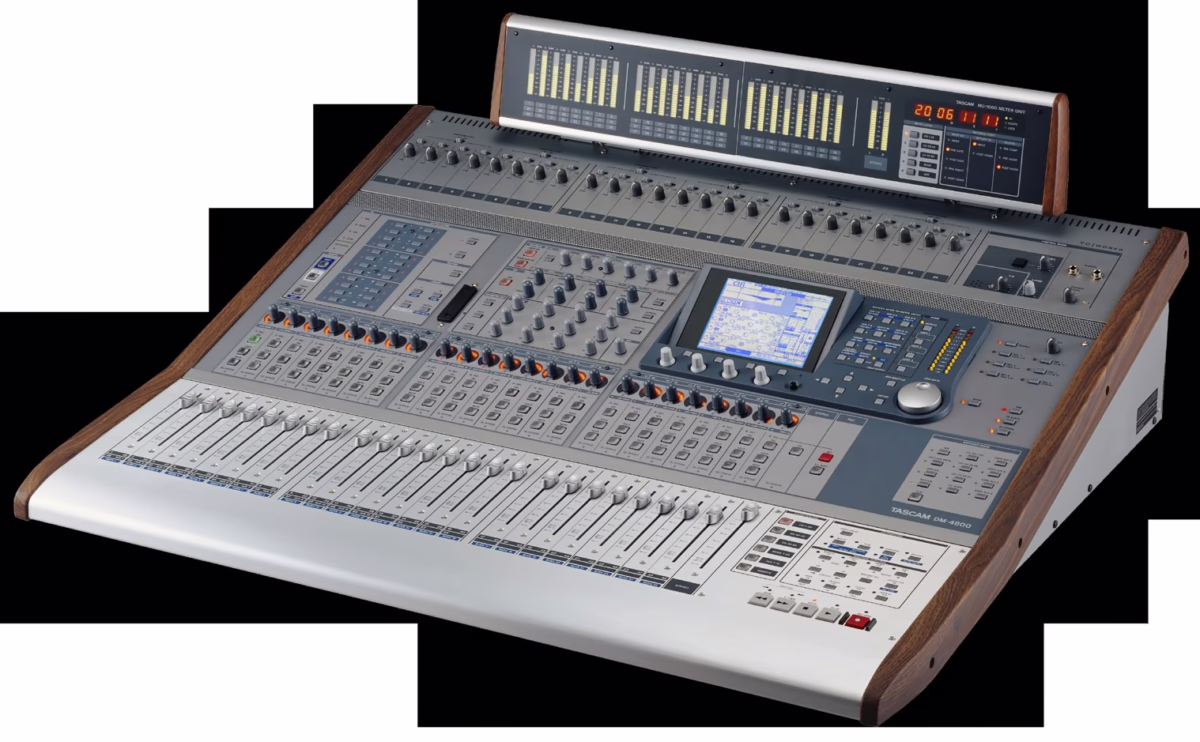

The Tascam DM-4800 is the top model of the DM series, a 64-channel digital console (48 full-function channels and 16 simple channels) released in the mid-2000s. It offers 24 buses, 12 aux sends, 48 direct outputs and a stereo bus, with a 4-band parametric EQ and dynamics on every channel, plus two effect processors.
Its signature is the full-channel section: a strip of dedicated controls giving direct access to the selected channel's dynamics, EQ, aux levels and panning. The surface carries 25 x 100 mm motorised touch-sensitive faders (24 channel plus stereo) and 24 LED-ring encoders, arranged in layers.

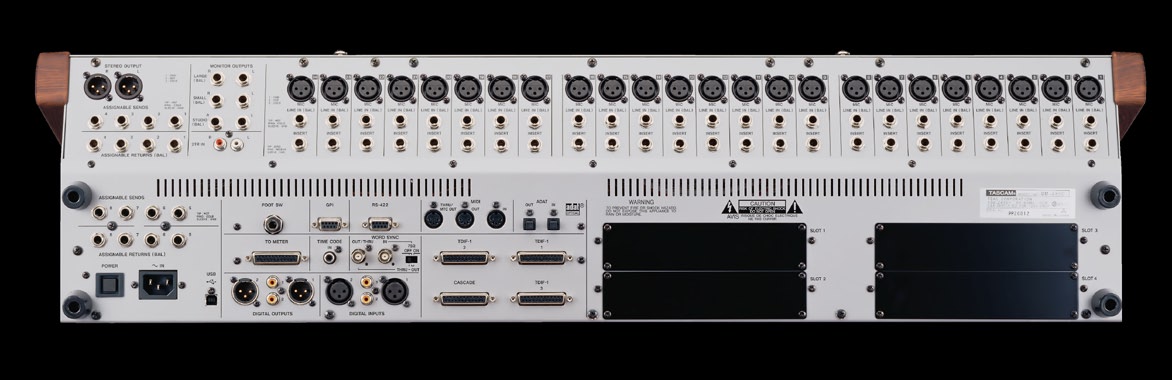

Digitally, it holds three TDIF-1 interfaces (24 channels) and an ADAT link, runs 44.1 to 96 kHz at 24-bit and has four expansion slots (FireWire, ADAT, AES/EBU, analog, TDIF, surround monitor). Three surround matrices and optional multichannel monitoring also aim it at post-production.
