Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 20 |
|---|---|
| Inputs | Analog inputs: 2 XLR mic (phantom on 1-2), Hi-Z guitar input, line inputs, 2 stereo RCA pairs |
| Inputs / outputs | S/PDIF digital I/O (coaxial and optical); R-BUS connector for expansion (optional DIF-AT card to ADAT/TDIF) |
Processing
| Mix buses | 8 |
|---|---|
| Bit depth | 24 bits |
| Architecture | Compact 20-channel / 8-bus digital console, 24-bit |
| Effects and plug-ins | 2 stereo multi-effect processors (reverb, chorus, delay, guitar/vocal/keyboard multi-FX) + 2 additional compressors · COSM technology: Mic Simulation and Speaker Modeling |
Surface
| Physical faders | 13 |
|---|---|
| Touchscreen | No |
| Faders | 12 channel faders (1-8, 9-10, 11-12) + master, jog wheel and transport controls |
| Scenes and recall | Scene memory; MIDI mixer functions (control of external MIDI devices, MMC-compatible) |
| Screens | 136 x 32 dot backlit graphic LCD, self-illuminated buttons |
Recording
| Onboard recording | No |
|---|
Networking
| Redundant PSU | No |
|---|---|
| Redundant networking | No |
Other

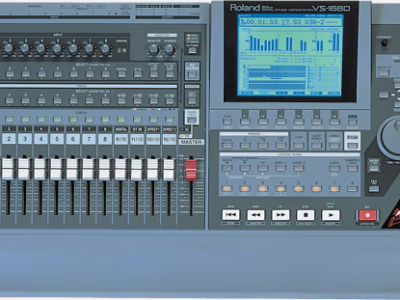

| Lineage | Derived from the mixer section of the Roland VS-1680 multitracker |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- VM-3100/-3100Pro System Update v1.055Download
System update for the VM-3100 and VM-3100Pro, supplied by Roland as an SMF file. It is sent to the mixer over MIDI from a sequencer or from Roland's PC SMF (Windows) or UPD SMF (Mac) utility.
Other screenshots
Accessories
I/O card
- Roland DIF-AT
R-BUS to ADAT and TDIF interface, connecting the VM-3100 Pro to a digital recorder.

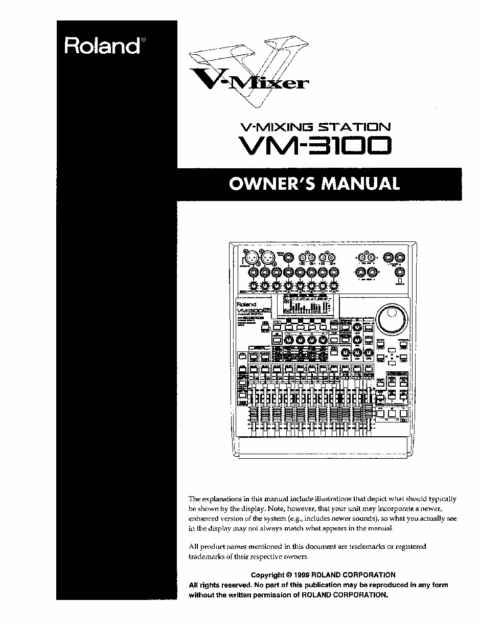

Documents
Editorial & artists
Our take
History & design
The Roland VM-3100 Pro is a compact 20-channel, 8-bus digital console at 24-bit resolution, released in 1999 as the V-Mixing Station. It takes the mixer section of the VS-1680 multitracker into a desktop format, with 12 faders (channels 1-8, 9-10, 11-12) plus master, a jog wheel and transport controls.
Analog connectivity includes two XLR mic inputs (phantom on channels 1-2), a high-impedance guitar input, line inputs and two stereo RCA pairs; digital I/O offers coaxial and optical S/PDIF, plus an R-BUS connector for expansion (optional DIF-AT card to ADAT/TDIF).
For processing, the VM-3100 Pro carries two stereo multi-effect processors (reverb, chorus, delay, guitar/vocal/keyboard multi-FX), two additional compressors and COSM technology with Mic Simulation and Speaker Modeling. Scene memory and MIDI mixer functions (MMC-compatible) round it out, driven from a backlit graphic display.
