Description
Technical
Specifications
Processing
| Mix buses | 16 |
|---|---|
| Bit depth | 24 bits |
| Architecture | V-Mixing System: VM-7200 processor (rack) + VM-C7200 console; up to 94 channels with two expanded processors |
| Processing engine | VM-7200: 20 XLR/TRS 24-bit inputs (12 inserts), 24 analogue outputs, digital I/O via R-BUS and VE-24E card |
| Buses | 16 internal buses · Proprietary R-BUS digital bus (8-channel) for expansion and interconnection |
| Effects and plug-ins | 2 stereo effects processors, expandable to 8 via VS8F-2 boards |
| Sample rate | 24-bit conversion; 44.1/48 kHz sample rate (to be verified) |
Surface
| Physical faders | 25 |
|---|---|
| Motorized faders | Yes |
| Touchscreen | No |
| Control surface | VM-C7200: 25 motorised faders, 100 scenes, 24 fader groups, 24 mute groups, talkback, 3 monitor sets |
Recording
| Onboard recording | No |
|---|
Networking
| Redundant PSU | No |
|---|---|
| Redundant networking | No |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- VM-7100/-7200 Processor System Update v1.720Download
System update for the VM-7100 and VM-7200 processors, offered by Roland in two formats: an SMF file sent over MIDI (sequencer or the PC SMF / UPD SMF utility) or an image copied to a SmartMedia card. PC and Mac versions.
Other screenshots
Accessories
License
- VS8F-2 Effects Expansion Board
Stereo effects expansion board to take the processor up to 8 effects.
I/O card
- VE-24E Digital I/O Expansion
Digital I/O expansion card for the VM-7200.
Documents
Editorial & artists
Our take
History & design

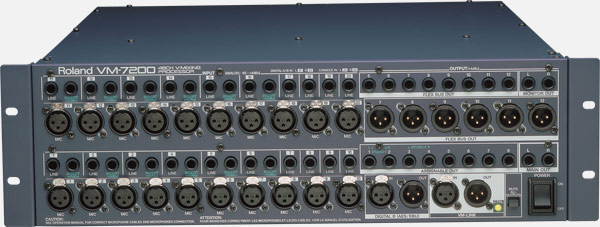

The Roland VM-7200 is the processor of the V-Mixing System, launched in 1999. This 24-bit rack unit handles 20 XLR/TRS inputs (12 inserts), 24 analogue outputs and digital I/O via the proprietary R-BUS bus and the VE-24E expansion card, with 16 internal buses and two stereo effects processors expandable to eight (VS8F-2 boards).

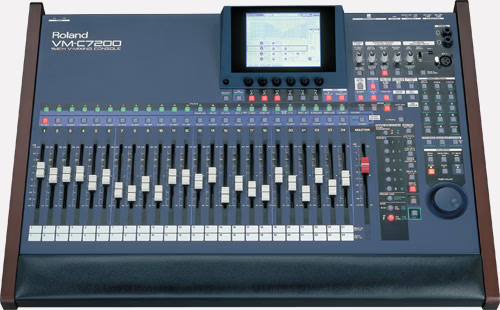

The surface side is the VM-C7200 console, with 25 motorised faders, 100 scenes, 24 fader groups and 24 mute groups, talkback and three monitor sets. One VM-C7200 console controls one or two VM-7200/7100 processors, reaching up to 94 mixing channels when fully expanded. Splitting processing (rack) from control (surface) was forward-looking for a product at this level.
