Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 1,024 |
|---|---|

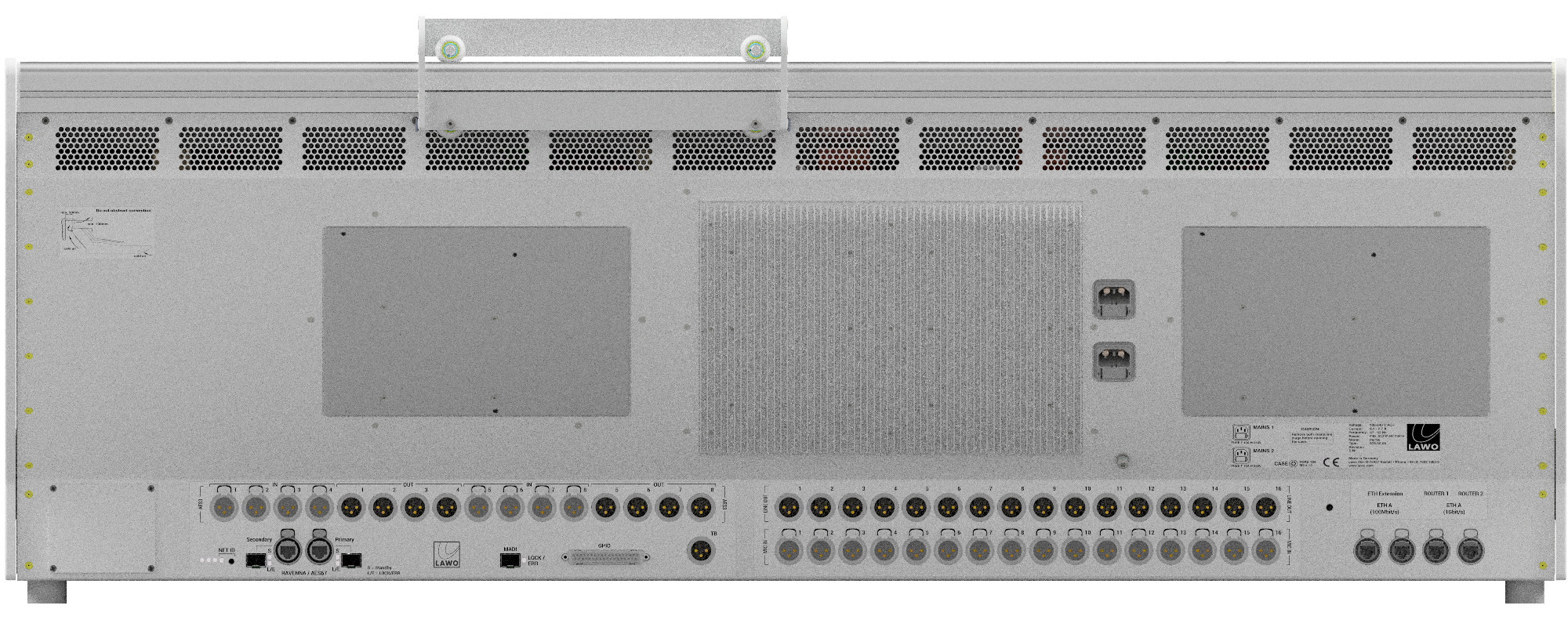

| Inputs / outputs | local I/O: 16 Lawo mic/line inputs, 16 line outs, 8 AES3 I/O, 8 GPIOs and a local MADI port |
Processing
| Mix buses | 96 |
|---|---|
| DCA/VCA groups | 128 |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Processing resolution | 40 bits |
| Channel processing | 44.1 to 96 kHz operation; routing capacity up to 8,192 × 8,192 crosspoints; up to 1,024 DSP channels |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | No |
| Faders | frame sizes from 24 to 200 faders (64 faders on most installs); a 16-fader stand-alone extender is available |
| Screens | 21.5-inch Full-HD touchscreens, in-strip TFTs and touch-sensitive colour-coded encoders; real-time video thumbnails on the fader mini-TFTs |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | Ravenna / Dante / MADI / Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | native support for IP video-production standards: SMPTE ST 2110, AES67, Ravenna and Dante |

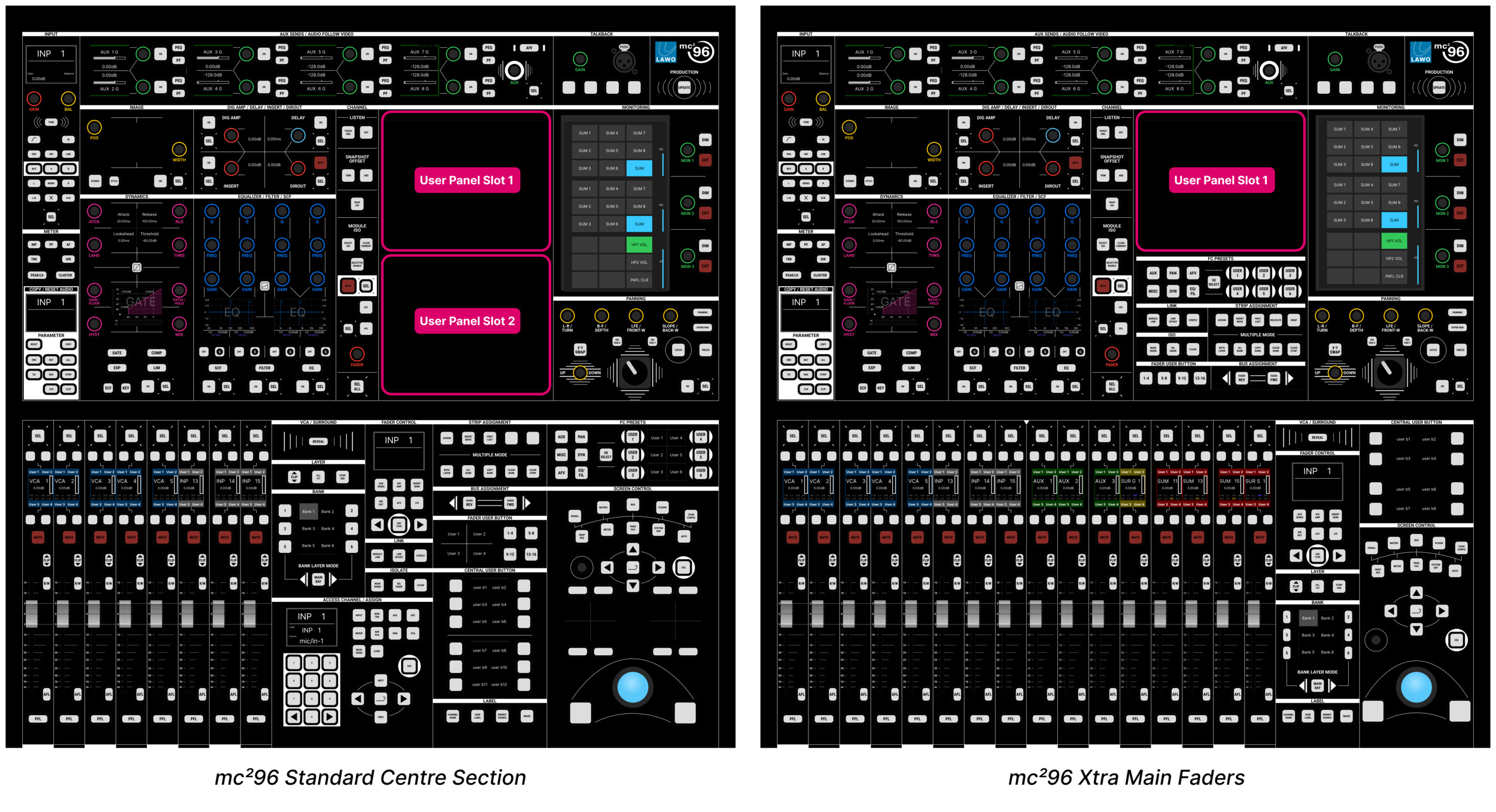

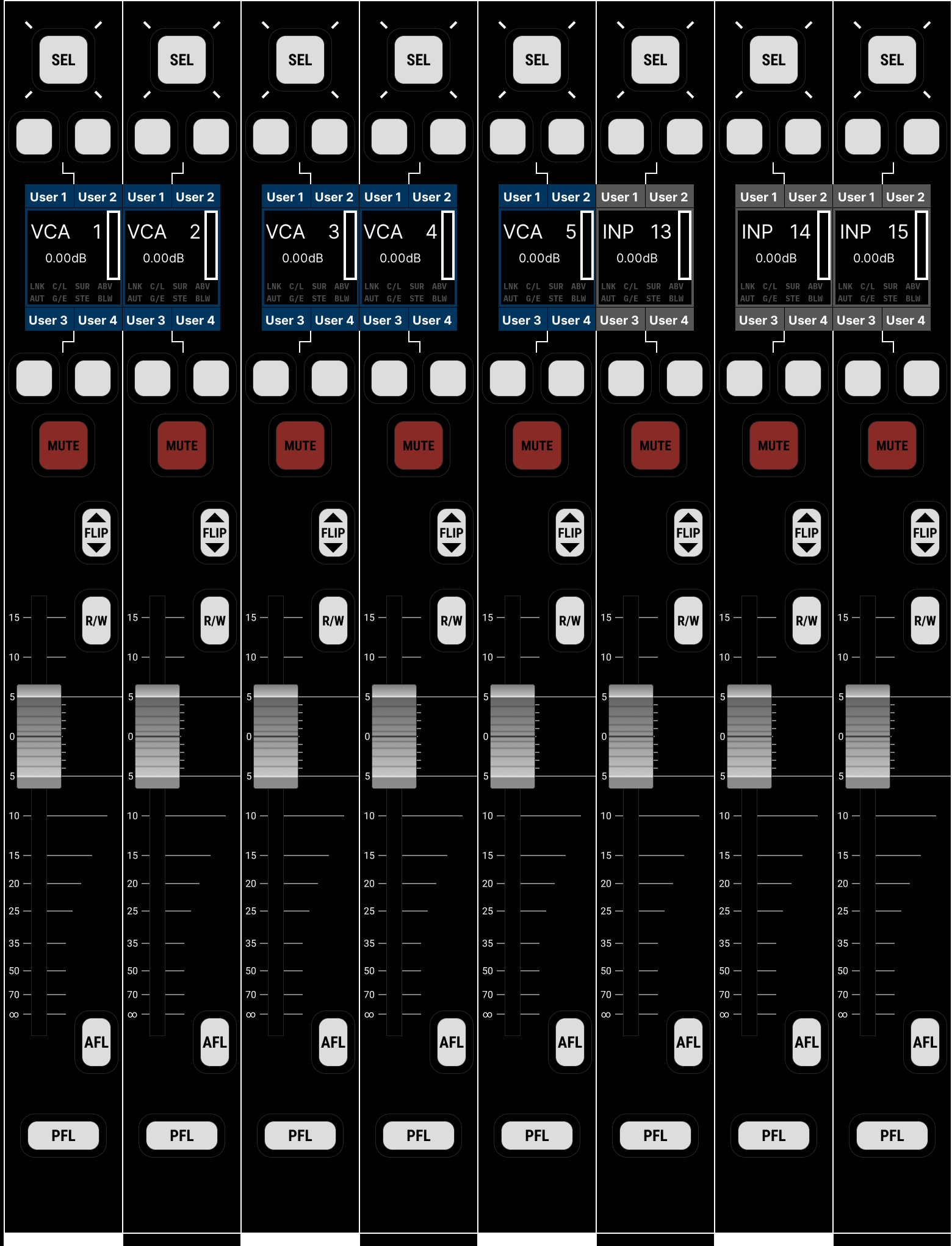

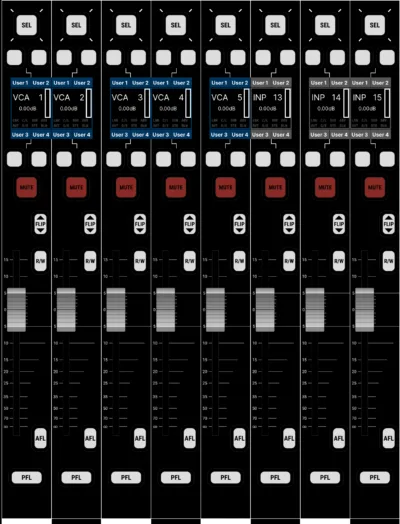

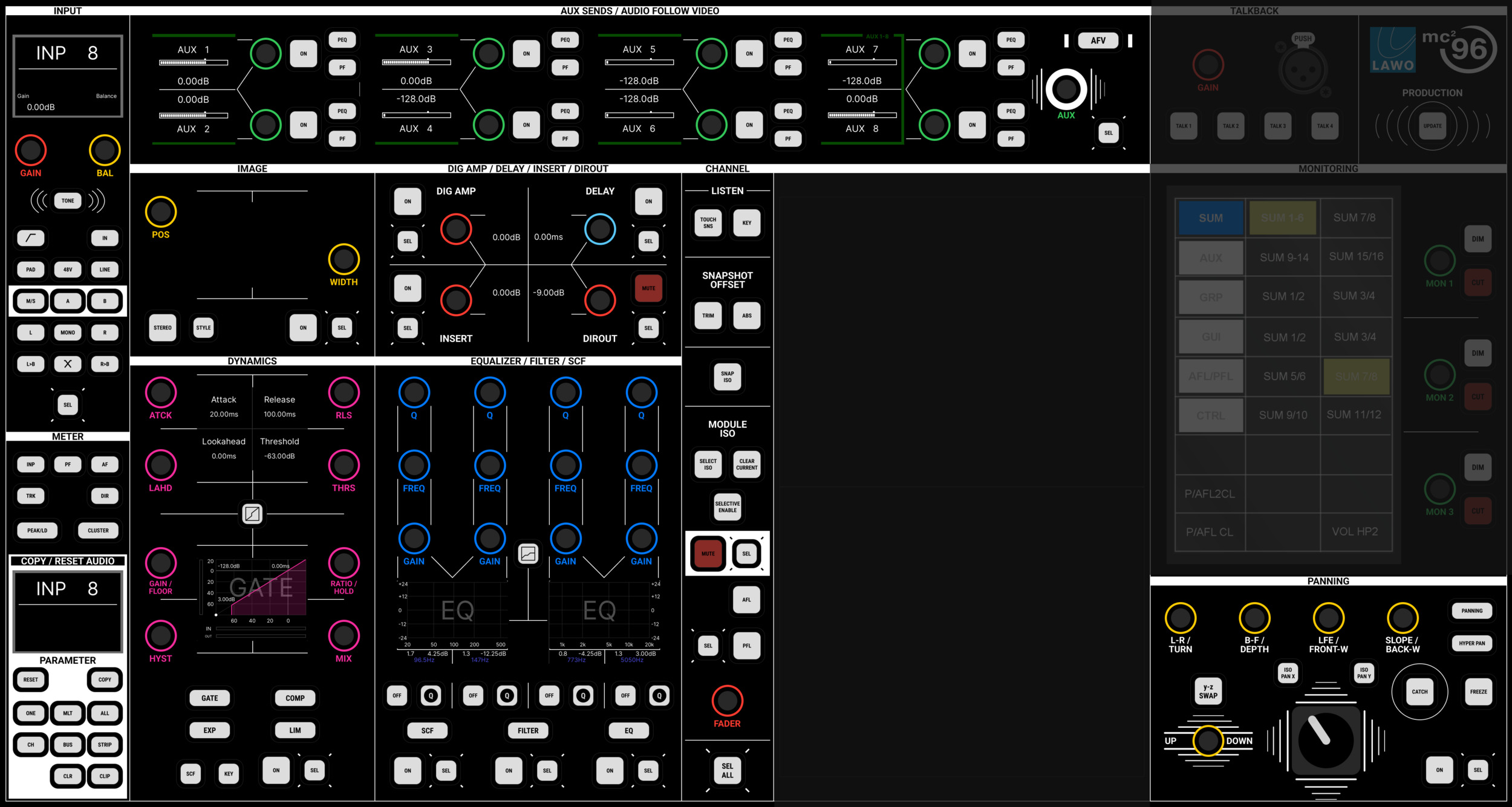

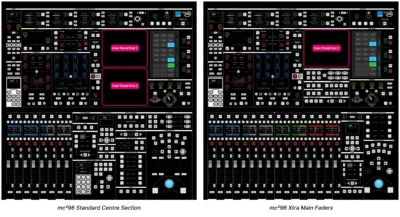

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.

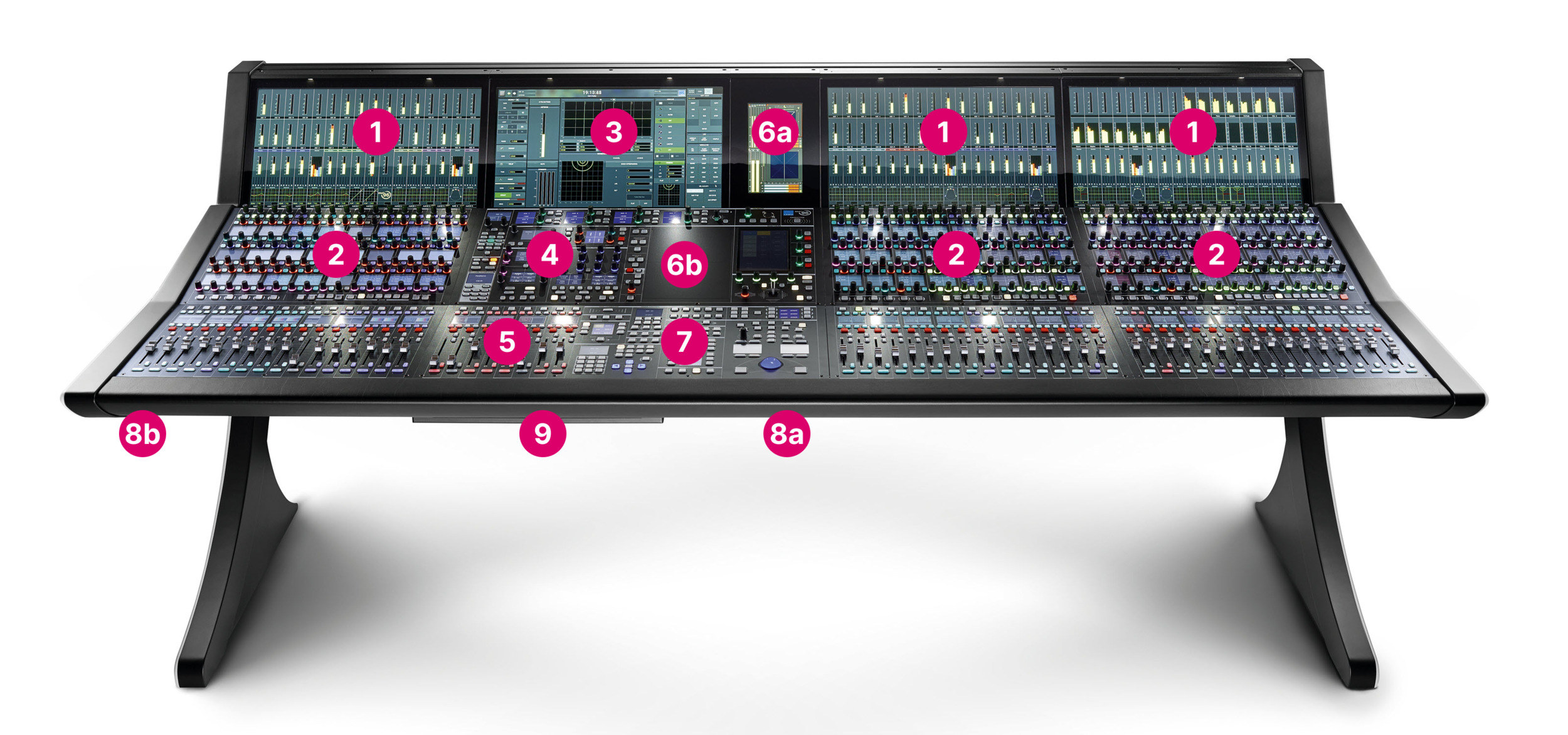

Diagrams
Rotate your phone to landscape for a better view of the diagram.
Rotate your phone to landscape for a better view of the diagram.
Software
- VisToolLawo's customisable GUI environment, used to build control and remote screens tailored to the mc² and the wider Lawo ecosystem.

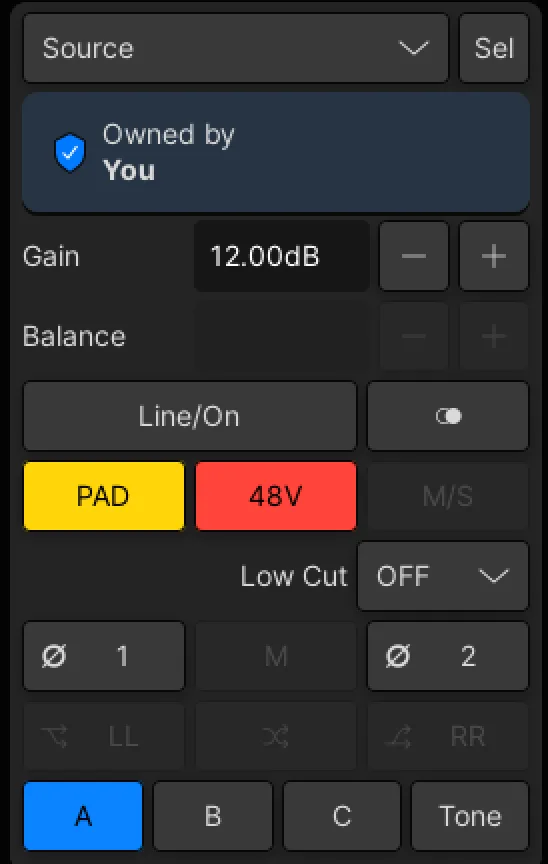

mxGUI (contrôle à distance) v10.8
mxGUI (préparation hors ligne) v10.8
Other screenshots
Accessories
Stagebox / rack
- Lawo I/O systems (DALLIS, A__stage)
Remote I/O racks connected to the console to deploy preamps and outputs, over MADI or IP.
Editorial & artists
Our take
History & design

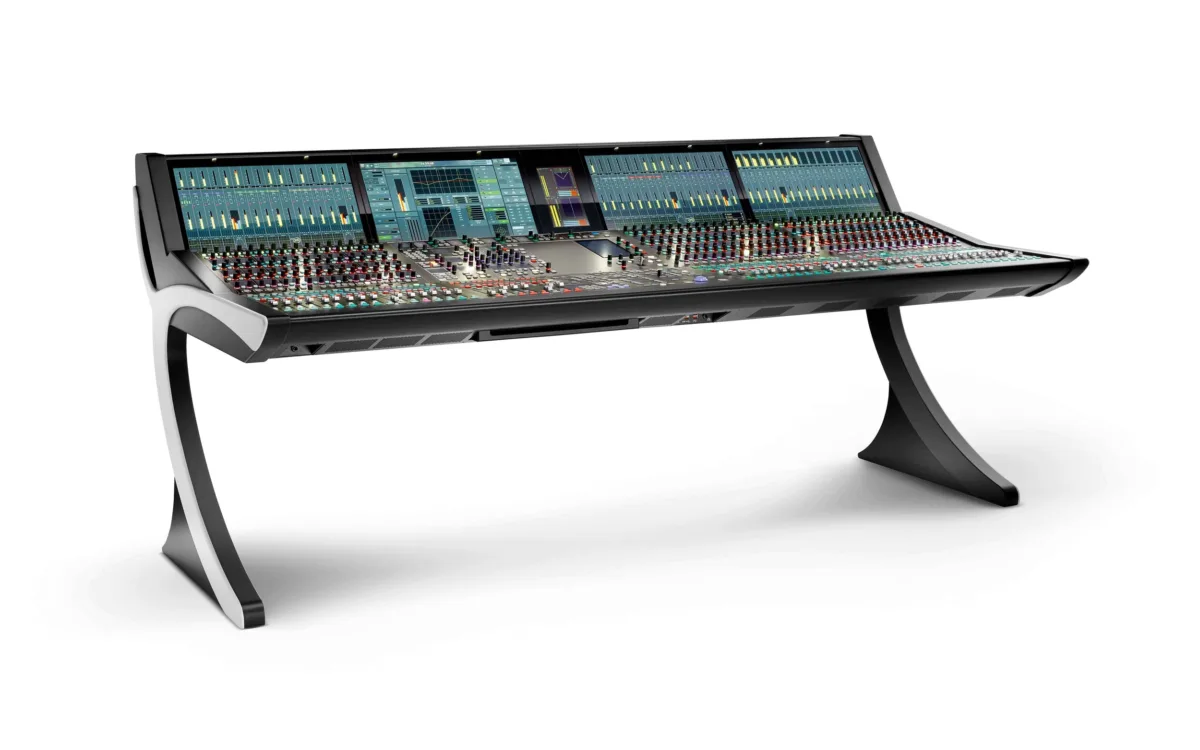

The Lawo mc²96 is Lawo's grand audio-production console, unveiled at NAB 2017 and aimed at broadcast, TV production and live. It comes in frames from 24 to 200 faders (64 on most installs), with a stand-alone 16-fader extender. The surface features 21.5-inch Full-HD touchscreens, in-strip TFTs and touch-sensitive colour-coded encoders, with real-time video thumbnails shown on the fader mini-TFTs.
Designed for IP video-production environments, it natively supports the SMPTE ST 2110, AES67, Ravenna and Dante standards. Its local I/O includes 16 mic/line inputs, 16 line outs, 8 AES3 I/O, 8 GPIOs and a MADI port. It operates from 44.1 to 96 kHz, offers routing capacity up to 8,192 × 8,192 crosspoints and up to 1,024 DSP channels.
Notable users
- Saarländischer Rundfunk (SR)
mc²96 with Ravenna deployed across the German public broadcaster's facilities.
