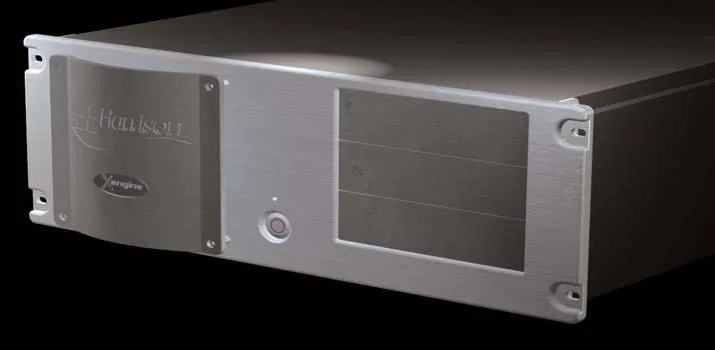

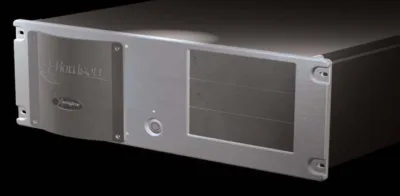

Harrison Xrange
Harrison's 64-bit Linux digital processing platform (engine + MPC/Trion/Air24 surfaces)
Description
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | Ethernet connectivity (Xrange); MADI/AES interface details to be verified |
|---|
Processing
| DSP engine | Xrange — 64-bit audio engine running on Linux on standard computers (Ethernet) |
|---|---|
| Max sample rate | 96 kHz |
| Processing resolution | 64 bits |
| DSP engine — details | Xrange processing engine: 64-bit audio on Linux, off-the-shelf computers, Ethernet networking |
| Architecture | System = control surface (MPC / Trion / Air24) + Xrange engine + IKIS automation |
| Bit depth | 96 kHz floating-point processing |
| Channels | Per channel: 2 inputs, 8-band EQ, dynamics, Harrison Digital Tools (HDT) effects · Up to 384 channels in an MPC film configuration (documented example) |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | No |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | Xdubber (Ardour-based stem recording station, floating point) |
Networking
| Networking & protocols | Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Stage boxes | First deployed with the Air24 surface (radio broadcast), after 3 years of R&D |
Diagrams
Rotate your phone to landscape for a better view of the diagram.
Software
XdubberRecorder/workstation optimised for floating-point stem recording and playback, developed with the open-source community on Ardour.
Editorial & artists
Our take
History & design

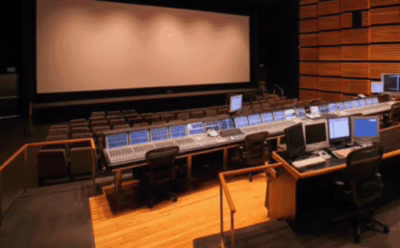

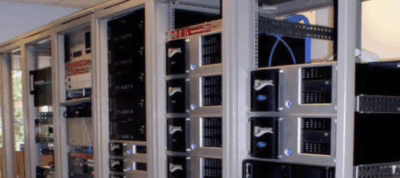

Xrange is Harrison's digital processing platform, born from a three-year research project: a 64-bit audio engine running on Linux, on off-the-shelf computers linked over Ethernet, breaking with the proprietary systems of earlier generations. A Harrison system of this generation combines an application-specific control surface (MPC for film, Trion for production, Air24 for radio), an Xrange processing engine and an IKIS automation computer.
Processing runs in floating point at 96 kHz, with the 'Harrison Digital Tools' (HDT) effects. A typical film configuration (MPC) reached 384 channels, each with two inputs, an 8-band EQ and dynamics processing. Xrange was first deployed with the Air24 surface for radio broadcast before spreading across Harrison's whole digital range.
The platform is complemented by Xdubber, a recorder/workstation optimised for floating-point stem recording and playback, developed with the open-source community on the Ardour software. Xrange is the technological foundation that paved the way for Harrison's current consoles (MPC5 and beyond).
