Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 220 |
|---|---|
| Total outputs | 220 |
| Inputs / outputs | Up to 220 physical inputs/outputs via MADI |
Processing
| Mix buses | 72 |
|---|---|
| Architecture | Desktop Media Production Centre: controller/surface for audio post-production to picture |
| Processing engine | Fairlight Crystal Core CC-1, single PCIe card, FPGA architecture |
| Channels | Mix engine up to 230 channels, 72 buses |
| Audio performance | Stated total latency < 0.5 ms |
Surface
| Touchscreen | No |
|---|---|
| Screens | "Picture keys" keyboard: mechanical keys with colour screens, contextually reconfigurable (icons, text, animations) |
| Encoders | 8 touch-sensitive rotary encoders + soft keys around a high-resolution "pad" zone |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | MADI |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Power
| Power supply | About 12 W power consumption (engine card) |
|---|
Other
| Applications | 192-track editor |
|---|---|
| Broadcast features | Onboard HD or SD video; EQ and dynamics on all channels; third-party plug-ins |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
- Fairlight Crystal Core (CC-1)Fairlight's FPGA audio processing platform at the heart of Xynergi: 192-track editor, mix engine up to 230 channels, MADI I/O, onboard video.

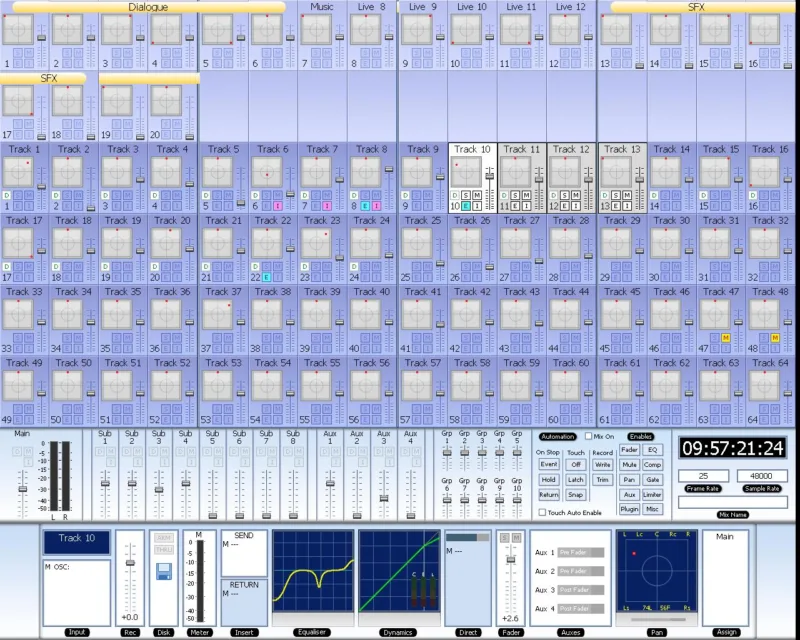

Logiciel Xynergi (DREAM II / Fairlight Media Toolkit) v5.x
Other screenshots
Editorial & artists
Our take
History & design

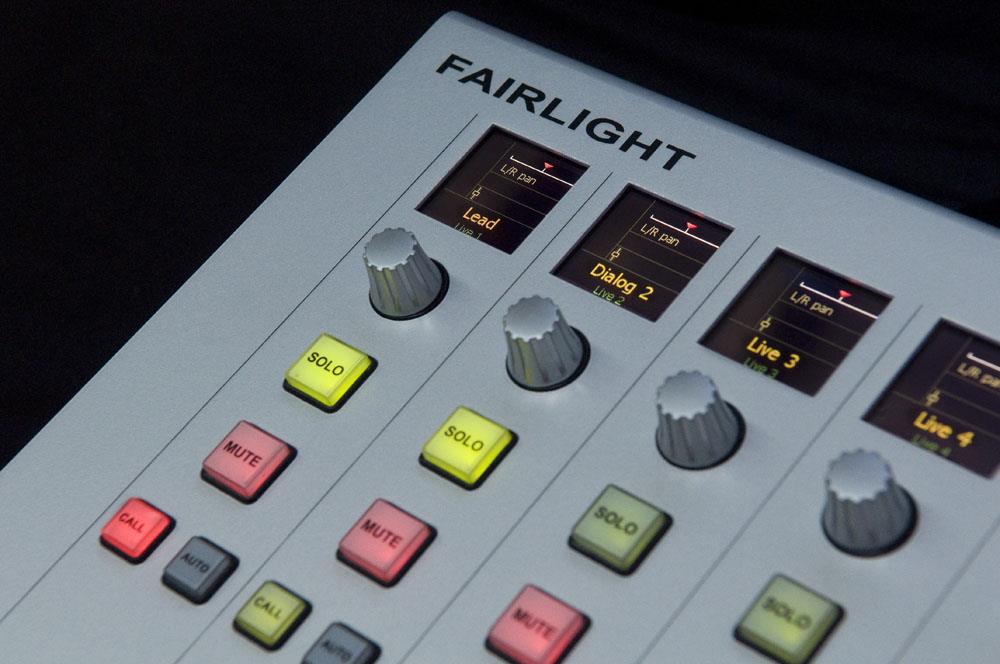

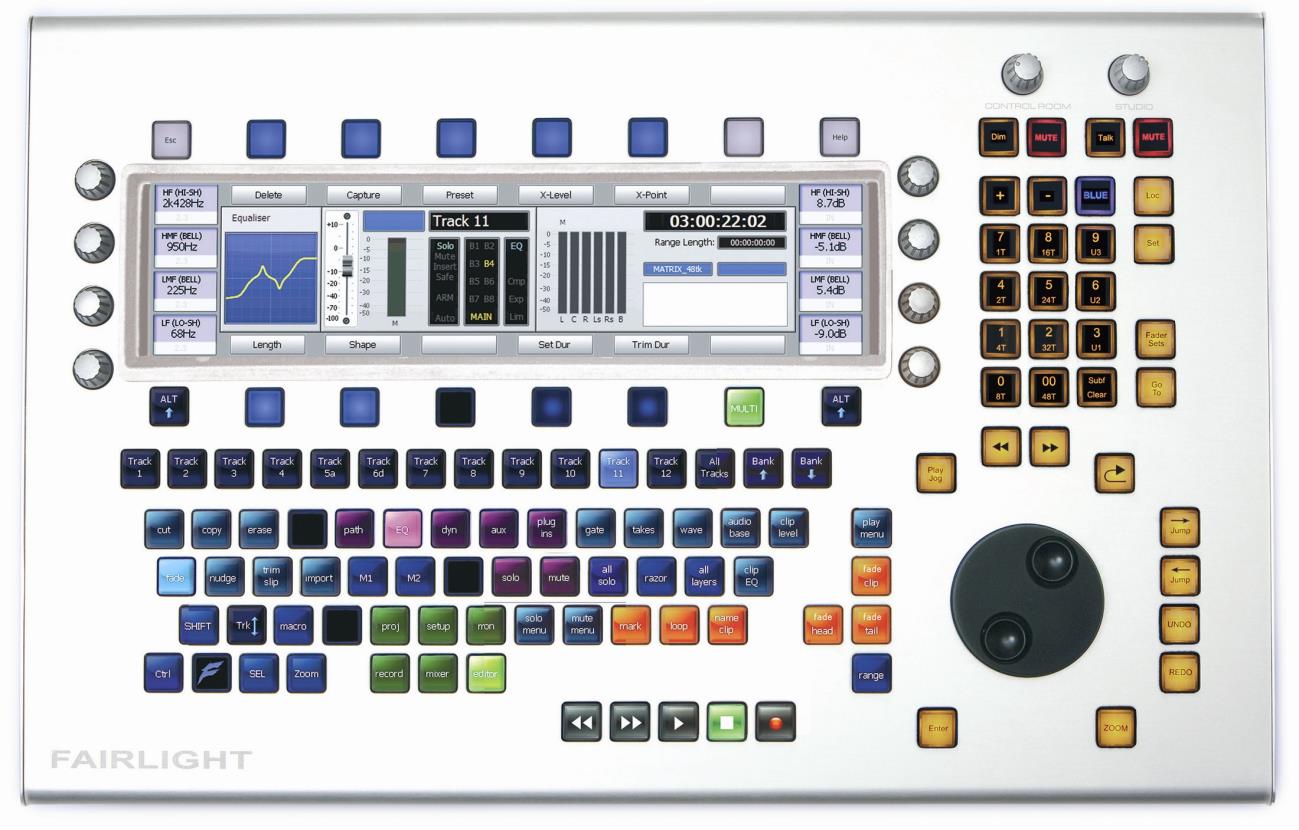

The Fairlight Xynergi is a desktop "Media Production Centre" launched in September 2007, halfway between a control keyboard and a mixing surface, aimed at audio post-production for picture. Its signature is a "picture keys" keyboard: mechanical keys each embedding a small colour screen able to display icons, text or animations, reconfiguring contextually to drive recording, editing and mixing. The surface adds eight touch-sensitive rotary encoders and multiple soft keys around a high-resolution control zone called the "pad".
Xynergi is built around Fairlight's Crystal Core CC-1 engine: a single PCIe card carrying a 192-track editor and a mix engine able to process up to 230 channels, 220 physical MADI inputs/outputs, 72 buses and onboard video (HD or SD), with EQ and dynamics on every channel and third-party plug-in support — all with a stated total latency below 0.5 ms for about 12 W of power draw, thanks to an FPGA architecture.
