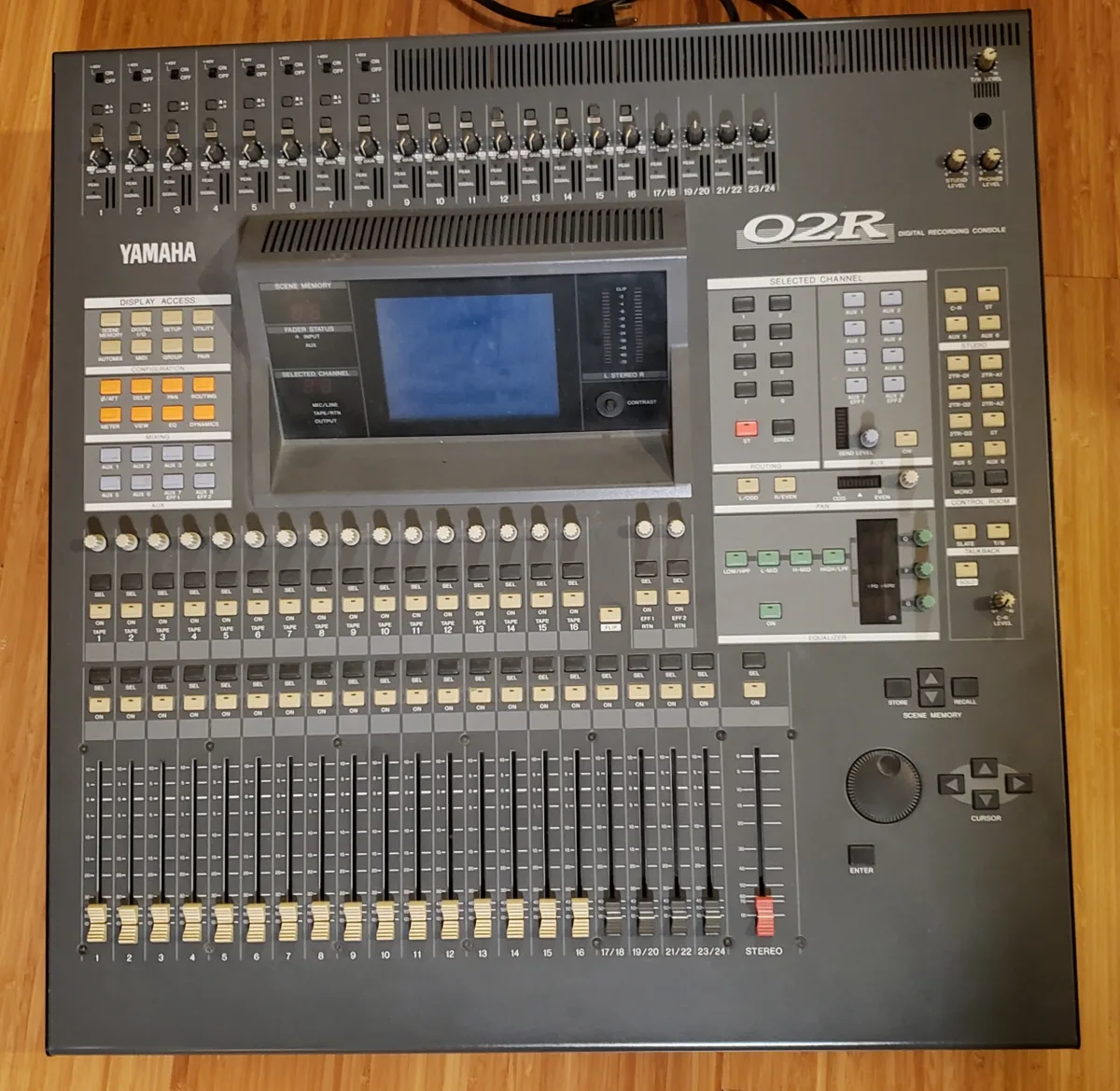

Yamaha 02R
The digital recording console that brought the project studio into the digital age (1995)
Description
Technical
Specifications

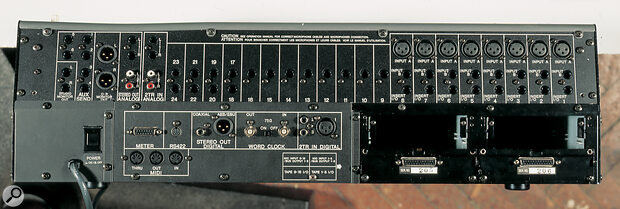

Inputs / Outputs
| Expansion cards | Plug-in open-format digital I/O cards (AES/EBU, ADAT, TDIF and more) |
|---|
Processing
| Mix buses | 8 |
|---|---|
| DSP engine | 32-bit internal digital processing |
| Max sample rate | 48 kHz |
| Bit depth | 20 bits |
| Processing resolution | 32 bits |
| Architecture | 8-bus digital recording console; 20-bit conversion, 32-bit internal processing |
| Modularity and expansion | Two 02R units cascadable in the digital domain |
| Channels | 40 input channels + 2 analog stereo effects returns (44 mix channels) |
| EQ | Four-band parametric equalizer on every channel |
| Dynamics | Dynamics processing on every channel; input delays |
| Effects and plug-ins | Two built-in effects processors |
Surface

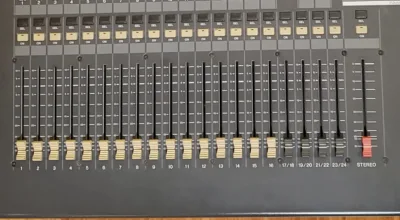

| Motorized faders | Yes |
|---|---|
| Touchscreen | No |
| Automation | Timecode-based automation; mix data in non-volatile memory (512 KB, expandable to 2.5 MB); full recall |
Networking
| Networking & protocols | ADAT / AES/EBU |
|---|
Other
| Applications | A pivotal console of the modular digital recording era; brought digital mixing to the pro project studio |
|---|---|

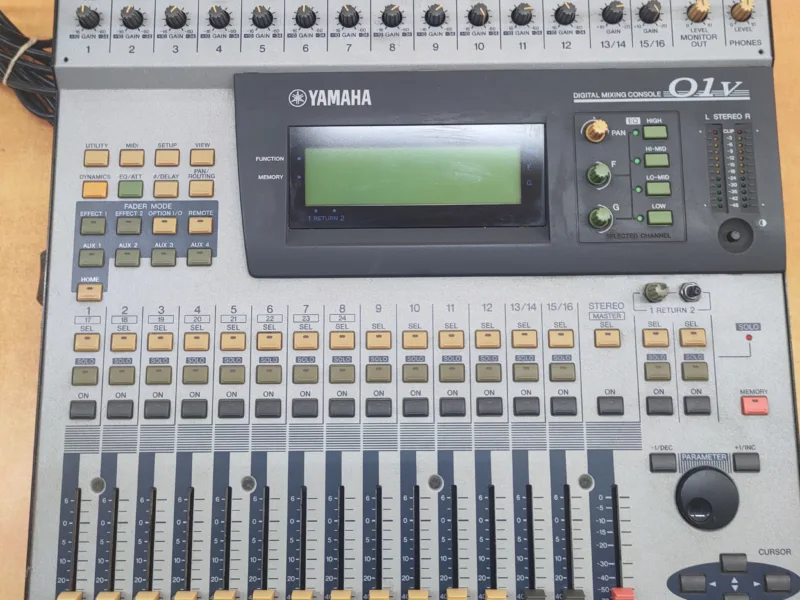

| Lineage | Followed by the 03D (1997), 01V (1998) and 02R96 (2002) |
| Year / dates | World launch on 20 June 1995 (Air Lyndhurst Studios, London) |
| Price | Over GBP 7,000 per Sound on Sound (1997); exact launch price to be confirmed |

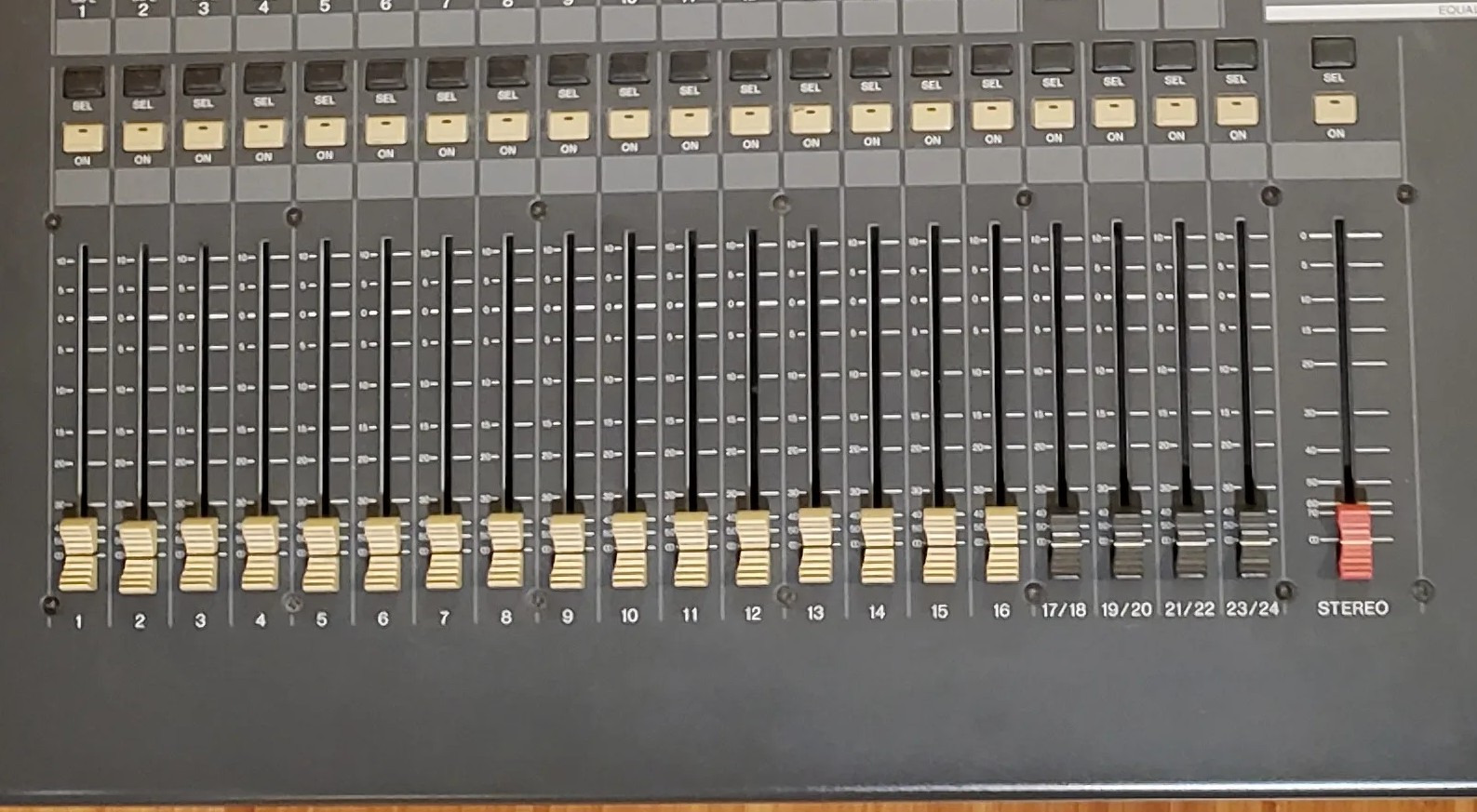

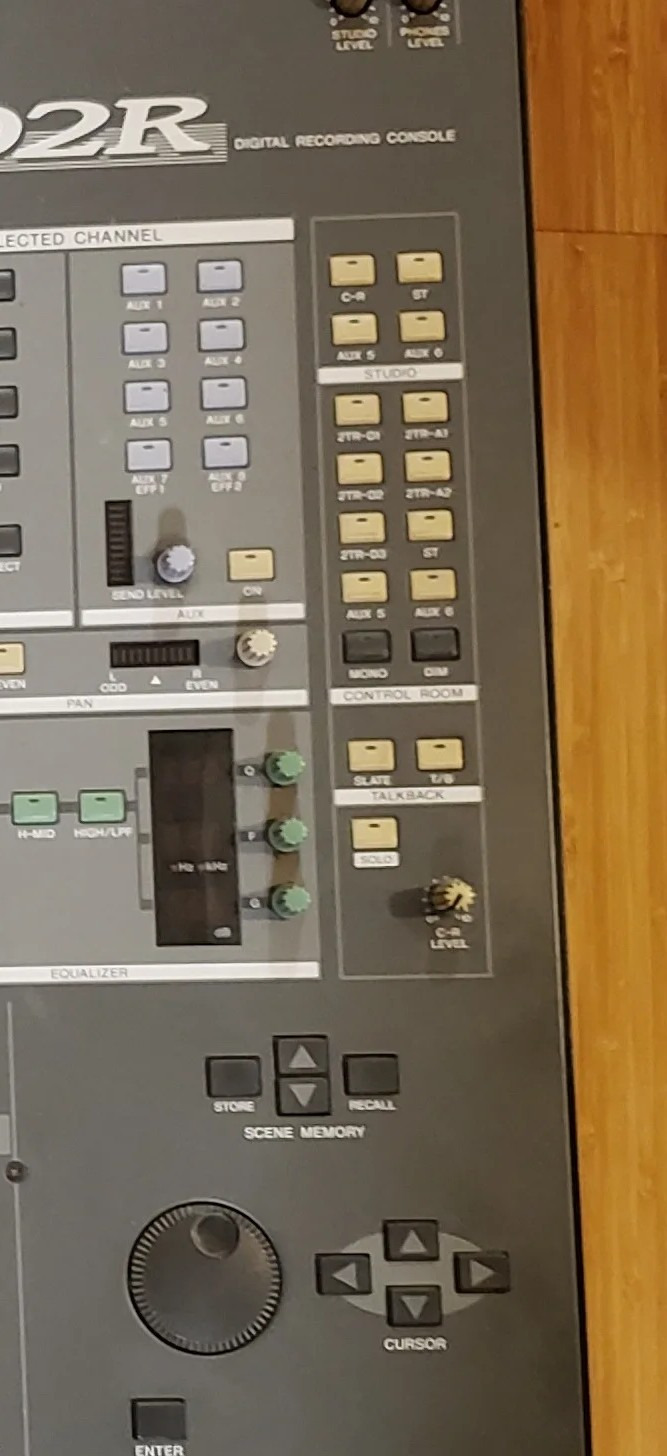

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Editorial & artists
Our take
History & design

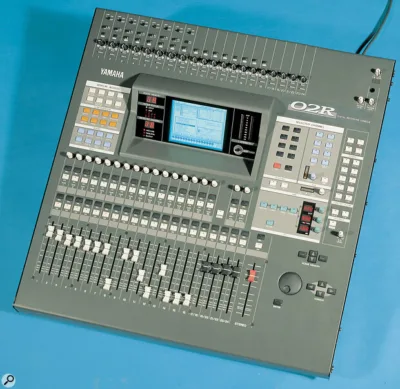

Launched worldwide on 20 June 1995 at Air Lyndhurst Studios in London, the Yamaha 02R is an 8-bus digital recording console that defined the modular digital recording era. It offers 40 input channels plus two analog stereo effects returns, for 44 channels in all, with 20-bit conversion and 32-bit internal processing.
Every channel has a four-band parametric equalizer, dynamics processing and input delays; two effects processors are built in. Its timecode-based automation keeps mix data in non-volatile memory (512 KB, expandable to 2.5 MB) and allows full recall of the setup. The faders are motorized.
Its strength lay in its "open system" digital compatibility: plug-in I/O cards added AES/EBU, ADAT, TDIF and other formats, slotting it straight into the modular recorders of the day. Two 02R units could be cascaded in the digital domain. It opened a prolific lineage: 03D (1997), 01V (1998), then 02R96 (2002).
