Description
The MXP-3000 is Sony's 'serious' analogue studio console of the late 1980s: modular, expandable, with optional VCA automation. It sits among digitally controlled (automation) desks with an analogue audio path. I value it mainly for the grain of its preamps and EQ, rather than its automation, which stayed patchy.
Technical
Specifications
Surface
| Motorized faders | No |
|---|---|
| Touchscreen | No |
Recording
| Onboard recording | No |
|---|
Networking
| Redundant PSU | No |
|---|---|
| Redundant networking | No |
Other
| Format | Console analogique modulaire, configurations de voies variables (ex. MXP-3036 à 36 voies) |
|---|---|
| Automation | Faders à VCA : groupage, solo, mute et automation de mix (calculateur d'automation externe en option) ; chemin non-VCA possible en bypass |
| Caractere | Préamplis et EQ au caractère marqué, appréciés en prise de son |
Editorial & artists
Our take
History & design

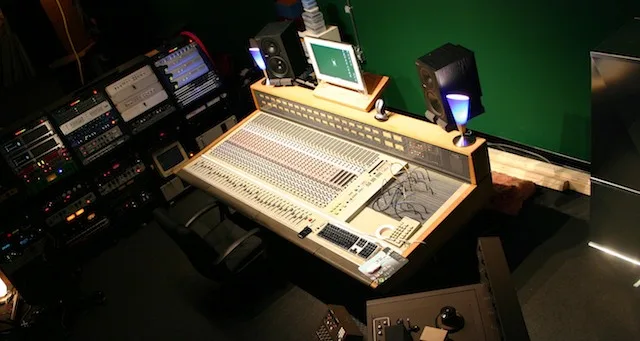

The MXP-3000 is a modular analogue mixing console launched by Sony in the late 1980s, offered in several frame sizes (the 36-channel MXP-3036 being one variant). Its architecture uses VCA faders allowing grouping, solo, mute and mix automation — the latter relying on an optional external automation computer. The VCAs can be bypassed to restore a direct, non-VCA audio path.
Sonically, the MXP-3000 is known for the character of its preamps and EQ section, which keeps it sought-after for analogue tracking.
