Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 4 |
|---|---|
| Mic inputs | 4 |
| Total outputs | 2 |
| Inputs | 4 balanced XLR switchable mic/line, gain, +48 V, low-cut filter |

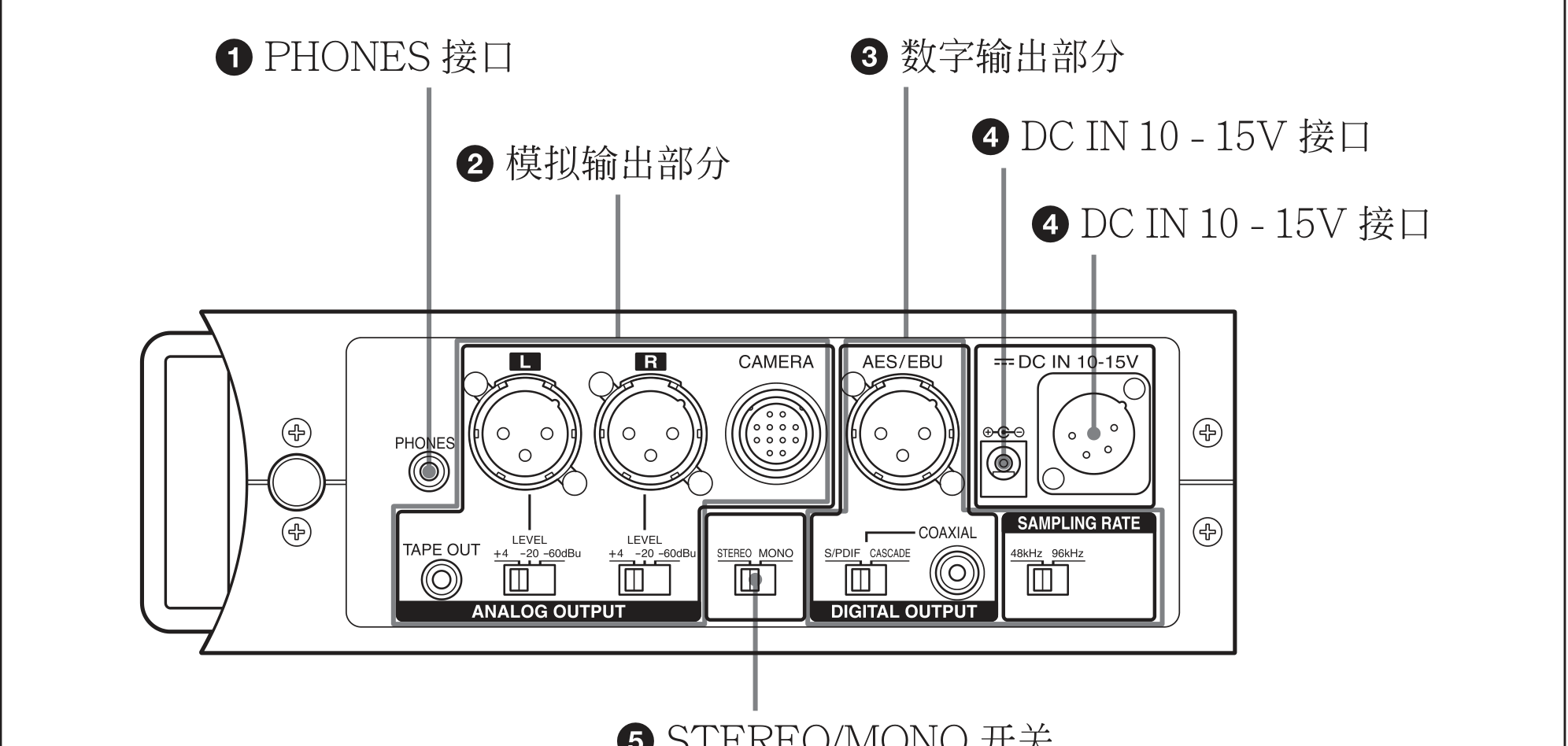

| Outputs | 2 balanced analog XLR + AES/EBU and S/PDIF; 2nd S/PDIF input for cascading |
Processing
| Max sample rate | 96 kHz |
|---|---|
| Bit depth | 24 bits |
| Processing resolution | 32 bits |
| Channel processing | 24-bit A/D-D/A, 32-bit processing, 48 and 96 kHz |
| Dynamics | Programmable compressor and limiter per channel |
Surface
| Motorized faders | No |
|---|---|
| Touchscreen | No |
| Scenes and recall | Recall of up to 10 user scenes |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | AES/EBU |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | Stereo linking of channels 1/2 and 3/4 |
Power
| Power supply | Portable, battery-powered; LCD screen |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.

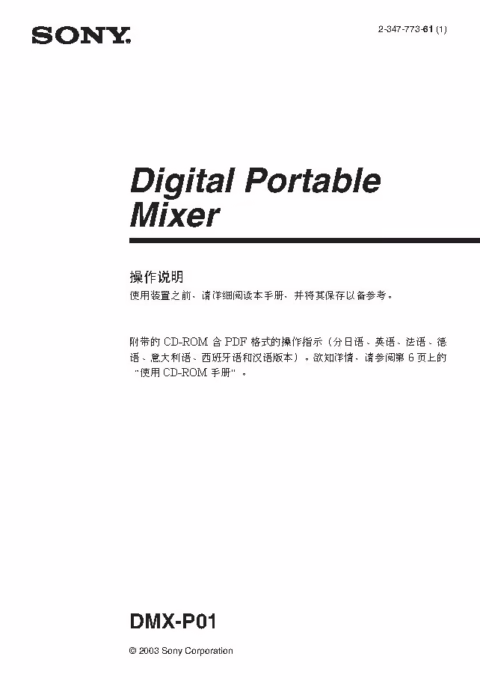

Documents
Editorial & artists
Our take
History & design
The Sony DMX-P01 is a portable digital mixer designed for electronic news gathering (ENG) and electronic field production (EFP). It combines the convenience of a field mixer with the fidelity of high-resolution digital audio, in a compact battery-powered chassis.

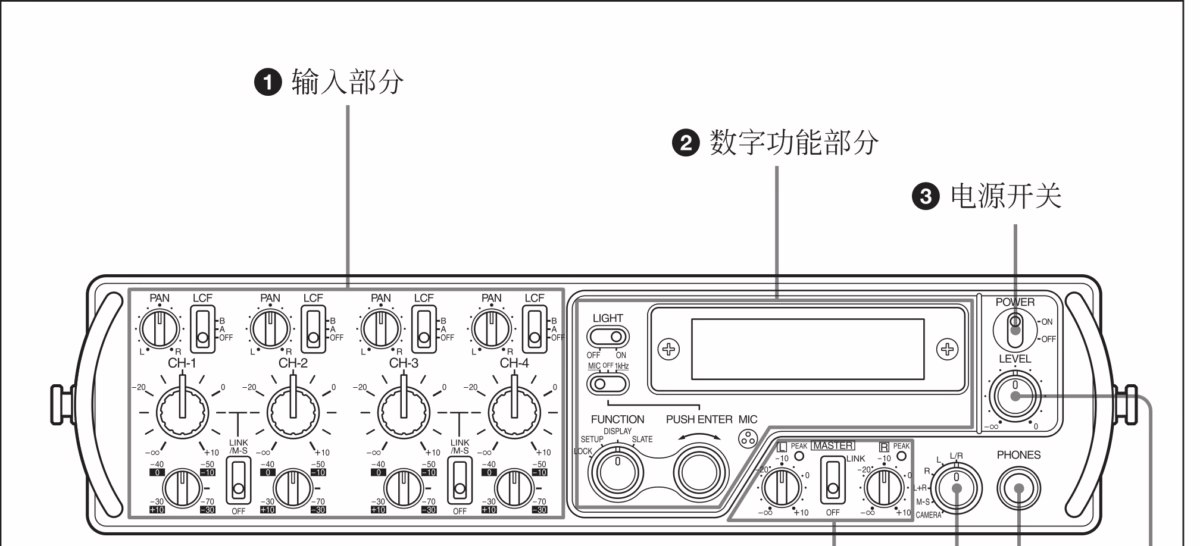

It offers four electronically balanced XLR inputs, switchable mic/line, with gain control, switchable +48 V phantom power, low-cut filter, and programmable compressor and limiter per channel. Channels 1/2 and 3/4 can be stereo-linked. Output is on two balanced analog XLRs (mic/line) and digitally via AES/EBU and S/PDIF; a second S/PDIF input allows cascading several units.
Processing is fully digital: 24-bit A/D and D/A converters, 32-bit signal processing, and 48 and 96 kHz sampling. An LCD shows levels and settings. The scene memory feature instantly recalls up to ten user configurations (including limiter and compressor settings), a real plus when switching operators or shoots.
