Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 48 |
|---|---|
| Inputs / outputs | Rear panel: 16 analogue inputs, 8 analogue outputs, 8 digital I/O, integrated 64×64 Waves card |
Processing
| Mix buses | 24 |
|---|---|
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Channels | Up to 48 inputs and 24 assignable buses + LCR and monitors in FoH mode; 30 assignable buses in monitor mode |
| Bit depth — details | 24-bit / 96 kHz audio |
Surface
| Physical faders | 16 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |

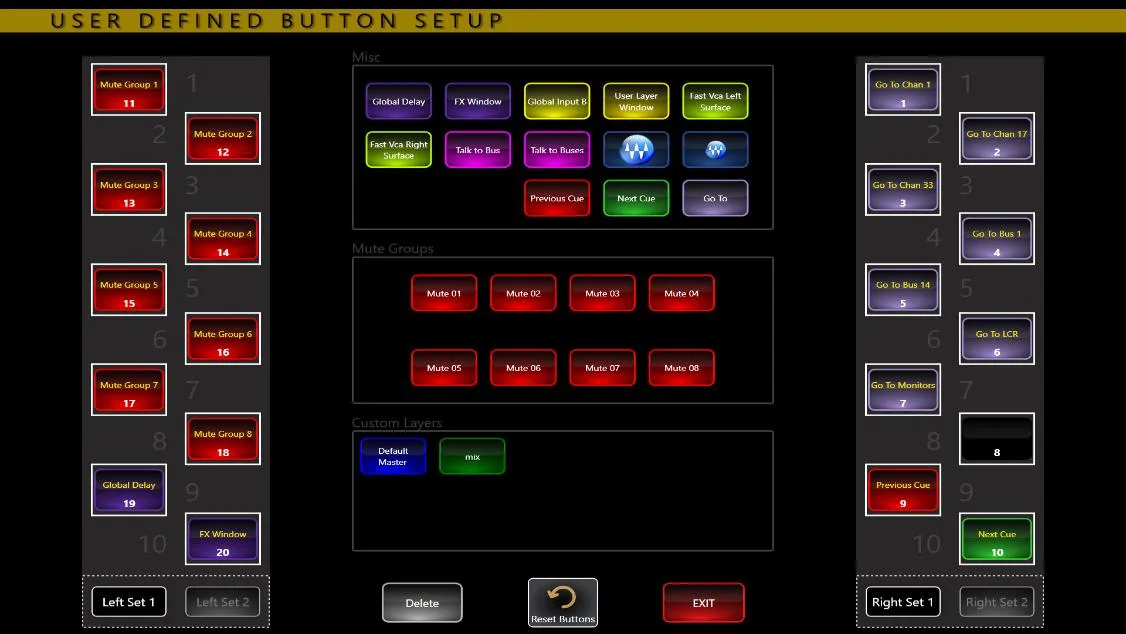

| Faders | 16 motorised faders; dual banks of user-assignable buttons (40 total) |
| Screens — details | One 23.5" touchscreen; CDC swipe gesture interface |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | SoundGrid / AES/EBU / Network |
|---|---|
| Redundant PSU | Yes |
| Redundant networking | No |
| Audio networking | Dual MegaCOMMS ports (Cadac proprietary audio network) for remote interfaces/processors |
Power
| Power supply | One internal PSU; optional second redundant external supply (PSU 4800) |
|---|

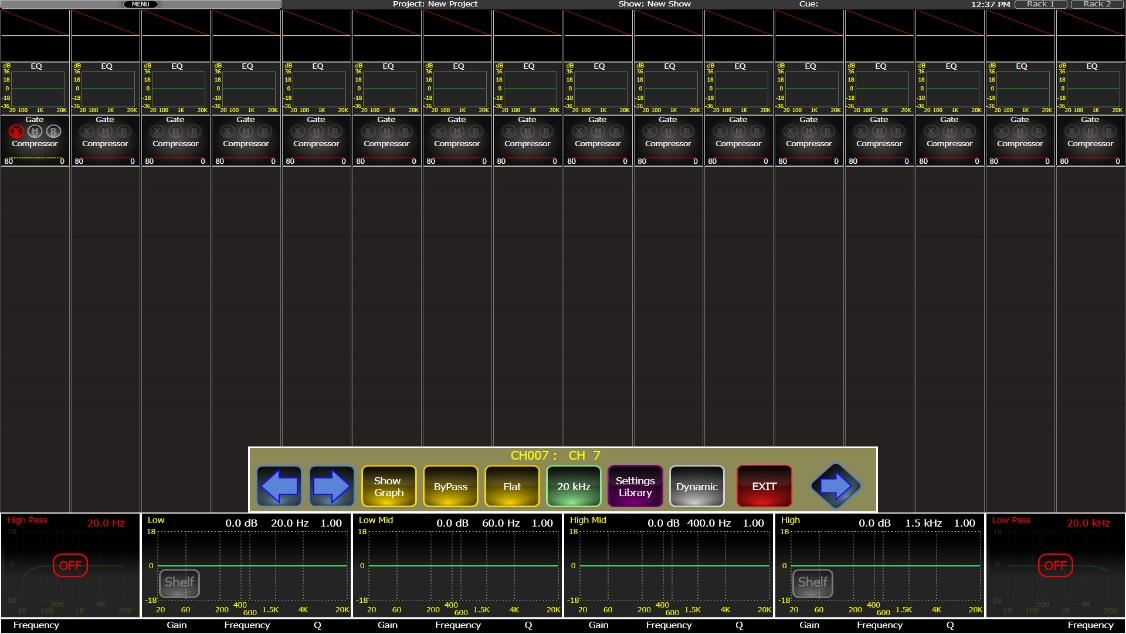

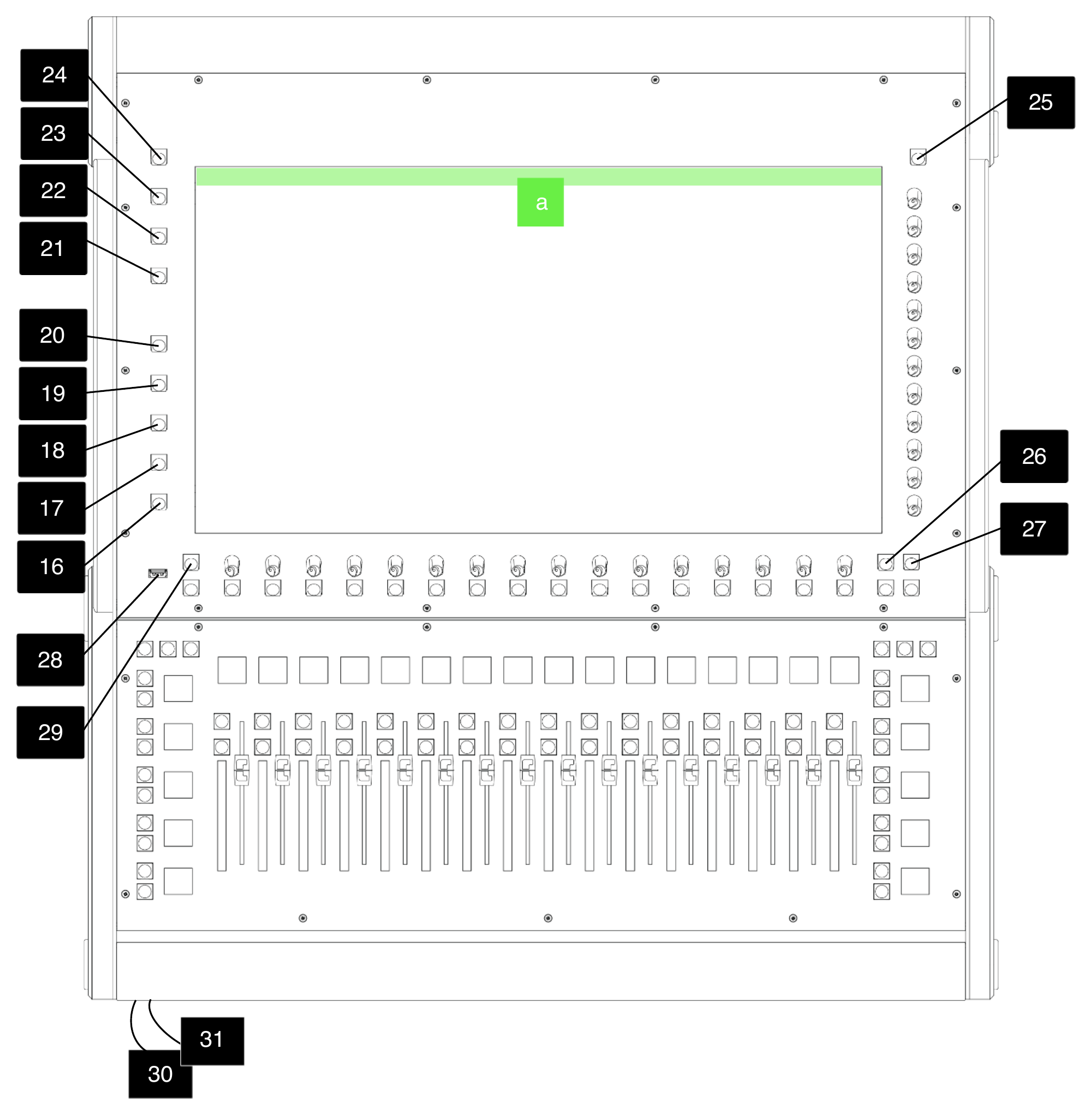

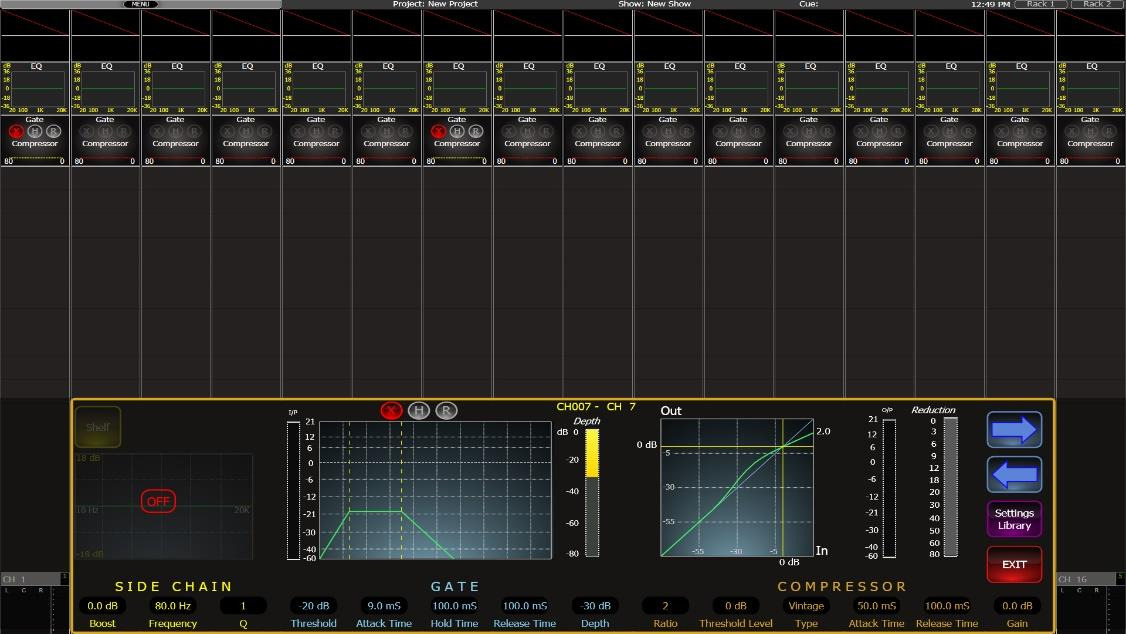

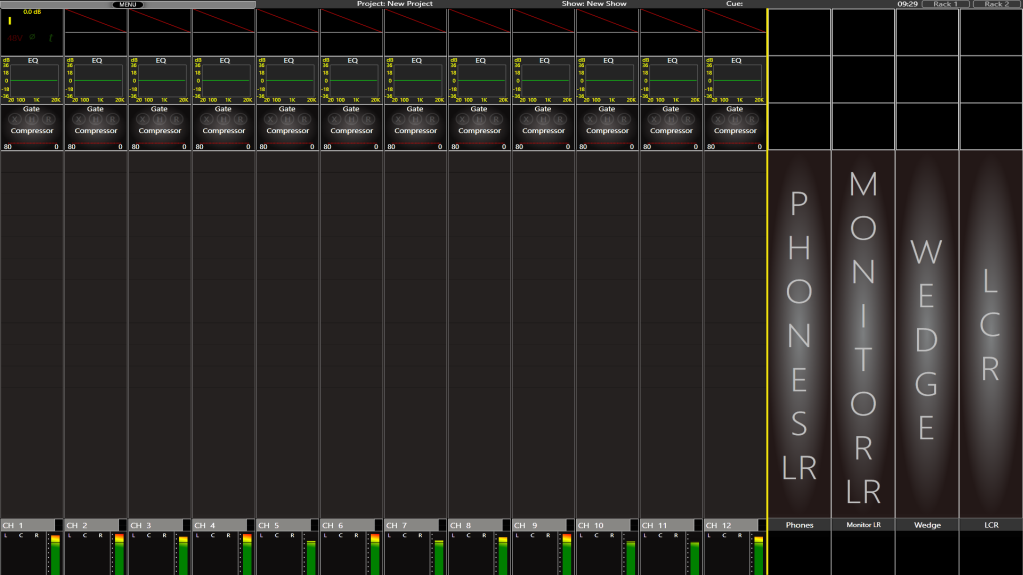

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.

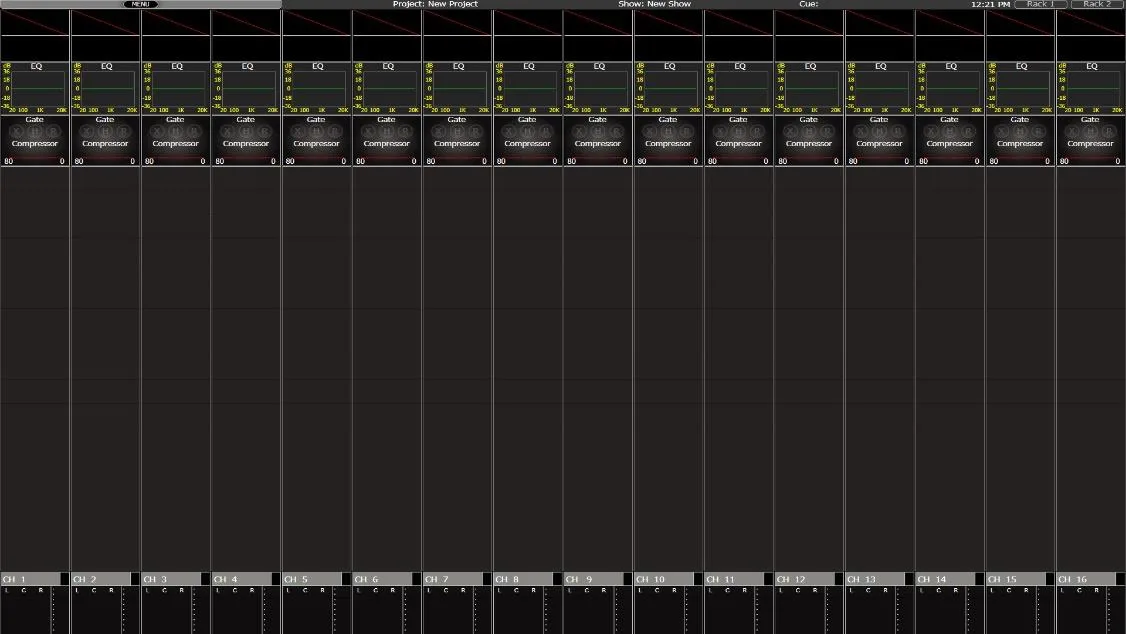

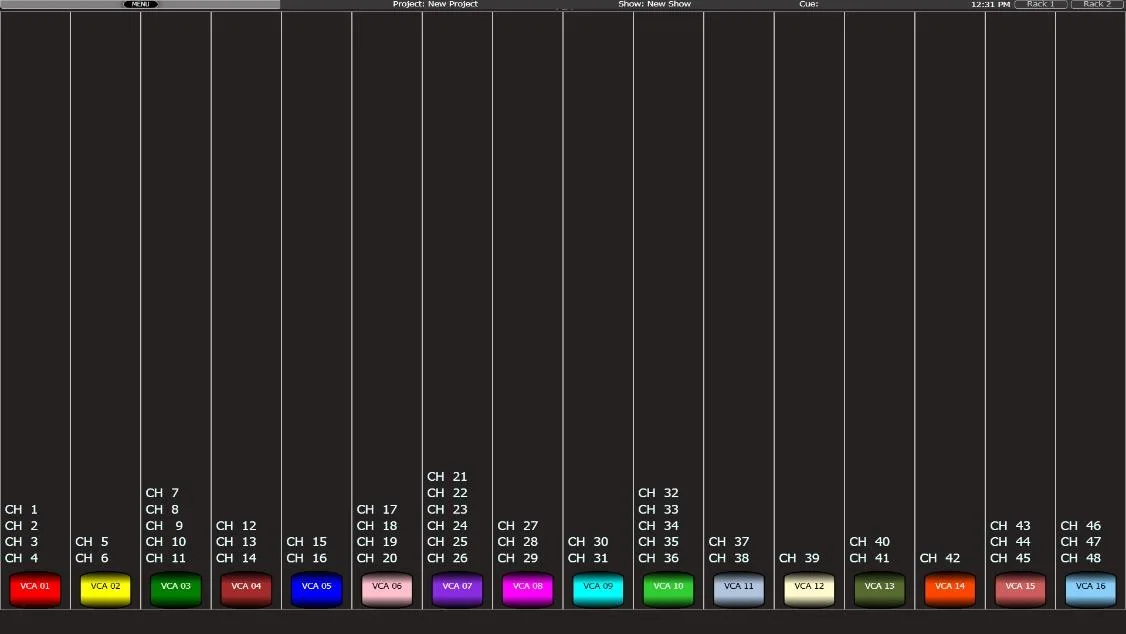

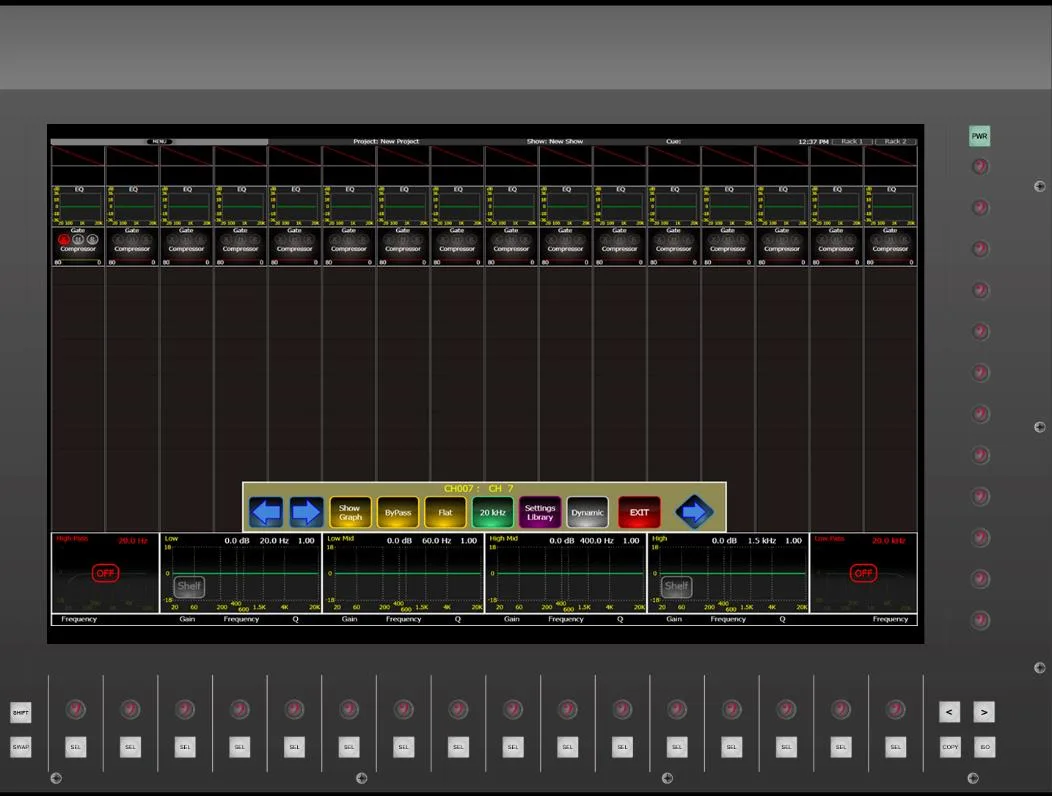

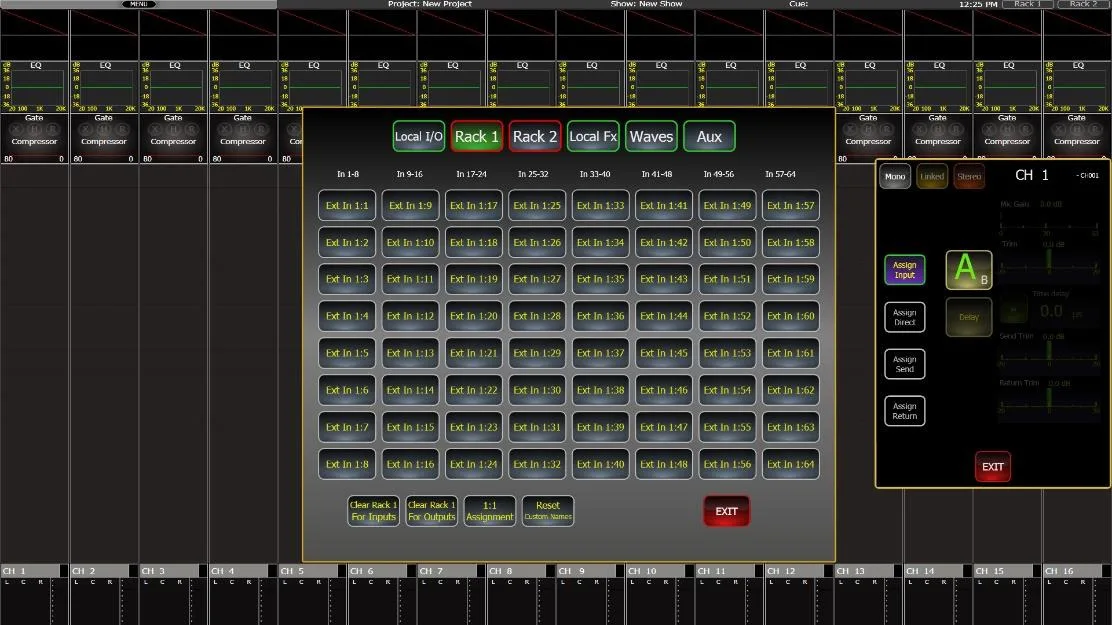

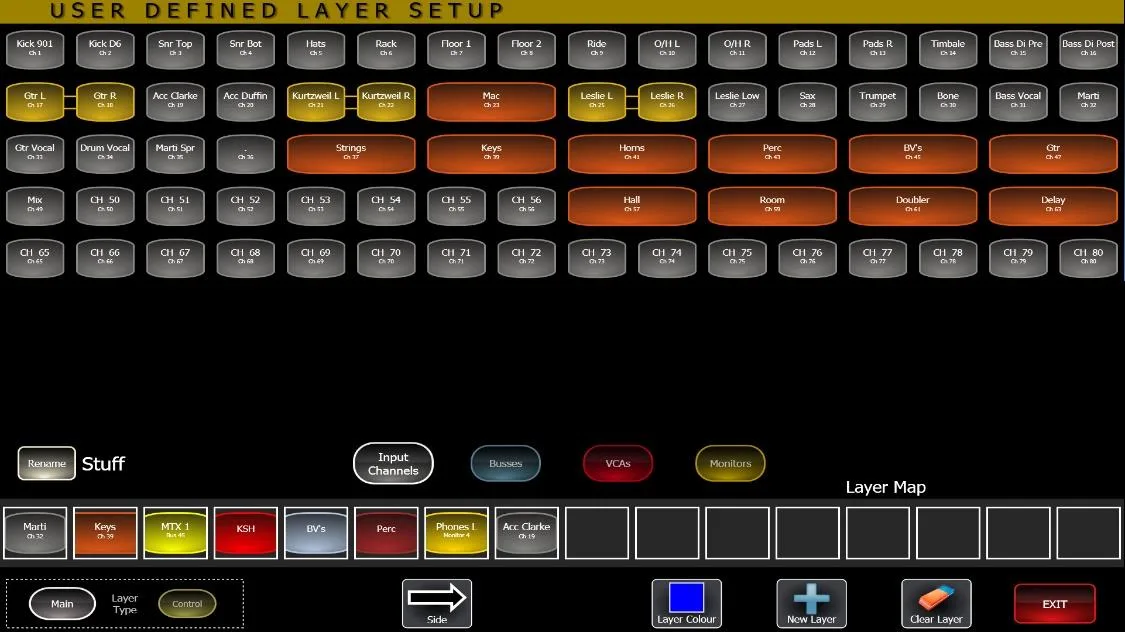

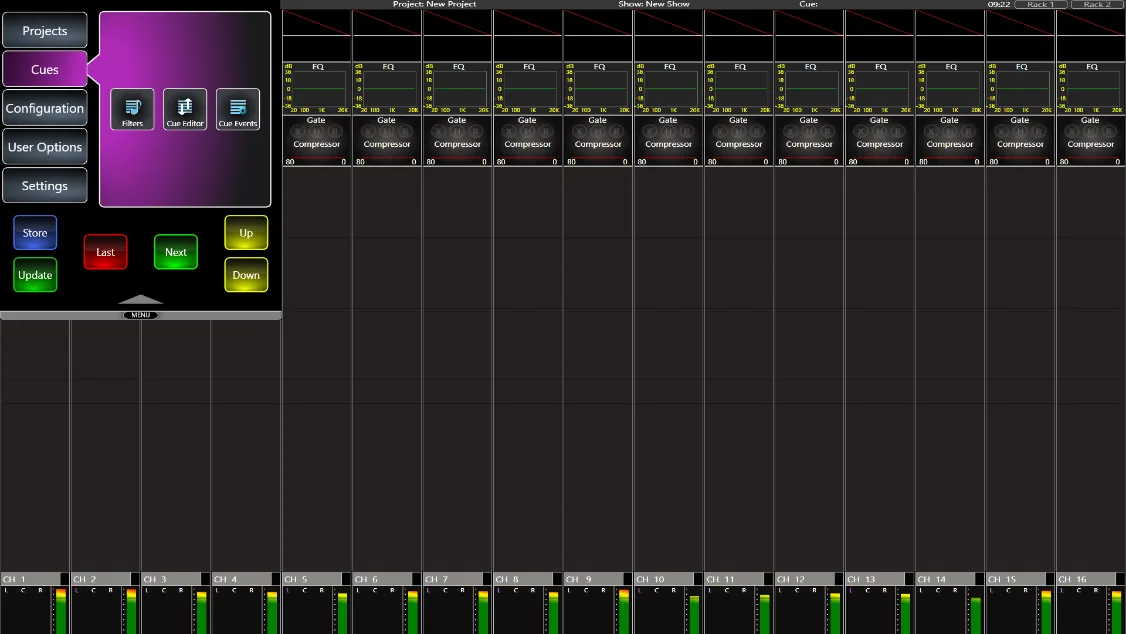

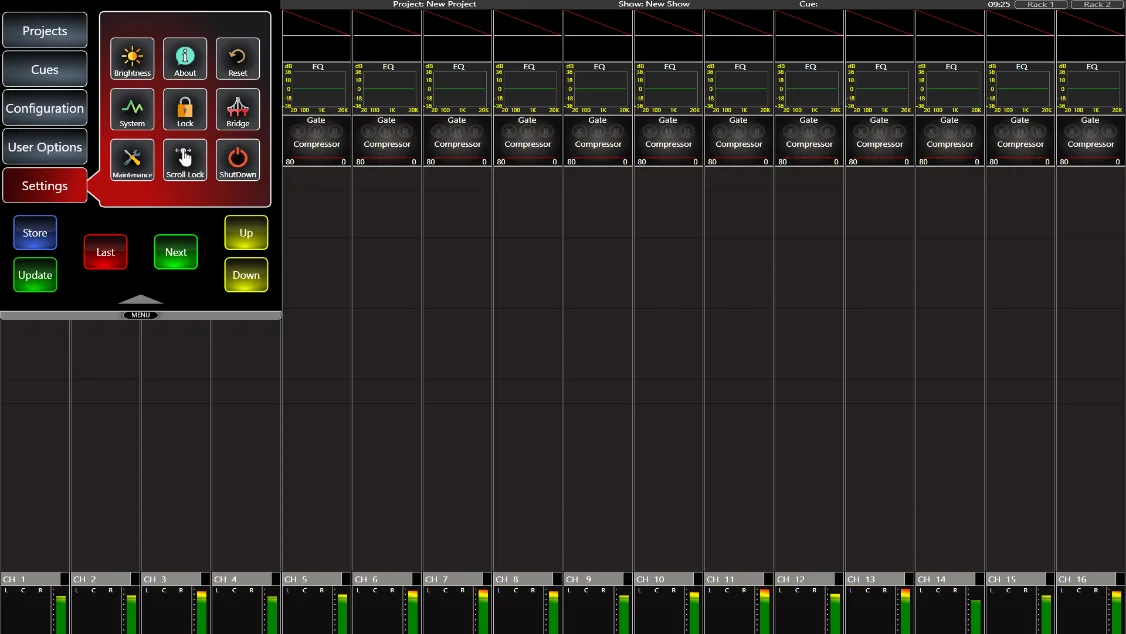

Software

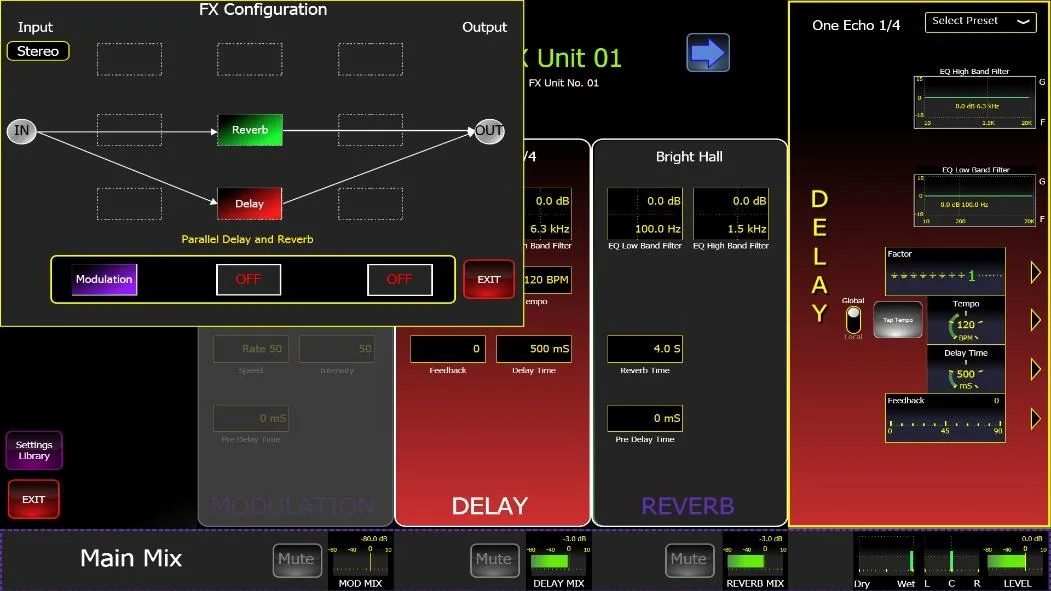

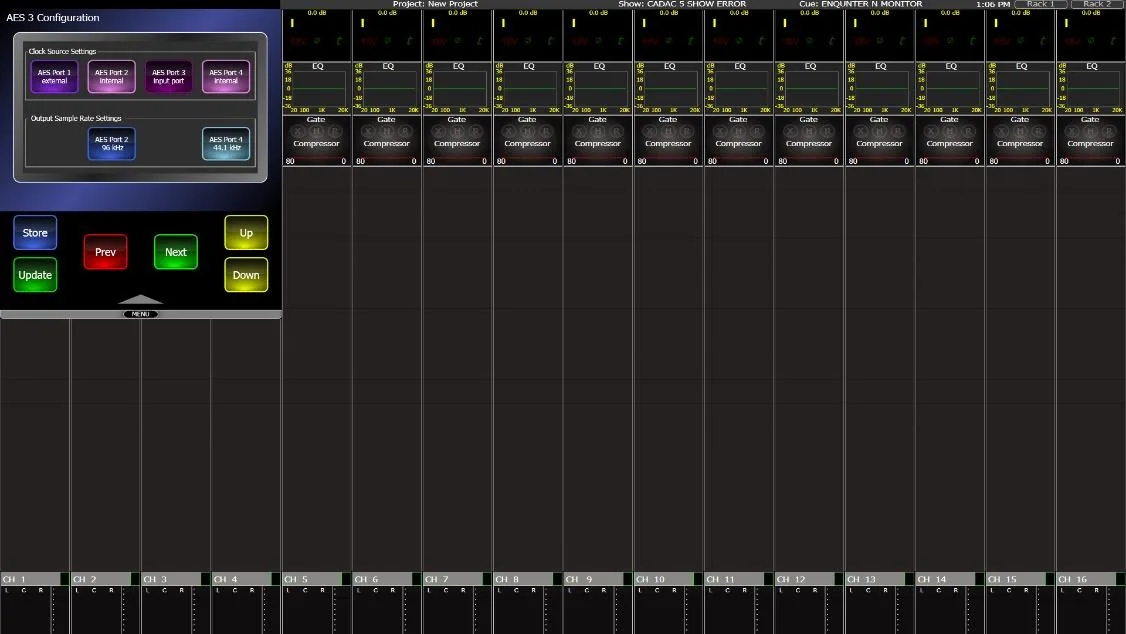

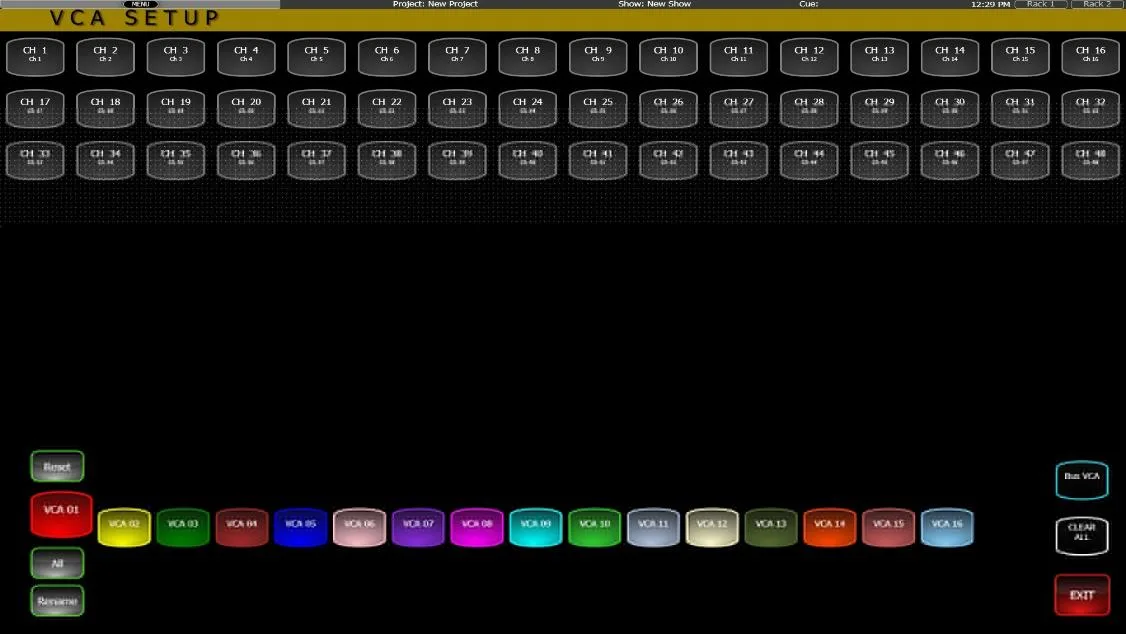

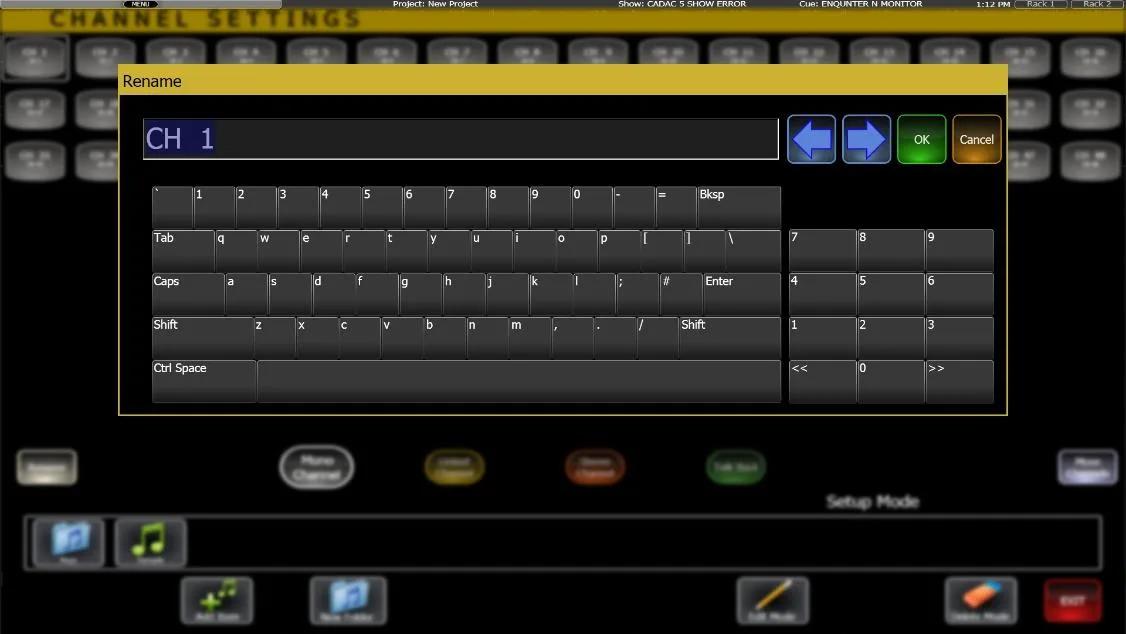

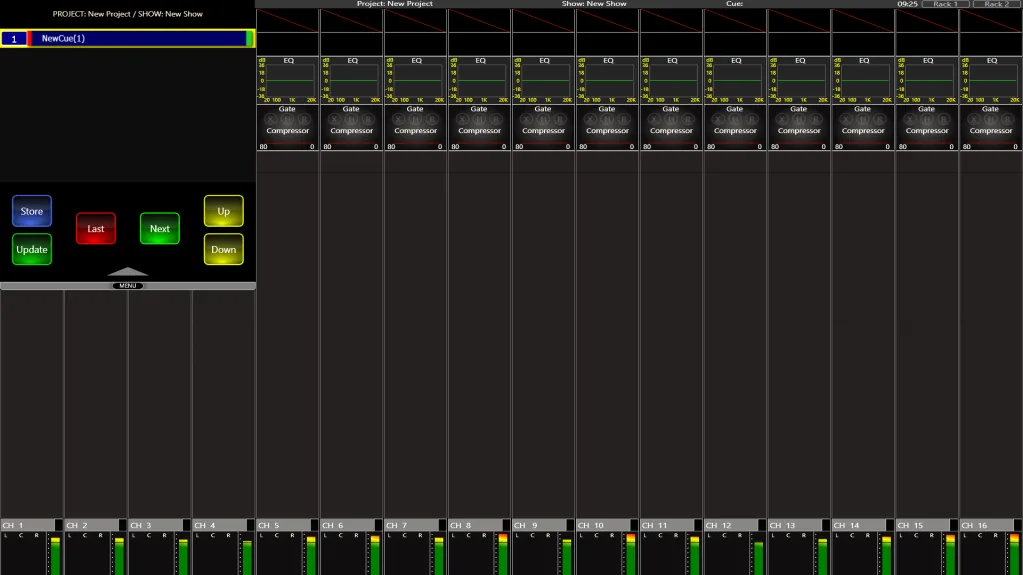

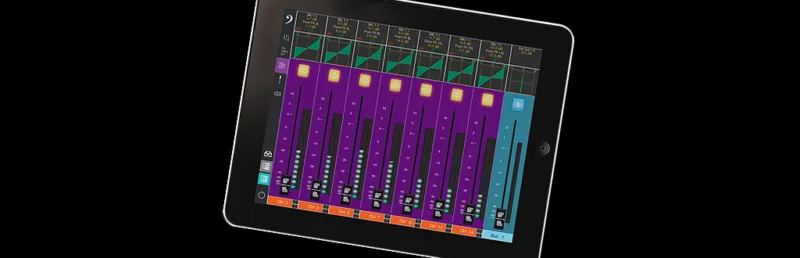

Other screenshots
Editorial & artists
Our take
History & design
The CDC five is a digital mixing console introduced by Cadac in 2018 to mark the company's golden anniversary (Prolight + Sound). It is the most compact and affordable model in the touchscreen CDC range.

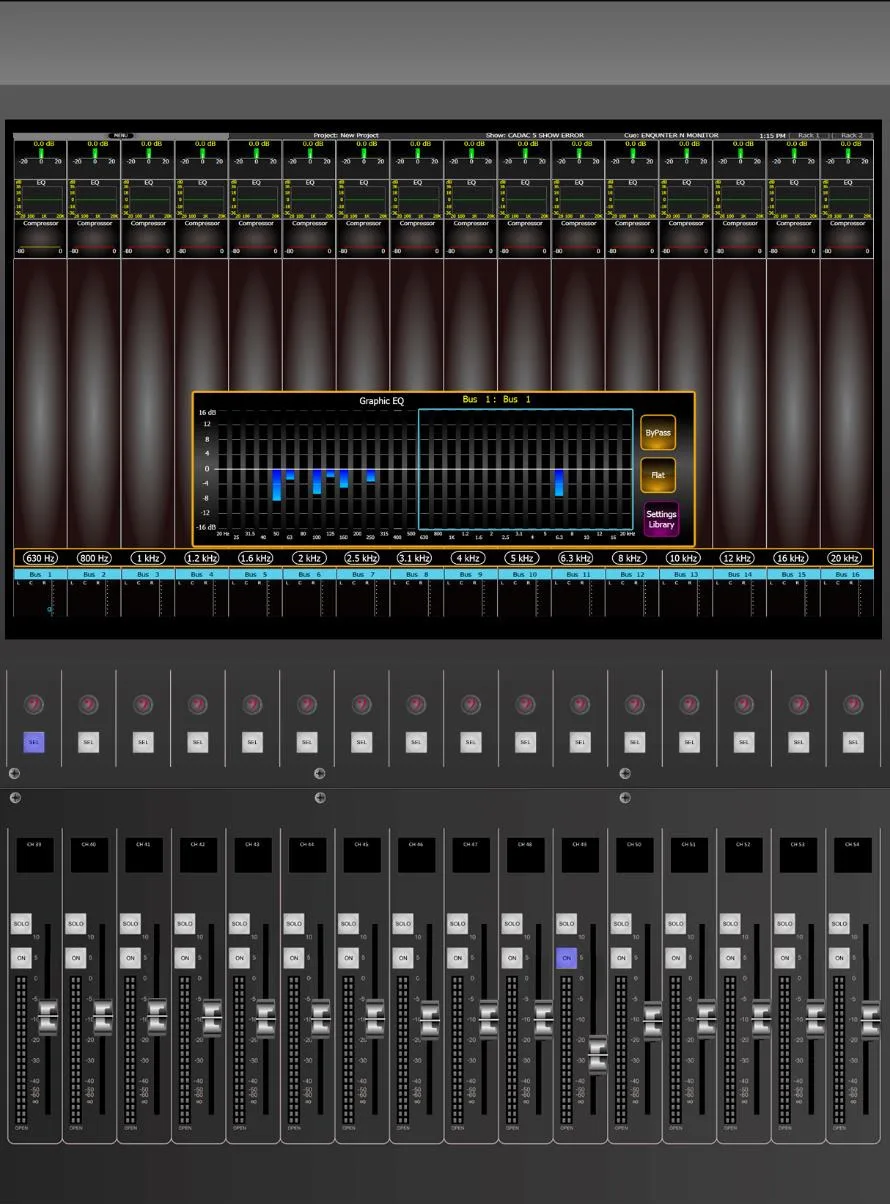

The surface pairs 16 motorised faders and dual banks of assignable buttons (40 total) with a single 23.5-inch touchscreen running the CDC 'swipe' gesture interface shared across the series. The engine runs at 24-bit / 96 kHz and offers up to 48 inputs and 24 assignable buses (plus LCR and monitors) in front-of-house mode, or 30 assignable buses in monitor mode.

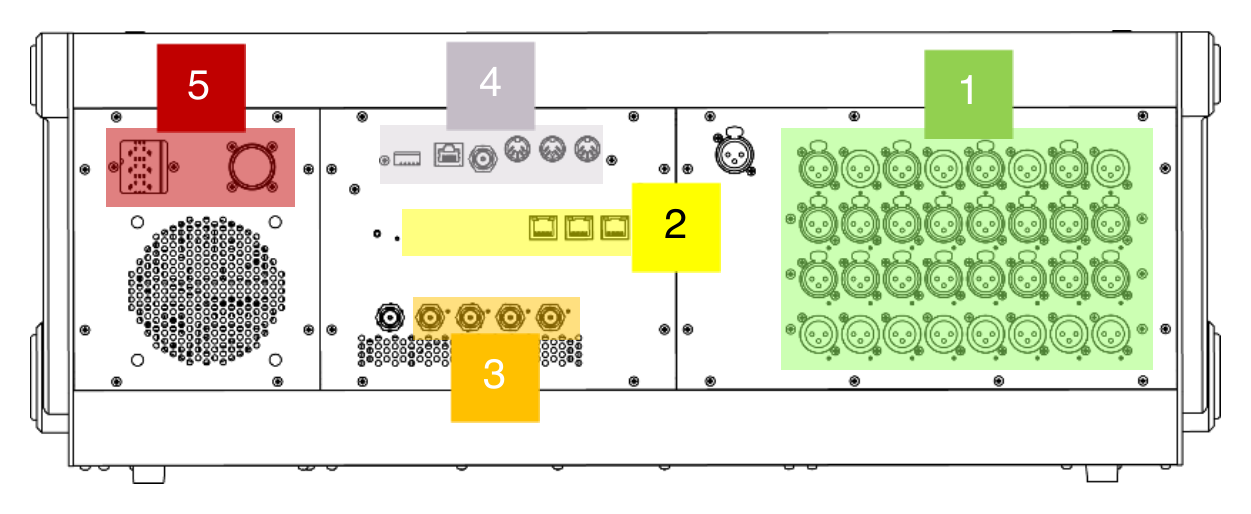

The rear panel provides 16 analogue inputs, 8 analogue outputs, 8 digital I/O and an integrated 64×64 Waves card. Two MegaCOMMS ports — Cadac's proprietary audio network — allow the console to be expanded with remote interfaces and processors. The internal PSU can be backed up by an optional redundant external supply (PSU 4800).
