Cadac CDC seven
Cadac's large-format touring desk: dual 23.5-inch screens, 96 channels at 96 kHz and the house sound
Description
Technical
Specifications
Processing
| Channel processing | 96 fully-processed channels: gate, compressor, 6-band EQ per channel |
|---|---|
| Buses | 56 buses (48 fully configurable) + dedicated LCR, monitor and cue buses |
| Bit depth | 96 kHz / 24-bit |
| Effects and plug-ins | 16 onboard stereo effects, factory-integrated Waves SoundGrid 64 x 64 interface |
Surface
| Motorized faders | Yes |
|---|---|
| Touchscreen | No |
| Faders | 36 motorised faders, stereo metering and user-definable colour OLED per fader |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | Network / SoundGrid / MADI / Dante |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |

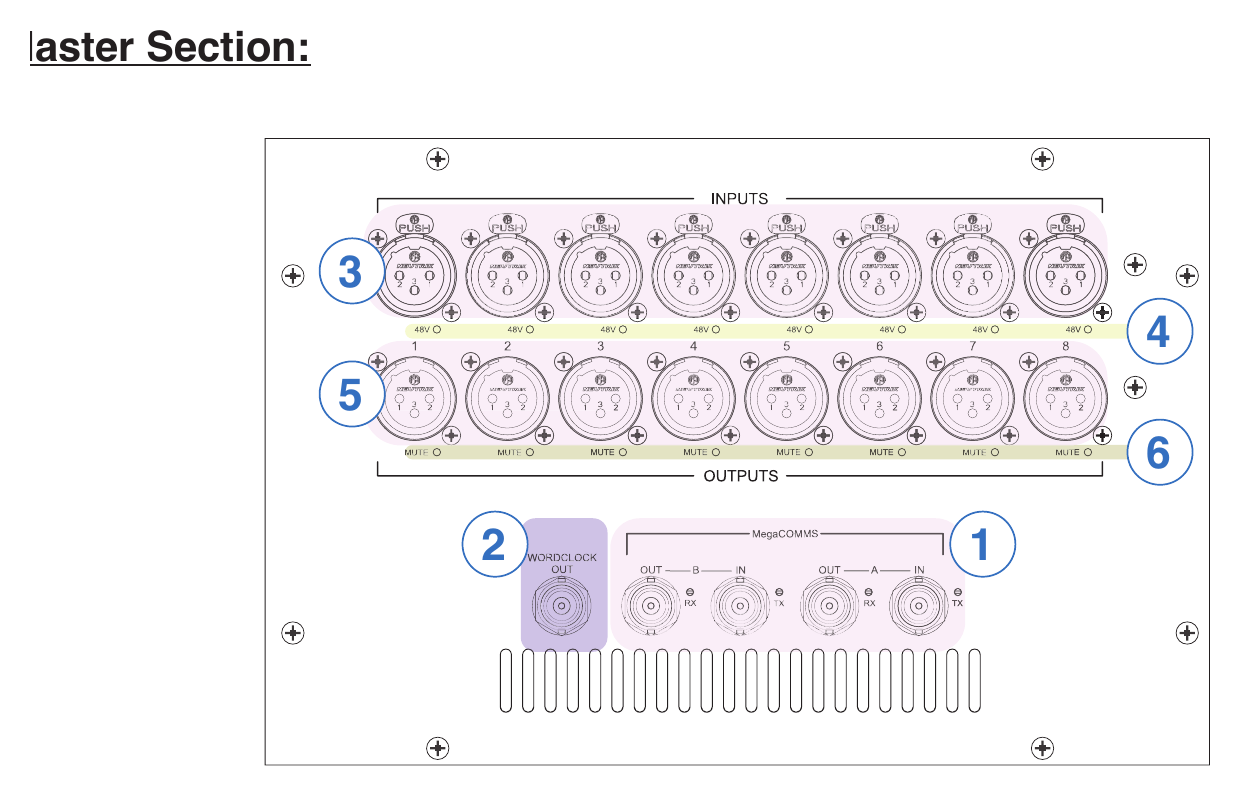

| Audio networking | Proprietary low-latency MegaCOMMS audio network, MADI I/O |

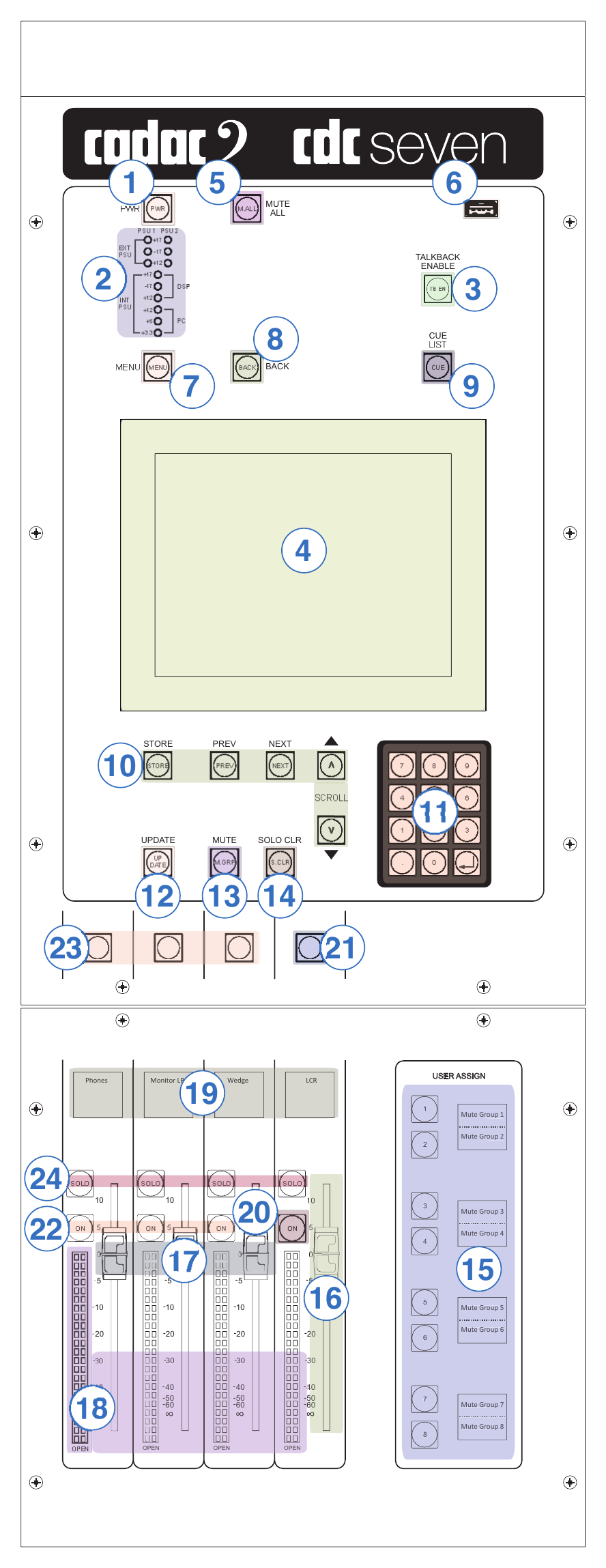

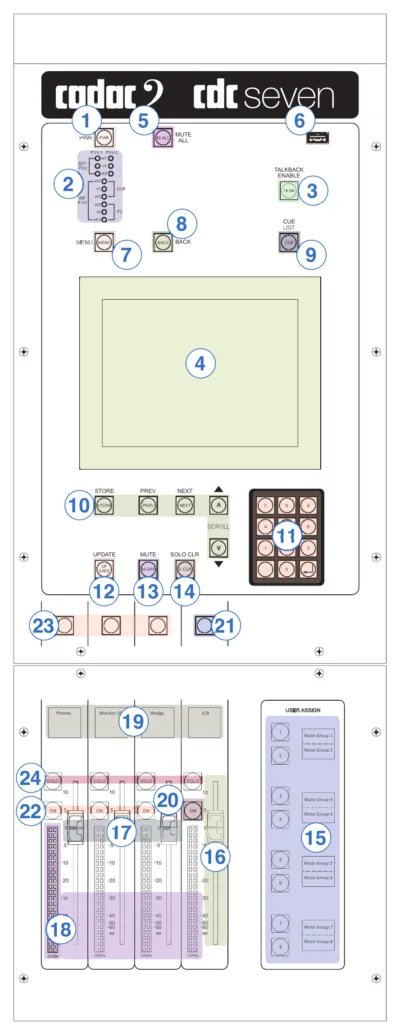

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.

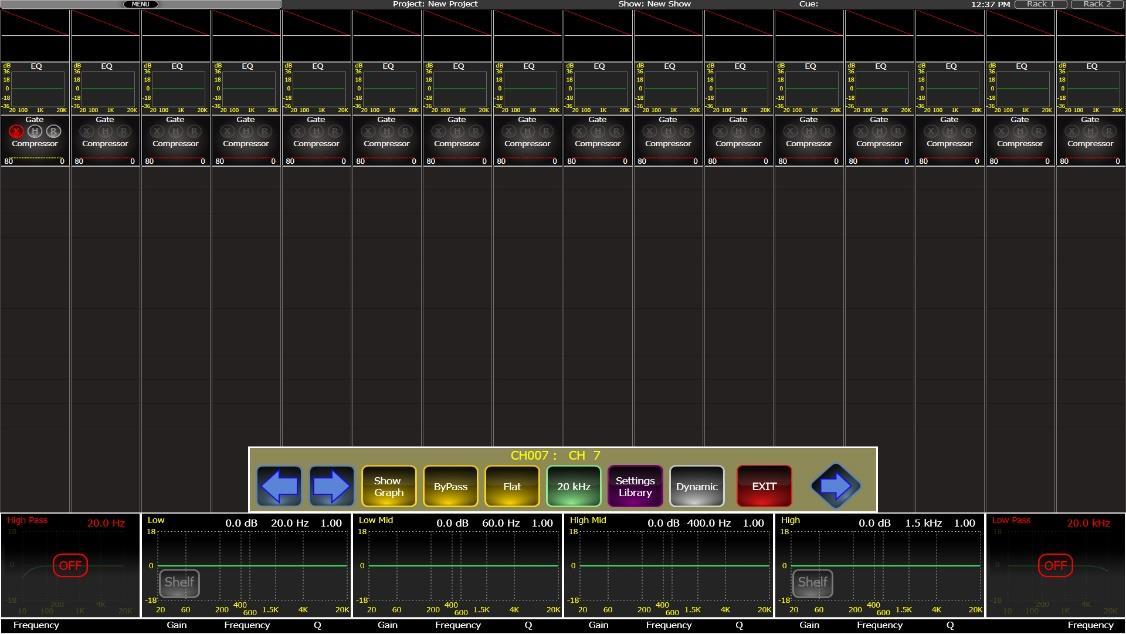

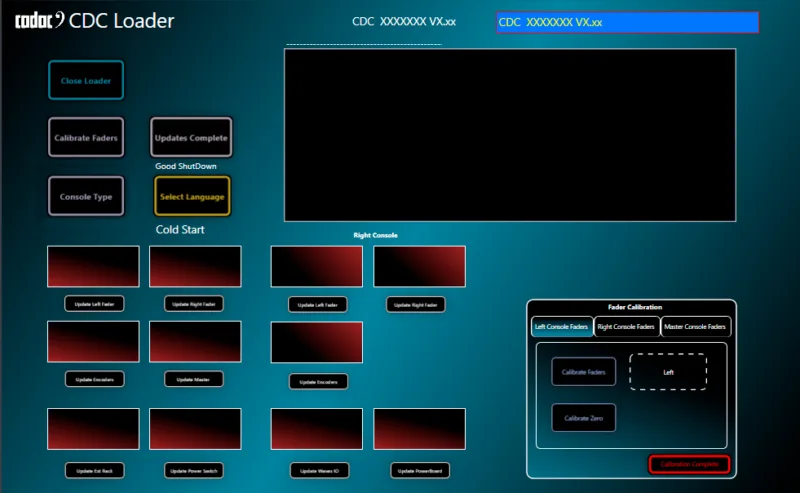

Software

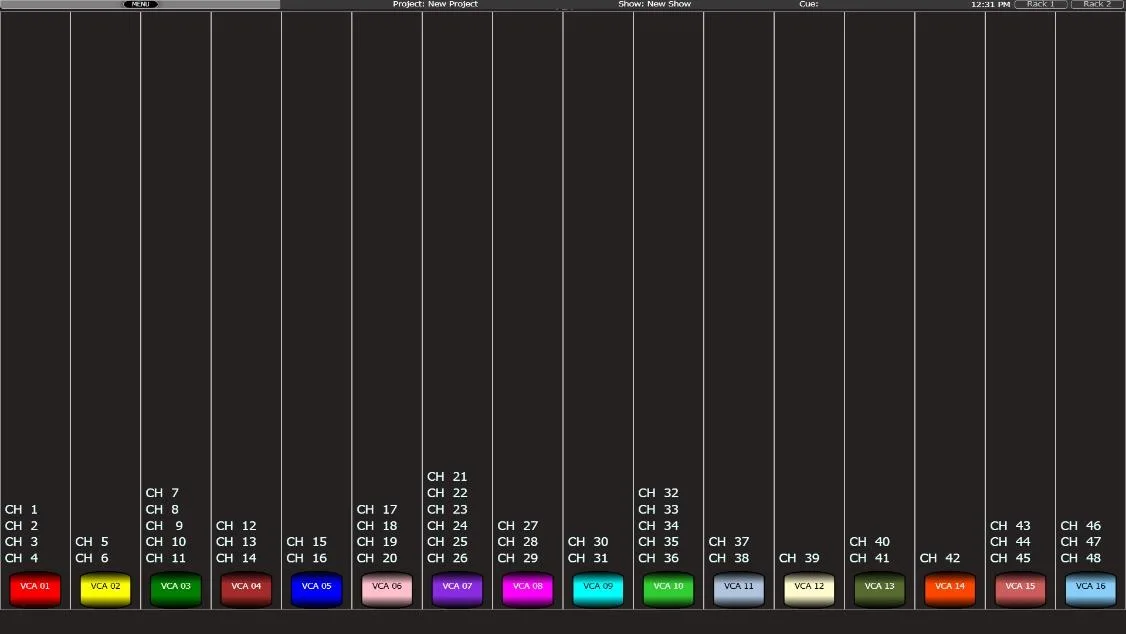

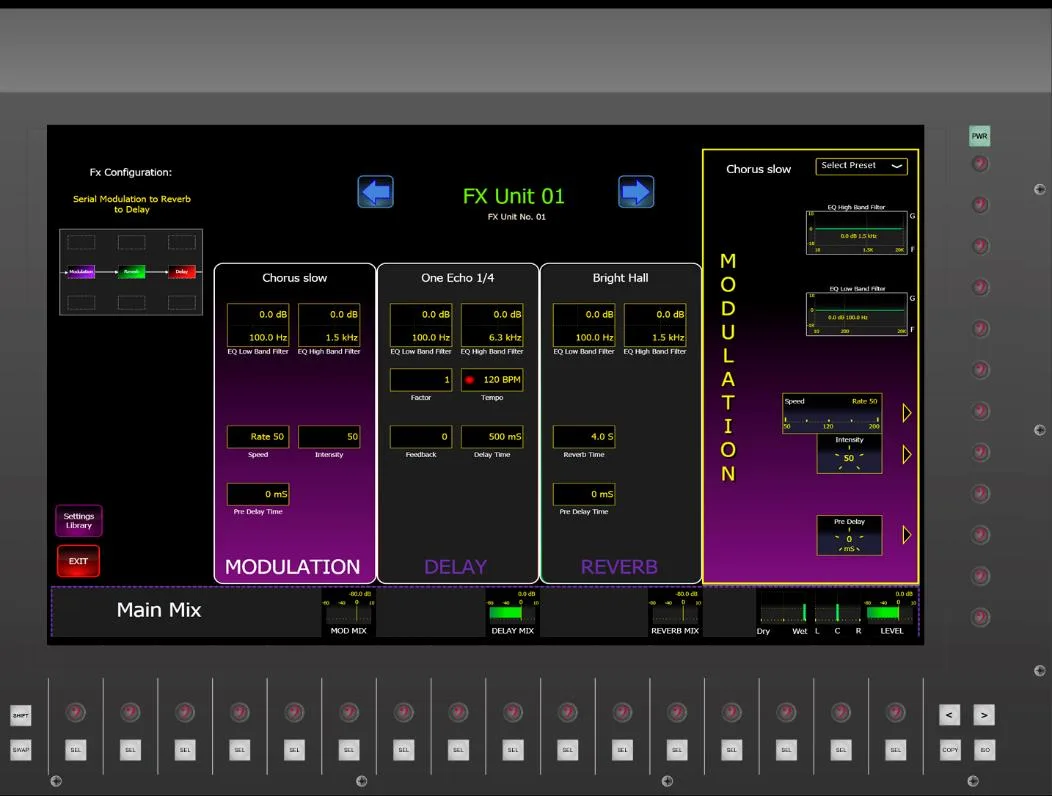

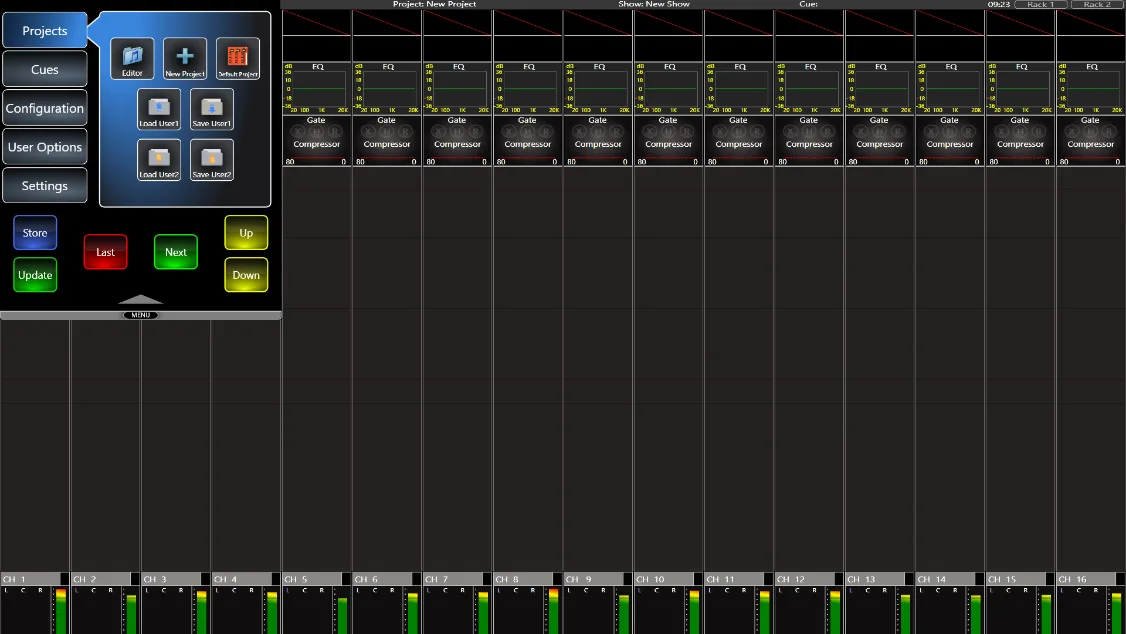

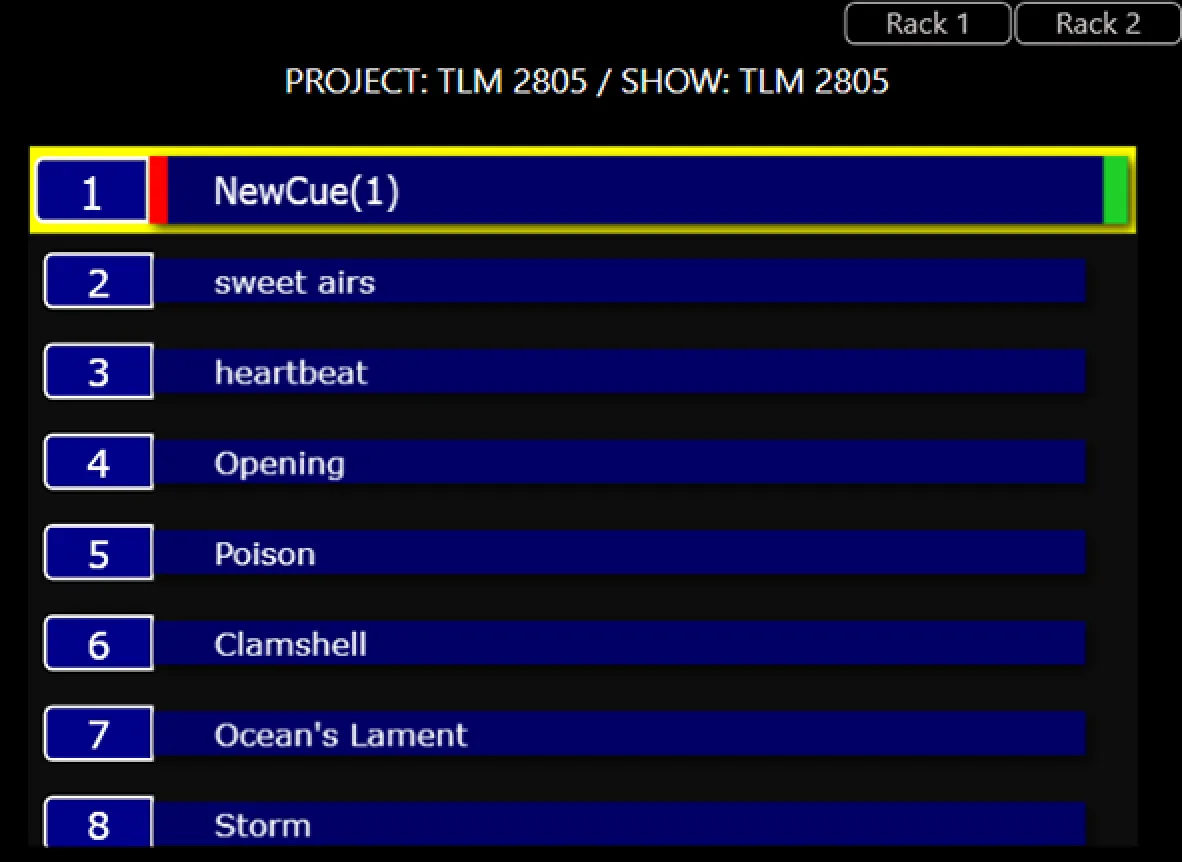

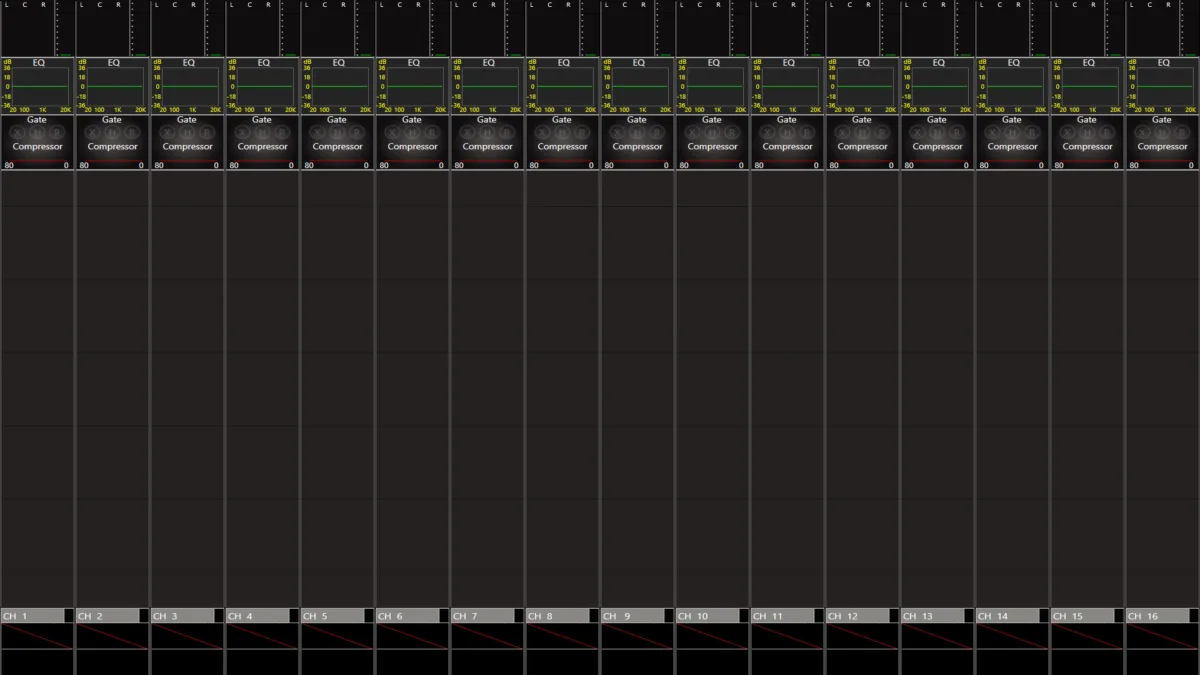

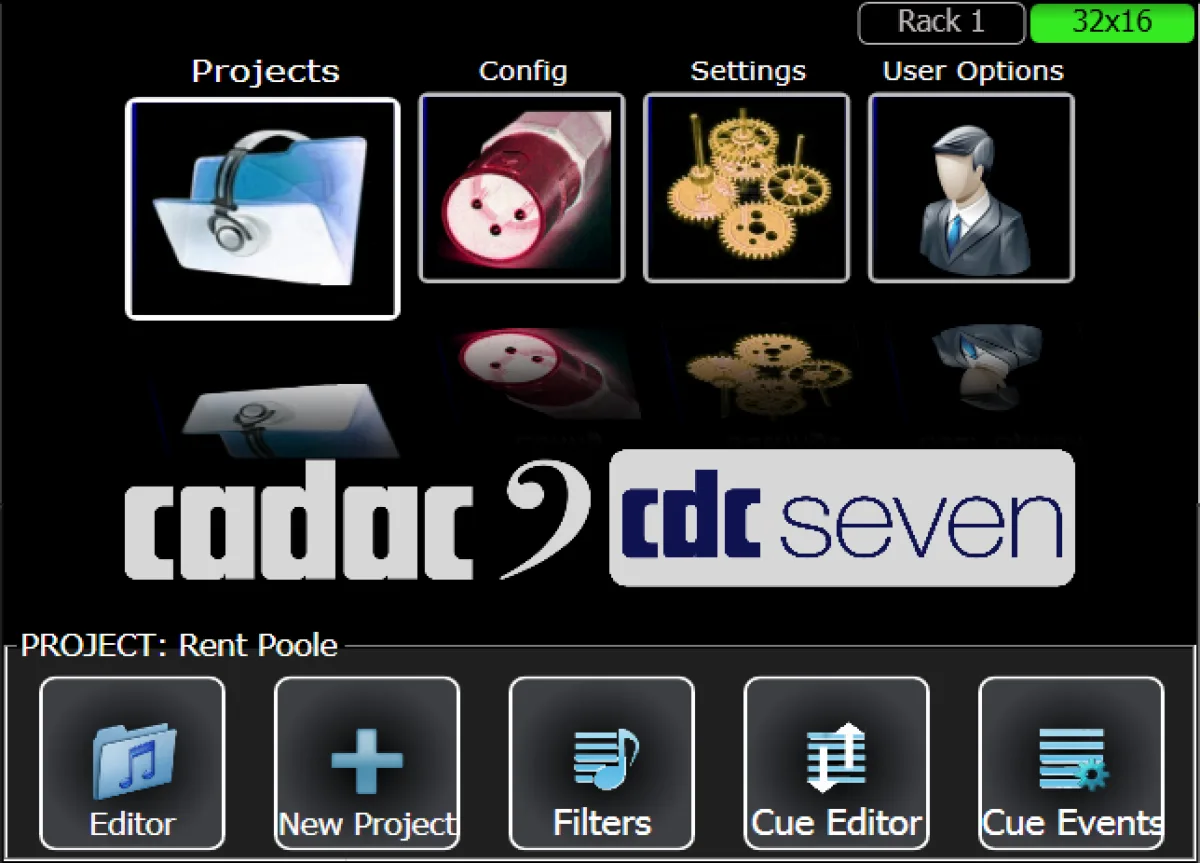

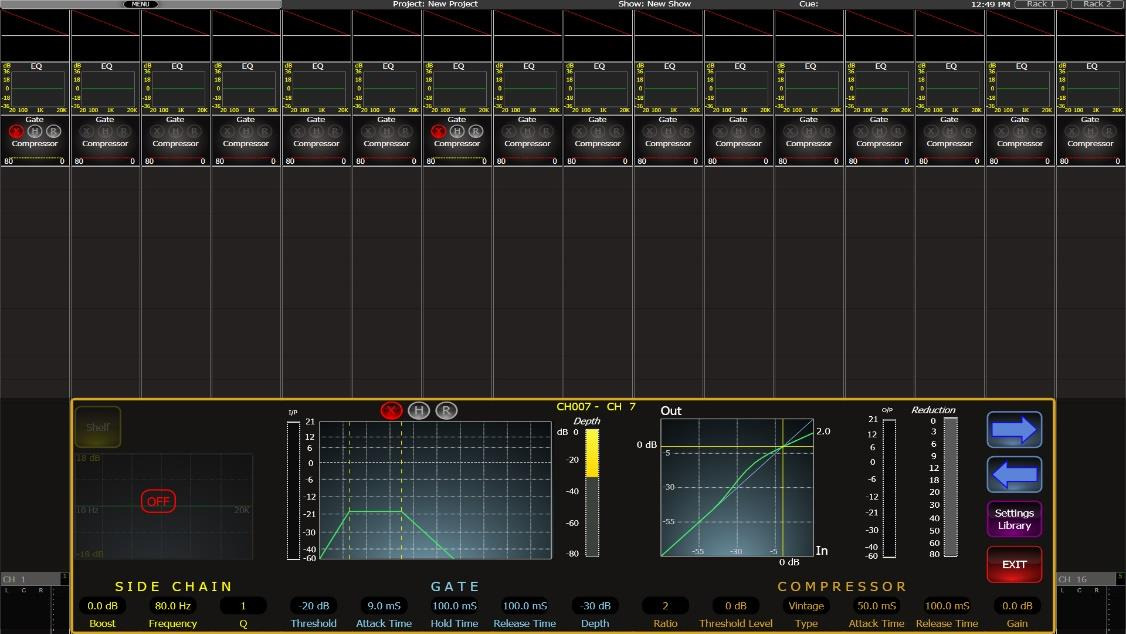

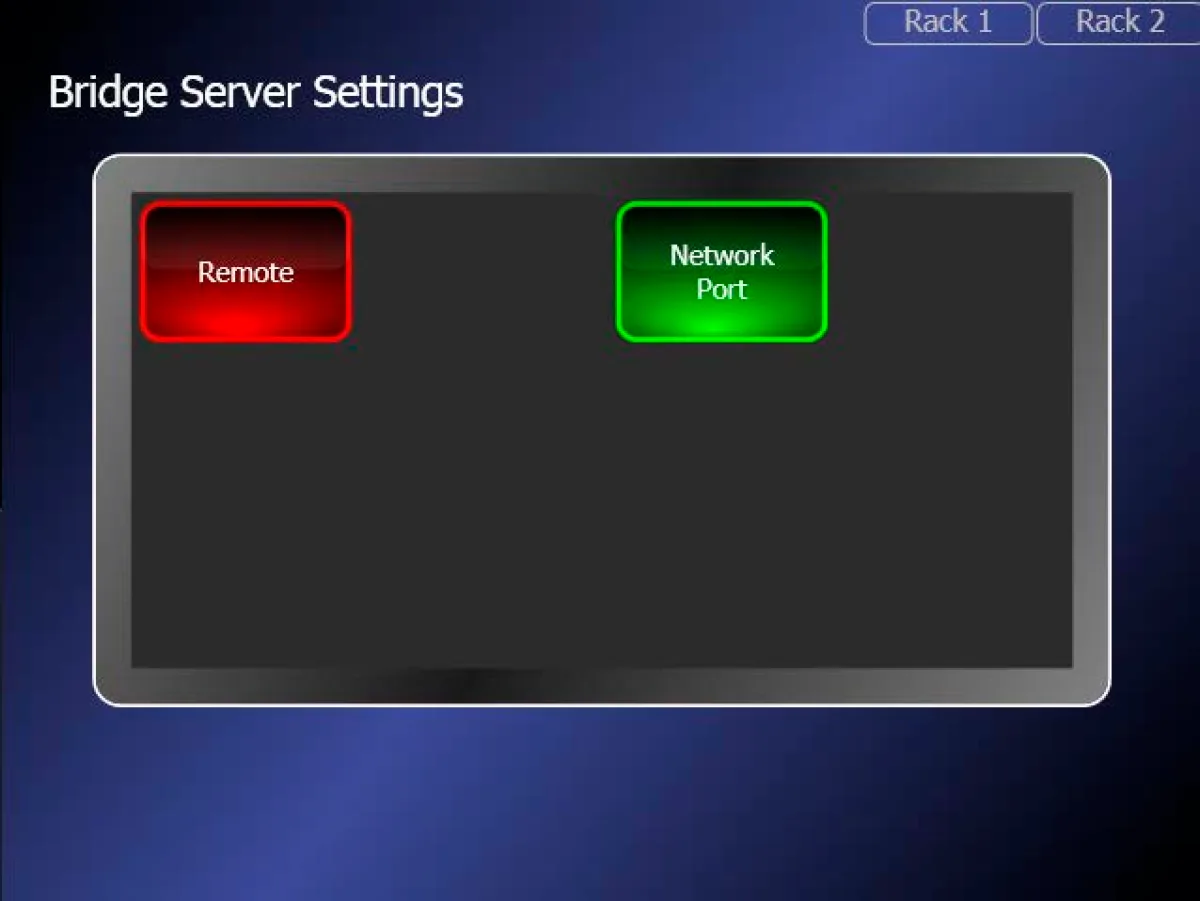

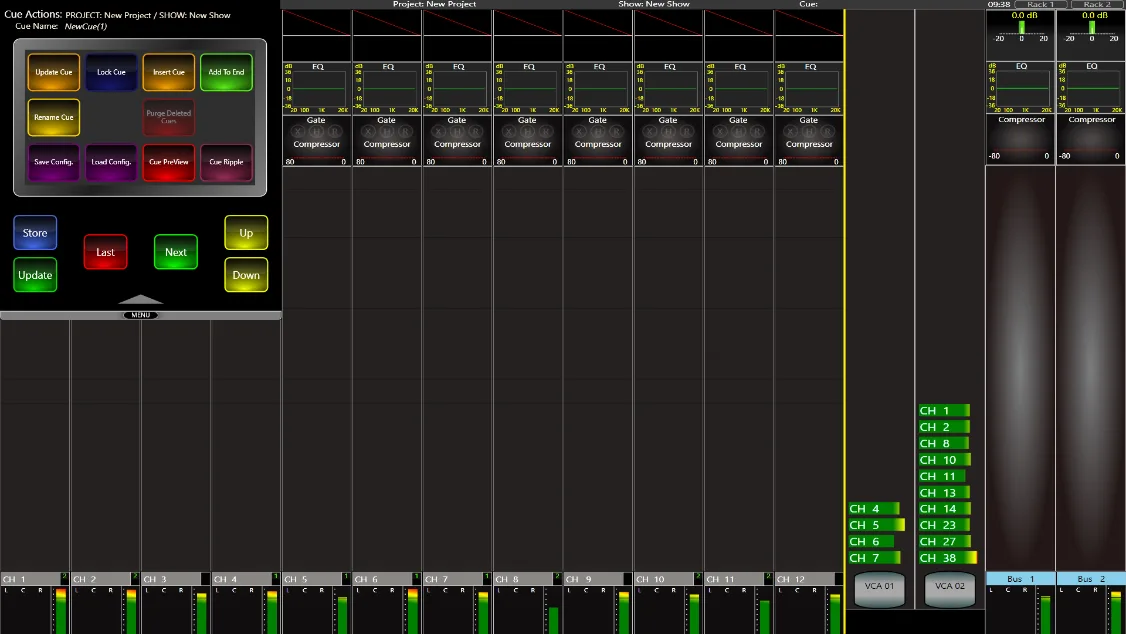

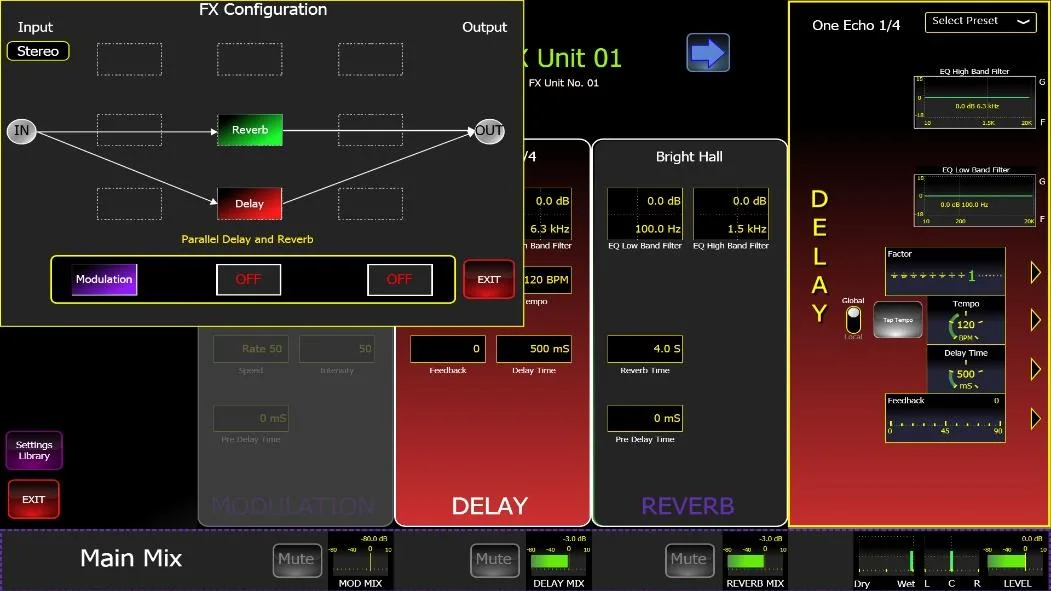

Other screenshots
Editorial & artists
Our take
History & design
The Cadac CDC seven is the large-format model of British maker Cadac's CDC digital console range, shown at AES in Los Angeles in September 2016. It offers 96 fully-processed channels (gate, compressor, 6-band EQ per channel), 56 buses of which 48 are fully configurable, plus dedicated LCR, monitor and cue buses, all at 96 kHz / 24-bit.

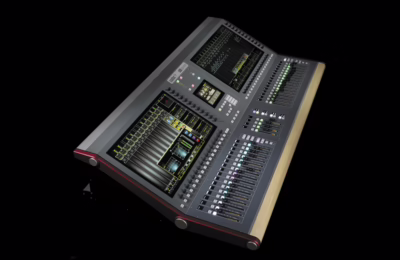

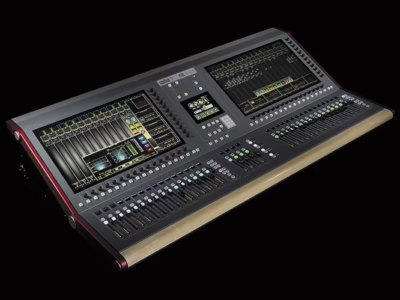

The surface features 36 motorised faders, each with stereo metering and a user-definable colour OLED display, and two 23.5-inch 16:9 touchscreens. The console carries 16 onboard stereo effects and an integrated Waves SoundGrid 64 x 64 interface. Like the whole CDC range, it links to its stageboxes over the proprietary low-latency MegaCOMMS audio network.
The CDC seven sits at the top of the range alongside the CDC eight, above the more compact CDC six and CDC five/four; its show files are shared across the CDC range.
Links
- Manufacturer Cadac - official website cadac-sound.com
- Press article First Impression - Church Production Magazine churchproduction.com
- Press article audioXpress - European debut of CDC seven (Prolight+Sound 2017) audioxpress.com
- Press article CDC seven launch at AES - Light Sound Journal (2016) lightsoundjournal.com
