Description
Technical
Specifications
Inputs / Outputs
| Total inputs | 8 |
|---|---|
| Mic inputs | 4 |
| Line inputs | 2 |
| Total outputs | 2 |
| Outputs | 2 analog stereo outputs (PGM and REC) + USB digital output |
| Mic preamps | 4-band voice-optimised EQ + audio compressor on the mic channels |
Processing
| Mix buses | 2 |
|---|---|
| Matrices | 0 |
| DCA/VCA groups | 0 |
| DSP engine | Onboard digital processing (4-band vocal EQ + compressor per microphone) |
| Channels | 4 mic inputs (48 V phantom), 2 balanced line inputs, 1 USB digital line, 2 telephone hybrids (one POTS and one cellular Bluetooth, conference mode) |
Surface
| Motorized faders | No |
|---|---|
| Fader layers | 1 |
| Screens | 0 |
| Touchscreen | No |
| Faders | Professional 100 mm faders using conductive-ceramic technology (stated 15-year life, 5-year warranty) |
| Monitoring and talkback | Full monitoring: separate speaker and headphone outputs for Studio/Control, muting logic and an on-air light (tally) output |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | USB / Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | AoIP option: studio interconnection over the Ethernet LAN, without dedicated shielded cabling |
Power
| Power supply | Switching power supply 90–240 V |
|---|
Other
| Applications | Compact 8-channel digital console for radio on-air and production |
|---|

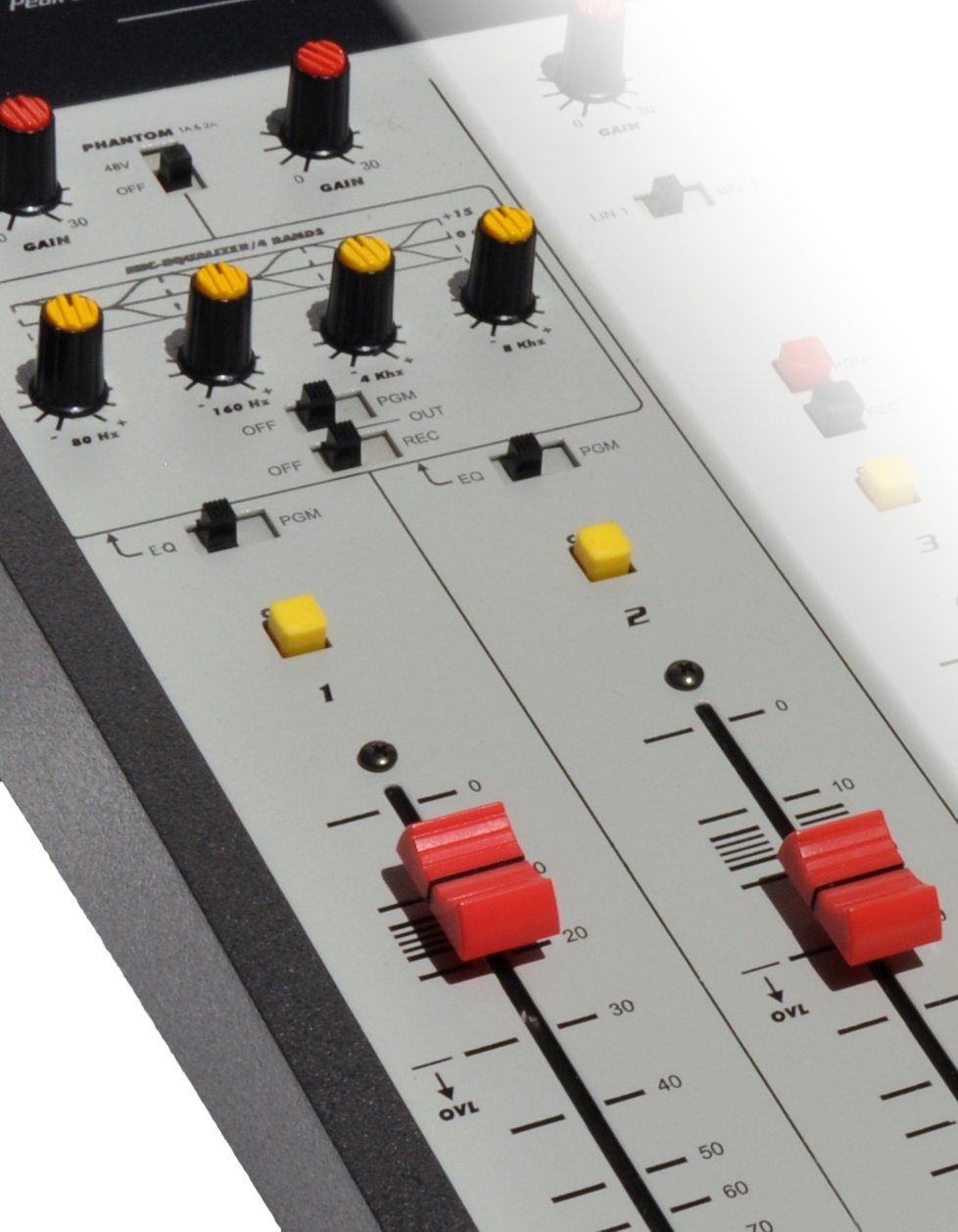

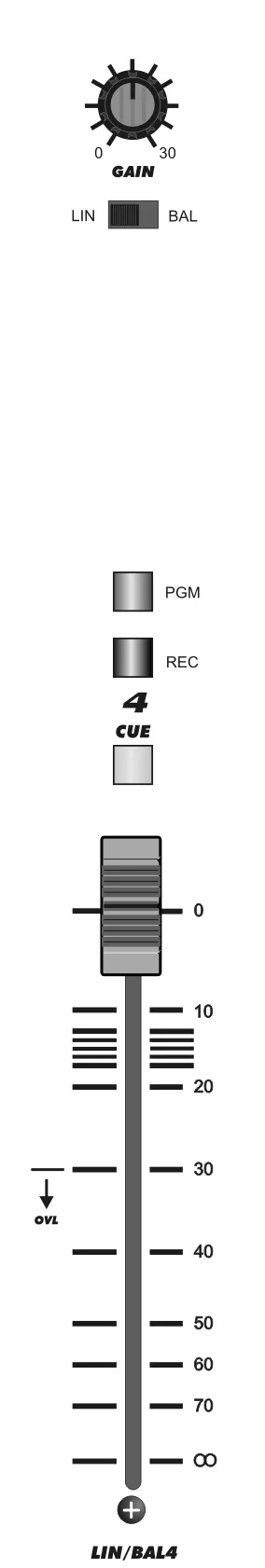

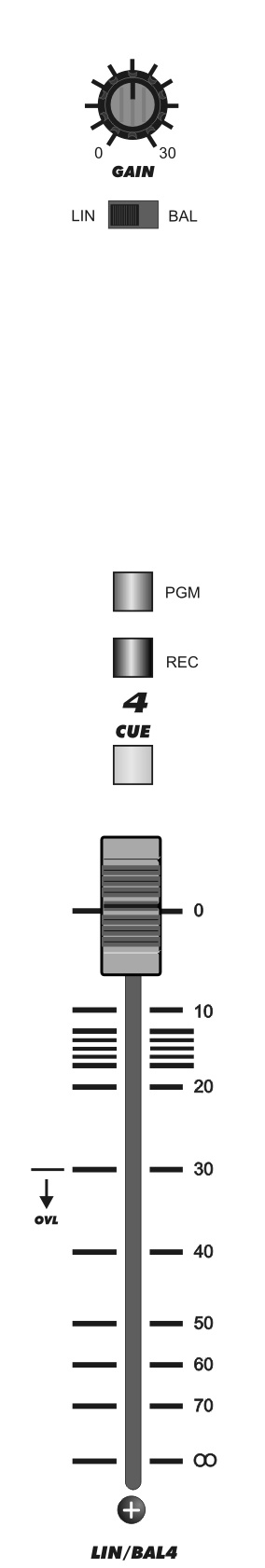

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Documents
Editorial & artists
Our take
History & design

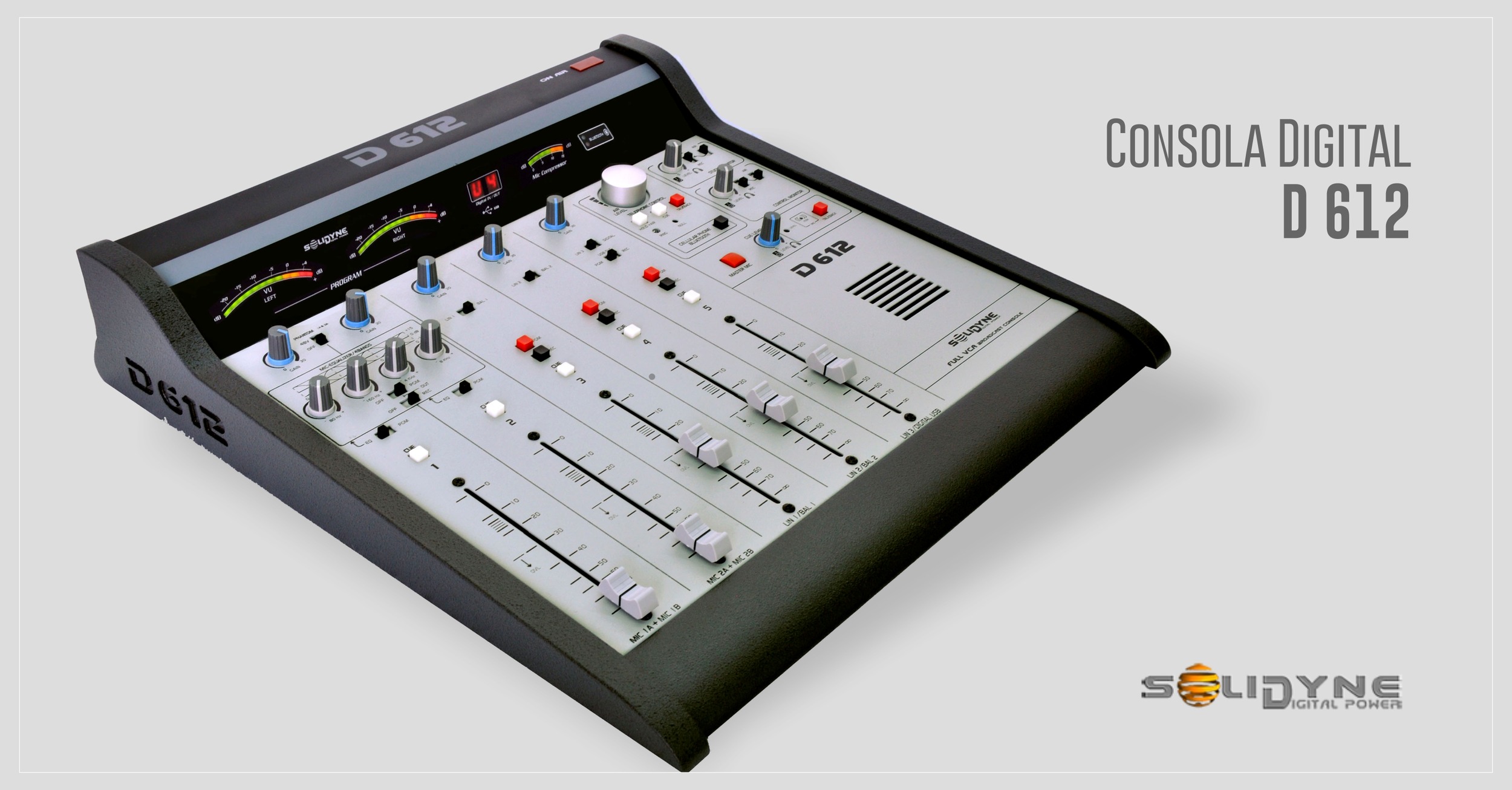

The Solidyne D612 is a compact 8-channel digital console for radio, designed for both on-air and production. It combines 4 mic inputs (48 V phantom), 2 balanced line inputs, a USB digital line and 2 telephone hybrids — one for the switched network, the other for a cellular phone over Bluetooth, with conference mode.
Each mic gets a 4-band voice-optimised EQ and a compressor. Outputs include two analog stereo buses (PGM and REC) and a USB digital output (the console appears as a sound card to the PC, for streaming or recording). Monitoring is comprehensive, with separate speaker and headphone outputs for studio and control, muting logic and an on-air light output. The 100 mm faders use a conductive-ceramic technology rated for fifteen years. An AoIP option interconnects studios over the Ethernet LAN, without running dedicated shielded audio cabling. The switching power supply accepts 90 to 240 V.
- Oscar Bonello — Founder and chief engineer of Solidyne
