Description
Technical
Specifications
Processing
| Max sample rate | 96 kHz |
|---|---|
| Bit depth | 24 bits |
| Processing resolution | 40 bits |
| Bit depth — details | 24-bit / 96 kHz, surround-capable |
| Processing engine | DF64 engine: DSP racks of 10 Analog Devices SHARC cards, floating-point; 1 to 4 DF64 engines per system |
| EQ | 4-band parametric EQ per channel + 20 Hz-20 kHz high/low/band-pass filters |
Surface
| Touchscreen | No |
|---|---|

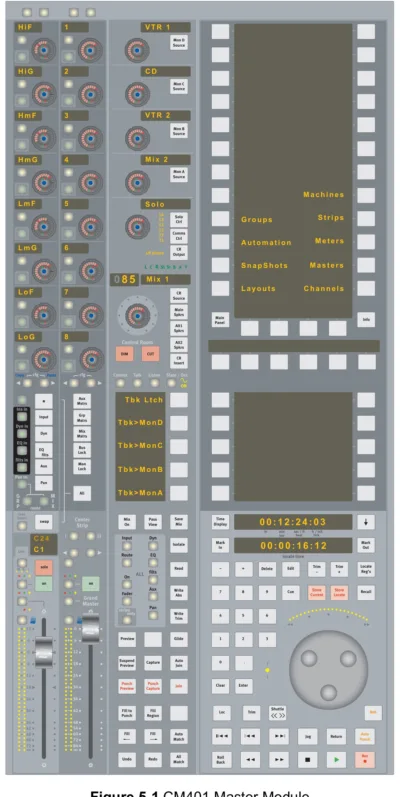

| Control surface | Assignable surface, 8 rotary 'Phat' encoders per channel (built-in position LEDs), assignable (pan, EQ, dynamics...) |
Recording
| Onboard recording | No |
|---|
Networking

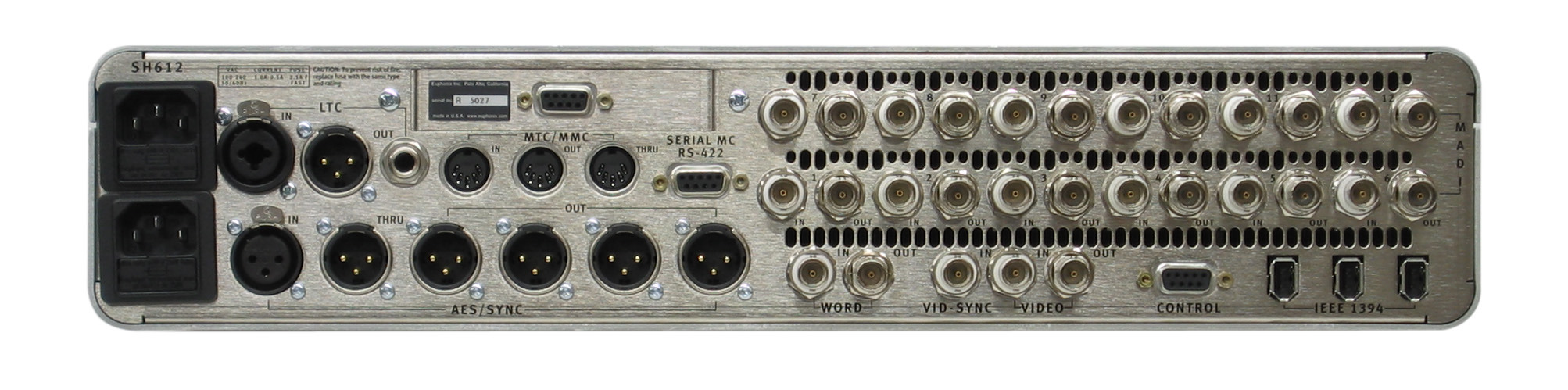

| Networking & protocols | MADI / AES/EBU |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Other
| Applications | Large-scale film production, on-air broadcast, post-production, music |
|---|

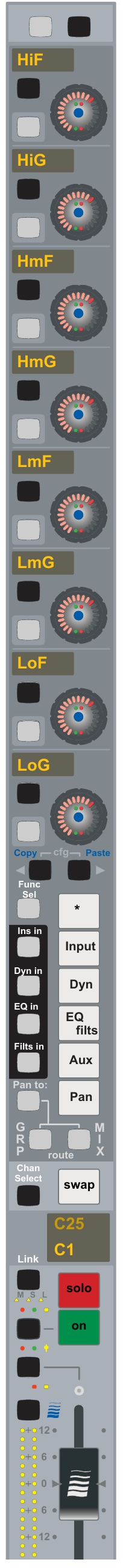

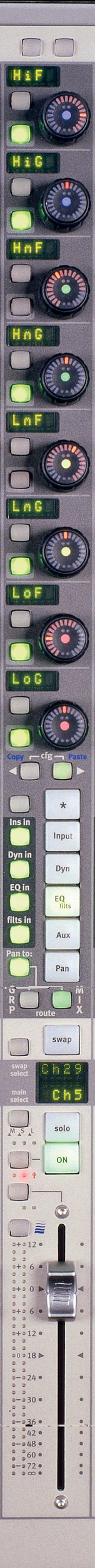

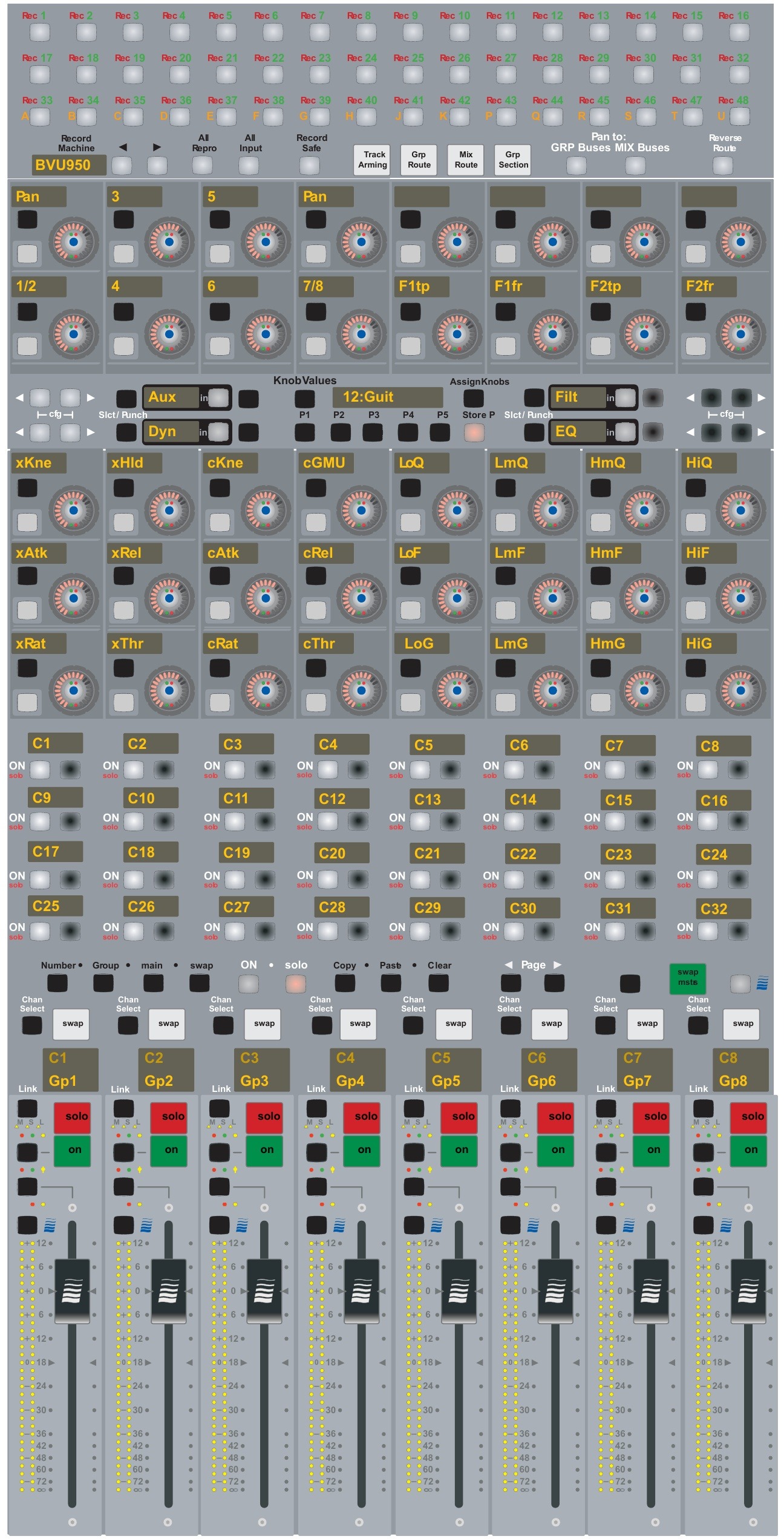

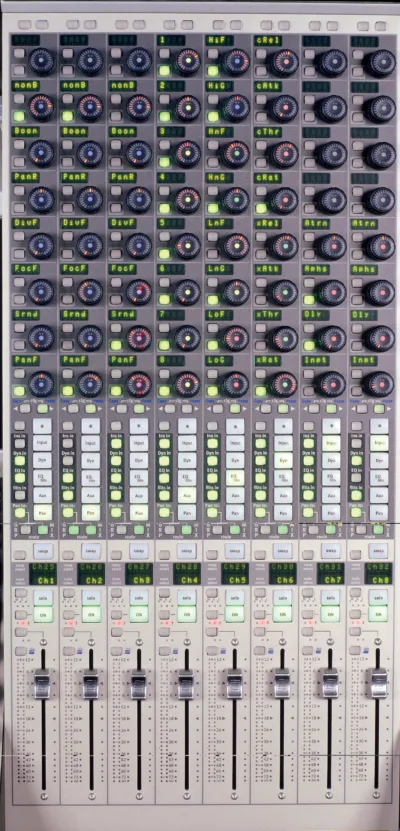

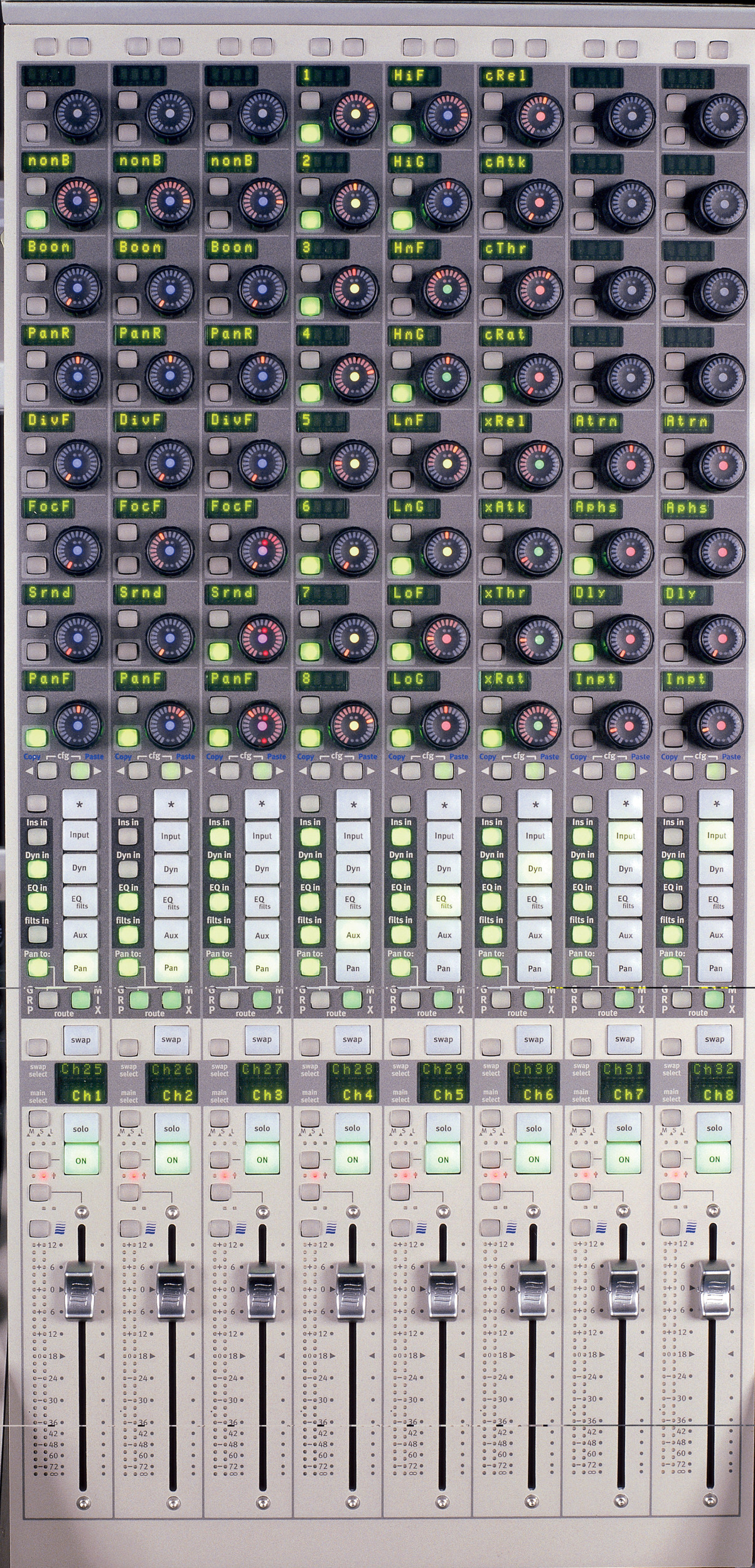

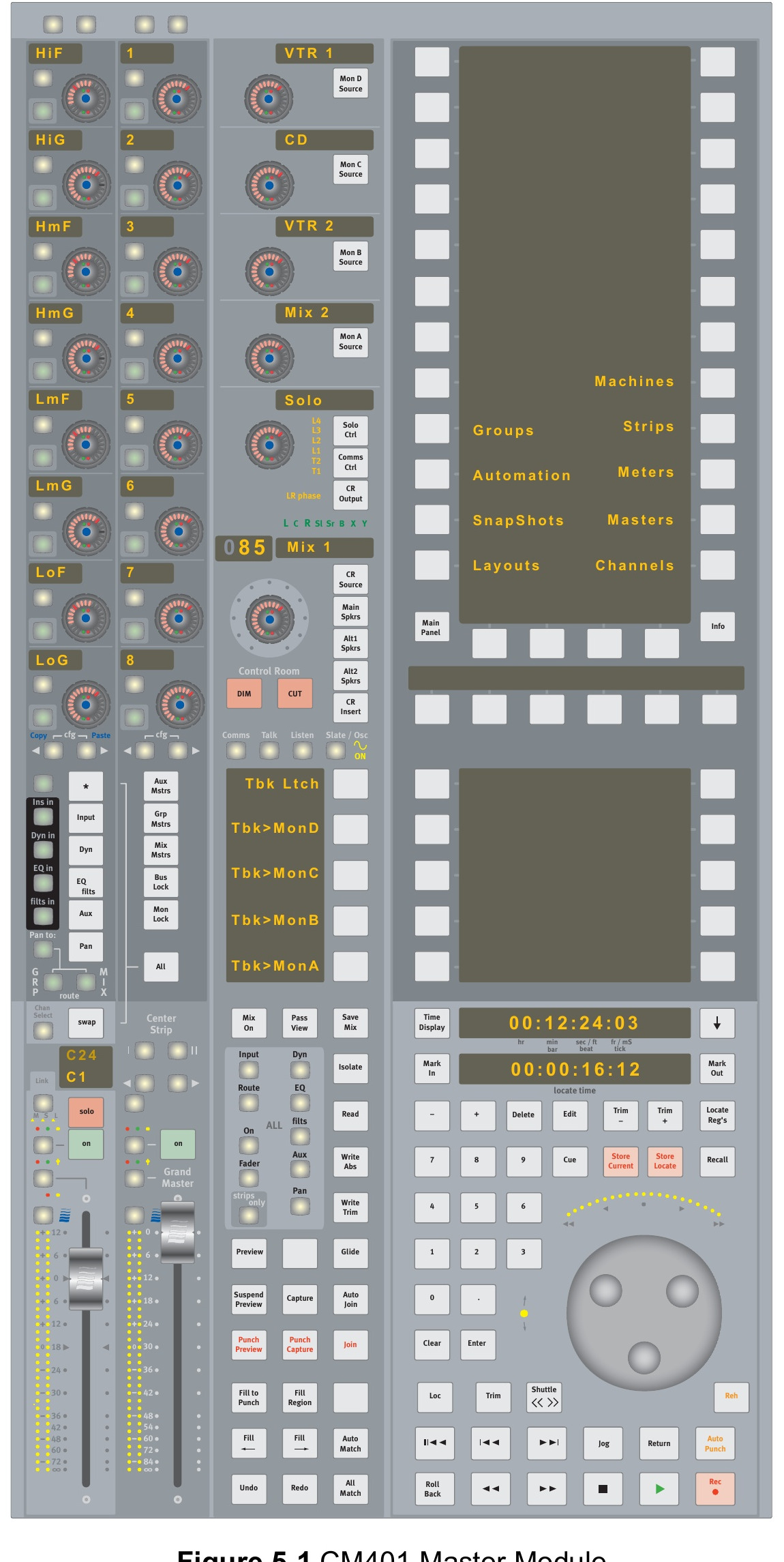

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.

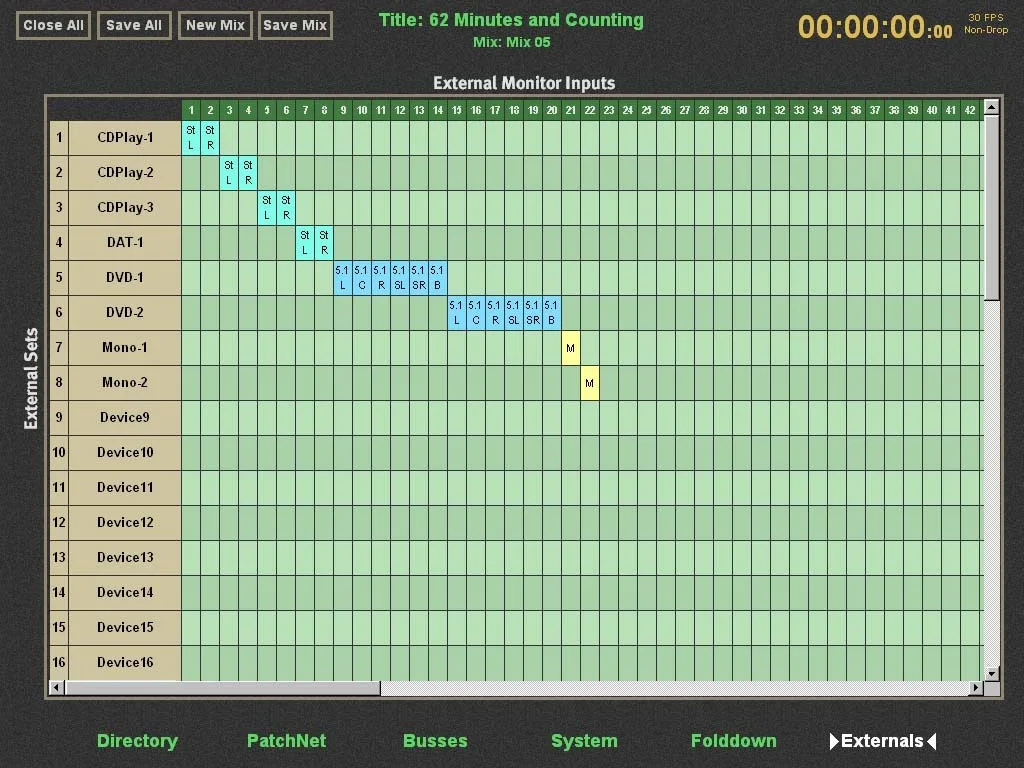

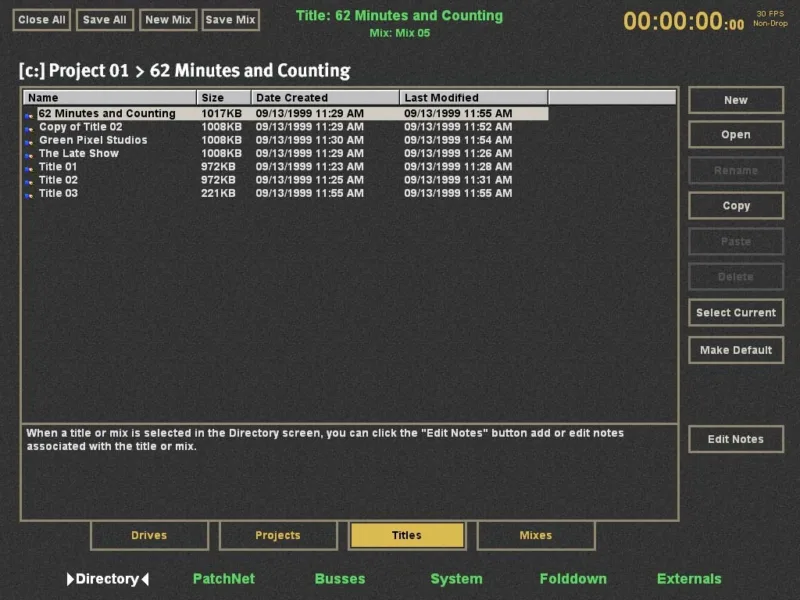

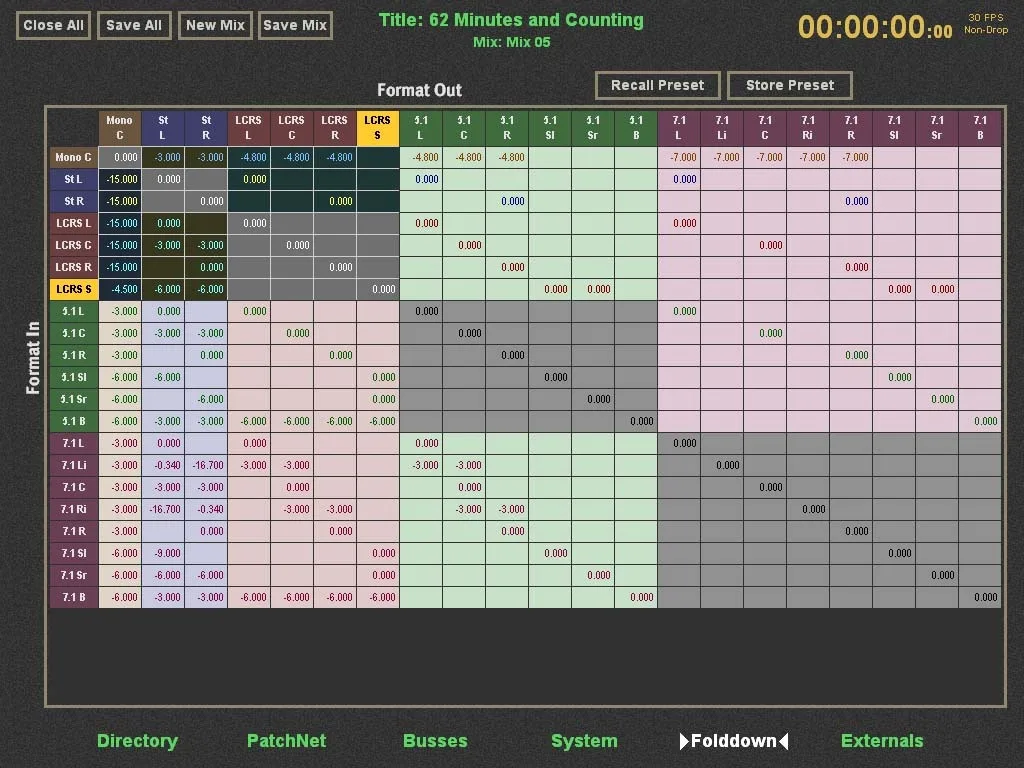

Software

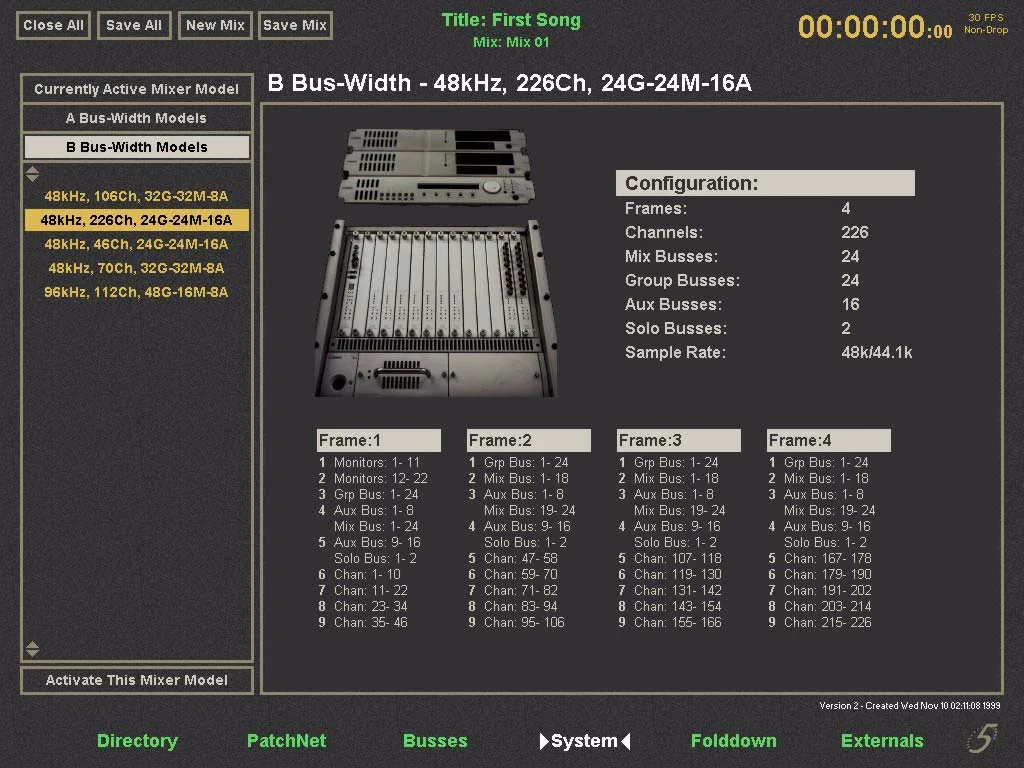

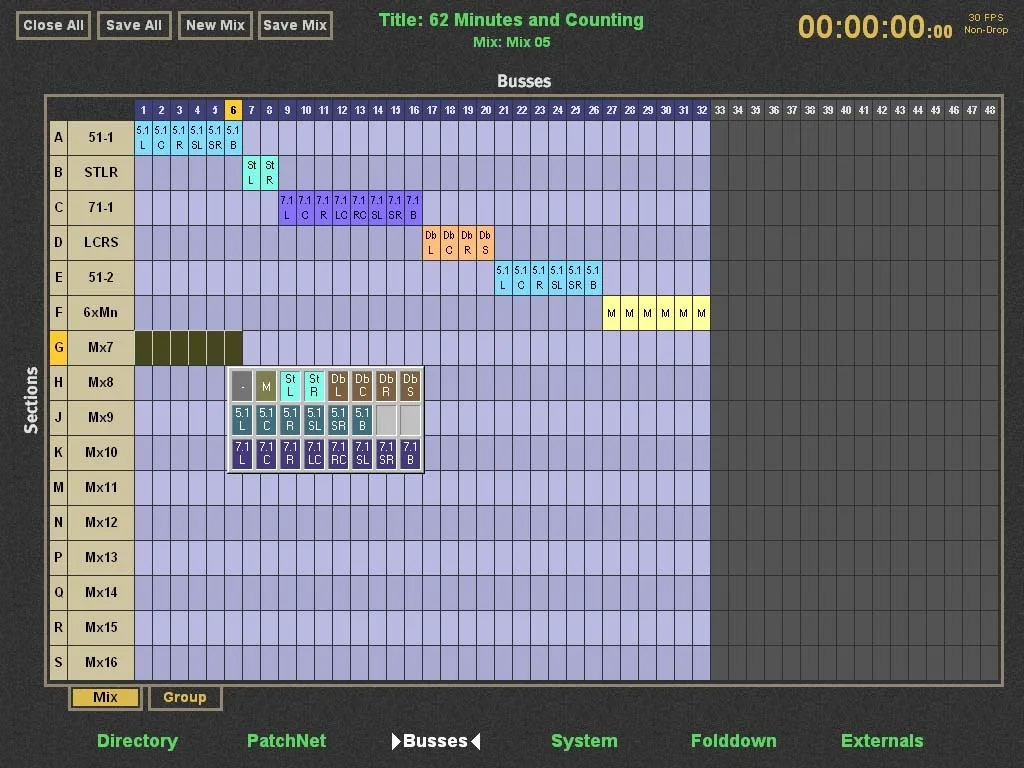

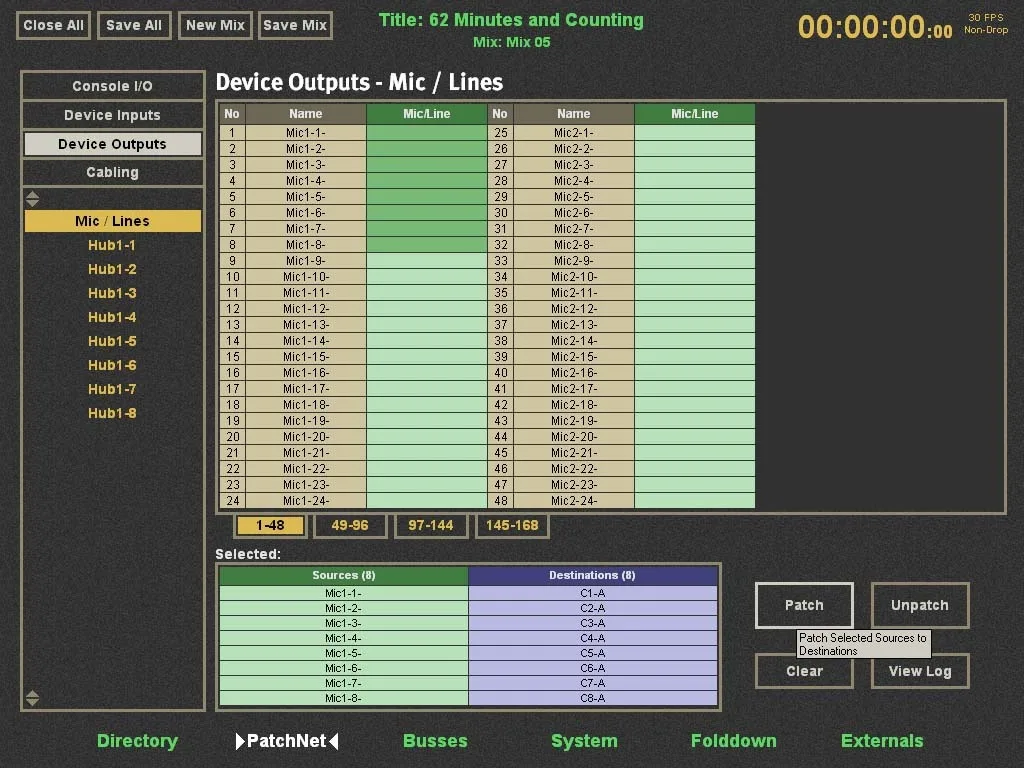

eMix v2.9

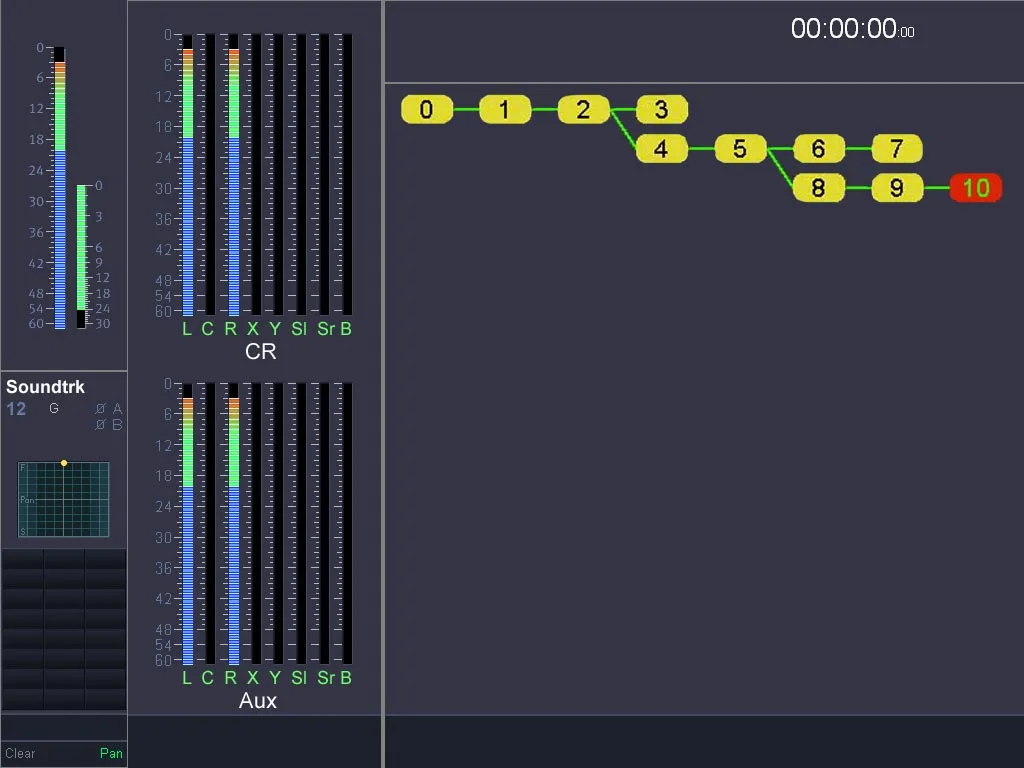

Other screenshots
Editorial & artists
Our take
History & design

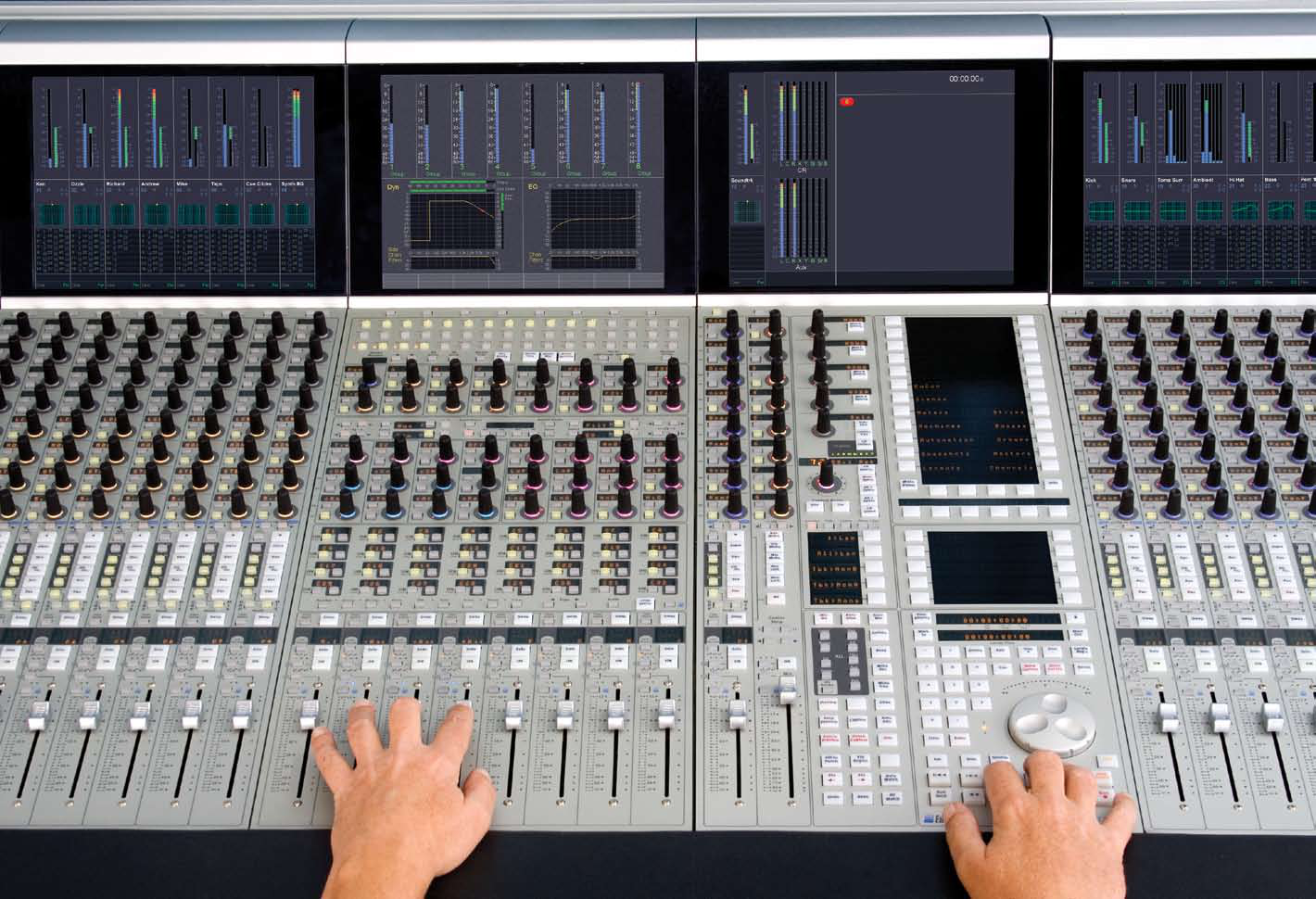

The System 5 is Euphonix's first fully digital console, unveiled at the Fall 1999 AES convention. It runs at 24-bit / 96 kHz and handles surround natively. Processing is built on the DF64 engine: DSP racks each carrying ten Analog Devices SHARC cards in floating point, with one to four DF64 engines federated per system.

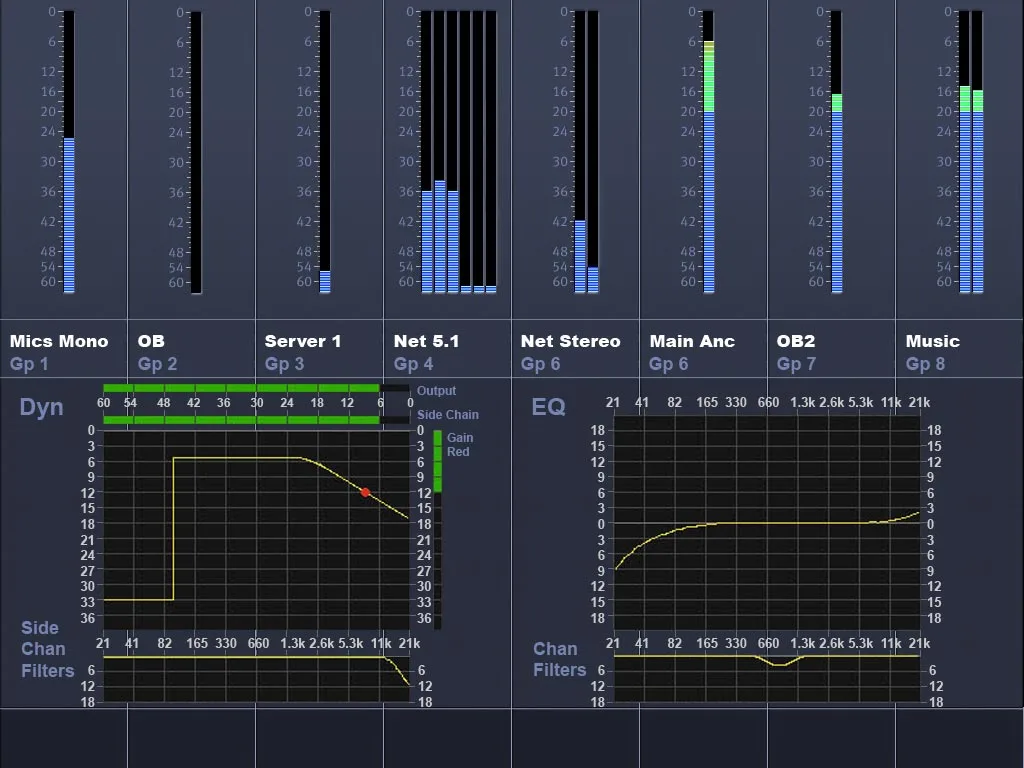

Every channel offers a 4-band parametric EQ plus 20 Hz-20 kHz high-, low- and band-pass filters. The surface is assignable: eight rotary 'Phat' encoders per strip, with built-in position LEDs, reassign on the fly (pan, EQ, dynamics...). Modular, the console configures for virtually any mixing application: large-scale film production, on-air broadcast, post-production and music.
