Description

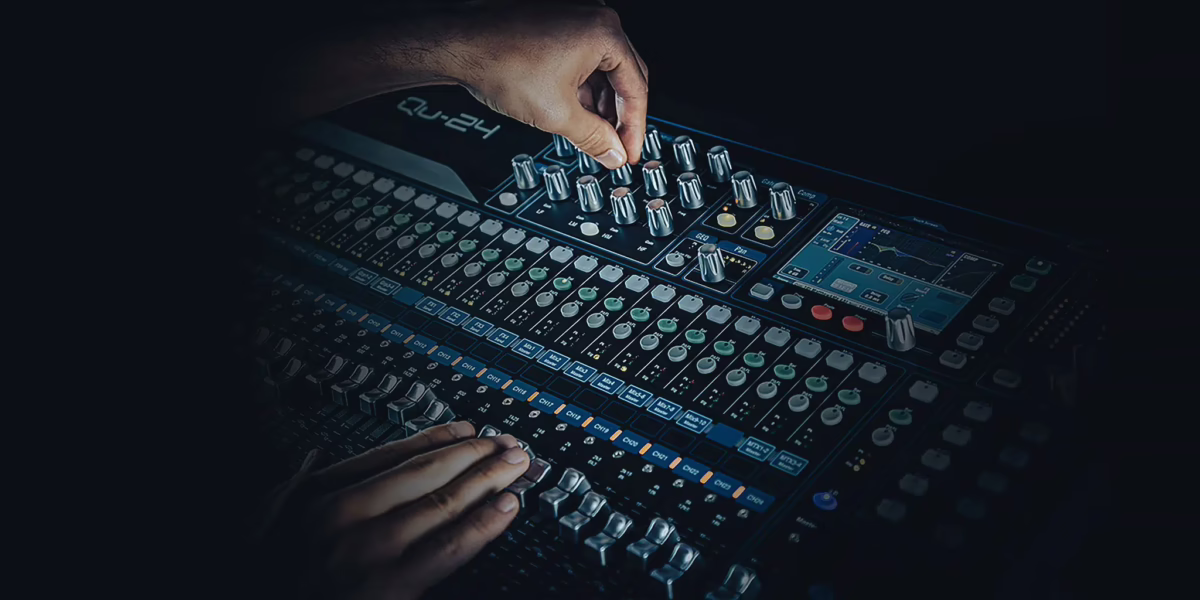

The Qu-24 puts a fader on every mic input and a big 7″ touchscreen over an Allen & Heath FPGA engine. Twenty-four recallable AnalogiQ preamps, Qu-Drive multitrack recording and a dSNAKE port for the stage make it the ideal crossover board for anyone moving from analogue to digital without endless layers.
Technical
Specifications

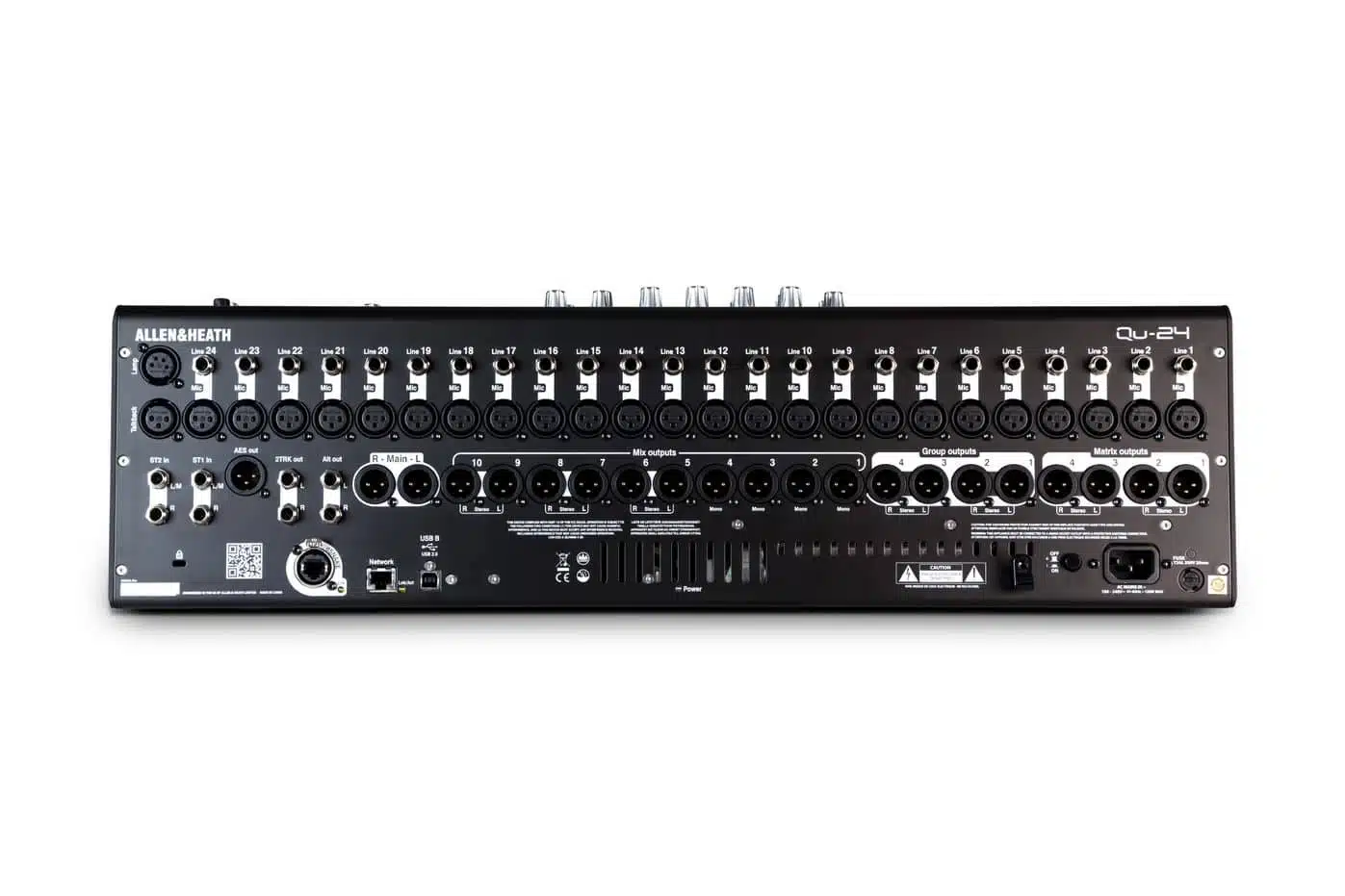

Inputs / Outputs
| Total inputs | 30 |
|---|---|
| Mic inputs | 24 |
| Mic preamps | 24 recallable AnalogiQ preamps, padless 1 dB-step gain |
| Computer interface | 32×30 USB interface, Qu-Drive multitrack recording to USB drive |
Processing
| Mix buses | 9 |
|---|---|
| Matrices | 2 |
| DCA/VCA groups | 4 |
| Max sample rate | 48 kHz |
| Bit depth | 24 bits |
| Architecture | Compact 30-in / 24-out digital mixer |
| Channels | 24 mono channels + 3 stereo channels |
| Buses | LR + 10 configurable mix buses (aux/group), 4 stereo groups, 2 stereo matrices |
| Effects and plug-ins | 4 stereo rack FX engines, 4 DCAs, 4 mute groups, 48 kHz FPGA engine |
Surface
| Physical faders | 25 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |
| Faders | 25 motorised faders (one per mono channel + master), 7″ colour touchscreen and SuperStrip |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | Qu-Drive USB 18 tracks (48 kHz / 24-bit) |
Networking
| Networking & protocols | USB / Network |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Stage boxes | dSNAKE port for AB168/AR2412/AR84 stageboxes and ME-1 personal monitoring |
Physical
| Width | 632 mm |
|---|---|
| Depth | 500 mm |
| Height | 186 mm |
| Weight | 14 kg |
Power
| Power draw | 120 W |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
Other screenshots
Accessories
Stagebox / rack
- AR2412
dSNAKE stagebox with 24 mic inputs / 12 line outputs.
- AB168
Portable dSNAKE stagebox, 16 inputs / 8 outputs.
Other
- ME-1
40-channel personal monitor mixer on the dSNAKE/Monitor network.
Documents
Editorial & artists
Our take
History & design
The Qu-24 is a compact 30-in / 24-out digital mixer from Allen & Heath, launched in 2014 alongside the Qu-32 to complete the Qu-16. It is built around an in-house FPGA DSP engine clocked at 48 kHz.
The console carries 24 recallable AnalogiQ preamps (zero-crossing detection, padless 1 dB-step gain) and presents one fader per input: 25 motorised faders (24 mono channels + master), plus 3 stereo channels. The interface centres on a 7″ colour touchscreen with a dedicated encoder and on the SuperStrip, a set of single-function physical controls (gain, HPF, 4-band PEQ, gate, compressor, GEQ, pan).
Mixing offers the LR bus, 10 mix buses configurable as aux or group, 4 stereo groups, 2 stereo matrices, 4 stereo FX engines, 4 DCAs and 4 mute groups. Digital connectivity includes a 32×30 USB interface, Qu-Drive multitrack recording to USB media, and a dSNAKE port to connect a stagebox (AB168, AR2412, AR84) or ME-1 personal monitoring over a single Cat5 cable.
