Description
The 01V96 carried on what the 01V began in 1998: a compact, affordable, fully featured digital mixer, this time at 24-bit / 96 kHz. You find it in home studios, post, small PA and light broadcast. The VCM (modelled effects) and 01V96i (USB 2.0 16×16) versions kept it relevant for nearly fifteen years.
Technical
Specifications
Inputs / Outputs
| Total inputs | 16 |
|---|---|
| Mic inputs | 12 |
| Inputs / outputs | Outputs: STEREO OUT, 4 OMNI outputs, MONITOR OUT; word clock, ADAT optical, coaxial S/PDIF 2TR, MIDI |
| Computer interface | 01V96i: USB 2.0 interface, 16 in / 16 out at 96 kHz (streaming and multitrack) |
Processing
| Mix buses | 8 |
|---|---|
| Aux sends | 8 |
| Max sample rate | 96 kHz |
| Bit depth | 24 bits |
| Bit depth (details) | Full 24-bit / 96 kHz operation (24-bit converters) |
| Channels | Up to 40 simultaneous inputs; 16 analogue inputs including 12 mic/line head amps |
| Buses | Stereo bus, 8 group buses, 8 auxiliary buses |
| Effects and plug-ins | 4 multi-effects at 44.1/48 kHz (2 at 88.2/96 kHz); VCM modelled effects on 01V96VCM and 01V96i |
| Modularity and expansion | One Mini-YGDAI slot (up to 16 I/O channels: analogue, AES/EBU, ADAT or TASCAM) |
Surface
| Physical faders | 17 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | No |
| Faders | 17 motorised faders, LCD display, data wheel |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | ADAT / AES/EBU / USB |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
01V96 Editor (Studio Manager)Graphical editor for PC/Mac to control and pre-program the console.
01V96i Editor
Other screenshots
Accessories
I/O card
- Mini-YGDAI cards (MY)
I/O expansion card in the single slot (analogue, AES/EBU, ADAT, TASCAM).
Documents
Editorial & artists
Our take
History & design
Launched in 2003, the Yamaha 01V96 is the 96 kHz version of the 01V, the mixer that invented the small-format digital desk in 1998. It runs at 24-bit / 96 kHz, handles up to 40 simultaneous inputs and offers 16 analogue inputs (12 with head amps), a stereo bus, 8 group buses and 8 auxiliary buses.

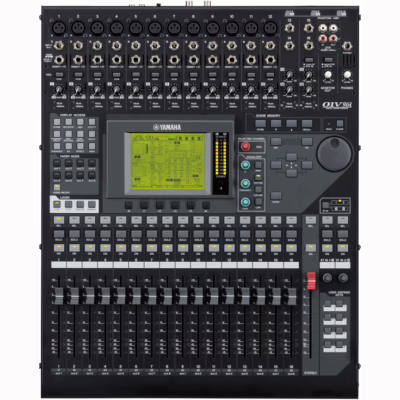

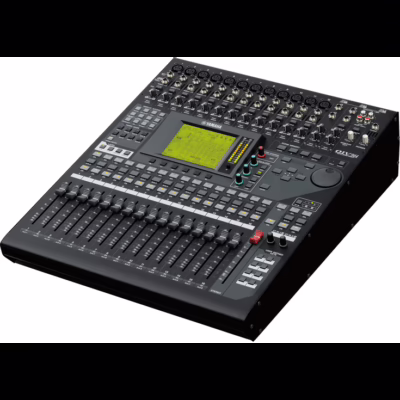

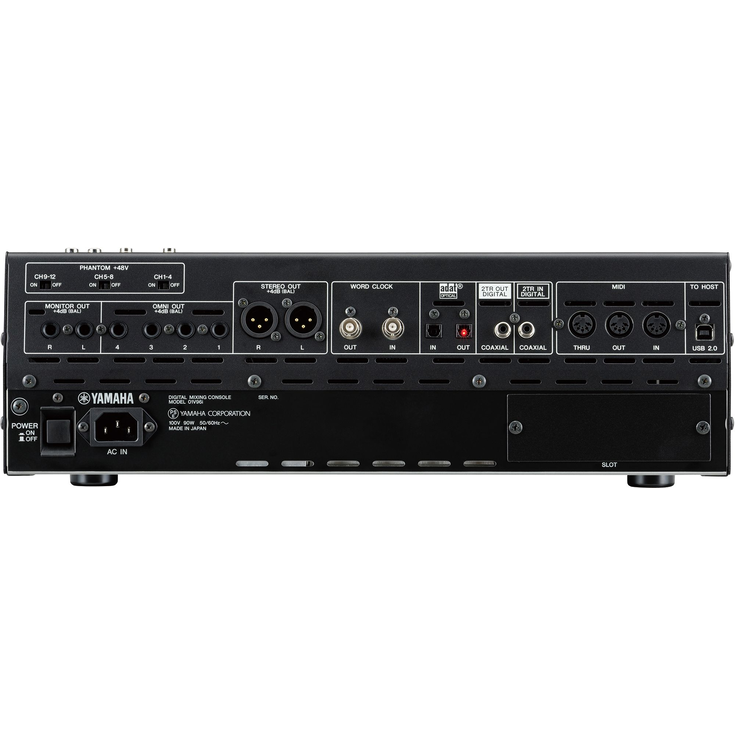

The surface has 17 motorised faders, an LCD display and a data wheel. The rear panel provides a stereo output, four OMNI outputs, a monitor output, word clock, ADAT optical, coaxial S/PDIF and MIDI, plus a Mini-YGDAI slot for 16 extra I/O channels. On effects, four multi-effects are available at 48 kHz (two at 96 kHz).
The range evolved into the 01V96VCM (Virtual Circuitry Modeling effects) and, in 2012, the 01V96i, which adds a USB 2.0 interface with 16 inputs / 16 outputs for multitrack recording. Editing is done through 01V96 Editor (Studio Manager).
