Description
Technical
Specifications
Inputs / Outputs
| Inputs / outputs | Series 52 I/O modules: AoIP interfaces, 3G/HD/SD-SDI embedder/de-embedder, MADI, DHD Gigabit Audio |
|---|
Processing
| DSP engine | XS core: integrated real-time OS |
|---|---|
| Architecture | Modular platform: control surfaces, processing cores, I/O interfaces and software combined to suit each studio |
| DSP engine (details) | Real-time operating system built into the XS Core: no PC required for daily operation |
| Sample rate | To be verified (broadcast core, likely 48 kHz, not confirmed on product docs) |
Surface
| Physical faders | 16 |
|---|---|
| Screens | 1 |
| Touchscreen | Yes |

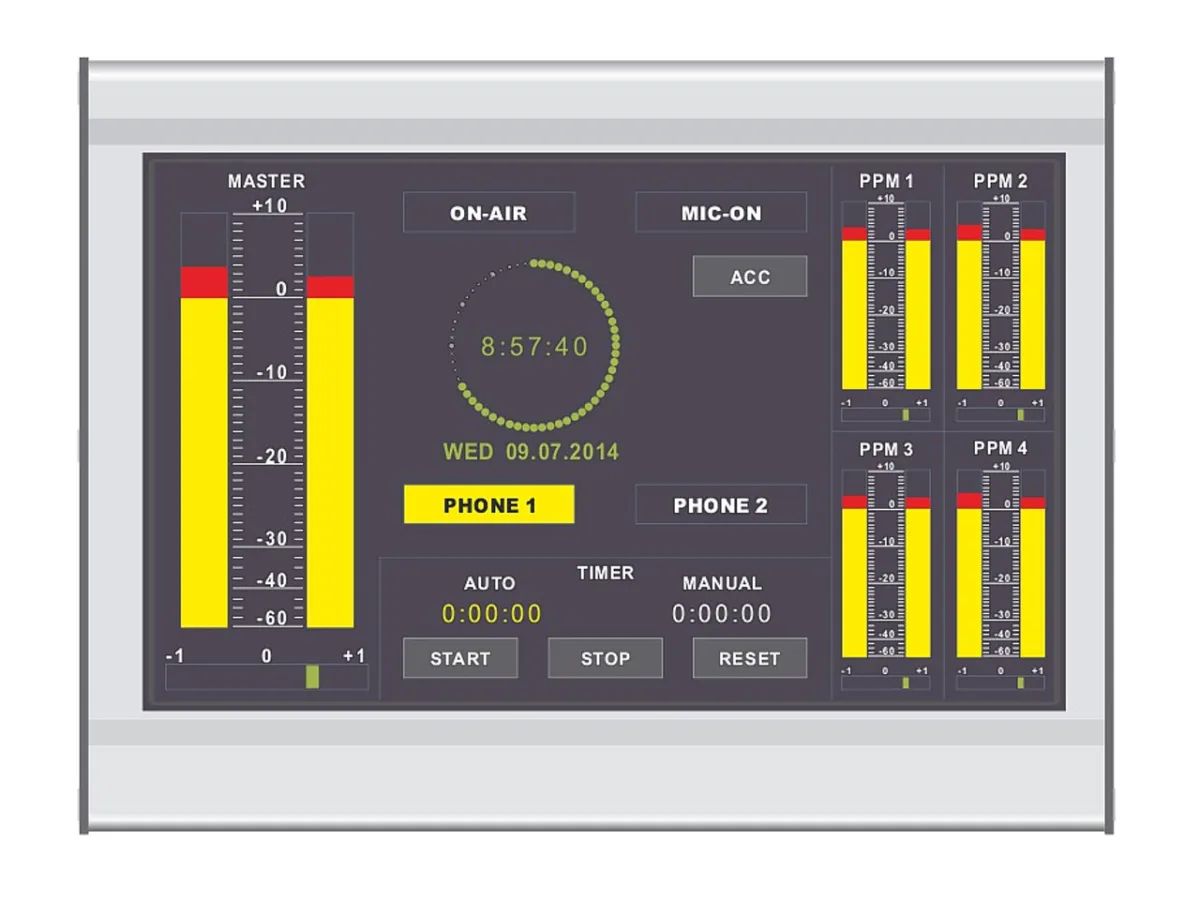

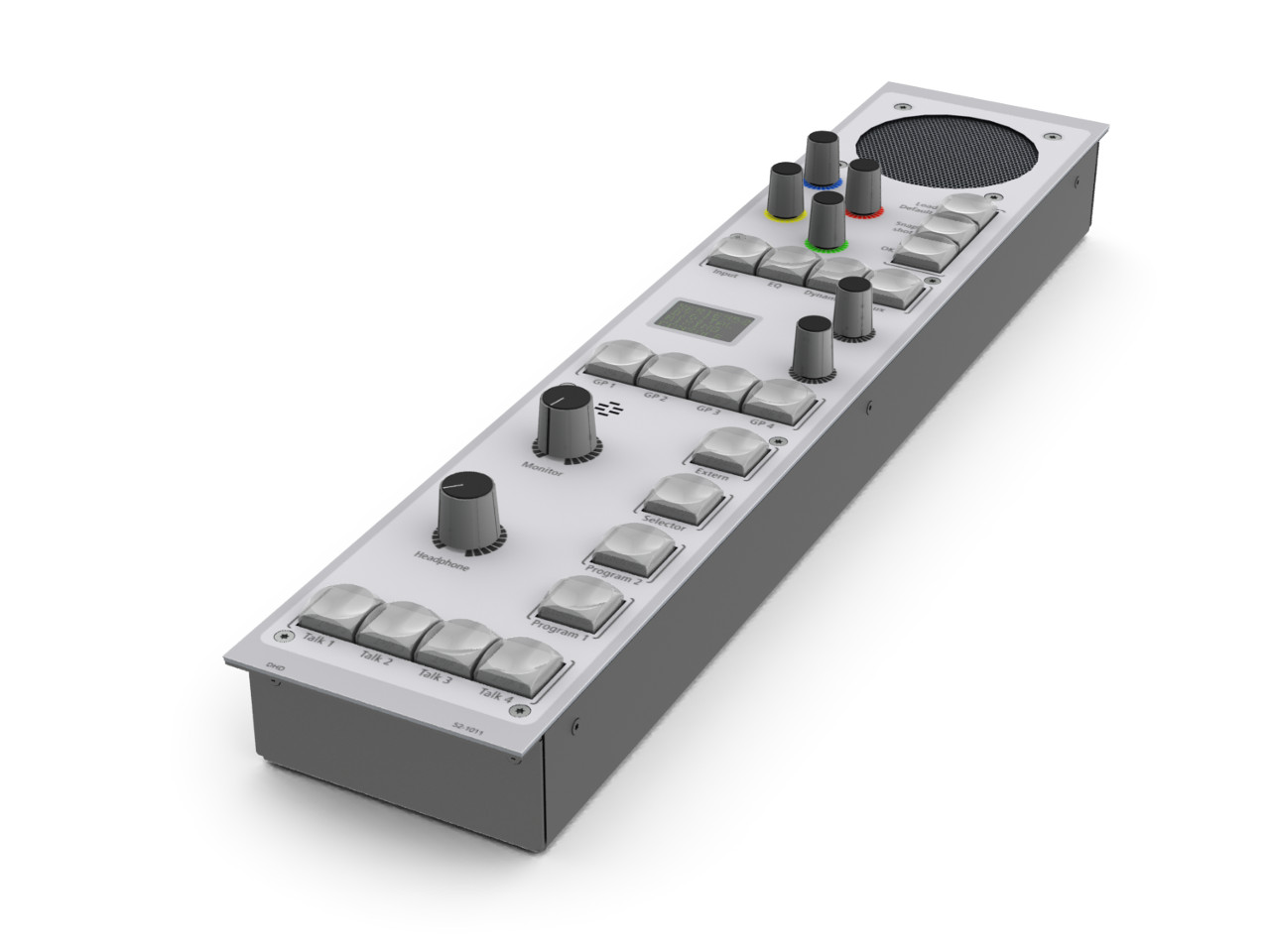

| Control surface | Surfaces of 4, 8, 12 or 16 faders + central control section (talkback mic, loudspeaker, 7" TFT touch display) |
| Faders | Fader motorisation to be verified (not stated in consulted sources) |
Recording
| Onboard recording | No |
|---|
Networking
| Networking & protocols | Dante / Ravenna / MADI |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |
| Audio networking | Each I/O Core can be fitted with an AES67/RAVENNA (52-7067) or Dante (52-7080) interface |
Other
| Variants and configurations | 52/SX, 52/MX, 52/RX and 52/DX variants |
|---|

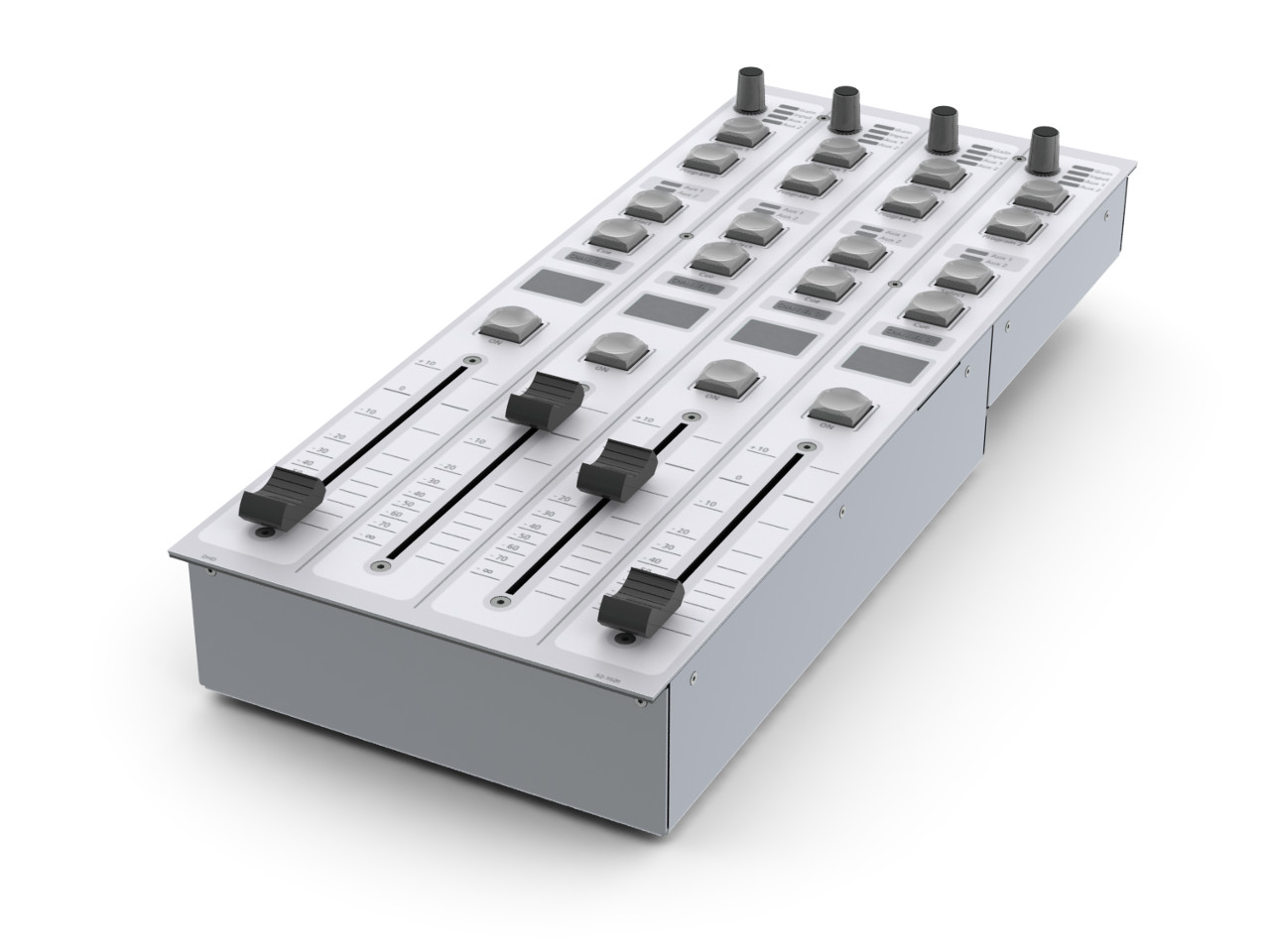

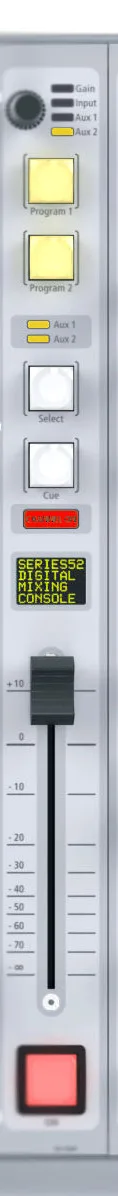

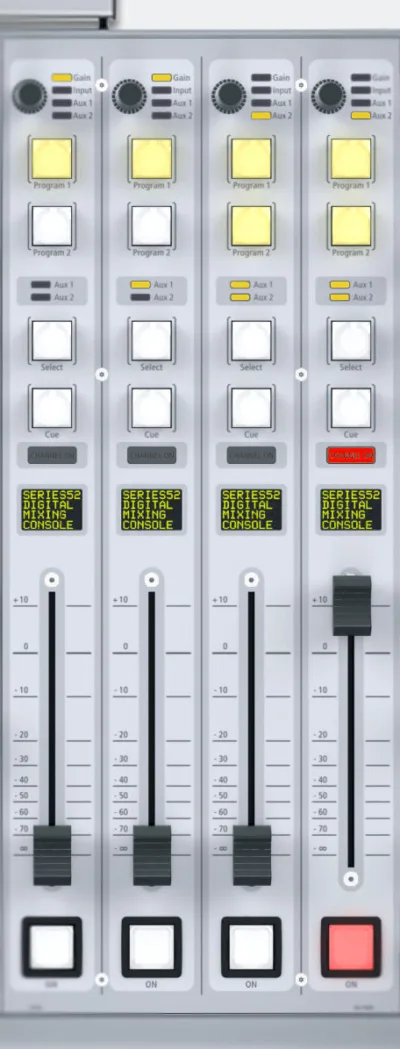

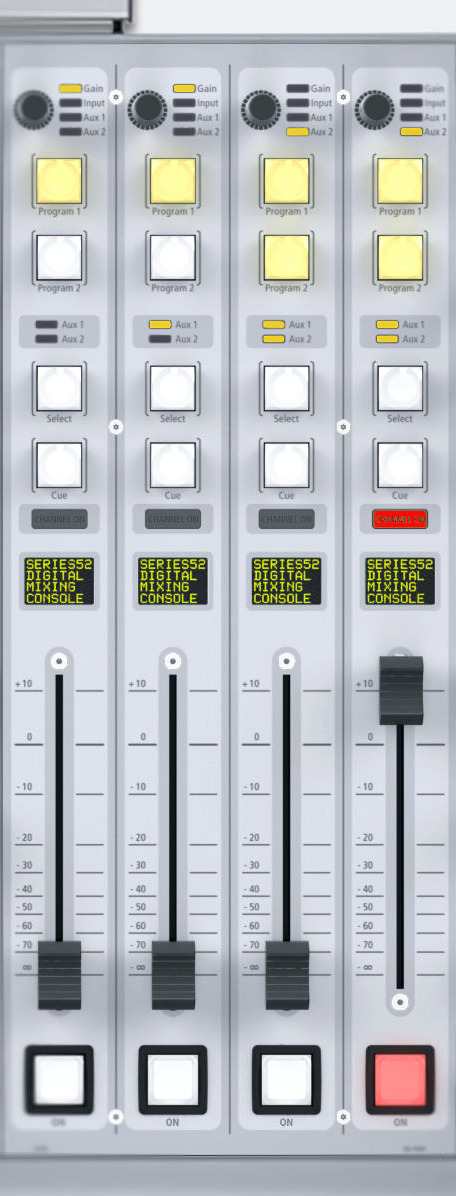

Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software

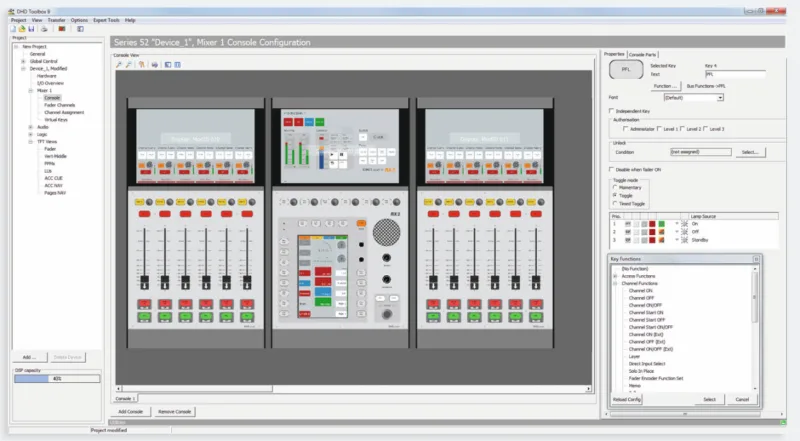

DHD ToolboxDHD configuration software to design and set up Series 52 systems (routing, surfaces, logic).

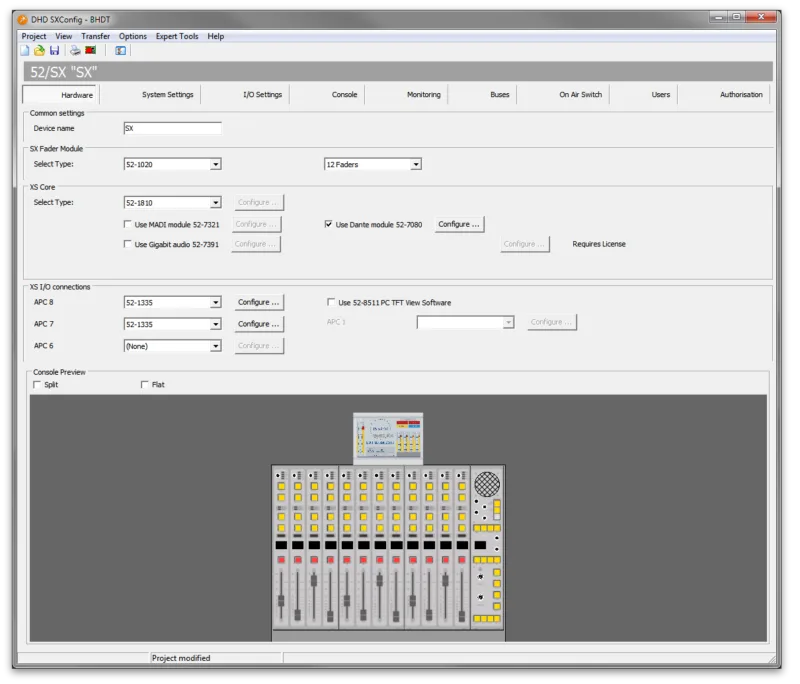

DHD SX ConfigDownload

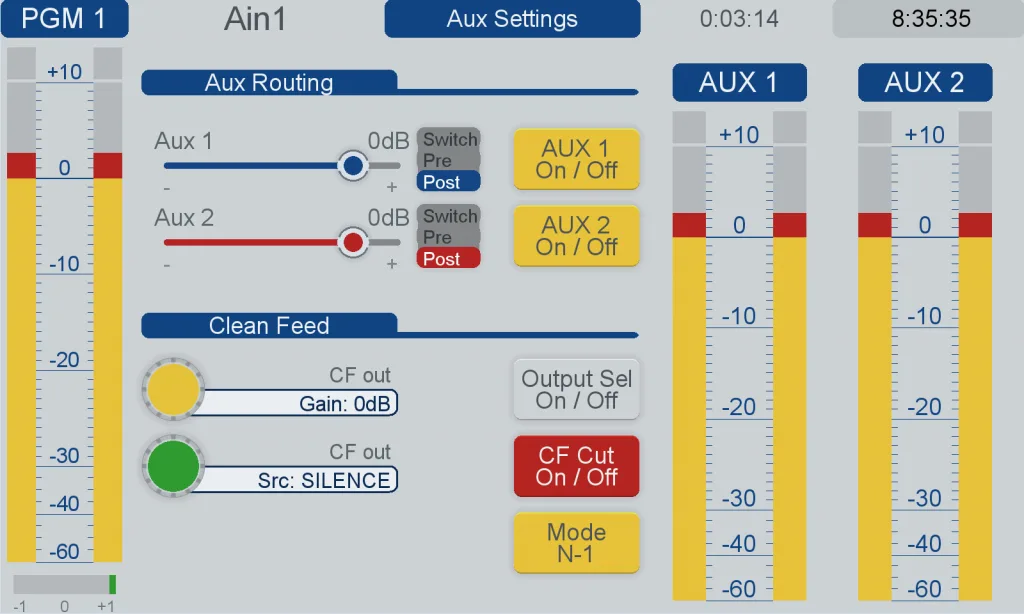

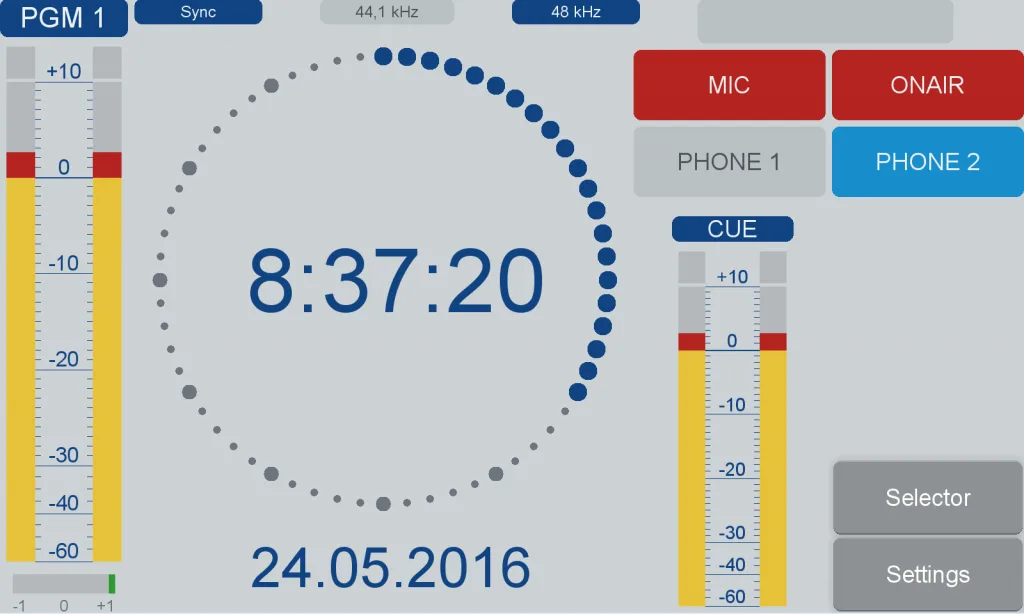

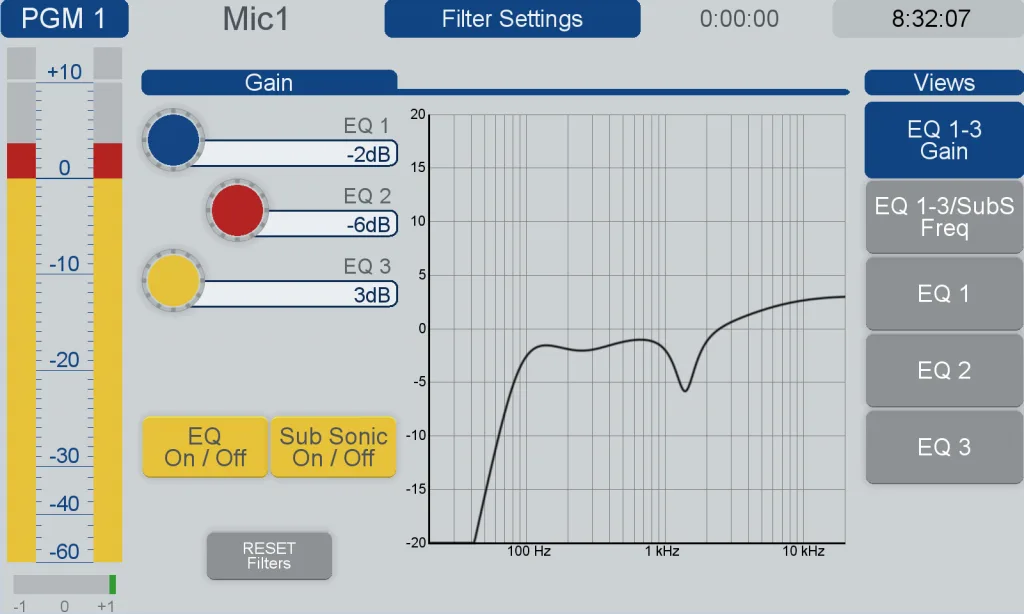

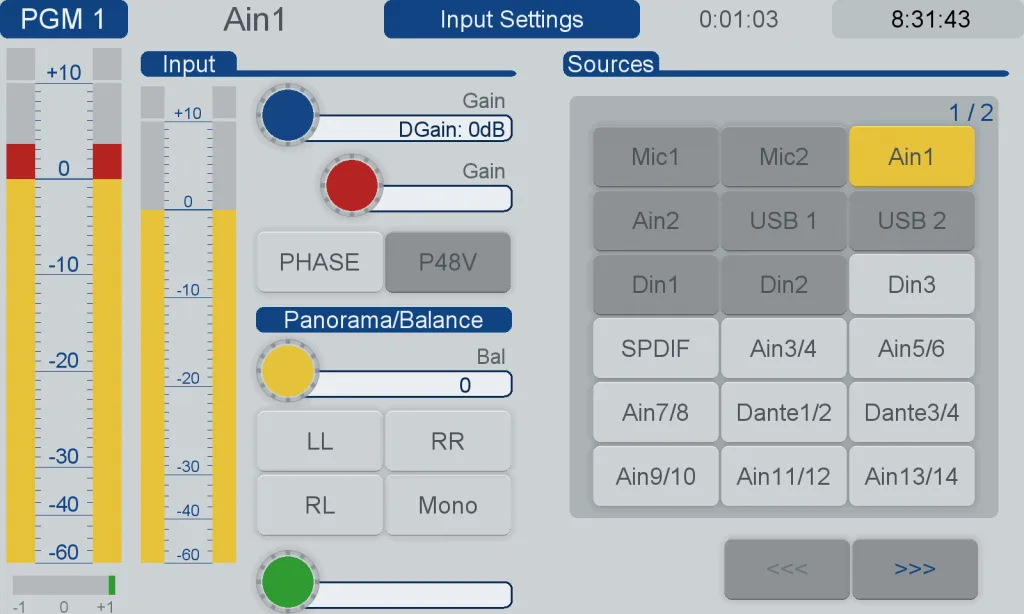

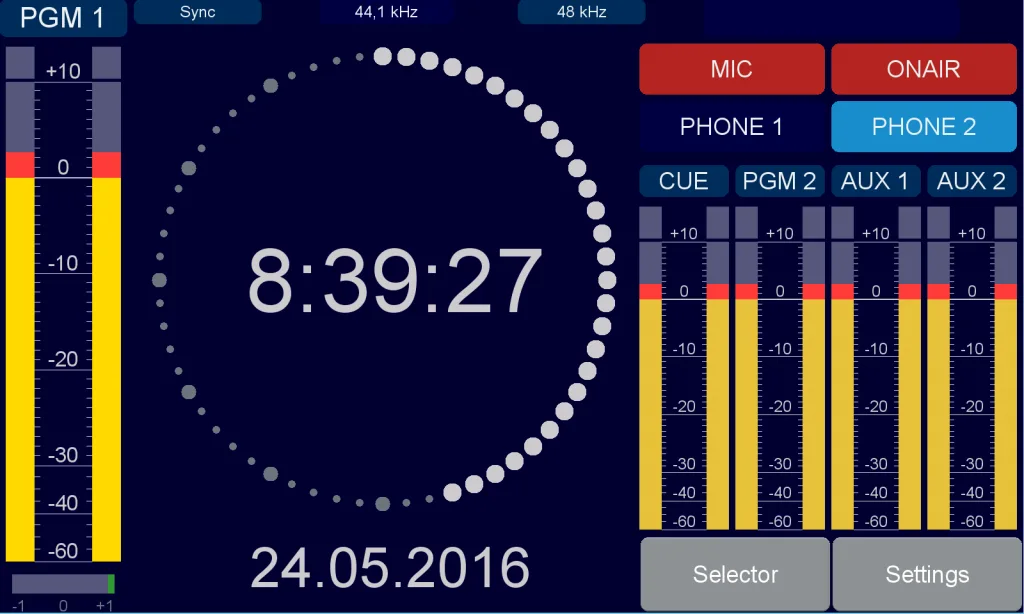

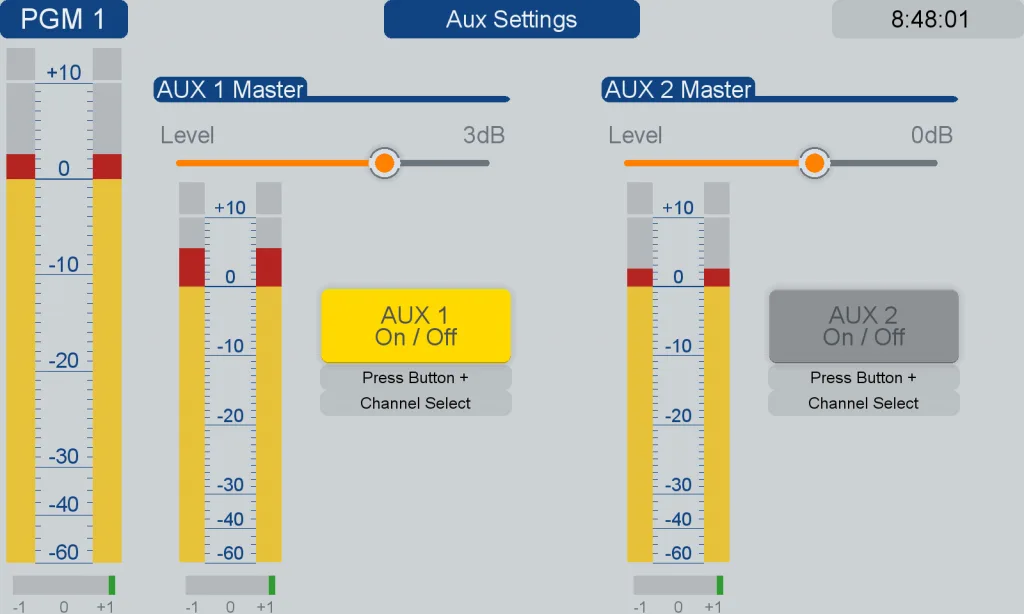

Other screenshots
Accessories
I/O card
- I/O Core / modules I/O Series 52
Series 52 I/O cores and modules (AoIP, SDI embedder/de-embedder, MADI, Gigabit Audio).
Documents
Editorial & artists
Our take
History & design
The DHD Series 52 is a modular broadcast mixing platform from German manufacturer DHD.audio, aimed primarily at radio and audio studios. Its philosophy: freely combine control surfaces, processing cores, I/O interfaces and software to suit each studio's exact needs, pairing dedicated broadcast controls with a highly configurable architecture.
The range comes in several models (52/SX, 52/MX, 52/RX, 52/DX). Surfaces offer 4, 8, 12 or 16 faders and a central section with talkback mic, loudspeaker and a 7" TFT touch display. The XS Core runs a real-time operating system, so no PC is required for daily operation.

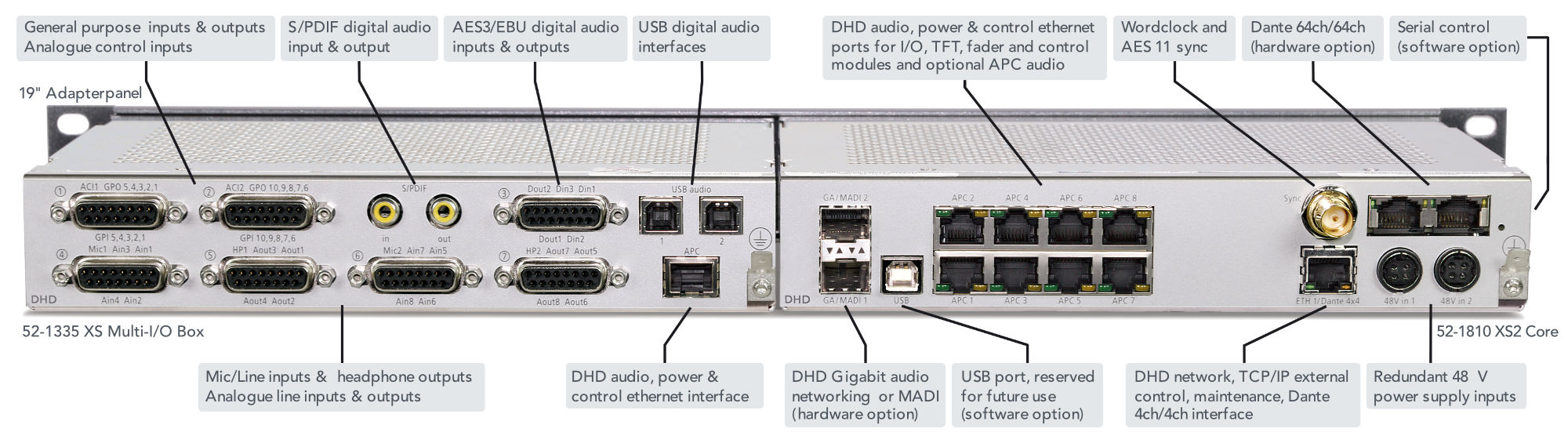

On connectivity, the Series 52 I/O modules cover AoIP interfaces, a 3G/HD/SD-SDI embedder/de-embedder, MADI and DHD Gigabit Audio; each I/O Core can be fitted with an AES67/RAVENNA (52-7067) or Dante (52-7080) interface to integrate into IP audio infrastructures.
Notable users
- RTL Radio

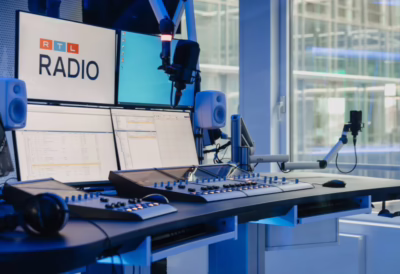

RTL Radio studios equipped with DHD Series 52 surfaces (images published by DHD.audio).
