Technical
Specifications
Inputs / Outputs
| Total inputs | 48 |
|---|---|
| Mic inputs | 8 |
| Total outputs | 8 |
| Mic preamps | 8 remote-controlled local Midas PRO mic preamps |
| Expansion cards | 1 expansion slot 64x64 (Dante, MADI, WSG/Waves, ADAT or WING-LIVE card) |
| Computer interface | Built-in 48x48 USB audio interface |
Processing
| Mix buses | 16 |
|---|---|
| Matrices | 8 |
| DCA/VCA groups | 8 |
| Max sample rate | 48 kHz |
| Processing resolution | 40 bits |
| Channels | 48 full-processing stereo input channels |
| Buses | 28 buses (4 main, 8 matrix, 16 aux), all stereo |
| Channel processing | 40-bit floating-point engine, 16 true-stereo effects engines |
| Sample rate | 48 kHz |
Surface
| Physical faders | 24 |
|---|---|
| Motorized faders | Yes |
| Screens | 1 |
| Touchscreen | Yes |
| Faders | 24 motorized 100 mm faders across 3 sections |
| Screens (details) | 10.1" capacitive touchscreen (1280 x 800) |
Recording
| Onboard recording | Yes |
|---|---|
| Recording type | 64-track SD (WING LIVE card) |
Networking
| Networking & protocols | AES50 / Dante / MADI / ADAT / USB / SoundGrid |
|---|---|
| Redundant PSU | No |
| Redundant networking | No |

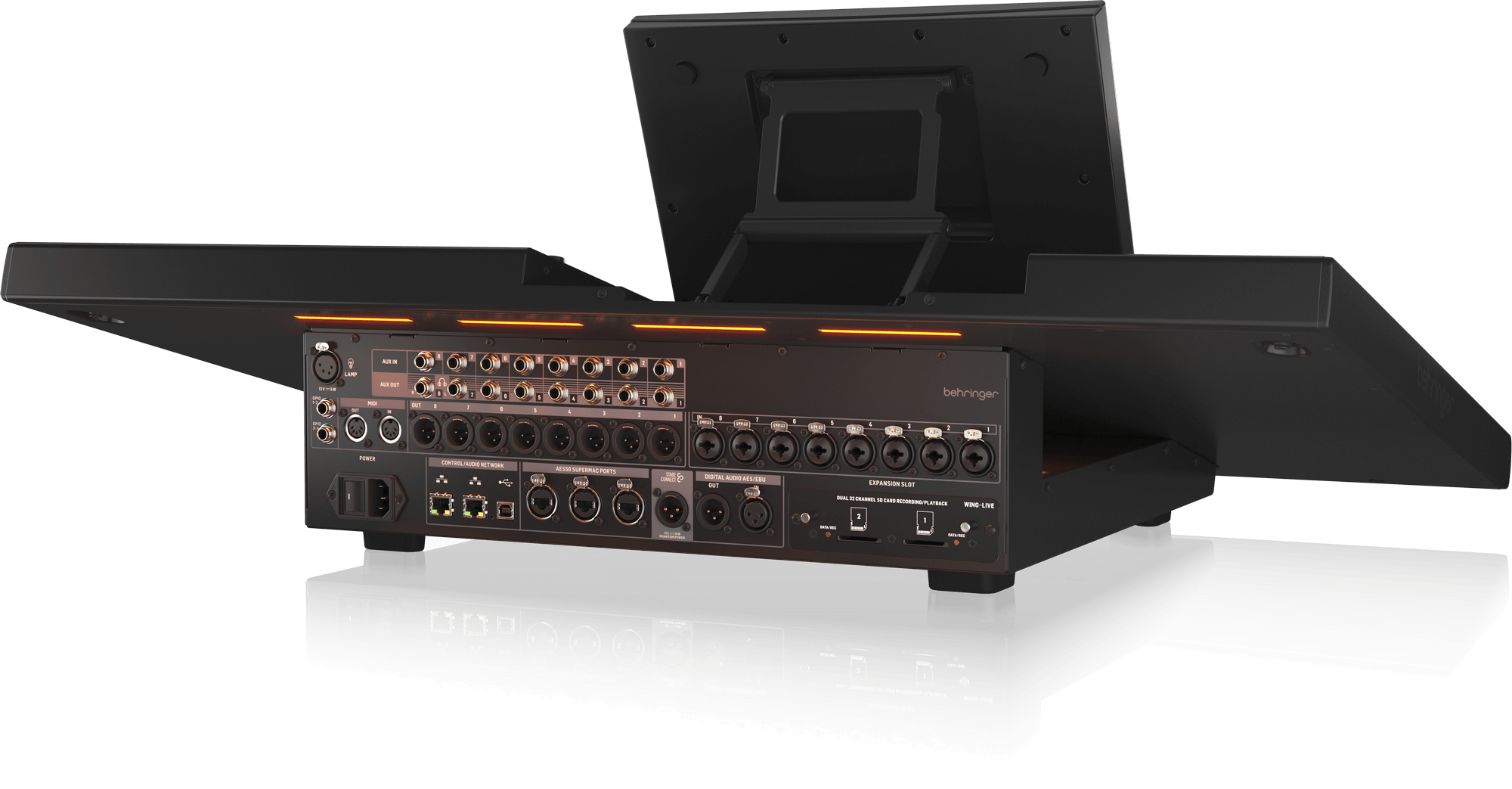

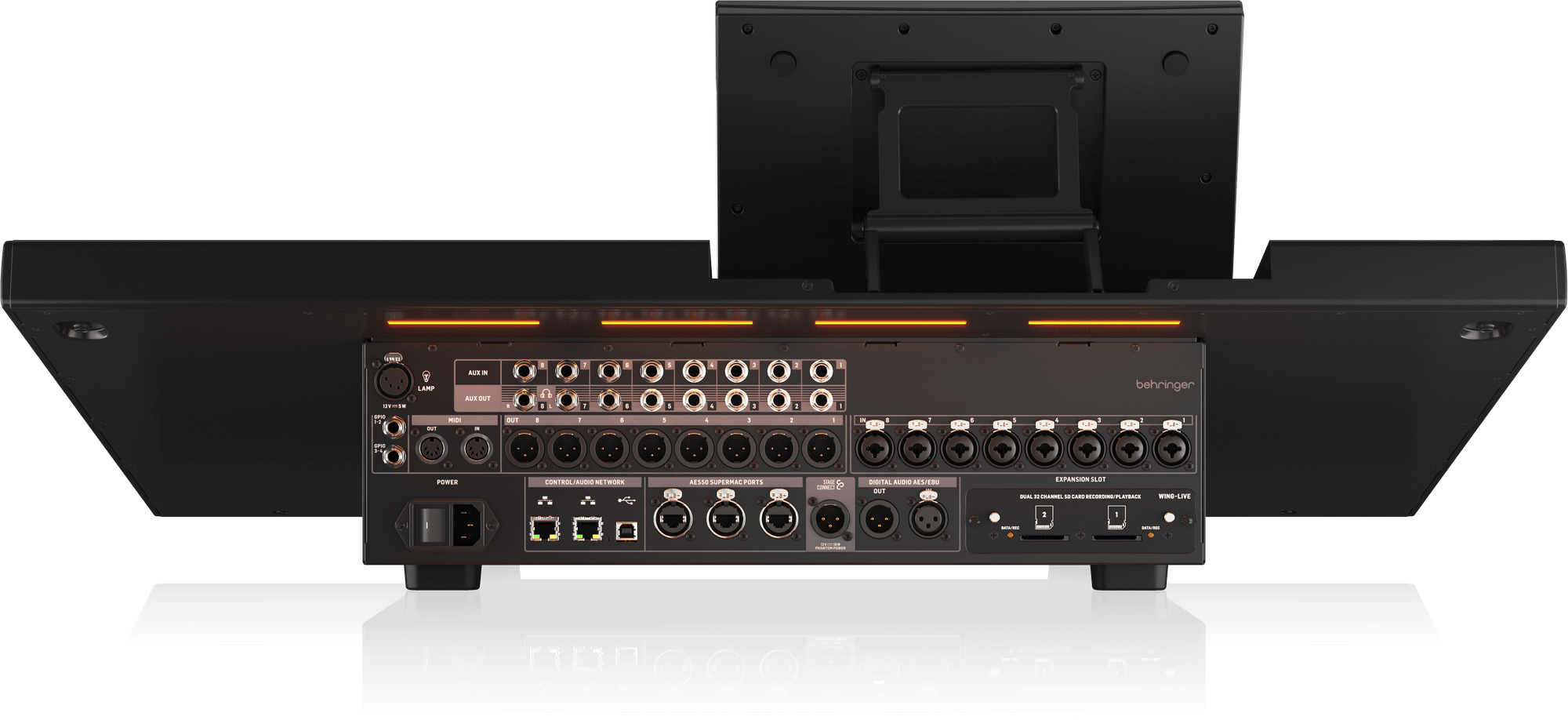

| Audio networking | 3 AES50 SuperMAC ports (up to 144 in / 144 out) · 1 StageConnect port (32 bidirectional channels over one XLR cable) |
Physical
| Width | 870 mm |
|---|---|
| Depth | 575 mm |
| Height | 201 mm |
| Weight | 24 kg |
Power
| Power draw | 130 W |
|---|
Strip & details
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Rotate your phone to landscape for a better view of the strip.
Software
WING-EditOfficial Wing computer editor/remote: full mix control, offline scene editing and a mirror of the surface.Download
WING CopilotDownload
WING QDownload
Other screenshots
Accessories
I/O card
- WING-LIVE
Multitrack record/playback card to dual SD cards (up to 64 tracks) for the expansion slot.
- WING Dante 64x64
Audinate Dante 64-in / 64-out expansion card for the Wing slot.
Stagebox / rack
- S32 (stagebox)
32-in / 16-out AES50 stagebox, shared with the X32 family, to place preamps on stage.
Documents
Editorial & artists
Our take
History & design
The Behringer Wing is a compact digital mixing console introduced in 2019. It handles 48 stereo input channels and 28 buses (4 main, 8 matrix, 16 aux), all driven by a 40-bit floating-point engine at 48 kHz. The surface carries 24 motorized 100 mm faders in three sections plus a 10.1-inch touchscreen at the center of the workflow.
Each channel has a full processing chain and five plug-in slots modeling vintage EQs and compressors. Connectivity relies on 8 local Midas PRO preamps, 3 AES50 SuperMAC ports compatible with X32-family stageboxes, a StageConnect port (32 channels over one XLR cable) and a 64x64 expansion slot accepting Dante, MADI, ADAT, Waves SoundGrid cards or the WING-LIVE recording card. A 48x48 USB audio interface is built in.
