The 500 Series format has one flaw and one strength. The flaw: you fill a rack fast, then run out of ideas for the last slot. The strength: every module does one thing and does it well, with a real analogue circuit behind the front panel. Compressors are especially well served here, because compression is exactly where the circuit shows its character.
The idea is an old one from console days: a desk for the workflow, dedicated boxes for the character. A 500 lunchbox brings that logic down to a desktop rack. And since the Drawmer FC1 and OC1 landed, the question keeps coming back: now that I have a FET and an opto, what goes next to them?
Honest answer first: the two Drawmers cover FET (the FC1, fast, punchy) and opto (the OC1, smooth, gentle). That leaves two families to explore – VCA and diode-bridge – plus a few modules that do the FET and opto jobs better, differently, or cheaper. That is what this list does: seven 500 Series compressors sorted by what they actually do, not by their spec sheet. We are talking hardware here, mono or stereo modules for a 500 rack – not plug-ins.
FET, for hitting (the FC1’s turf)
FET means speed. Near-instant attack, a bold stamp on transients, that grain everyone associates with the 1176. The Drawmer FC1 plays right there: if you want the same family with a different signature, one name really stands out in the 500 format.
Purple Audio Action
The Purple Audio Action (part 5C1) is a FET compressor derived from the company’s own MC77, itself an openly stated homage to the 1176. You get Purple’s well-regarded discrete FET circuit, five ratios from a gentle 4:1 to a 20:1 brick wall, and the famous all-buttons-in “nuke” mode for deliberately mangled sounds.
Against the FC1, the Action plays the same role – hitting, thickening, pushing a snare, a bass or a vocal forward – but with the transformers and discrete parts that built Purple’s reputation, and a higher price. It is the “premium” FET of the list, where the FC1 aims for accessibility.
The essentials: Purple Audio · around $825 · mono 500 Series module, discrete FET circuit (1176-style)
See the Purple Audio Action on the Purple Audio site
Opto, for stroking (the OC1’s turf)
Optical is the opposite of FET: soft, gradual gain reduction that follows the music rather than fighting it. The Drawmer OC1 is the modern, affordable take. To move up a notch in colour, you have to reach for the tube.

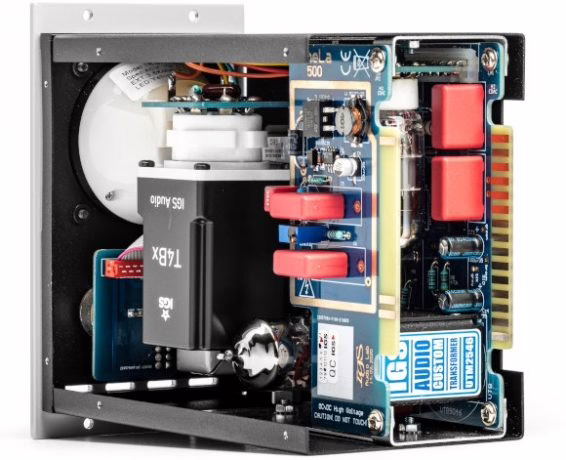

IGS Audio One LA 500
The IGS Audio One LA 500 is a high-voltage tube optical compressor in the spirit of the LA-2A. Each unit is hand-assembled with matched components and a JJ tube – a real valve stage, not a colour emulation.
Next to the OC1, the One LA 500 adds the tube stage and the roundness that comes with it: ideal on a lead vocal, a fingered bass or an acoustic bus when you want glue without hearing the compressor work. It is the “character” module of the opto family – pricier and slower than the OC1, but richer in harmonics.
The essentials: IGS Audio · €925 · mono 500 Series module, tube opto (LA-2A style)
See the IGS Audio One LA 500 on the IGS Audio site
VCA, to hold dynamics and glue a bus
VCA means control. Precise settings, fast and repeatable timing, little colour by default: this is the “tool” family, the compressors that hold a dynamic without signing the sound. It is also the home of the famous bus glue. Three modules, three budgets, three jobs.

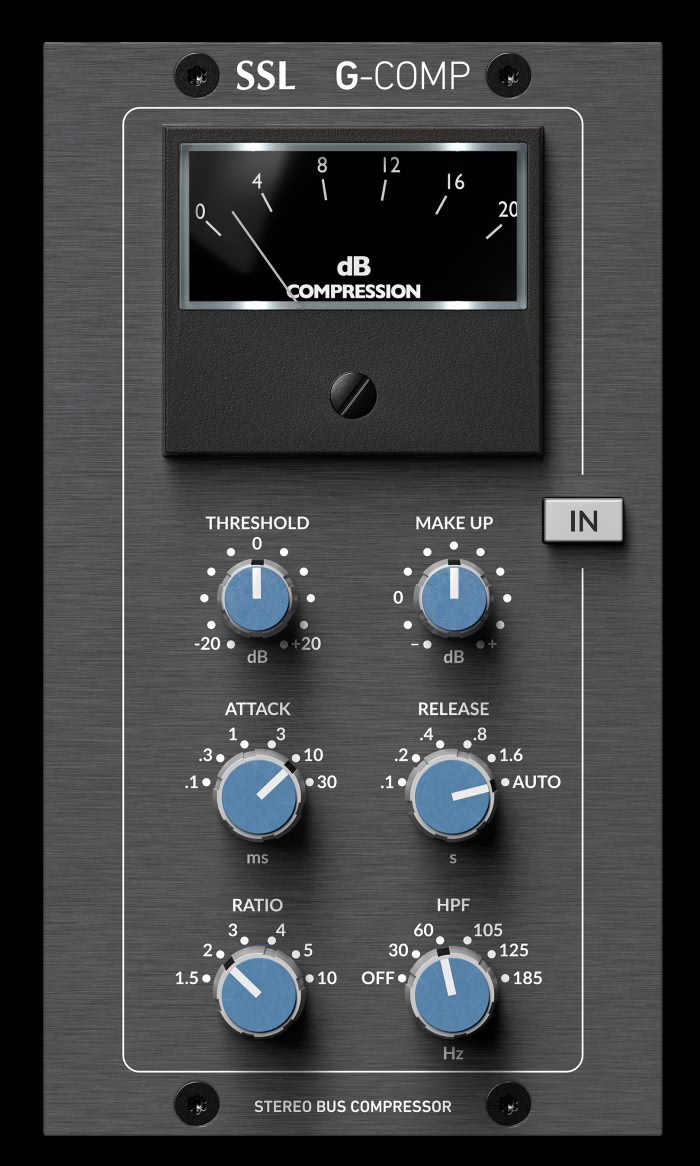

SSL Stereo Bus Compressor 500
The SSL Stereo Bus Compressor (also sold as the G-Comp) carries the centre-section compressor from the 1980s G-Series console, the one that glued thousands of mixes. It is a stereo module taking two slots, now with six ratios (up from three) and an Auto release.
Let’s be clear about the job: this is not an FC1 rival on a snare. It is a bus compressor. You put it across the full mix or a subgroup for cohesion, punch and that recognisable “SSL” push. If you only have room for one stereo compressor in your rack, this is the one.
The essentials: Solid State Logic · around $1,300-1,600 depending on dealer · stereo 500 Series module (2 slots), bus VCA
See the SSL Stereo Bus Compressor on the Solid State Logic site

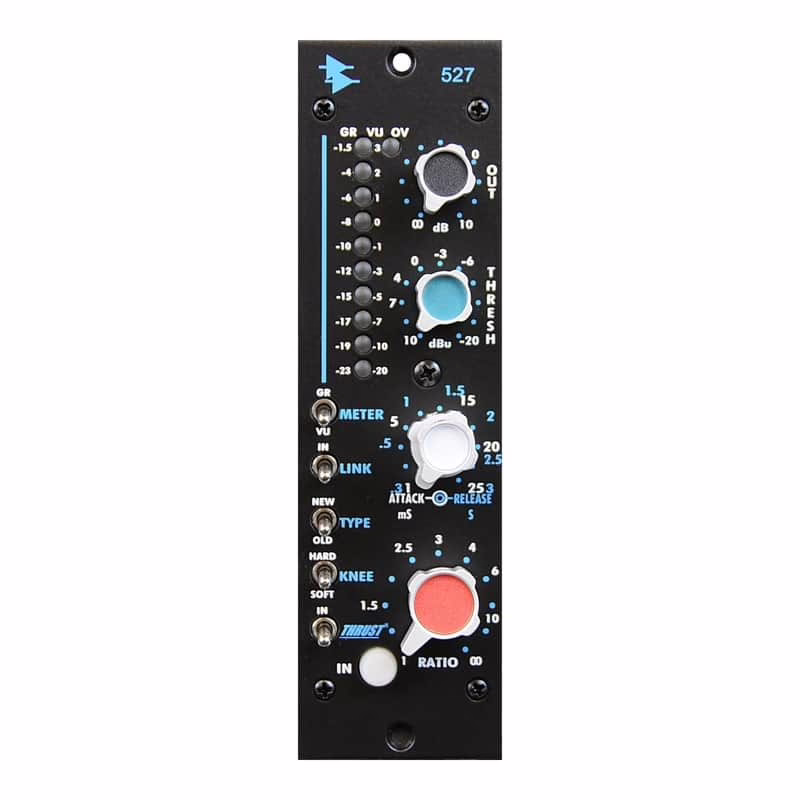

API 527
The API 527 borrows its architecture from the company’s 225 console limiter and 2500 bus compressor: discrete VCA, the patented THRUST circuit to keep the low end punchy, and above all a feedforward / feedback switch that swings the module from modern to vintage. A soft/hard selector completes the picture.
It is the most versatile VCA on the list: fast and coloured enough to hit a track the API way, clean and musical enough to hold a bus in mono. The famous API “punch” in a 500 module, with a flexibility the FC1 doesn’t have.
The essentials: API · around $1,135 · mono 500 Series module, discrete VCA with THRUST
See the API 527 on the API site

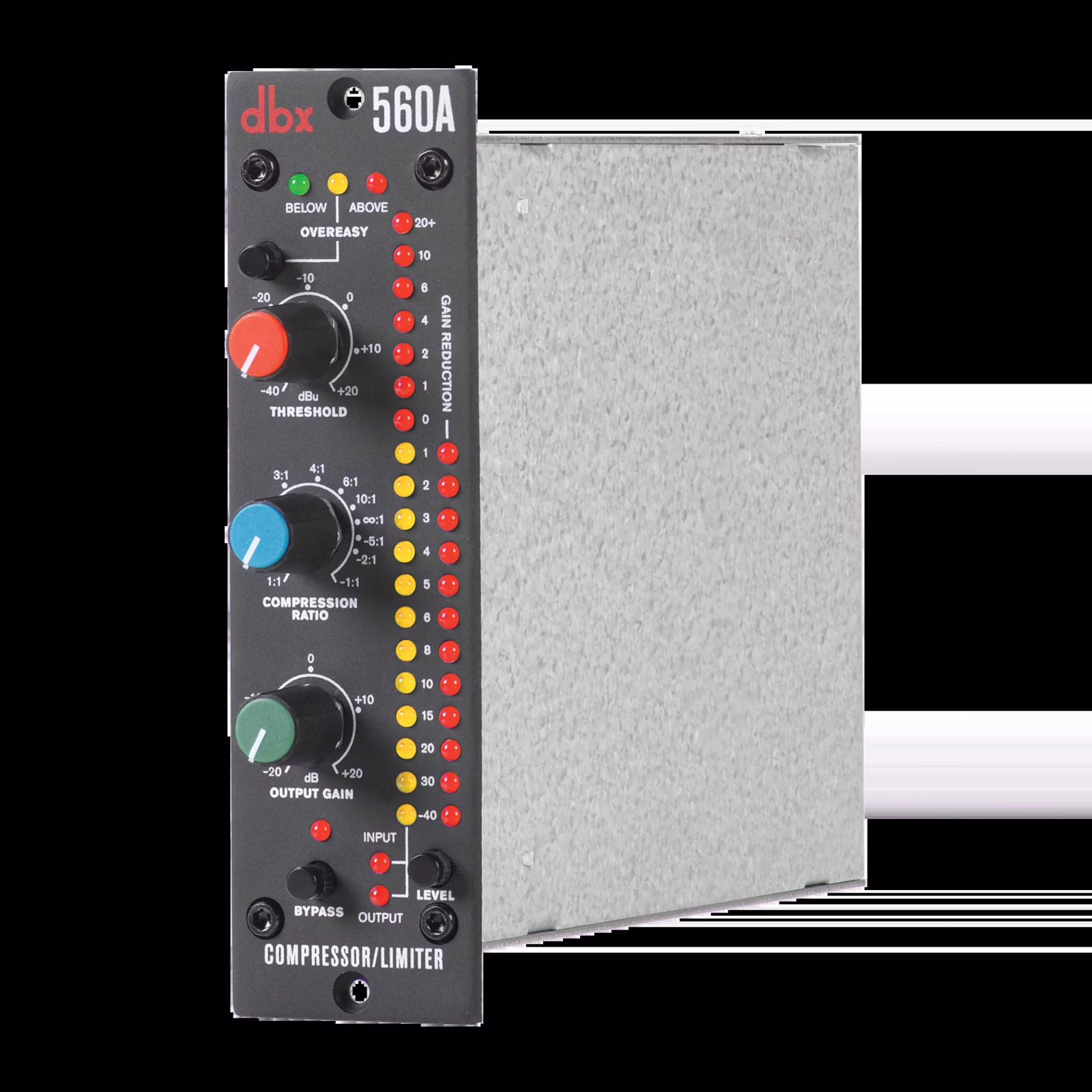

dbx 560A
The dbx 560A carries the 160A circuit, a live and studio rack staple for decades: three knobs, switchable OverEasy and hard-knee curves, detailed I/O metering. Nothing wasted.
It is the VCA entry point of the list, and by far the cheapest module. On a bass, a snare or a drum bus, it does the job without fuss and without breaking the bank. At this price it is often the first compressor people put in a rack – even before the Drawmers.
The essentials: dbx · around $299 · mono 500 Series module, 160-style VCA (OverEasy)
See the dbx 560A on the dbx site
Diode-bridge and transformers, for that “British” colour
Neither the FC1 nor the OC1 covers this family, and this is where the picture really fills in. The diode-bridge – the circuit of the legendary Neve 2254 – compresses by colouring: transformers, harmonics, that dense, “glued” quality typical of the British sound. Two modules, one affordable, one premium.

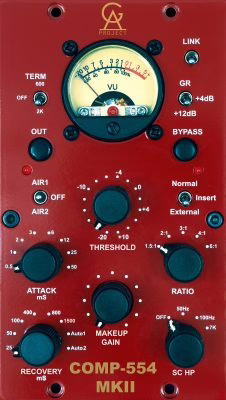

Golden Age Project COMP-554 MK2
The Golden Age Project COMP-554 MK2 is a Class A diode-bridge compressor built in the spirit of the 1969 Neve 2254: fully discrete signal path, transformers (with an optional Carnhill vintage-spec upgrade), stepped controls, sidechain filters, two Air EQ bands and a stereo link to pair them.
It is the honest gateway to the 2254 sound. It doesn’t have the finish of a several-thousand-dollar module, but it delivers real diode-bridge colour at a mid-range price. On matched overheads, a vocal or a bass, it gives that “old console” grain that neither a VCA nor a FET can produce.
The essentials: Golden Age Project · around $429 · mono 500 Series module, diode-bridge (Neve 2254 style)
See the Golden Age Project COMP-554 MK2 on the Golden Age site
Rupert Neve Designs 535
The Rupert Neve Designs 535 revisits the diode-bridge topology of the Neve classics, including the 2254, but reworked by the master himself. Its signature: the “Timing” control, which blends several attack and release constants to move from discreet compression to a firmer grip, without ever losing musicality.
It is the premium diode-bridge of the list. More subtle and refined than the Golden Age, with the house transformer colour, it shines when you want density without aggression – on a vocal, a bus, a whole mix. The price gap with the COMP-554 buys you finesse and consistency.
The essentials: Rupert Neve Designs · around $999 · mono 500 Series module, diode-bridge with Timing control
See the Rupert Neve Designs 535 on the Rupert Neve Designs site
The quick recap table
| Module | Maker | Ballpark price | The job in a word |
|---|---|---|---|
| Purple Audio Action | Purple Audio | ~$825 | Hit (FET) |
| IGS Audio One LA 500 | IGS Audio | €925 | Stroke (tube opto) |
| SSL Stereo Bus Compressor | Solid State Logic | ~$1,300-1,600 | Glue a bus (stereo VCA) |
| API 527 | API | ~$1,135 | Versatility (VCA) |
| dbx 560A | dbx | ~$299 | Affordable control (VCA) |
| Golden Age COMP-554 MK2 | Golden Age Project | ~$429 | Affordable 2254 colour (diode) |
| Rupert Neve Designs 535 | Rupert Neve Designs | ~$999 | Premium Neve colour (diode) |
Which one should you pick?
It depends on what your rack is already missing. If you started from the Drawmer FC1 and OC1, you have FET and opto: the first useful move is a versatile VCA. The dbx 560A does the job for next to nothing; the API 527 does it better and more flexibly if the budget allows.
If you want the reference in a family: the Purple Audio Action for “1176” FET, the IGS One LA 500 for “LA-2A” tube opto, the SSL Stereo Bus Compressor to glue a whole mix in stereo. And if colour is what you lack, start with the Golden Age COMP-554 MK2 to taste diode-bridge without overspending, then step up to the Rupert Neve Designs 535 when you want the refined, consistent version.
One practical note: a 500 rack isn’t only compressors. Mind the input too – a good 500 Series preamp shapes the result as much as a compressor – and on the processing side, always compare what a software channel strip does before spending on hardware. If you are still weighing the bigger picture, our take on analogue vs digital consoles applies here too: the right hardware link earns its place when it brings something audible. On 500 Series compression, it does.
